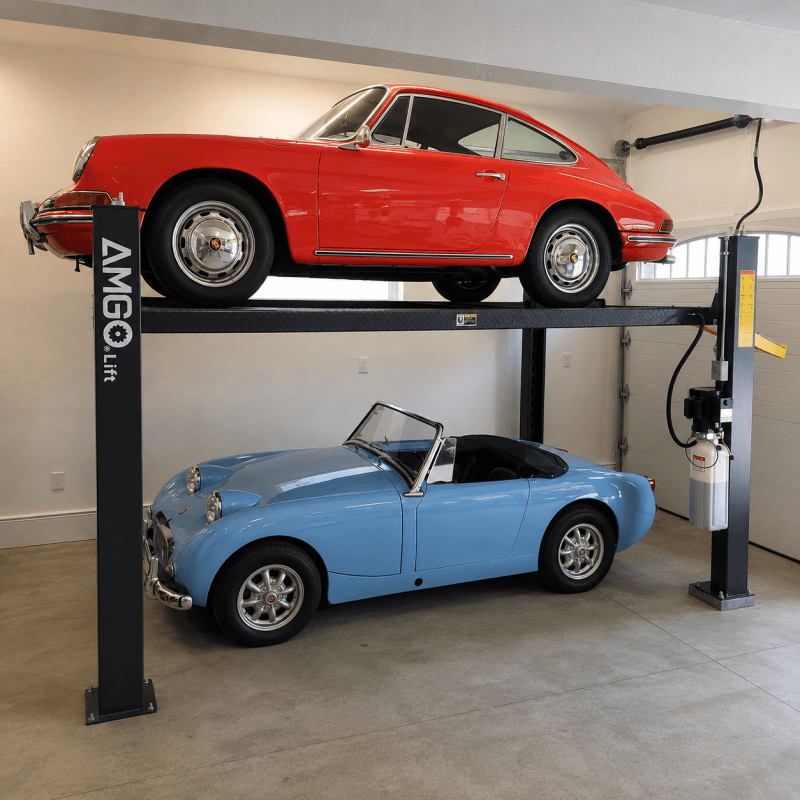

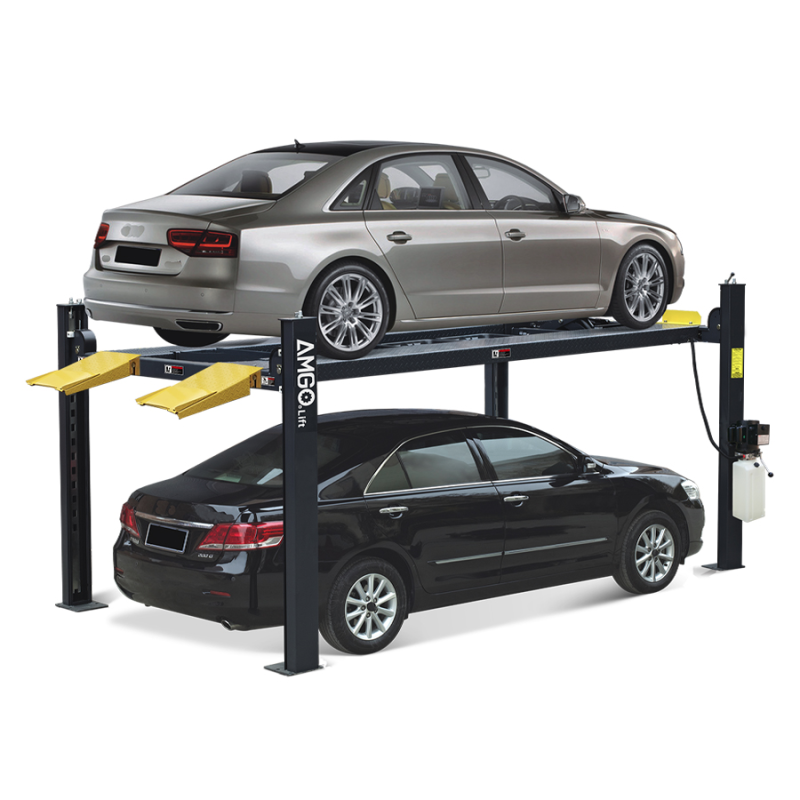

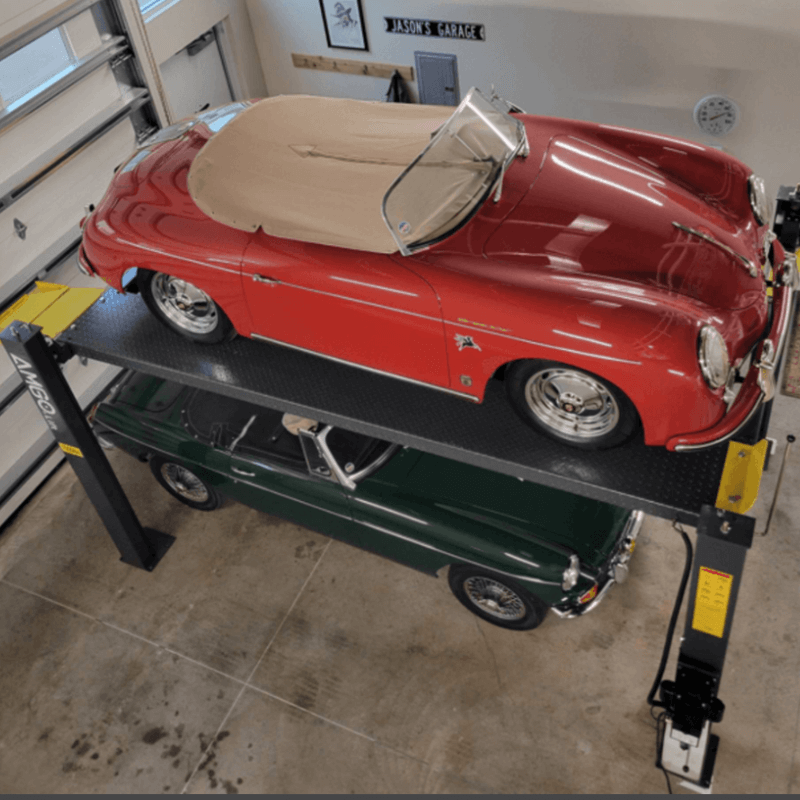

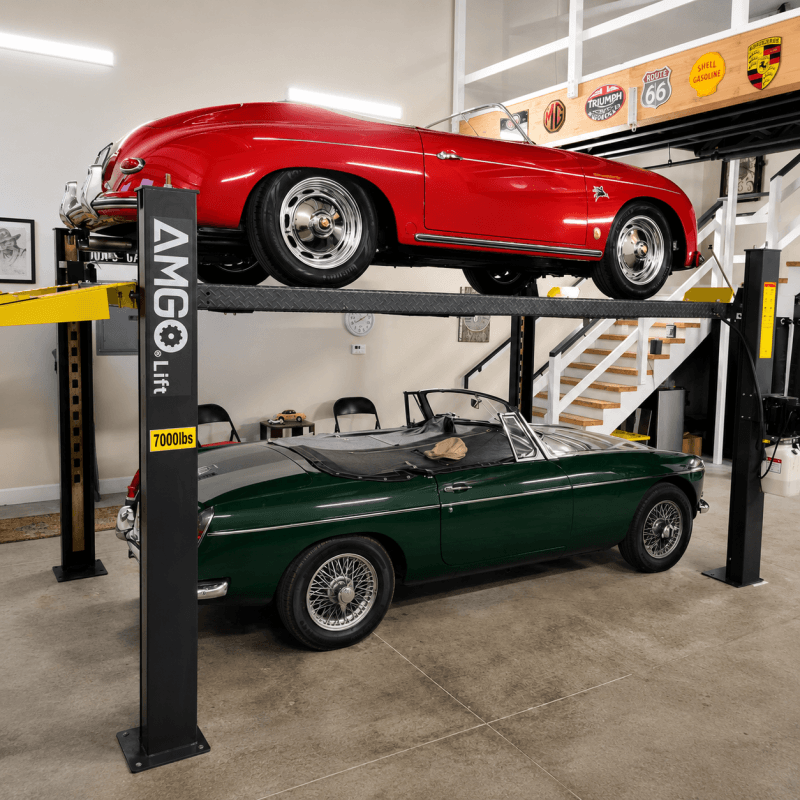

Amgo 407-P 7,000lb 4 Post Lift
SKU: 407-P-110v
407-P 4 Post Lift Designed to maximize parking efficiency in limited spaces, this 7,000 lb four-post vehicle storage lift delivers a compact footprint without sacrificing strength or safety. Ideal for home garages and professional shops, the streamlined design allows vehicles to be stacked vertically while maintaining easy drive-through access. Fast lifting speeds, foldable ramps, and flexible column placement make daily operation simple and efficient. Built with commercial-grade components, this lift features reinforced double-shaped columns, a concealed single-point safety lock system, and high-quality hydraulic components for long-term reliability.
Rated for 7,000 lb, it's suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
Space-saving four-post design ideal for garages and shops
7,000 lb lifting capacity for cars and light vehicles
ETL-certified power unit included
Ideal For
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Technical Specifications
Model |
407-P |
Lifting Capacity |
7,000 lbs |
Overall Length (Incl. Ramps) |
185 13/16″ |
Overall Width |
94 13/16″ |
Overall Height |
82 7/8″ |
Width Between Posts |
85 5/16″ |
Drive-Thru Clearance |
77″ |
Maximum Lifting Height |
73 7/16″ |
Maximum Locking Height |
72 11/16″ |
Maximum Under-Runway Height |
69 1/2″ |
Minimum Height |
4 15/16″ |
Width Between Runways |
37″ |
Concrete Requirements |
Minimum of 4"-3000psi |
Pallet Dimension |
146"L x 20"W x 29"H - 1,430lbs |
