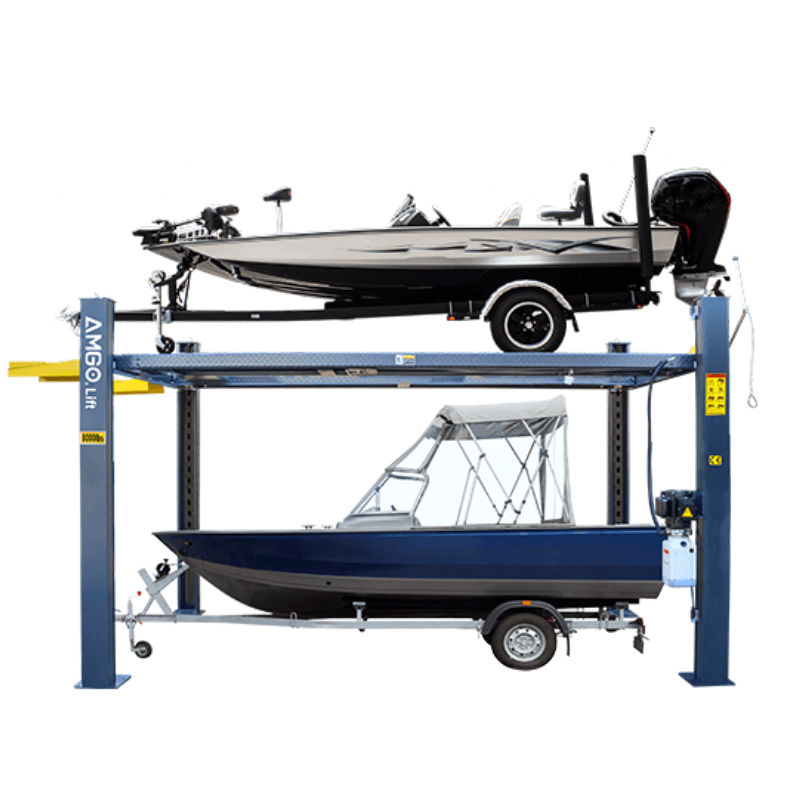

Amgo 408-HLX Four Post Boat Storage Lift - Adjustable Width
SKU: 408HLX
408-HLX Four Post Boat Storage Lift by Amgo Designed specifically for over-height boats, the AMGO 408HLX takes everything you love about the 408-HPX and elevates it—literally. With an extended-height design providing an additional 15 3/4 inches of lifting height, this lift delivers the extra clearance needed to safely store tall boats, wakeboard towers, and oversized trailers without compromise. It’s the ideal solution for marine facilities, storage warehouses, and private boat owners who need maximum vertical clearance with dependable performance.
It’s suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
8,000 lbs lifting capacity for over-height boats and trailers
Extended-height design offering 15 3/4" more clearance than 408-HPX
AMGO proprietary concealed lock-control device with manual single-point release (no air source required)
Dual safety protection with primary safety locks and cable-slack protection
Integrated non-skid diamond platforms for secure trailer positioning
Flexible installation with power unit mountable on any corner
Two-width platform settings to accommodate various trailer sizes
Standard foldable drive-in ramps for easy loading
Ideal For
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Technical Specifications
Model |
408HLX |
Lifting Capacity |
8,000 lbs |
Lifting Time |
54 seconds |
Overall Length (Including Ramps) |
222 1/8" |
Overall Length (Without Ramps) |
188 9/16" |
Overall Width |
131 7/8" |
Width Between Posts |
122 3/16" |
Max. Lifting Height |
104 11/16" |
Max. Locking Height |
101 15/16" |
Overall Height |
113" |
Minimum Height |
5 11/16" |
Max. Underneath Height |
99 15/16" |
Max. Lock Underneath Runway |
97 3/16" |
Drive-Thru Clearance |
111" |
