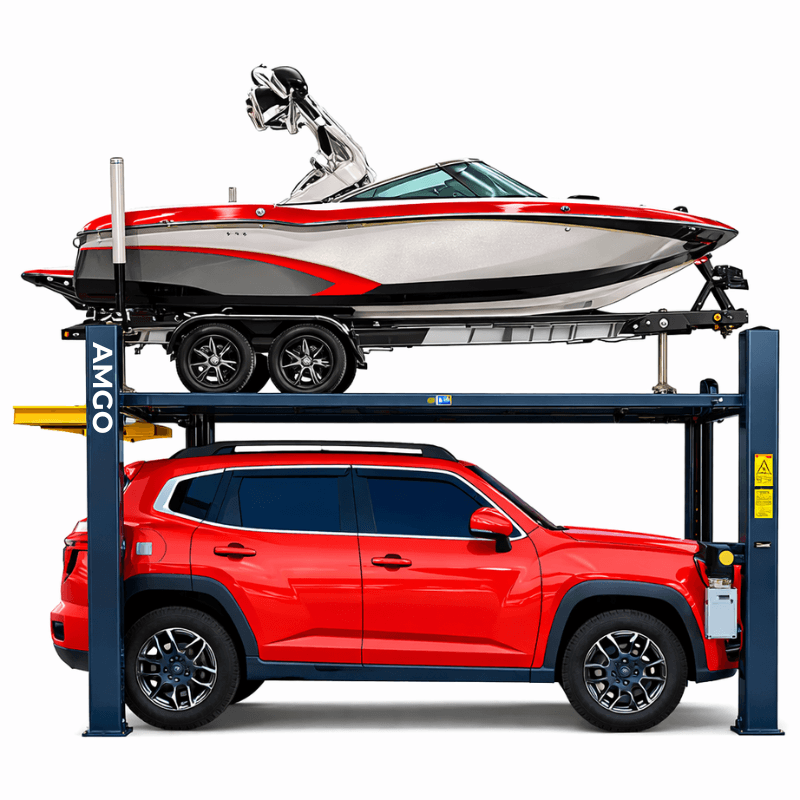

Amgo 408-HPX Four Post Boat Storage Lift - Adjustable Width
SKU: 408-HPX-110v
The AMGO 408-HPX is engineered to redefine how recreational boats are stored, delivering a smart, secure, and space-efficient solution for marine facilities and private owners alike. Designed with generous drive-in clearance exceeding 110 inches and adjustable platform widths, this four-post boat storage lift easily accommodates a wide range of trailers while maximizing vertical storage efficiency. Whether for marinas, warehouses, or residential applications, the 408-HPX provides dependable performance with refined engineering.
It’s suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
8,000 lbs lifting capacity for reliable boat storage
Proprietary concealed lock-control system (patent no. 2023232158140)
Manual single-point lock release with no air source required
Dual safety protection with primary safety locks and cable-slack protection
Integrated non-skid diamond platforms for secure trailer positioning
Two-width platform settings to accommodate various trailer sizes
Flexible installation with power unit mountable on any corner
Standard foldable drive-on ramps (2 per lift)
Ideal For
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Technical Specifications
Model |
408-HPX |
Lifting Capacity |
8,000 lbs |
Lifting Time |
46 seconds |
Overall Length (Including Ramps) |
222 1/8" |
Outside Edge of Crossbeams |
181 1/16" |
Overall Width |
131 5/8" |
Width Between Posts |
122" |
Max. Lifting Height |
87 1/16" |
Max. Locking Height |
84 1/2" |
Overall Height |
96 5/8" |
Minimum Height |
5 11/16" |
Max. Underneath Height |
82 11/16" |
Max. Lock Underneath Runway |
79 13/16" |
Drive-Thru Clearance |
110 13/16" |
