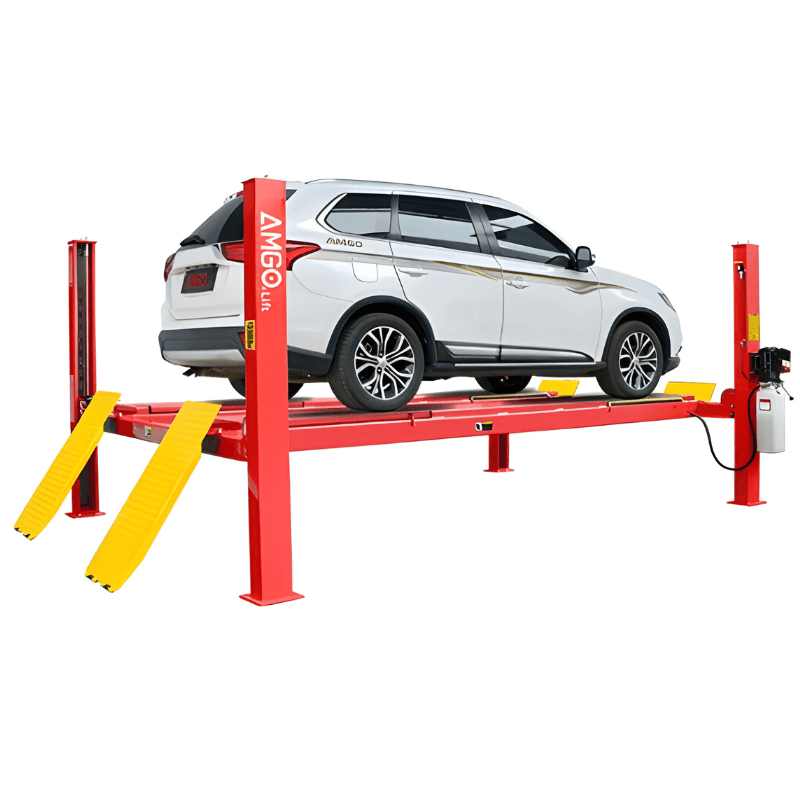

Amgo PRO-12ASX 12,000lb 4 Post Alignment Lift

Take your alignment services to the next level with the PRO-12ASX 12,000-lb Alignment Service Lift. Designed specifically for shops that demand extra width and flexibility, this advanced model builds on the PRO-12SX by adding integrated alignment functionality. With an exceptional 118 1/8″ clearance between columns and adjustable turnplate pockets, the PRO-12ASX easily accommodates wider vehicles and varying wheelbases, making it ideal for modern cars, SUVs, and light-duty trucks. Built for speed, safety, and long-term reliability, the PRO-12ASX features an ETL-certified AMGO power unit, aircraft-quality cables, and a mechanically self-locking safety system with air-released locks.

Rated for 12,000 lb, it's suited to alignment and calibration shops, dealerships and service centers offering alignment as a core service, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.

Key Features

• 12,000 lb capacity with extreme wide-column design

• 118 1/8″ clearance between columns for wider vehicles

• Integrated slip plates and adjustable turnplate pockets for precise alignments

• ETL-certified AMGO power unit included

• Mechanical self-locking safety system with air-released lock

• Multiple safety locks with cable-slack protection

• Aircraft-quality 3/8″ cable-driven lifting system

• High-quality hydraulic cylinder with flow restrictor for smooth operation

Ideal For

• Alignment and calibration shops

• Dealerships and service centers offering alignment as a core service

• Performance shops fine-tuning suspension geometry

Technical Specifications
