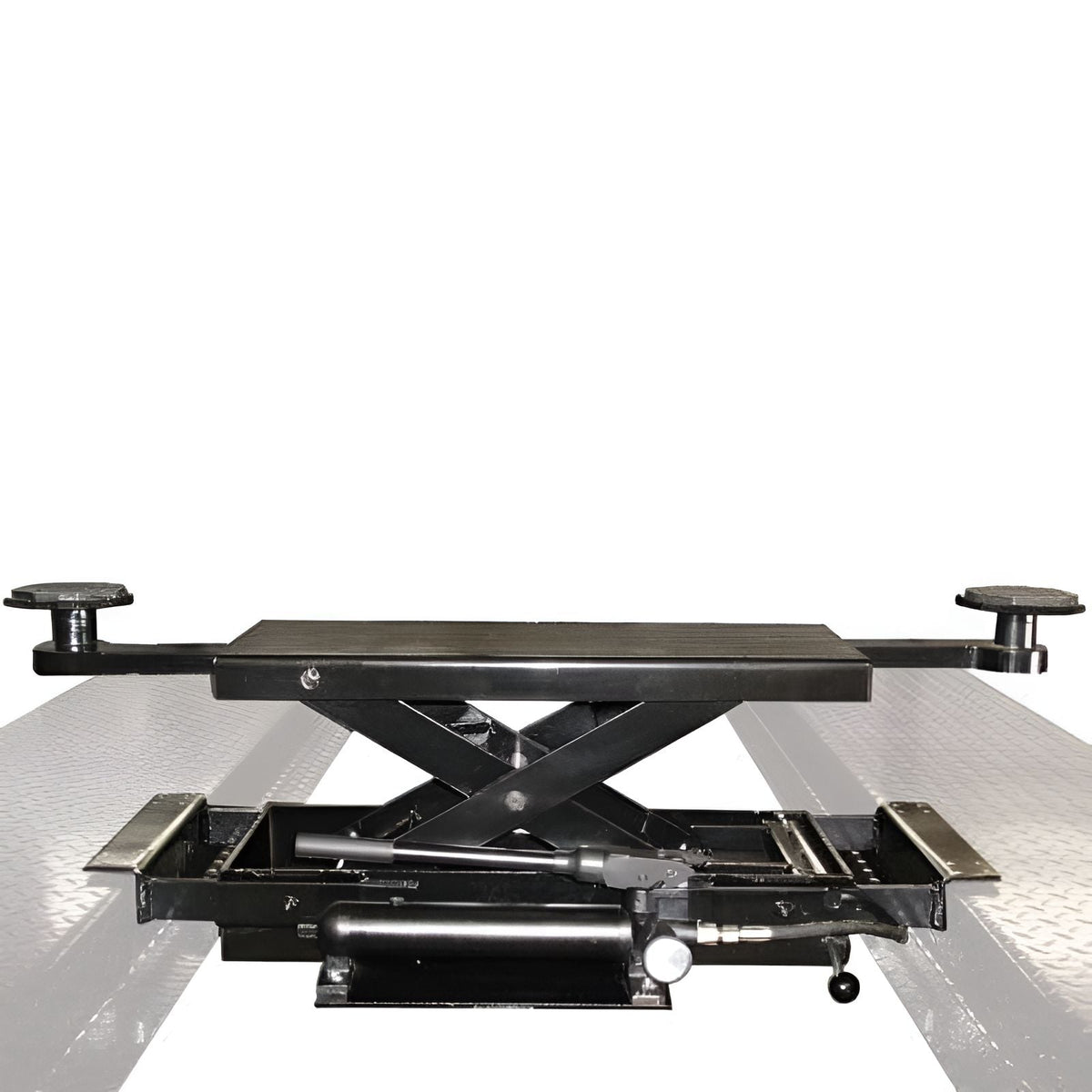

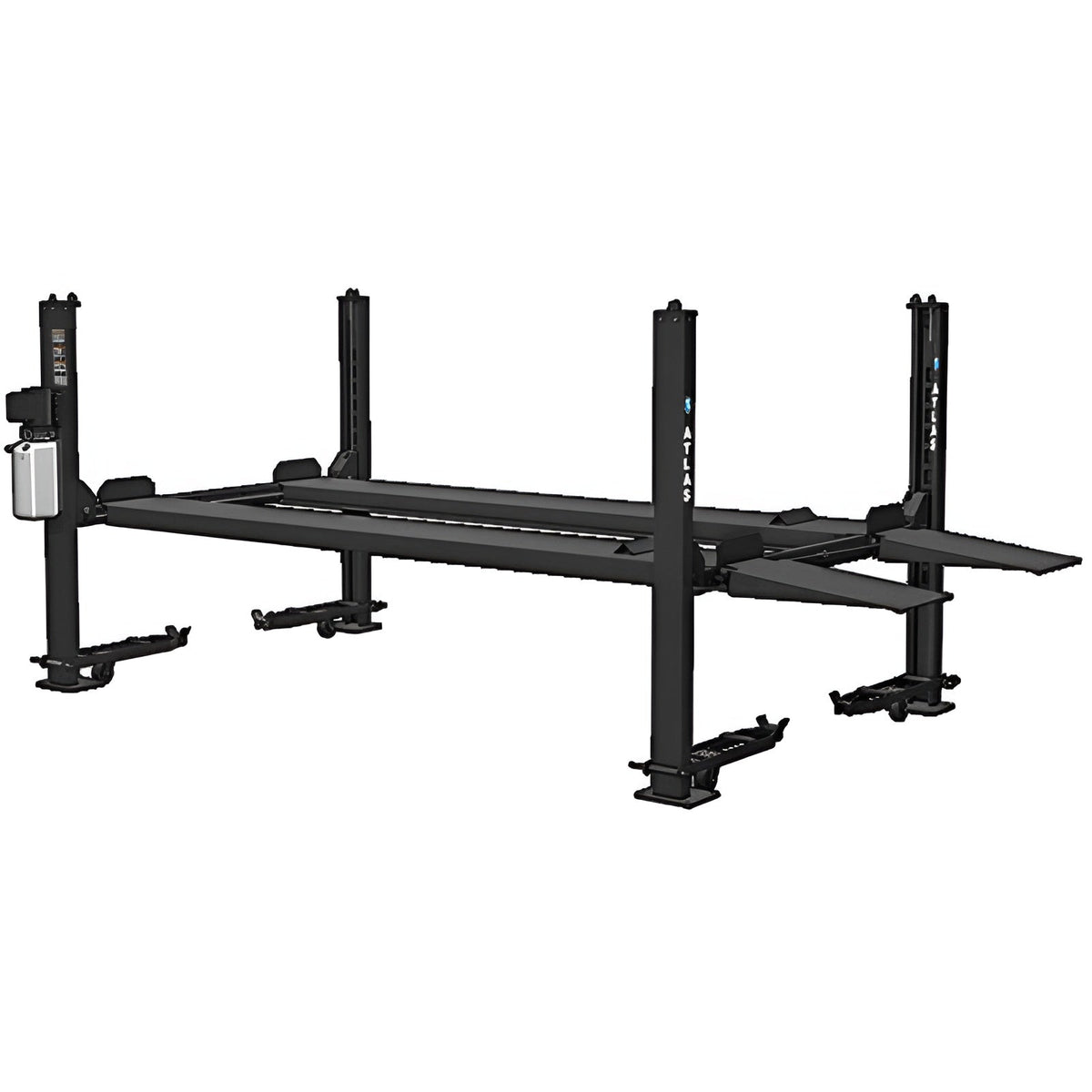

Atlas APEX 8 4 Post Lift + (2) ProJack35 Sliding Jacks Combo
SKU: ATEATTD-APEX8-COMBO

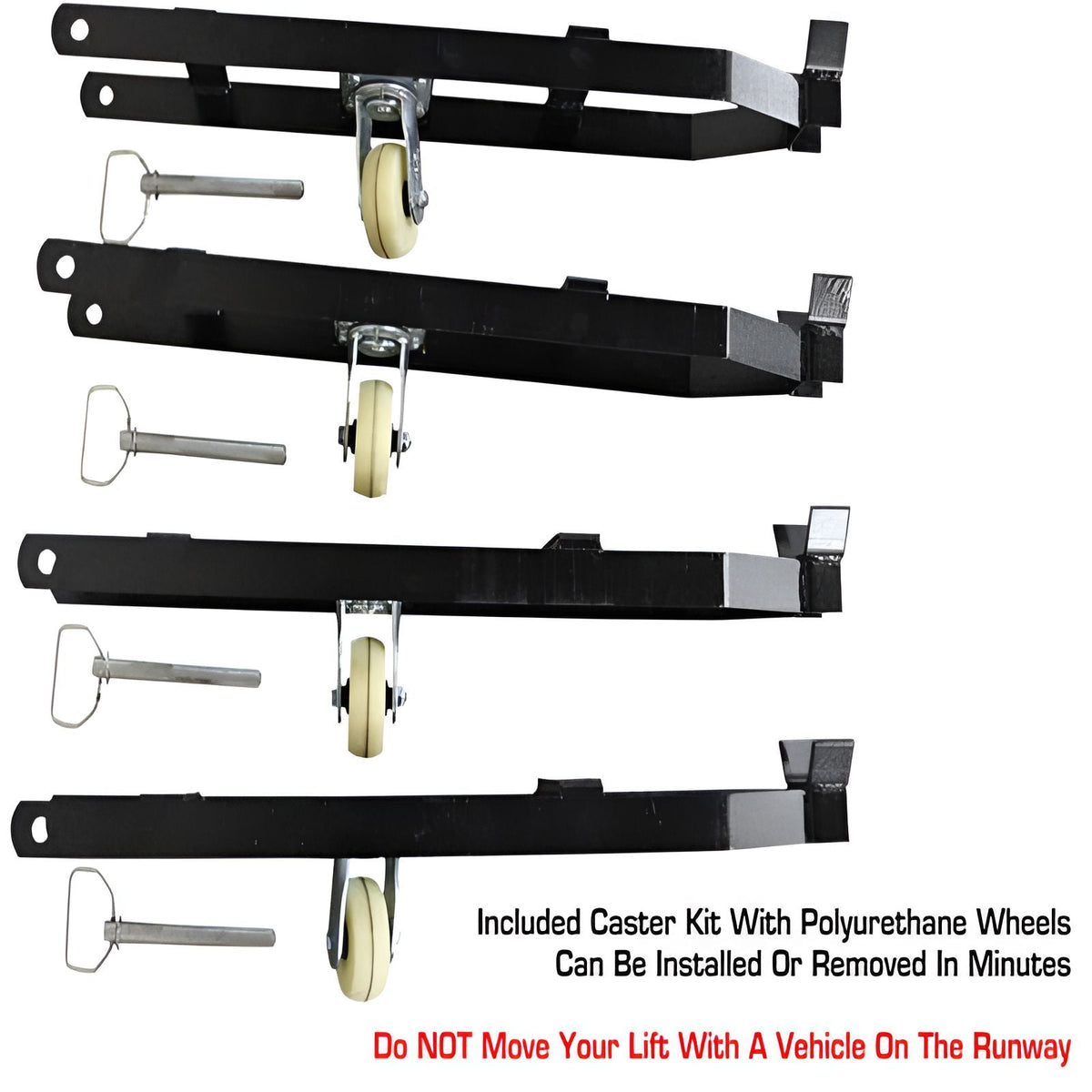

Tired of bending over backwards just to get under a car? It’s time to ditch the back pain and elevate your game with the Atlas APEX8 ALI Certified 4-post lift and RJ35 sliding bridge jacks! The APEX8 lift allows you to stack cars up to 8,000 lbs and lift them to a comfortable 72 inches, giving you ample room to work without straining your back. With runways stretching 169.5 inches, it accommodates everything from compact cars to full-size trucks. Plus, the included caster kit with polyurethane wheels lets you easily reposition the lift, so you can adapt your workspace as needed. No, we're not done yet.
It’s suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features

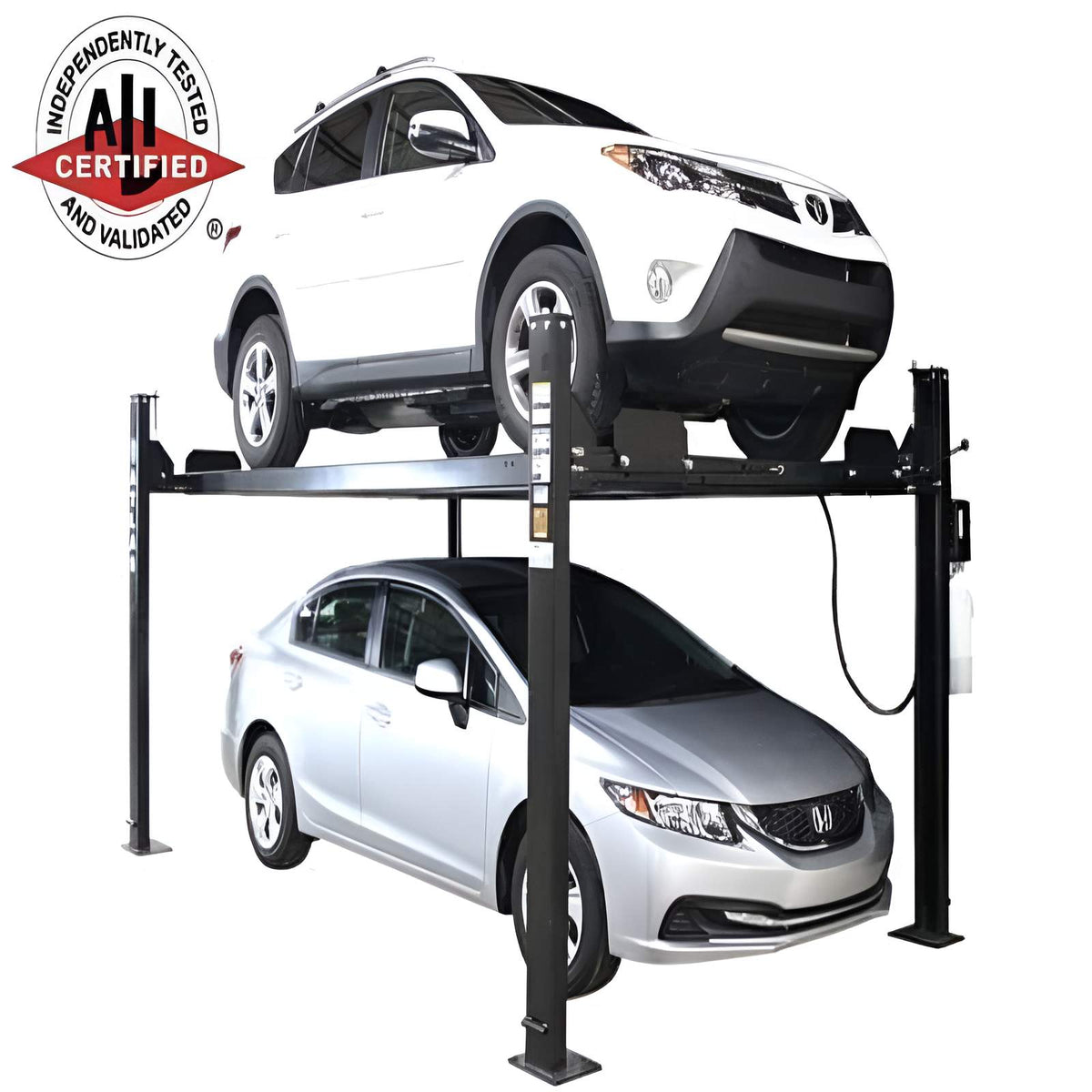

ALI Certified Lift
8,000 lb. Capacity
Free Standing/Portable Design
Powder Coat Finish

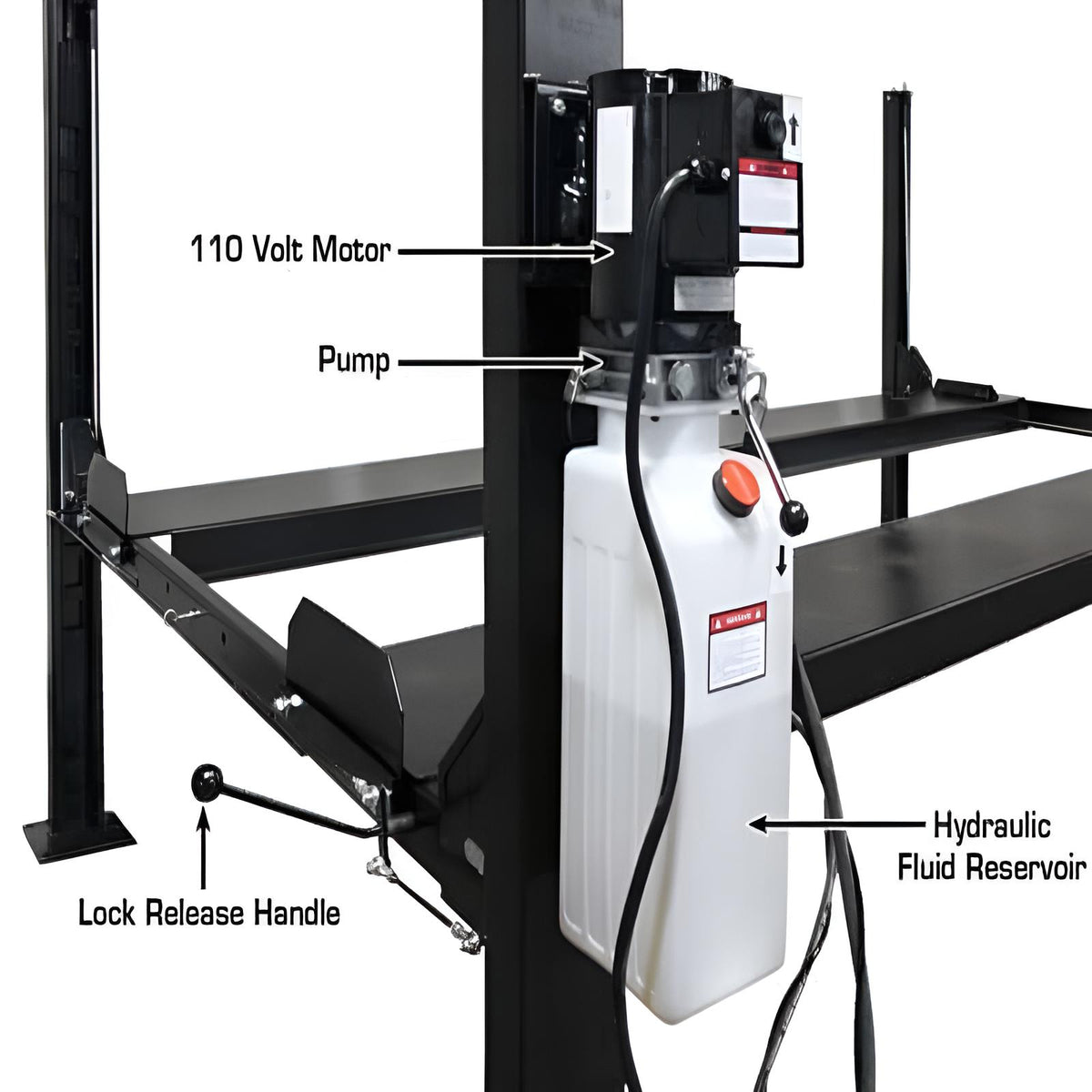

Single Point Lock Release

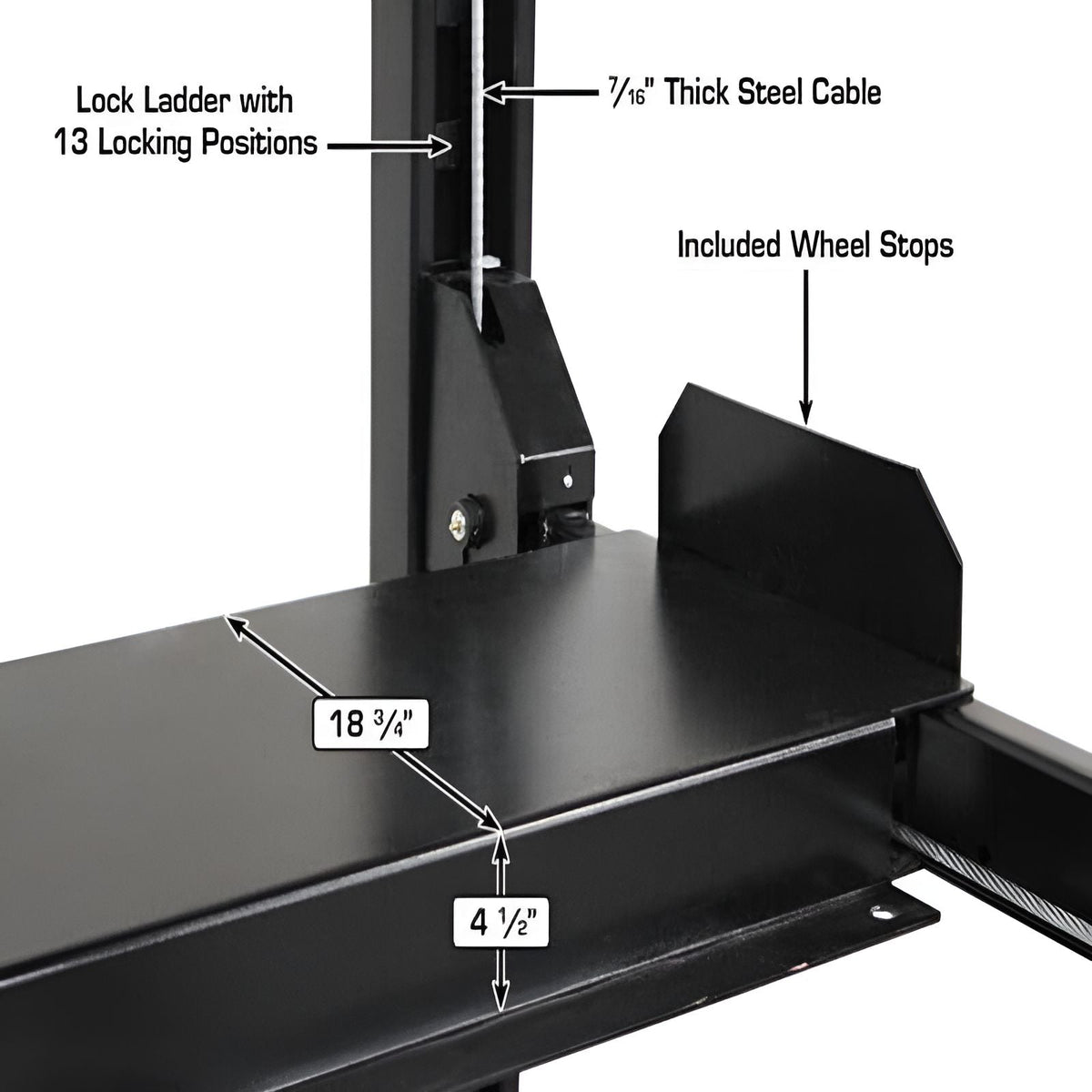

Lock Ladder Design
Double Lock Safety System
Steel Approach Ramps Included
Ideal For
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types

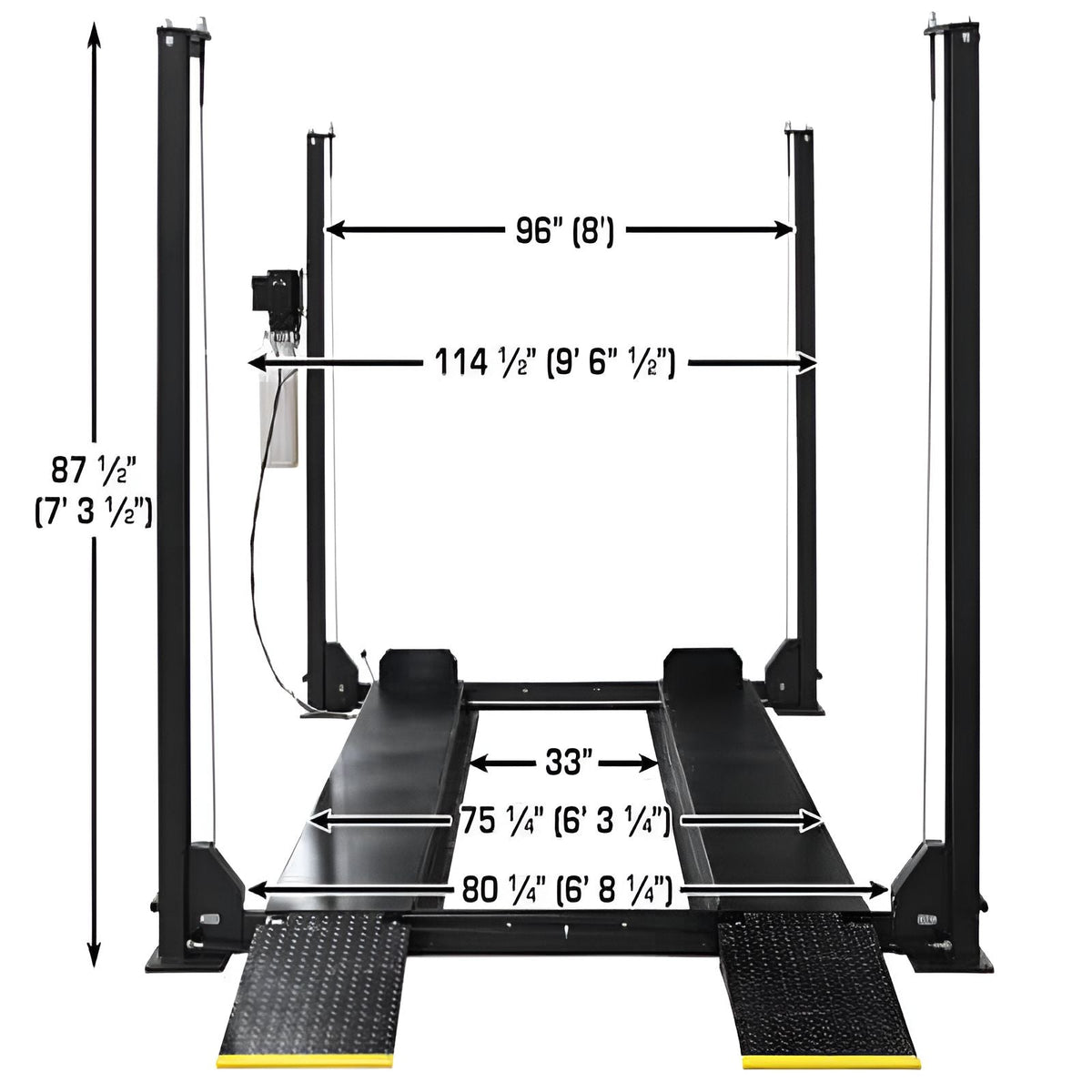

Technical Specifications
Capacity |
8,000 lb. |

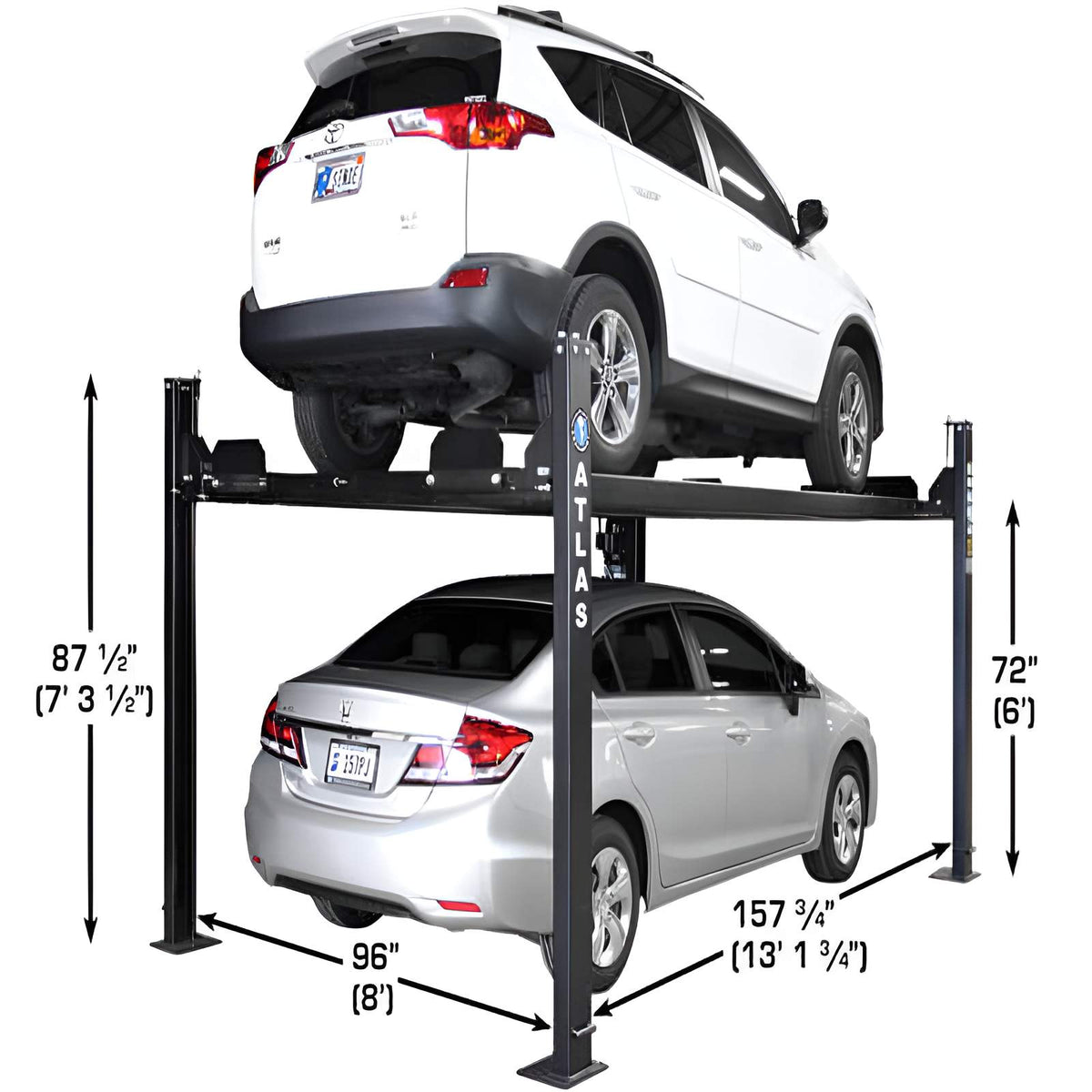

Lifting Height to Top of Runway |
72" (6') |

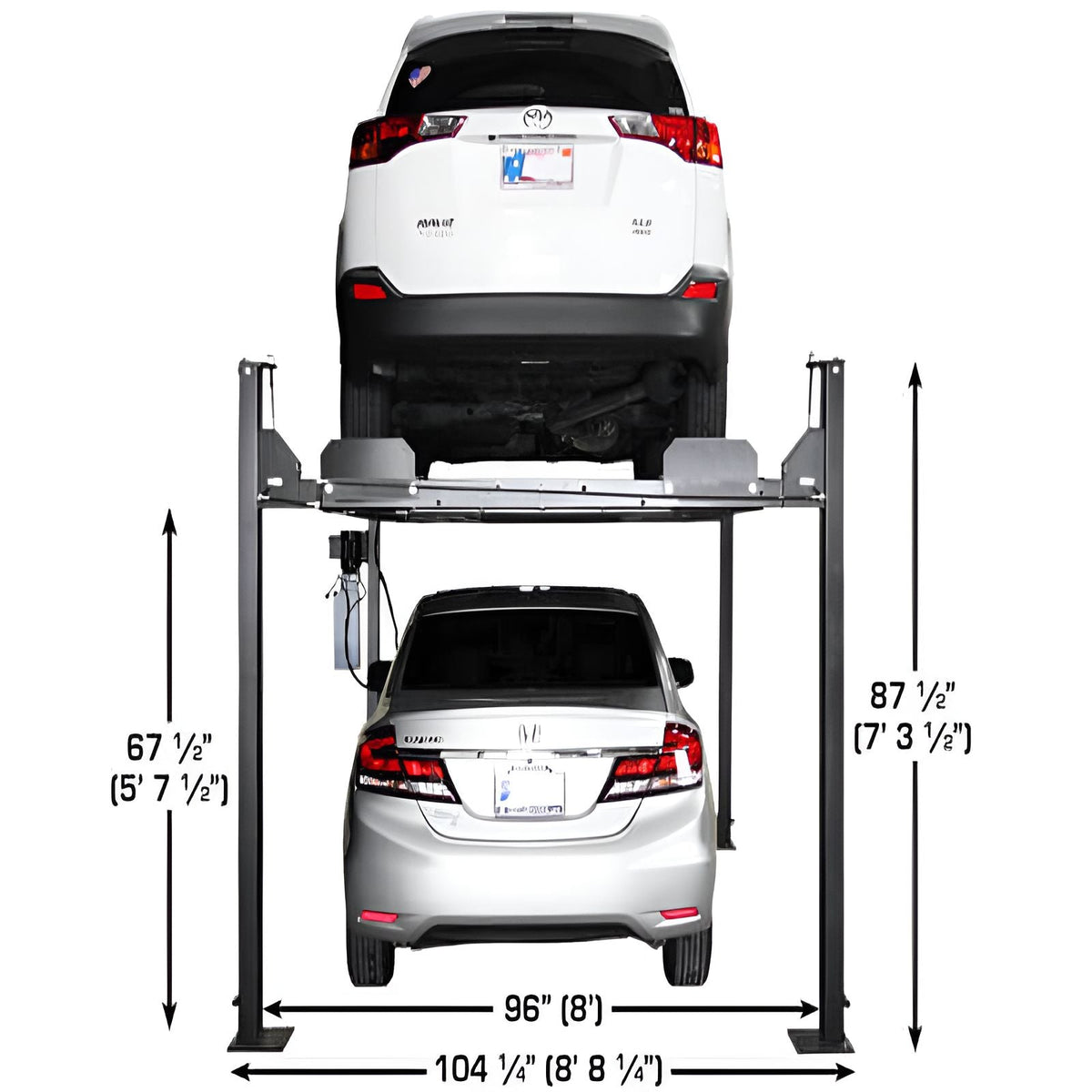

Clearance Under Runways |
67" (5' 7") |
Height of Columns (Including Nuts) |
86 5/8" (7' 2 5/8") |
Overall Width (With Motor) |
114" (9' 6") |

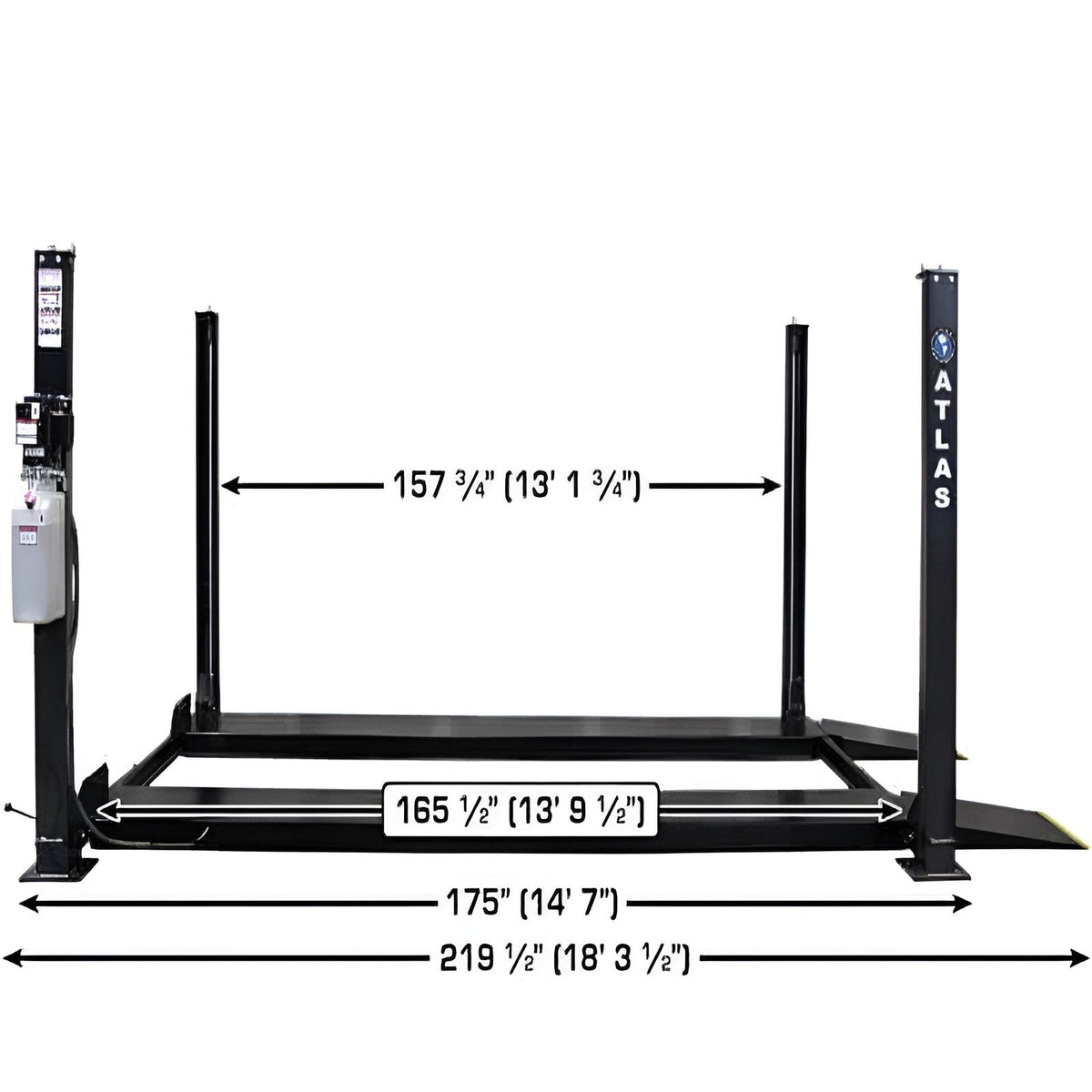

Overall Length with Approach Ramps |
207 5/6" (17' 3 5/6") |

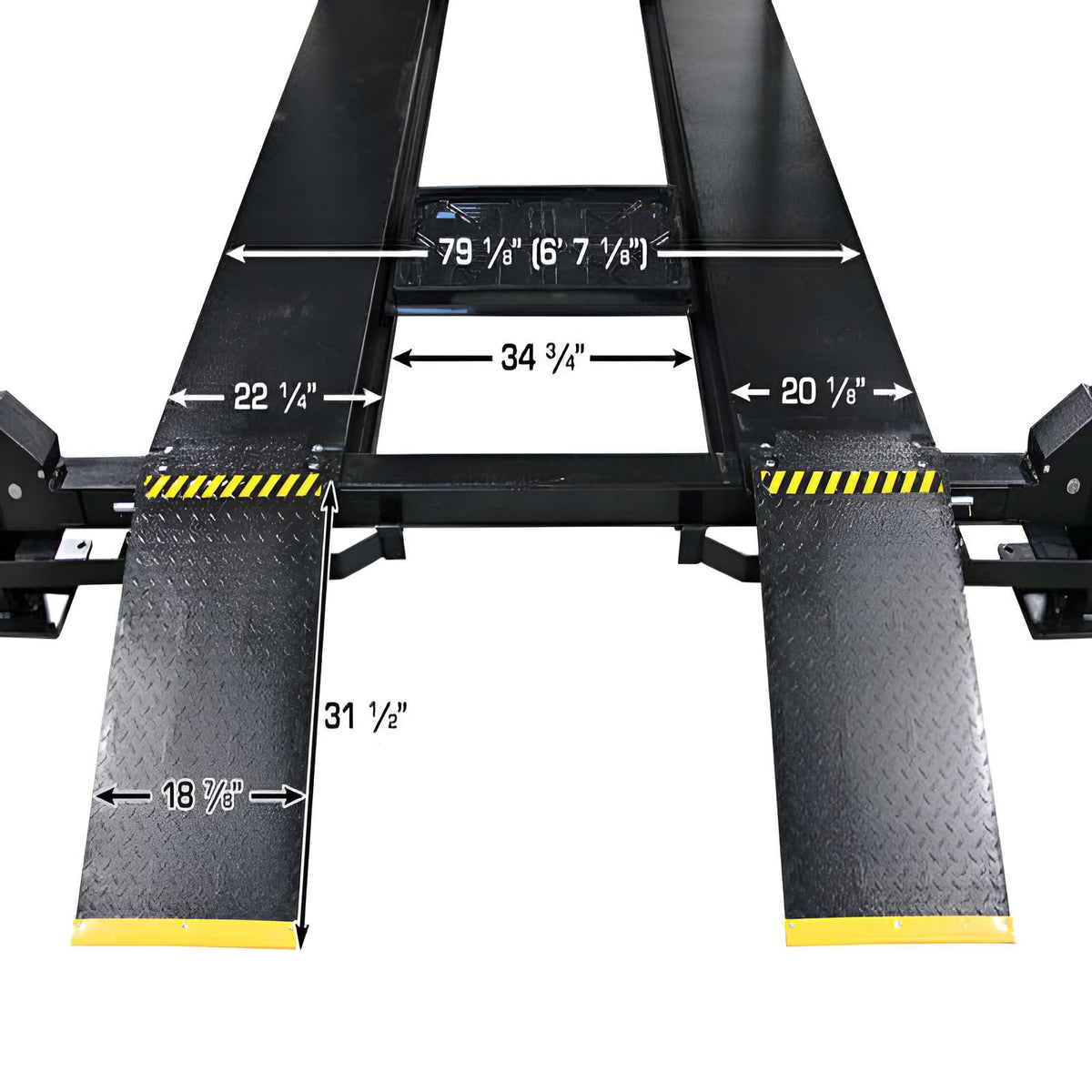

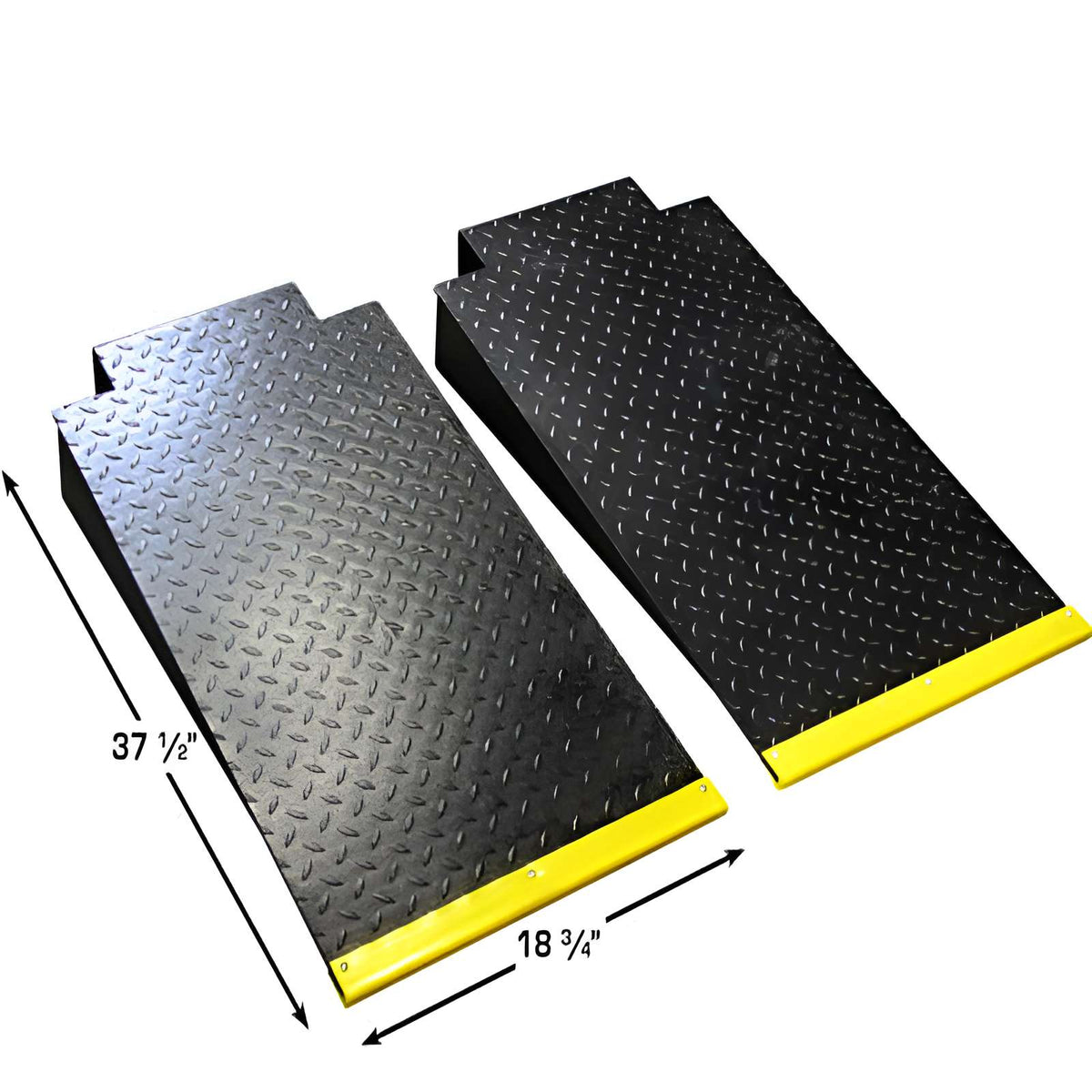

Approach Ramps |
37 1/2" (3' 1 1/2") |
Runway Width |
18 2/3" |
Runway Rail Width |
2 1/2" |

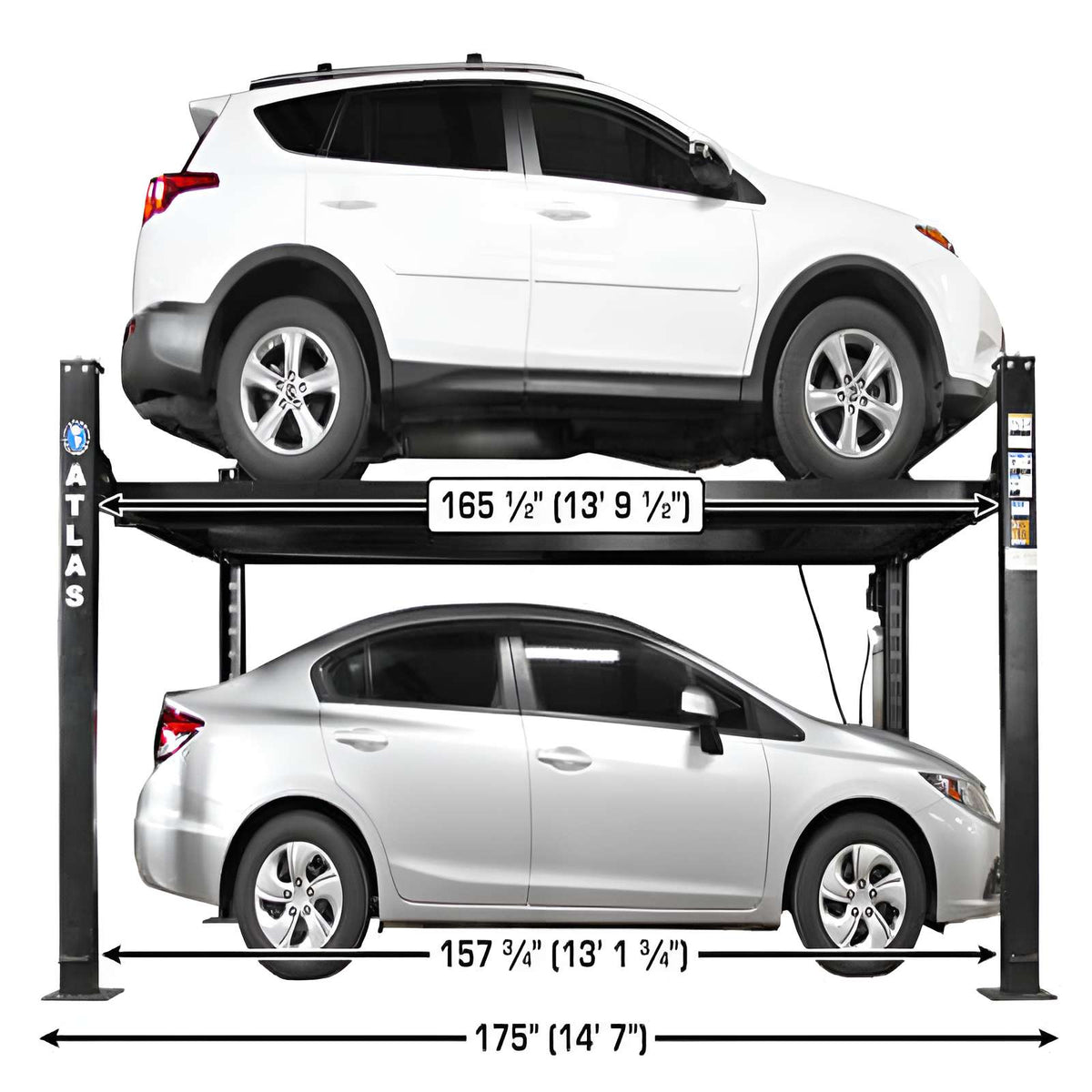

Runway Length |
169 1/2" (14' 1 1/2") |
Runway Thickness |
4 1/3" |

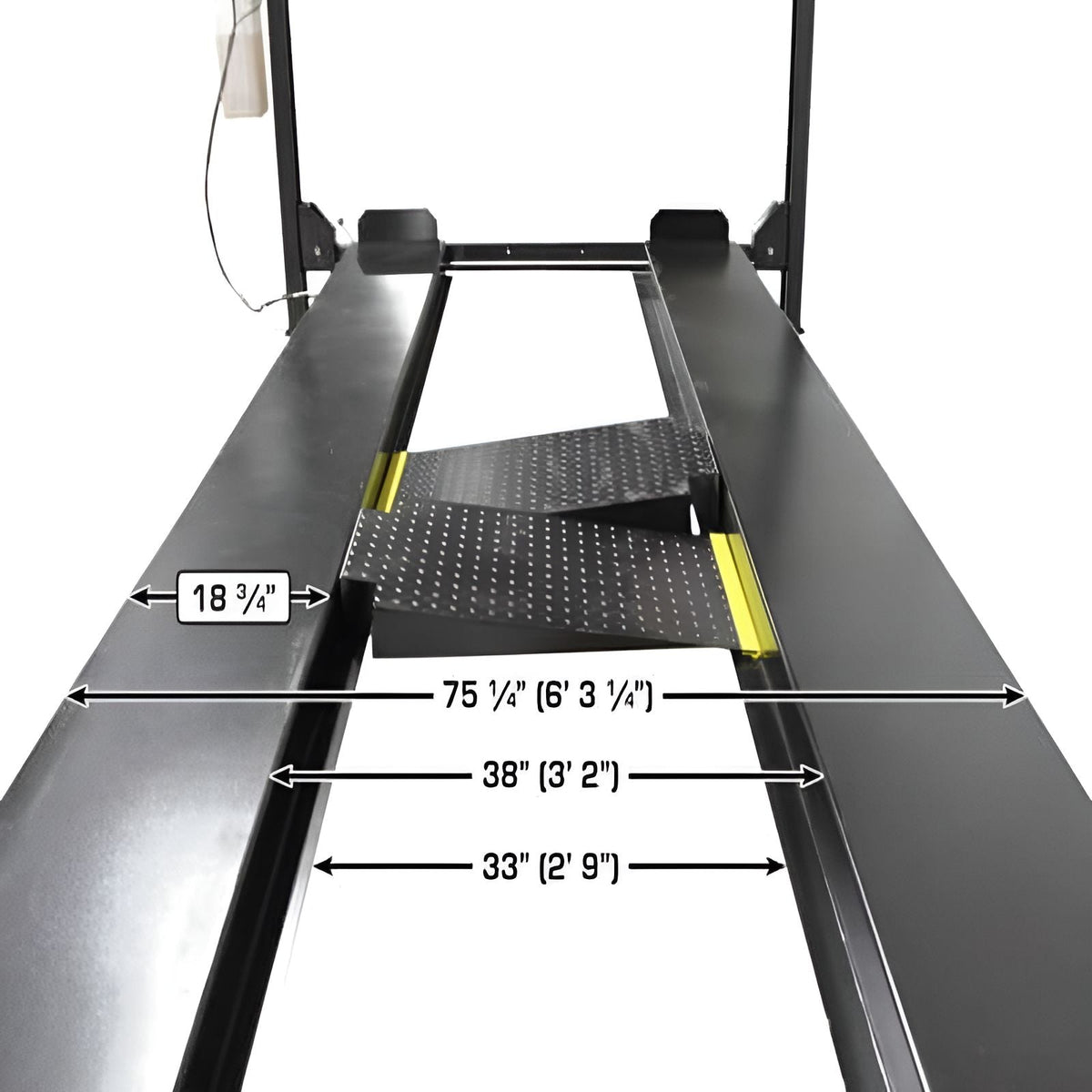

Width Between Runways |
38" (3' 2") |
Width Between Runway Rails |
33" (2' 9") |
Outside Runway to Outside Runway |
75 1/4" (6' 3 1/4") |
