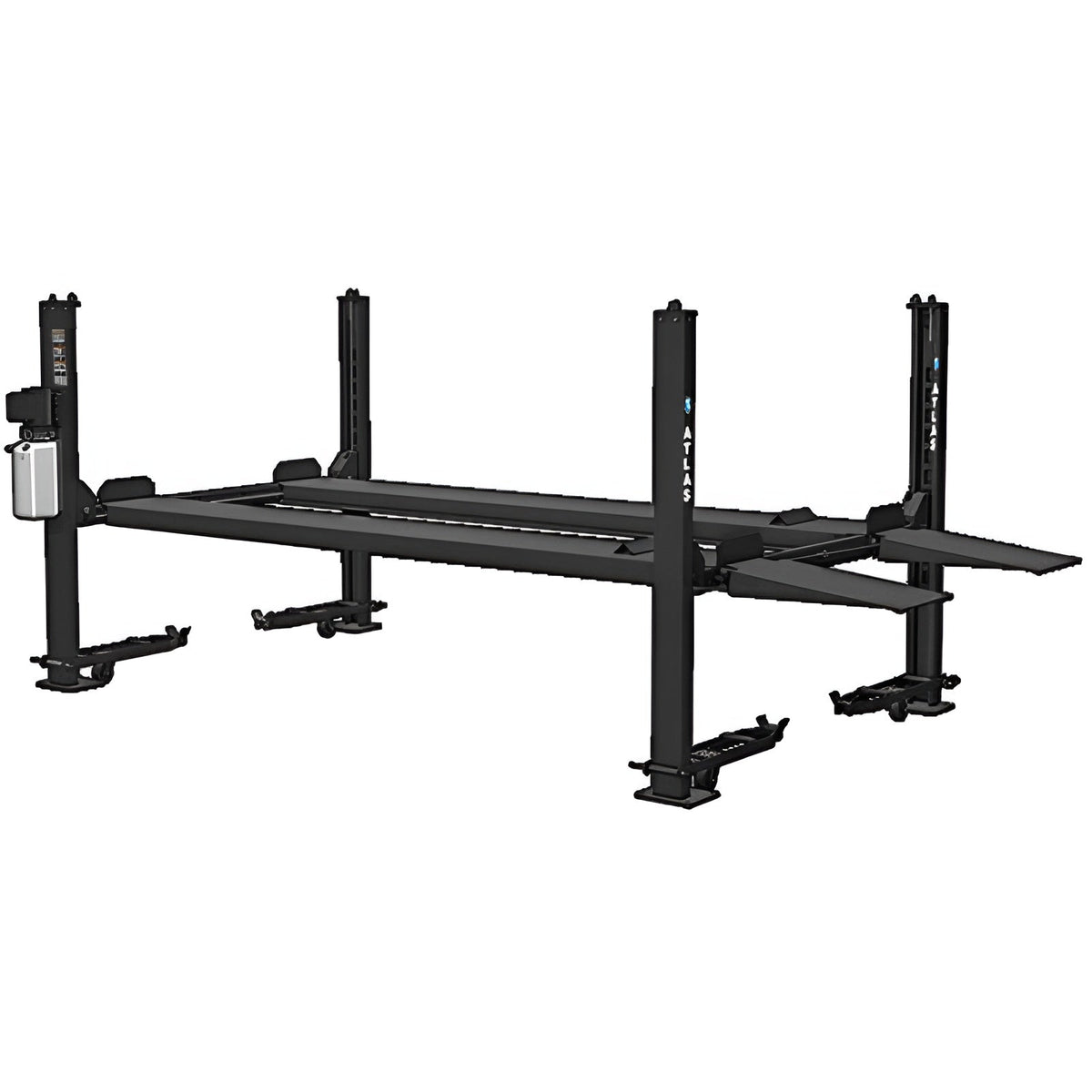

Atlas Apex 8, 8,000 lb 4 Post Vehicle Storage Lift - ALI Certified
SKU: ATEATTD-APEX8

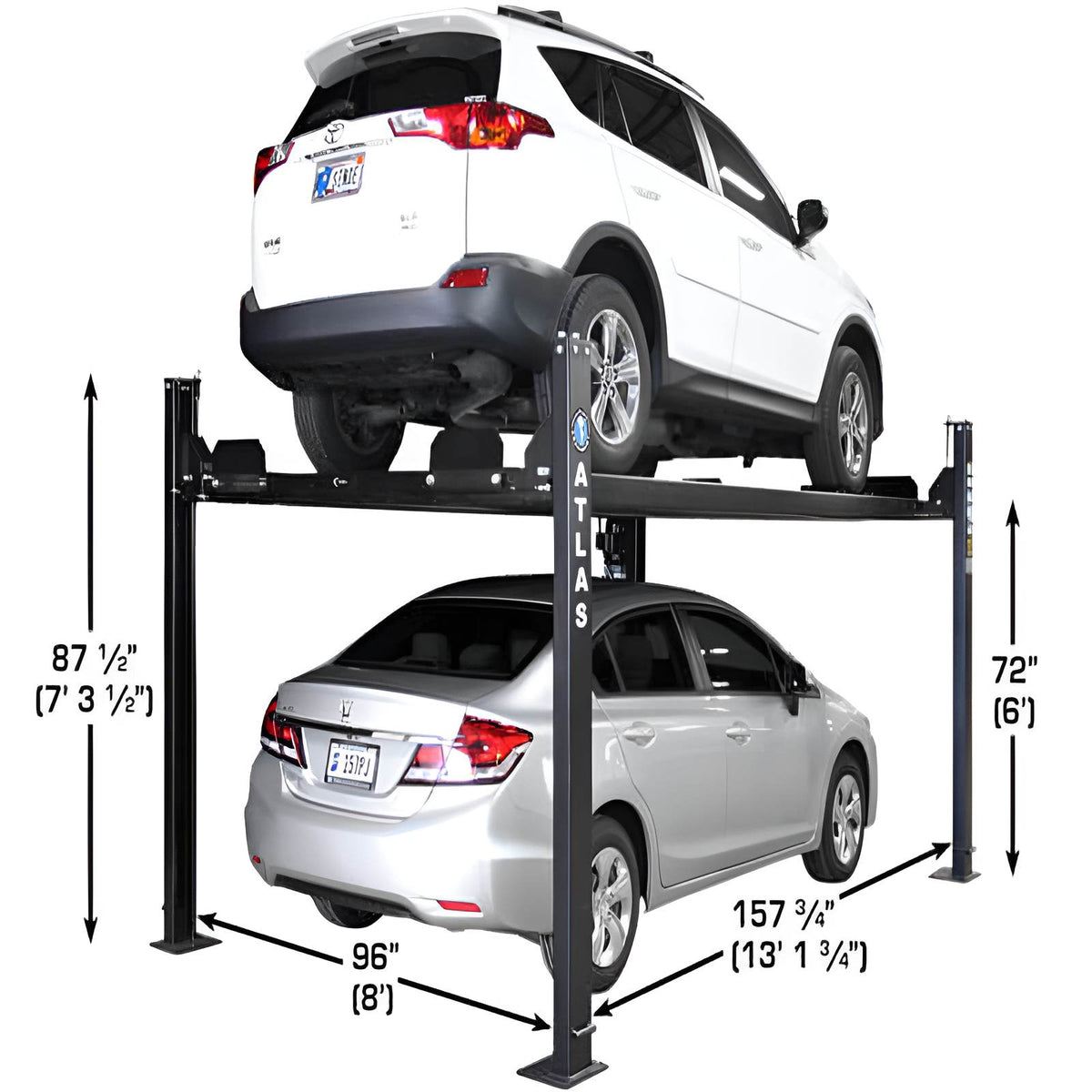

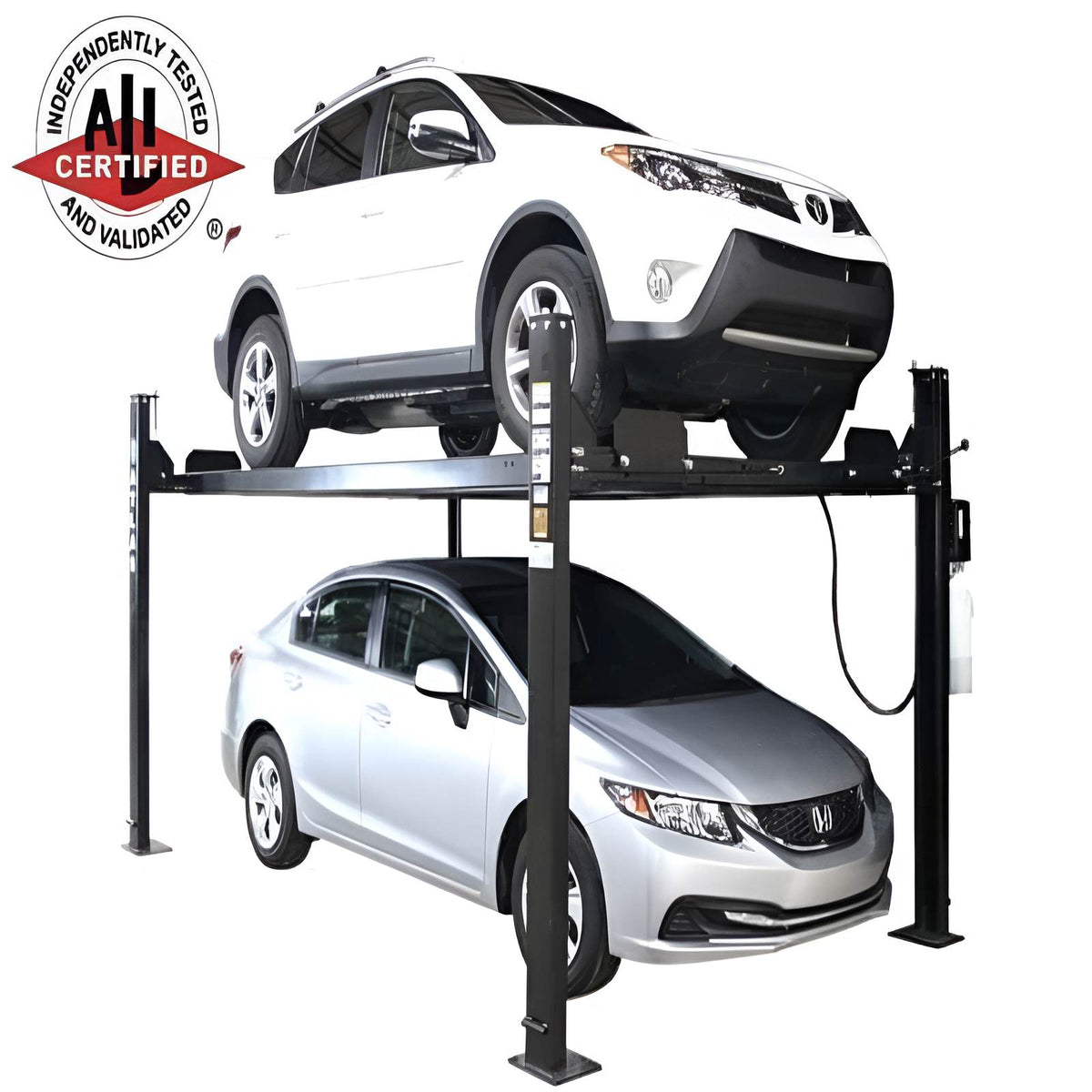

Apex 8 4 Post Vehicle Storage Lift by Atlas Running out of garage space? Meet the Atlas® APEX8 - the ultimate car storage solution. Double your parking capacity without sacrificing convenience. Craving more space for your cars? The APEX8 is a heavy-duty, ALI-certified lift that can safely stack most passenger vehicles with a whopping 8,000-lb capacity and a 72" max lift height. This portable design, complete with a caster kit, lets you easily move it around your garage or even outside. Plus, it comes with free plastic drip trays and a steel jack tray to save you money upfront. Experience the freedom of a clutter-free garage. The APEX8 is more than just a car lift; it's a lifestyle upgrade.
Rated for 8,000 lb, it's suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
ALI Certified
Design: Free Standing & Portable
Powder Coat Finish
Lock Release: Single-Point

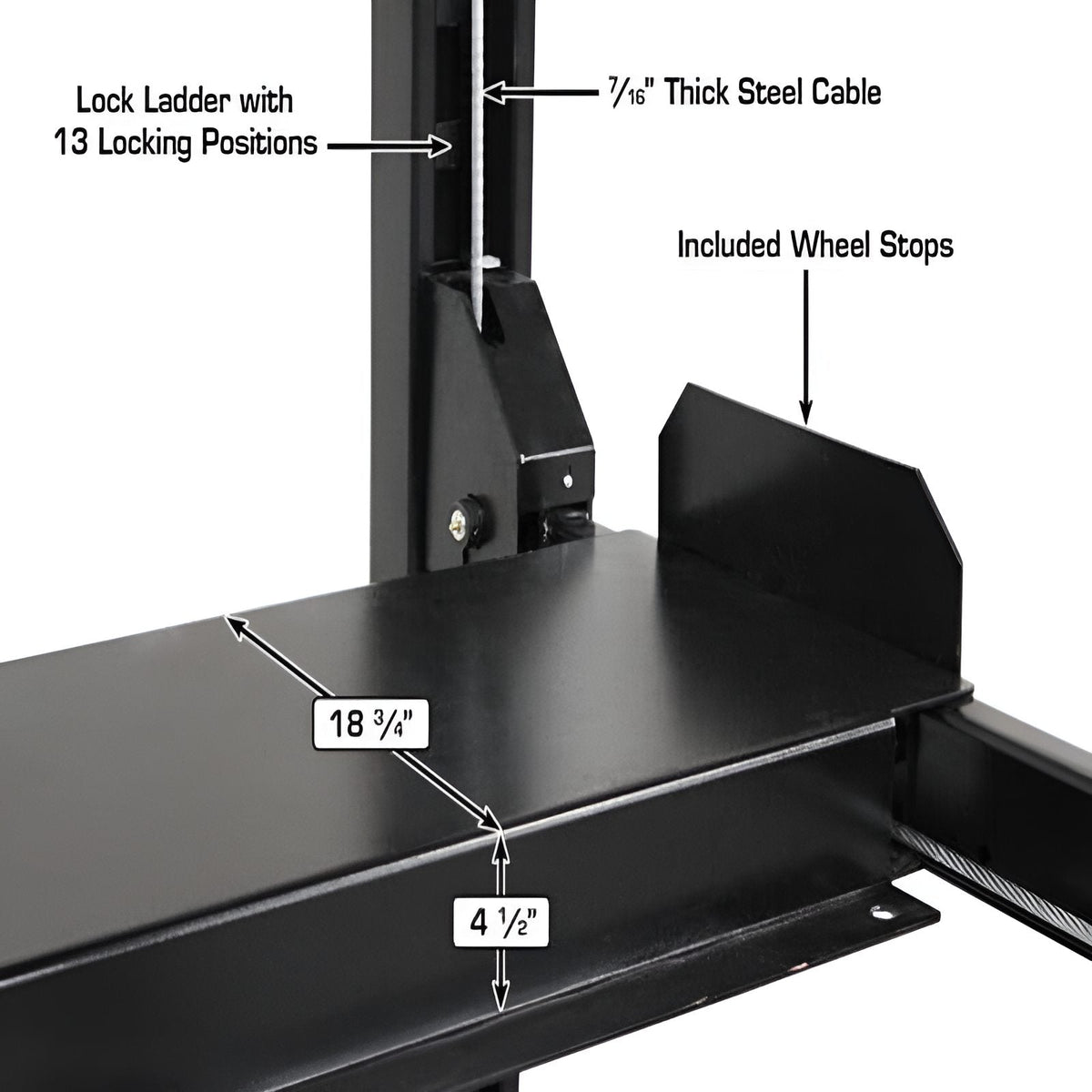

Lock Design: Double Lock Safety System
Warranty: 5 year Structural; 2 year Hydraulic ‐ Parts Only
Unit Includes:
Caster Kit with Polyurethane Wheels Included
Ideal For
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Technical Specifications
Capacity |
8000 lbs |

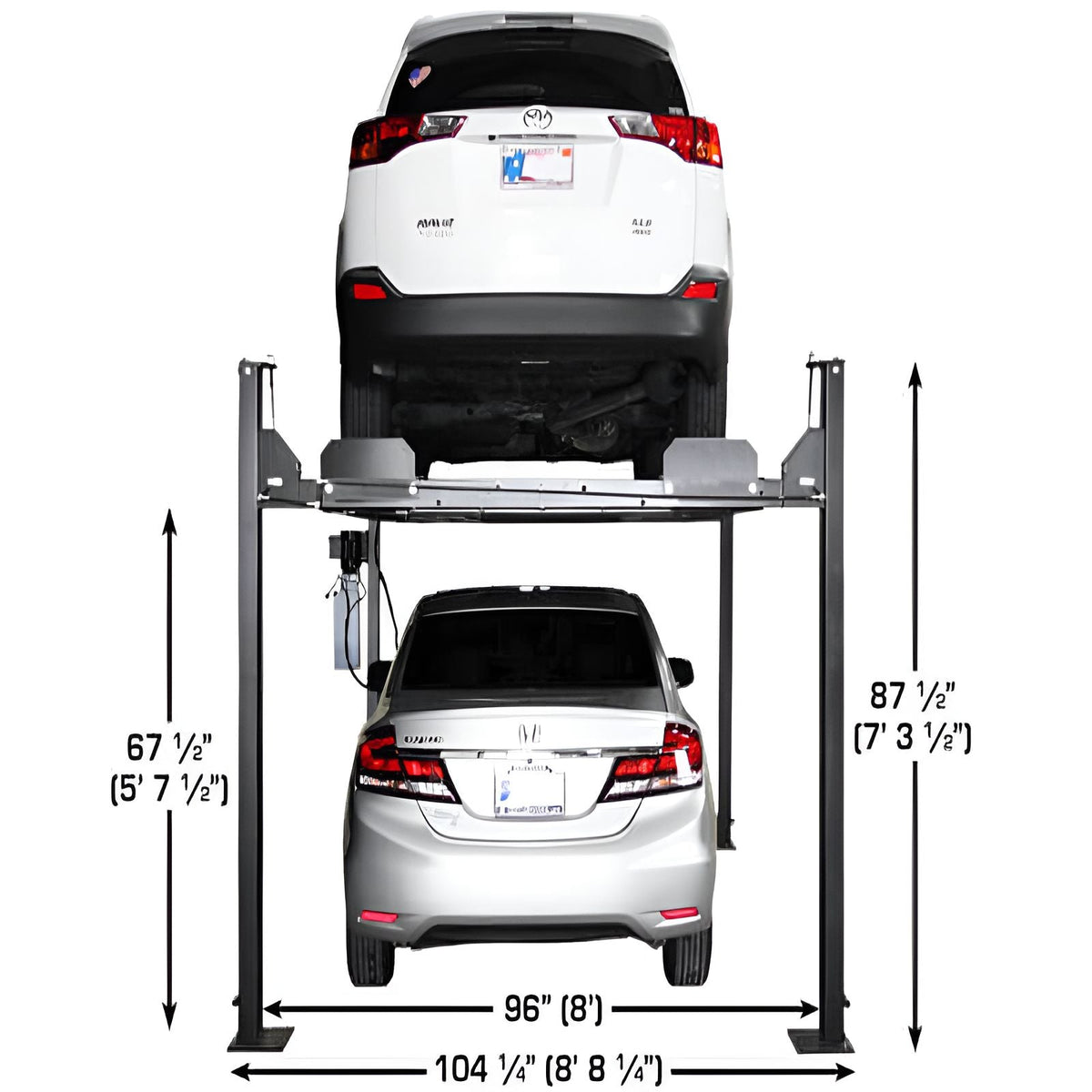

Clearance Under Runways |
67" (5' 7") |
Height of Columns |
85" (7' 1") |
Overall Width |
104" (8' 8") w/ motor 114" (9' 6") |

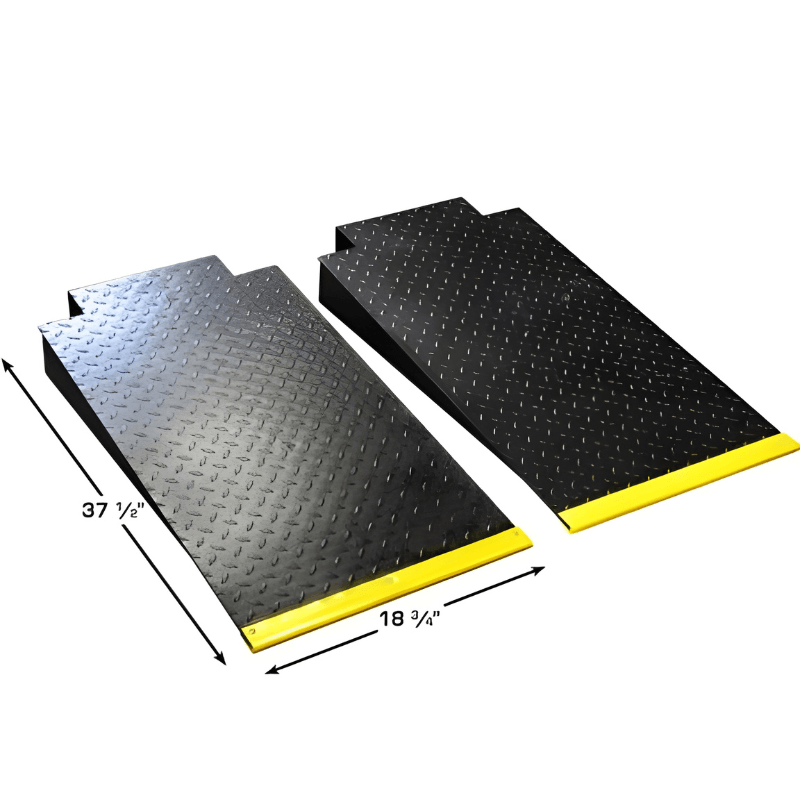

Overall Length w/ Ramps |
207 5/8" (17' 3 5/8") |
Runway Length |
169 1/2" (14' 1 1/2") |

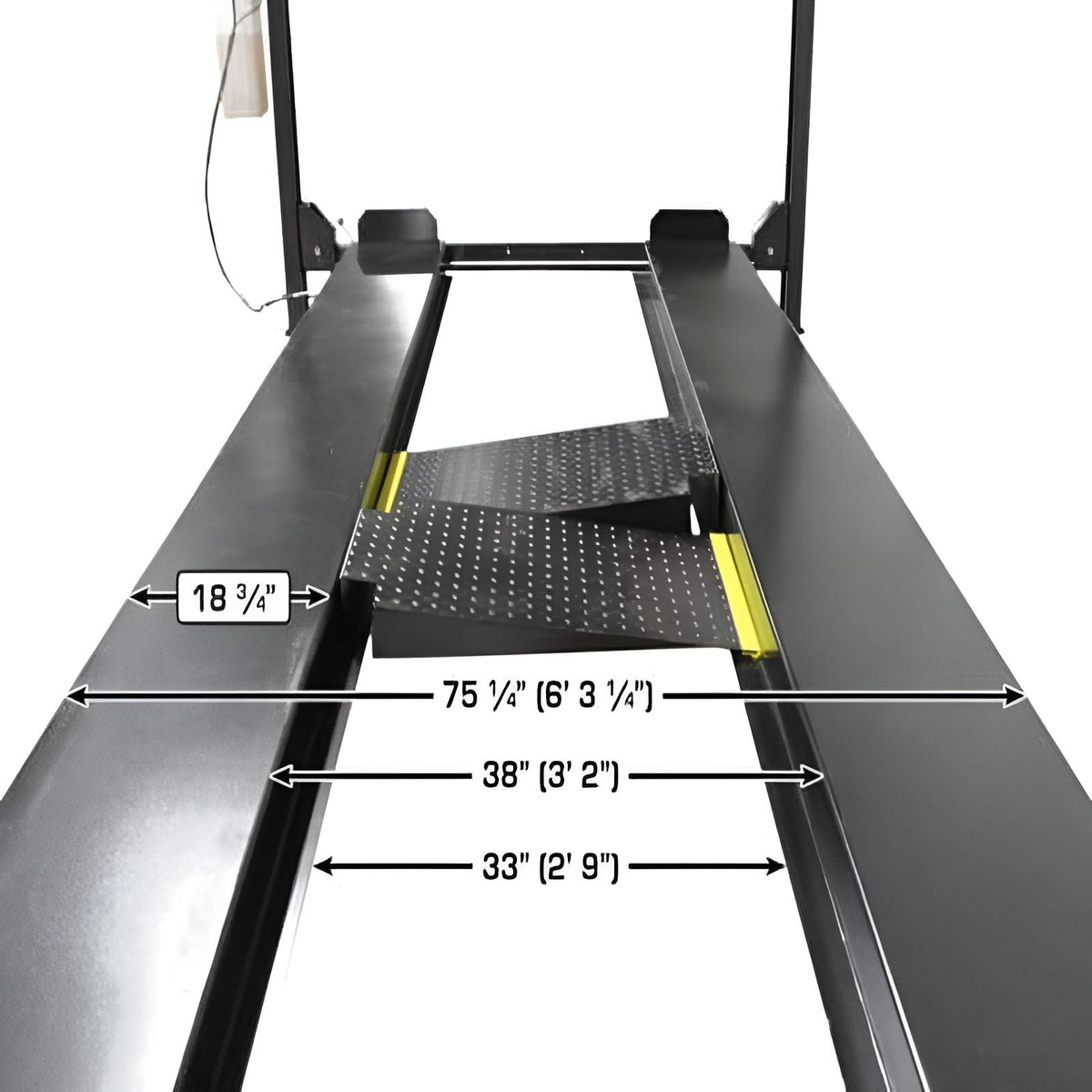

Runway Width |
18 2/4" |
Runway Thickness |
4 1/3" |

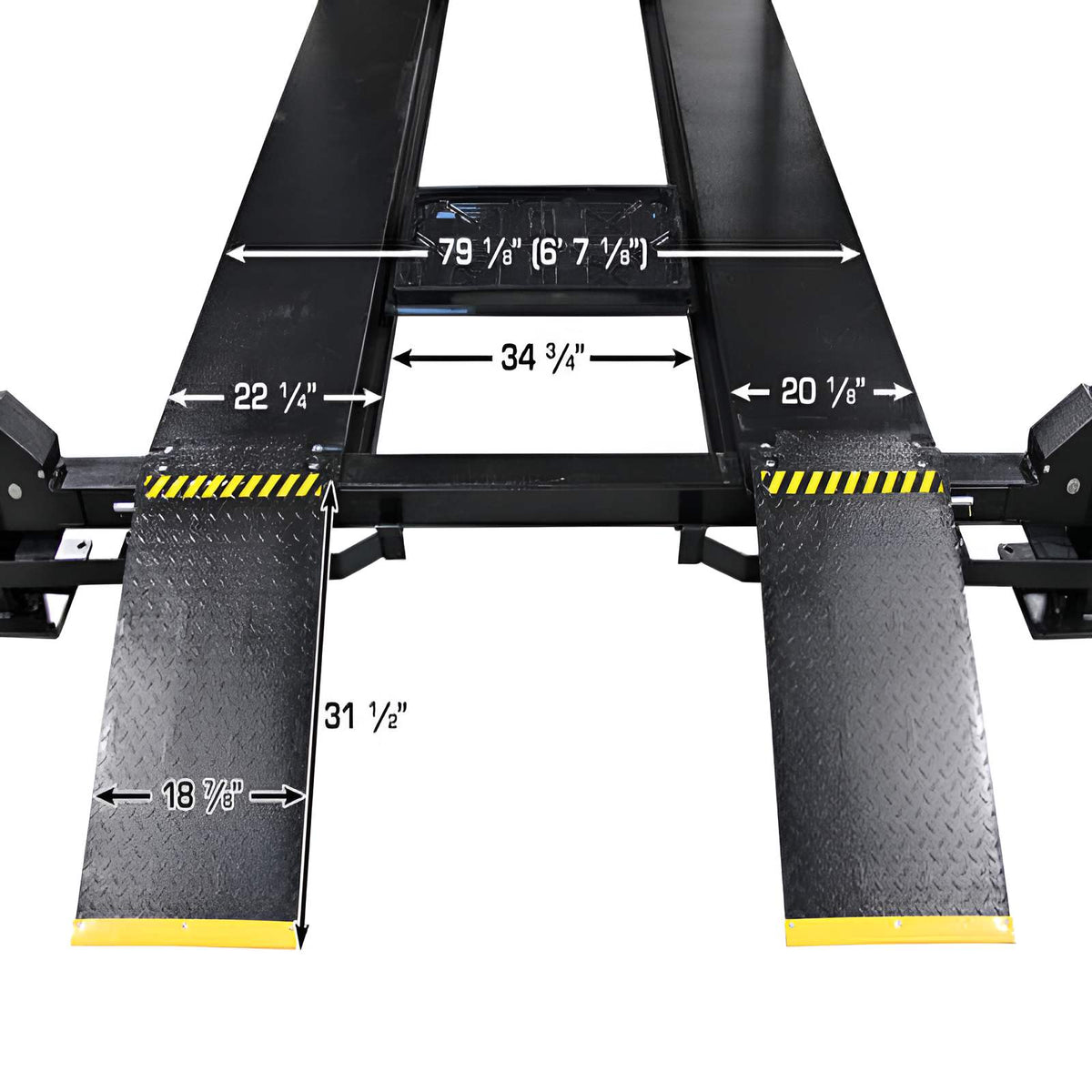

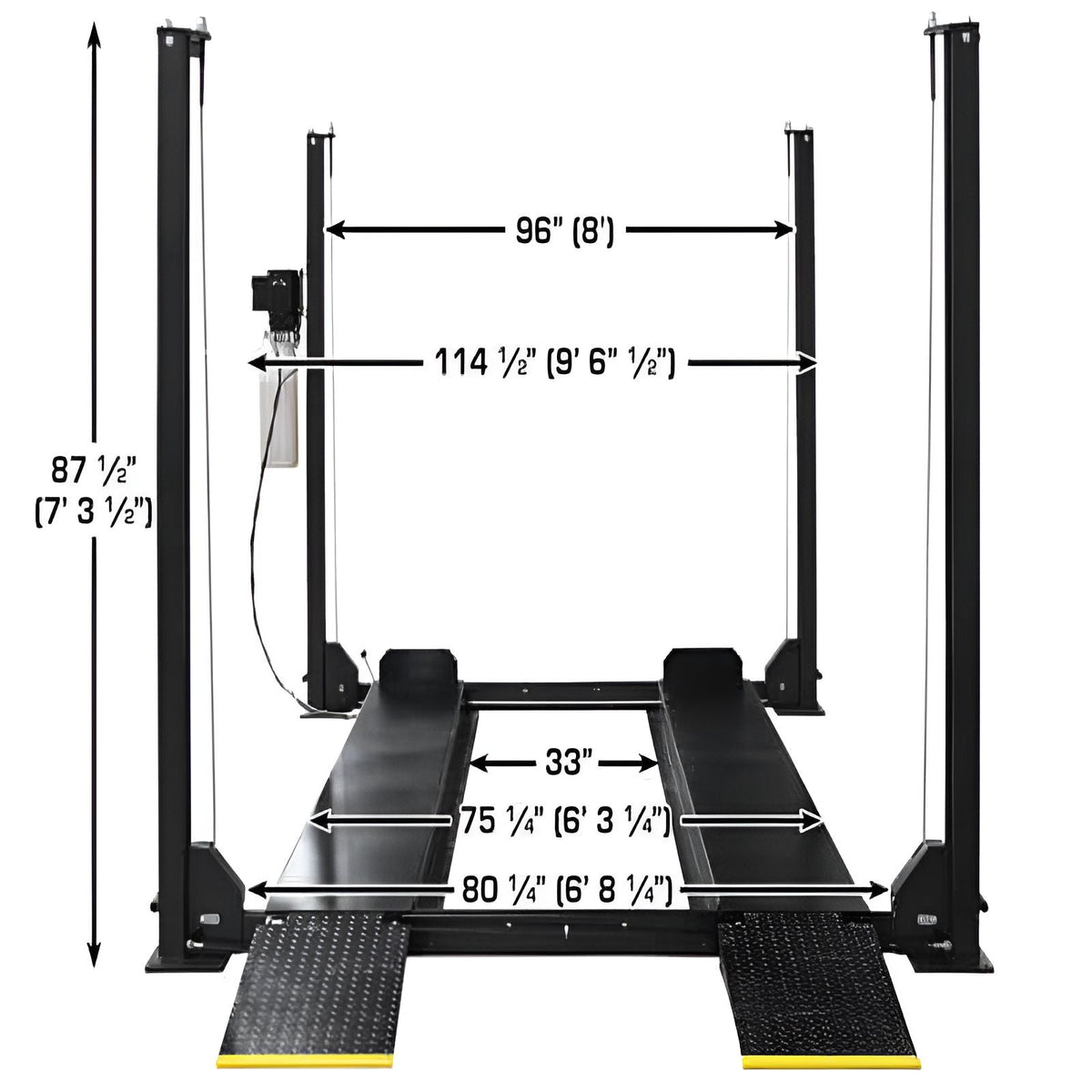

Width Between Runways |
38" w/ Rail 33" |
Outside Runway to Outside Runway |
75 1/4" (6' 3 1/4") |
Clearance Between Columns |
94" (7' 10") |

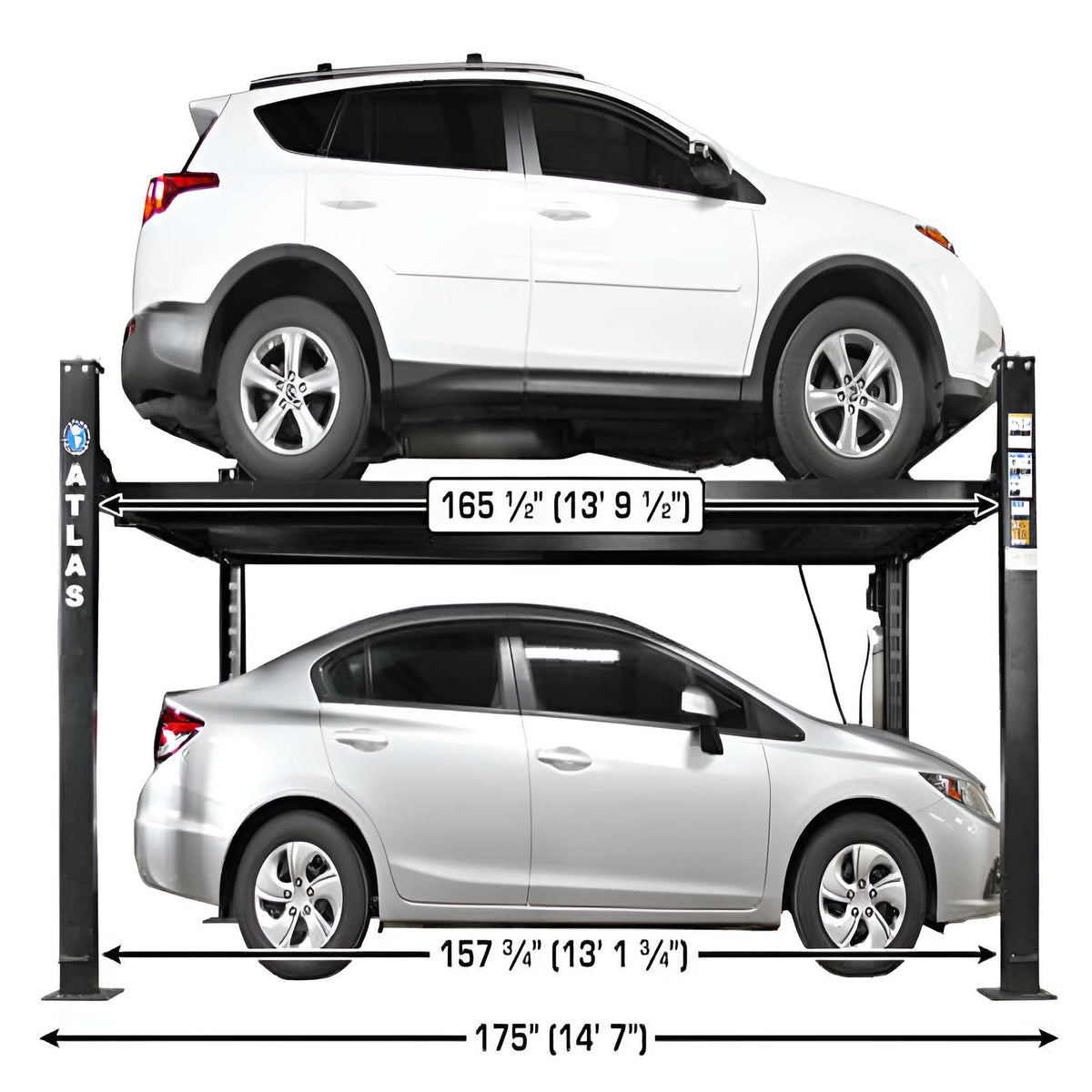

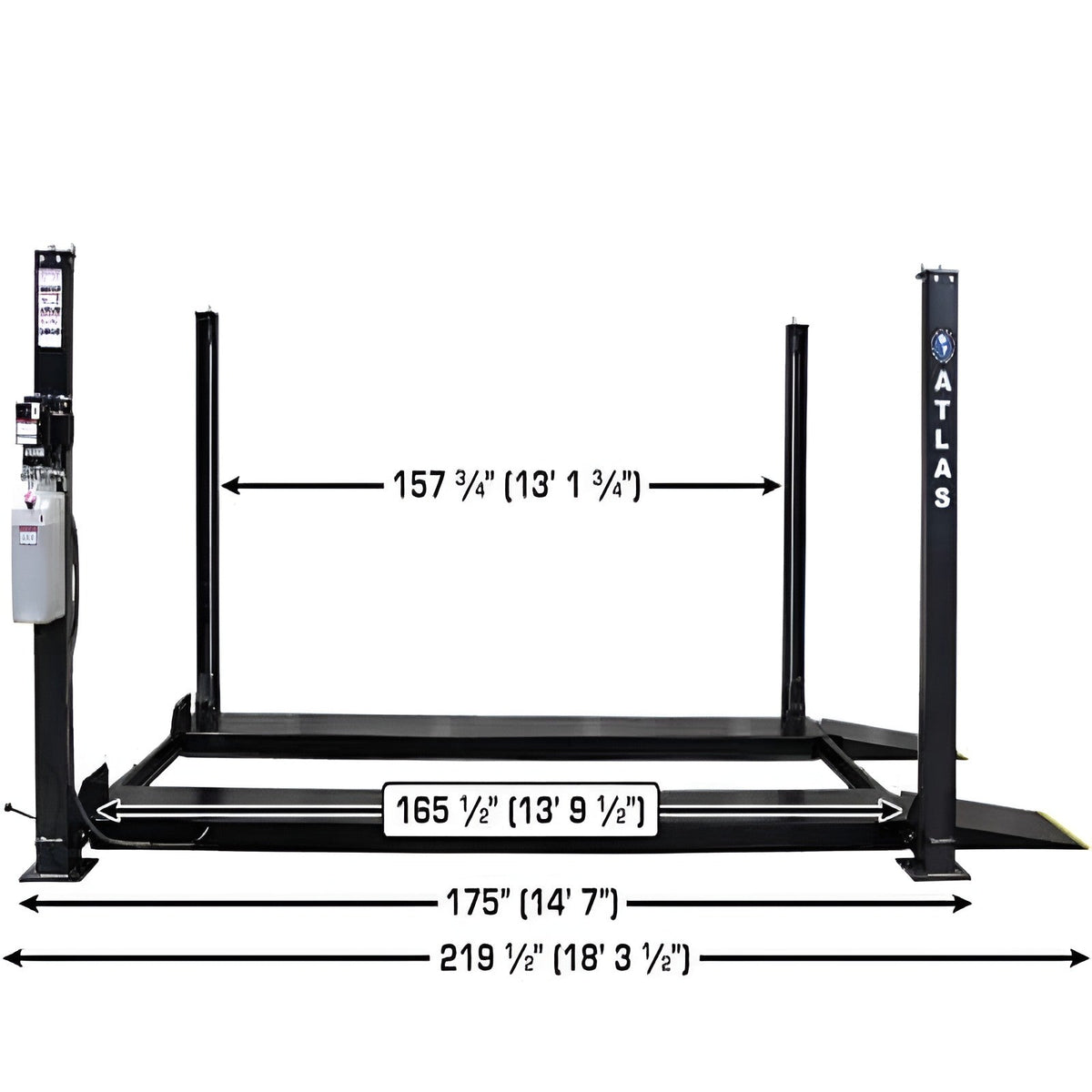

Length Between Columns |
157 1/3" (13' 1 1/3") |
Drive Thru |
80 1/4" (6' 8 1/4") |

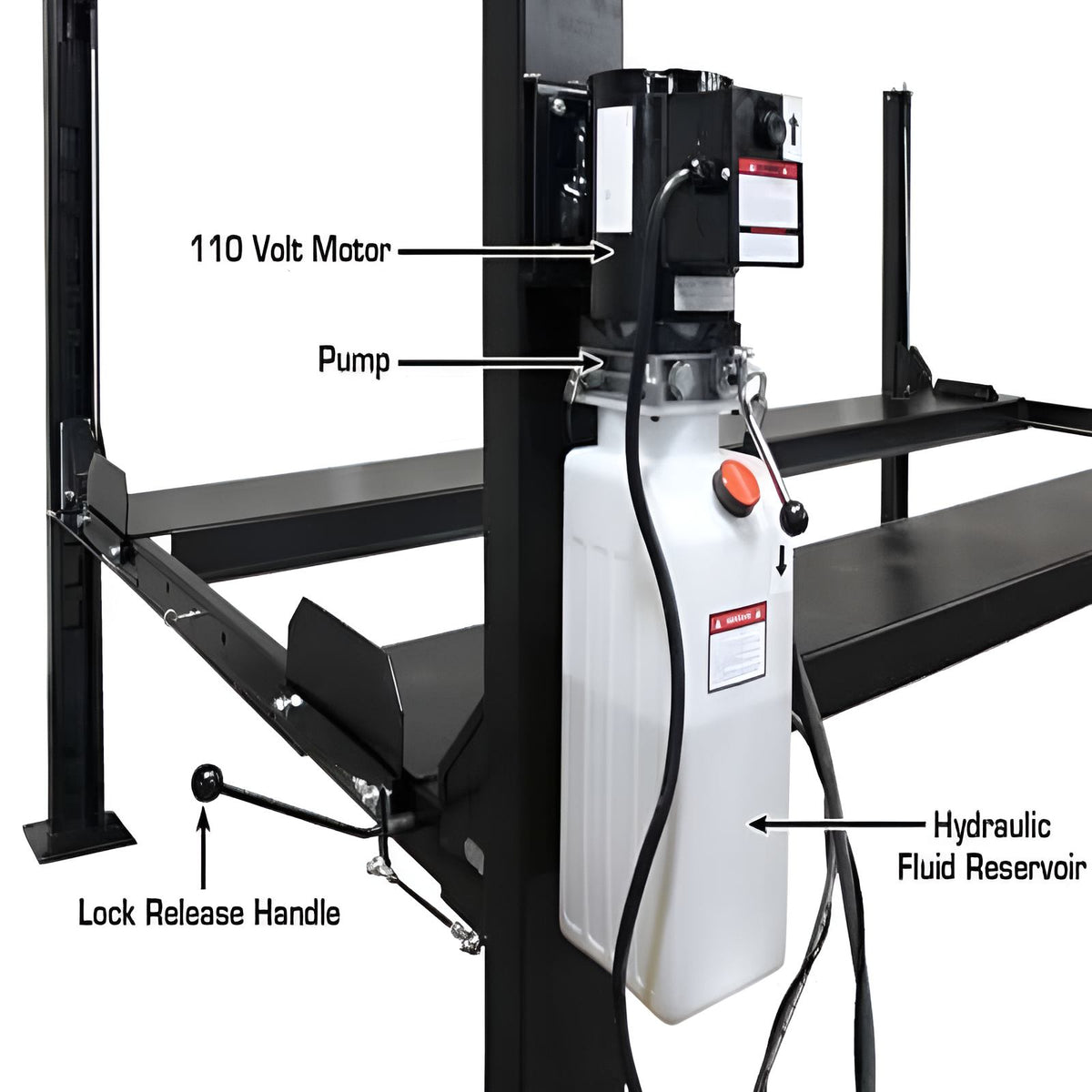

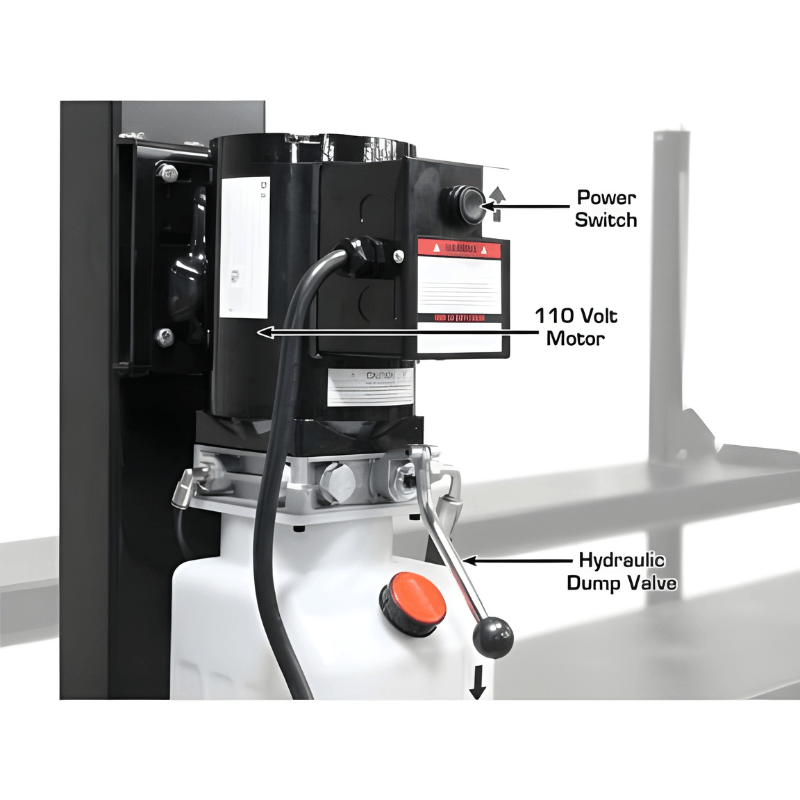

Motor/Electrical Requirement |
110volt, 30 amp breaker required |
