Atlas Apex 8 Four-Post Storage Lift – 8,000 lb, ALI Certified, Portable
SKU: ATLAS-APEX-8
The Atlas Apex 8 is an ALI certified four-post lift, specifically designed and manufactured for the discerning homeowner or restoration garage. With an 8,000 lb. capacity, this portable lift is ideal for vehicle storage or for performing maintenance and restoration work. It is important to note that these lifts are not intended for commercial repair garages that require frequent daily operation. If you have questions about the best lift for your specific application, contact the Triumph Auto Lift Center team at (320) 279-4890 or support@TriumphAutoLiftCenter.com.
Key Features

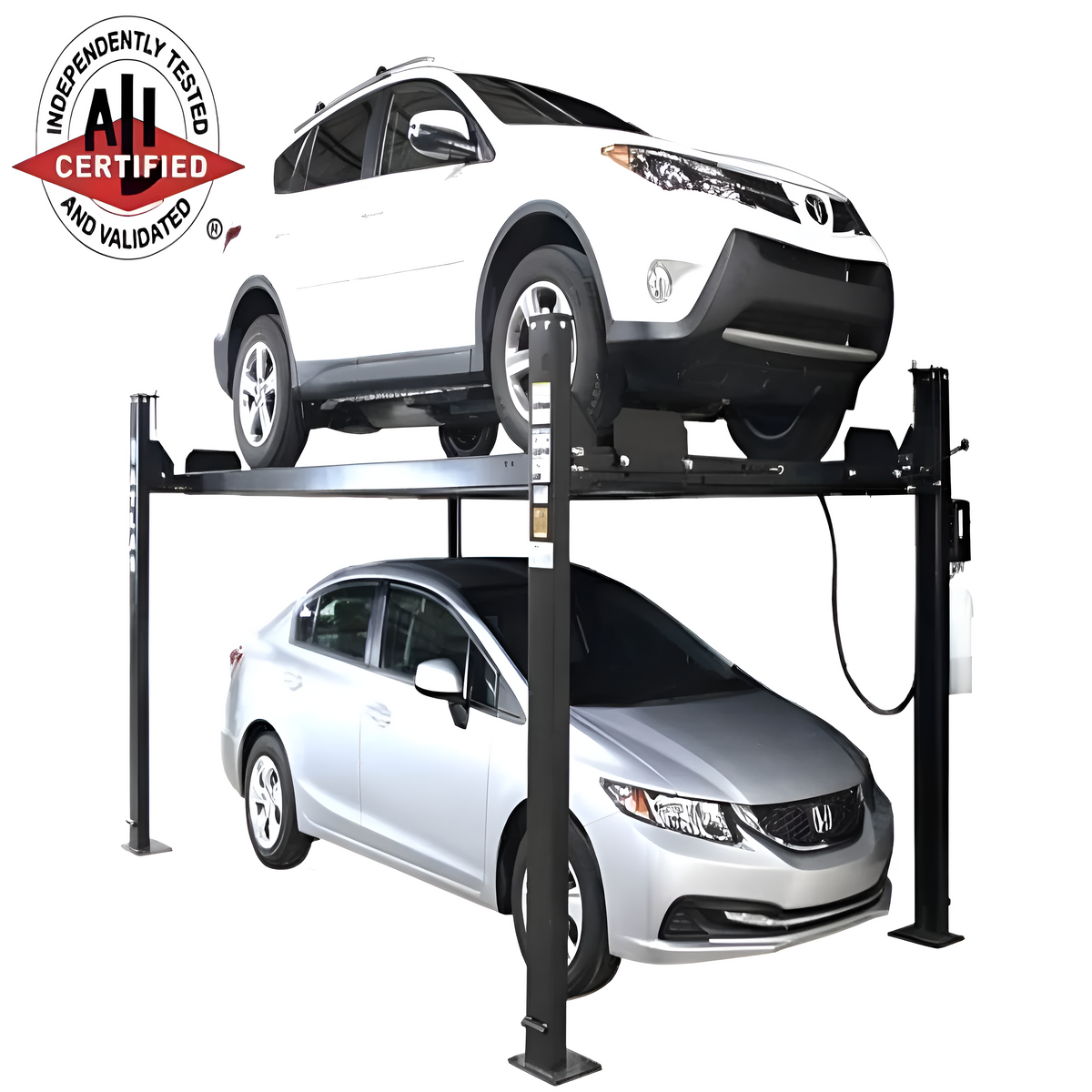

ALI Certified for safety and quality assurance.
8,000 lb. (3,628 kg) lifting capacity.
Durable Atlas Powder Coat Finish.

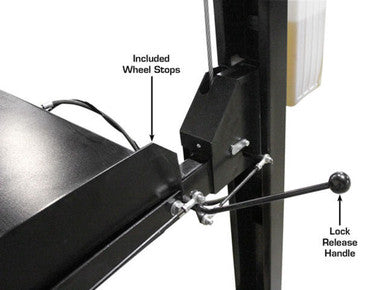

Single Point Release for ease of operation.

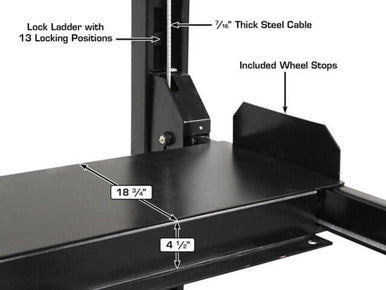

Secure Ladder Lock Design.
Dual Safety Lock System for enhanced safety.
Includes Steel Approach Ramps for easy vehicle access.
Comes with Four Wheel Stops and Two Rubber Wheel Chocks for secure positioning.
Caster Kit with Polyurethane Wheels included for portability.
Drip Trays and Jack Trays are included for convenience.
Perfect for vehicle storage or working on vehicles.
Ideal For
Home garages and DIY automotive enthusiasts
Professional auto shops and service centers
Vehicle parking and storage space optimization
Classic car restoration and collector garages
Technical Specifications
Capacity |
8,000 lb. (3,628 kg) |

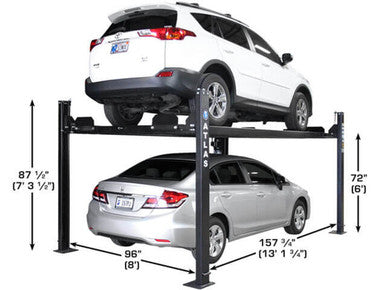

Lift Height to Top of Runway |
72″ (6′) |

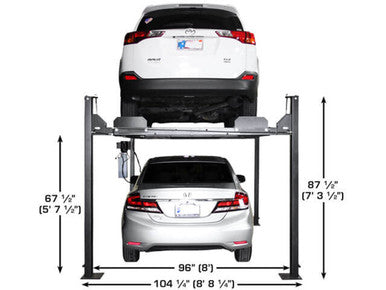

Clearance Under Runways |
67 1/2″ (5′ 7 1/2″) |
Height of Columns (including nuts) |
87 1/2″ (7′ 3 1/2″) |

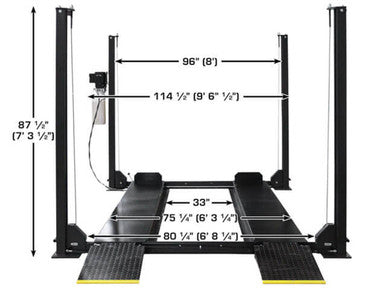

Overall Width (w/o motor and casters) |
104 1/4″ (8′ 8 1/4″) |
Overall Width (with motor) |
114 1/2″ (9′ 6 1/2″) |
Overall Length w/o Approach Ramps (including lock bar) |
186 1/2″ (15′ 6 1/2″) |
Overall Length with Approach Ramps (including lock bar) |
219 1/2″ (18′ 3 1/2″) |

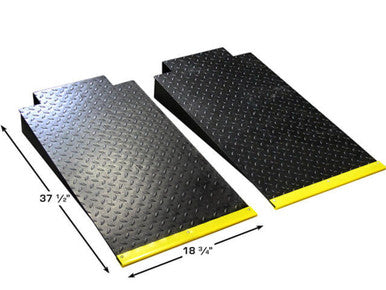

Approach Ramps |
37 1/2″ (3′ 1 1/2″) |

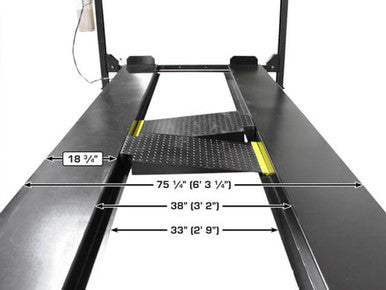

Runway Width |
18 3/4″ |
Runway Rail Width |
2 1/2″ |

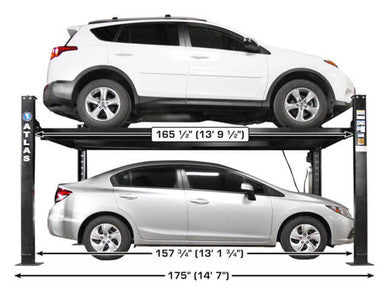

Runway Length |
165 1/2″ (13′ 9 1/2″) |
Runway Thickness |
4 1/2″ |
Width Between Runways |
38″ (3′ 2″) |
Width Between Runway Rails |
33″ (2′ 9″) |
Outside of Runway to Outside of Runway |
75 1/4″ (6′ 3 1/4″) |

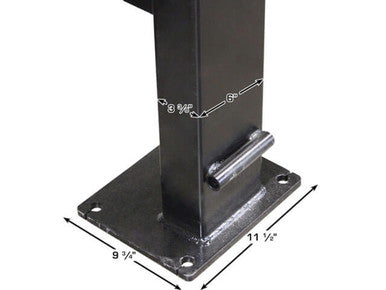

Column Size |
6″ x 3 3/8″ |
Clearance Between Columns |
96″ (8′) |

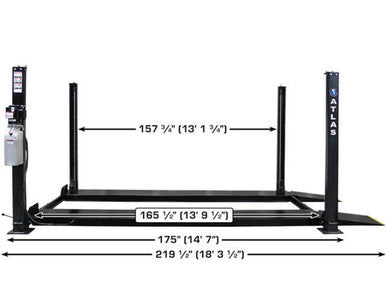

Length Between Columns |
157 3/4″ (13′ 1 3/4″) |
Column Base |
11 1/2″ x 9 3/4″ |
Max. Wheelbase |
153 1/2″ (12′ 9 1/2″) |
Drive Thru (Outside of Tire to Outside of Tire) |
80 1/4″ (6′ 8 1/4″) |
Cable Diameter |
7/16″ (.4375″) |
Steel Gauge |
6 Gauge (.1875″ / 3/16″ / 4.75mm) |

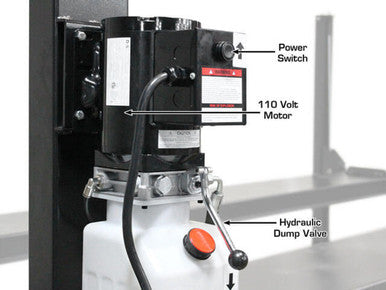

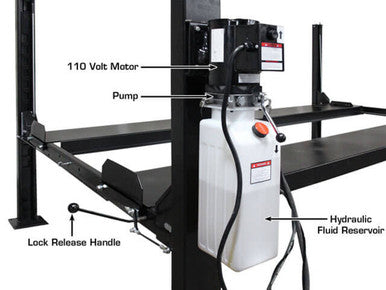

Motor/Electrical Requirement |
110 Volt, Single (1) Phase; 30 Amp Breaker Recommended |
Oil Requirement |
2.6 Gallons AW32/AW46 |
