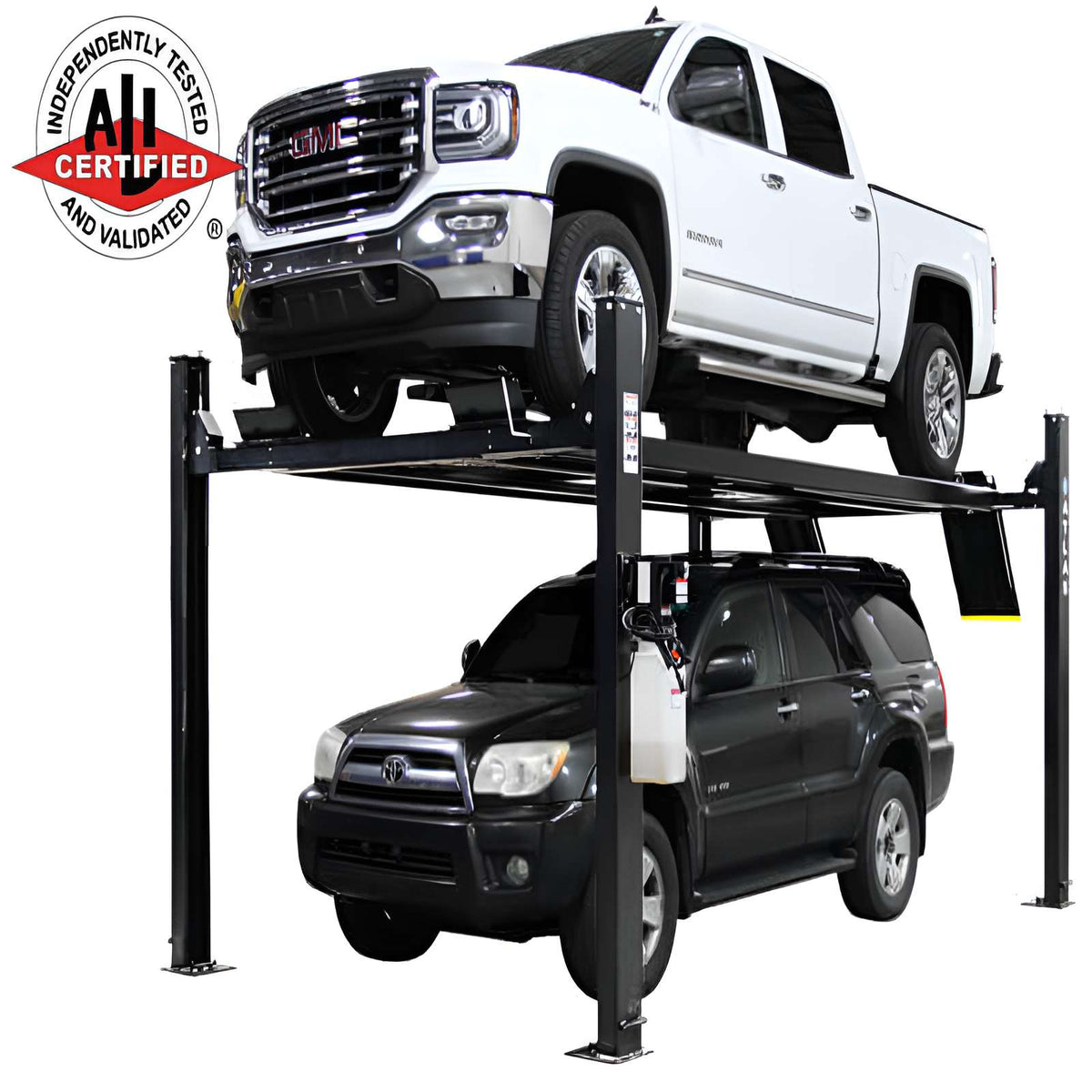

Atlas Apex 9, 9,000 lb 4 Post Vehicle Storage Lift - ALI Certified
SKU: ATEAPEX9

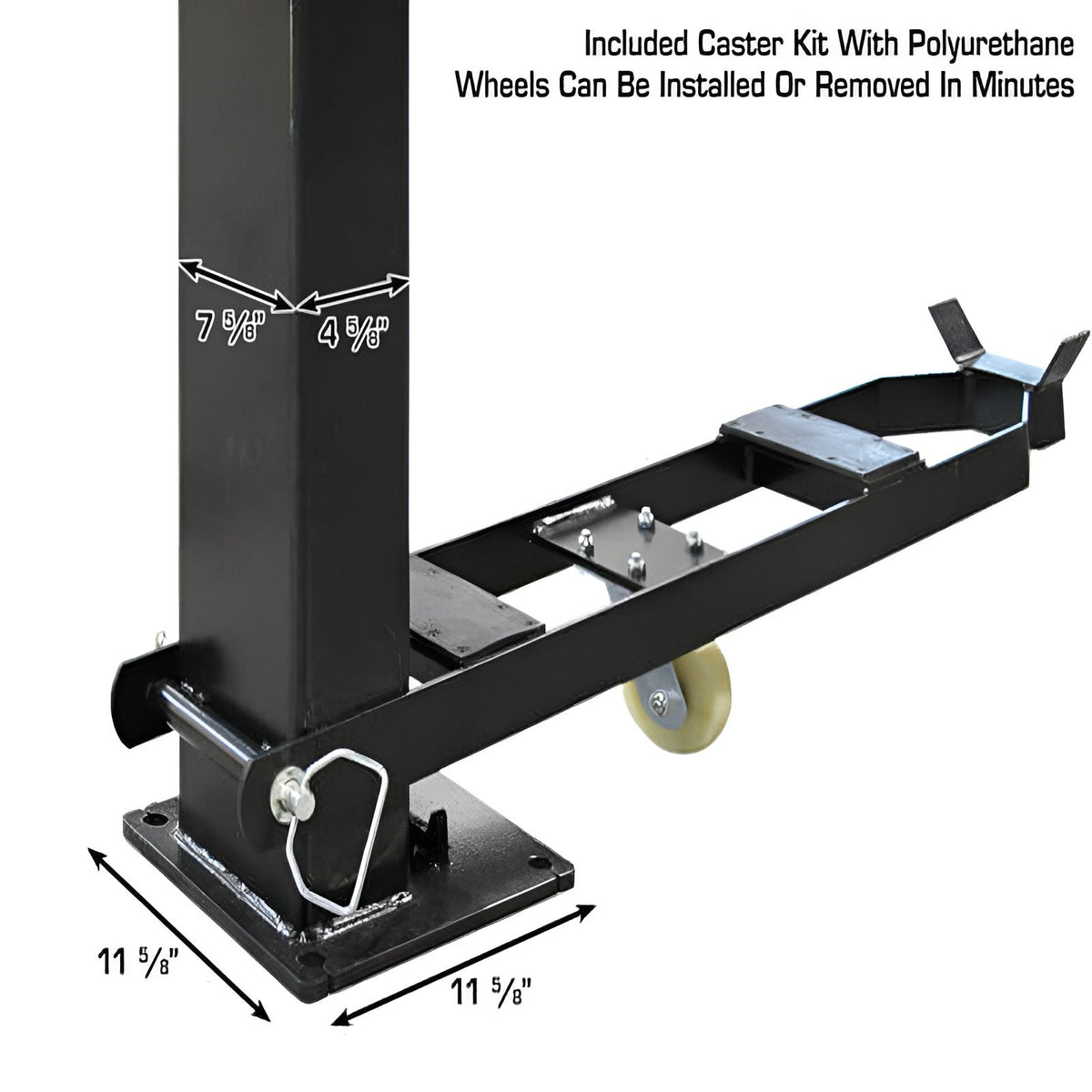

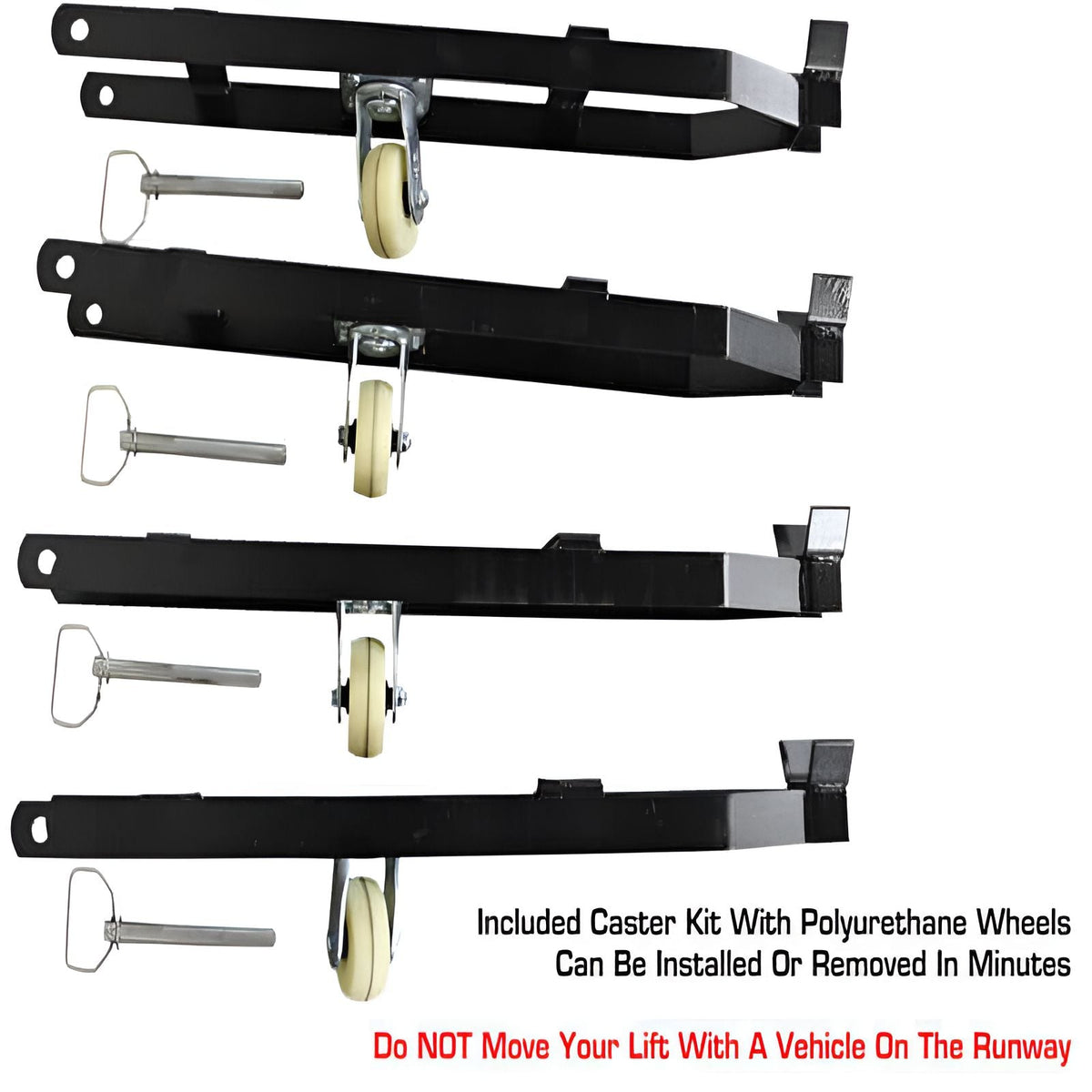

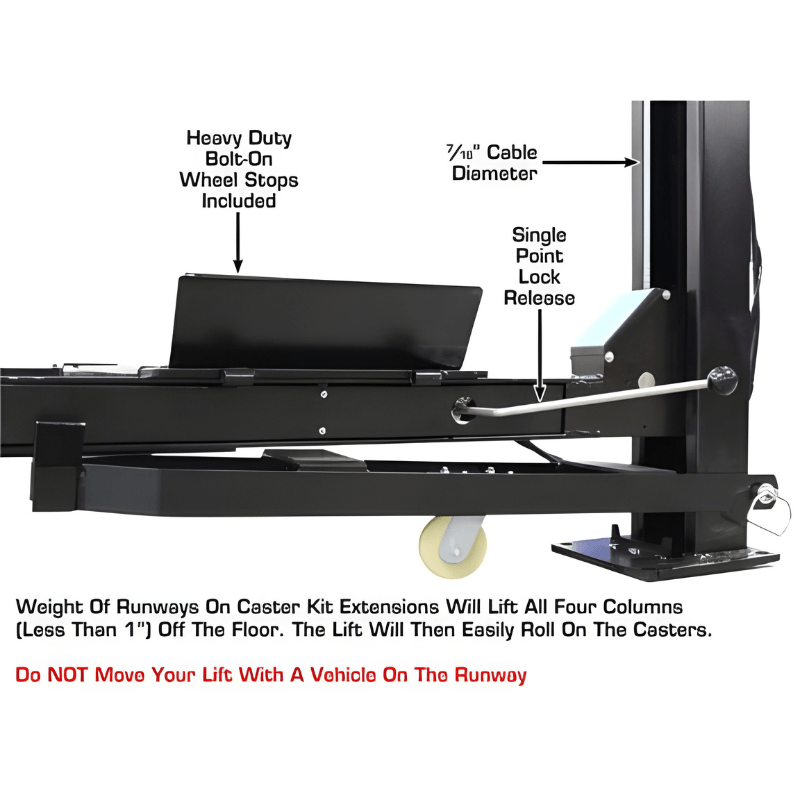

Apex 9 4 Post Vehicle Storage Lift by Atlas Let’s face it: working under cars is a pain on your back, knees, head, you’re perpetually covered in grease, and your knuckles are begging for mercy. It’s time to elevate your repair game. Enter the Atlas APEX9 – the ultimate solution to your automotive woes. This heavy-duty, 9000-pound capacity lift is built like a tank, but moves like a dream (thanks to optional caster kits). It’s wider than your average lift, so even those trucks and SUVs two sizes too big can climb aboard. And with its impressive 86” lifting height, you can park another car underneath! It doesn't end there The Atlas APEX9 is packed with features that will make your life easier.
Rated for 9,000 lb, it's suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
9,000 lb lifting capacity built for dependable daily use
Manufacturer warranty included on every unit
Documented specifications you can verify before you buy
Ideal For
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Technical Specifications
Capacity |
9000 lbs |

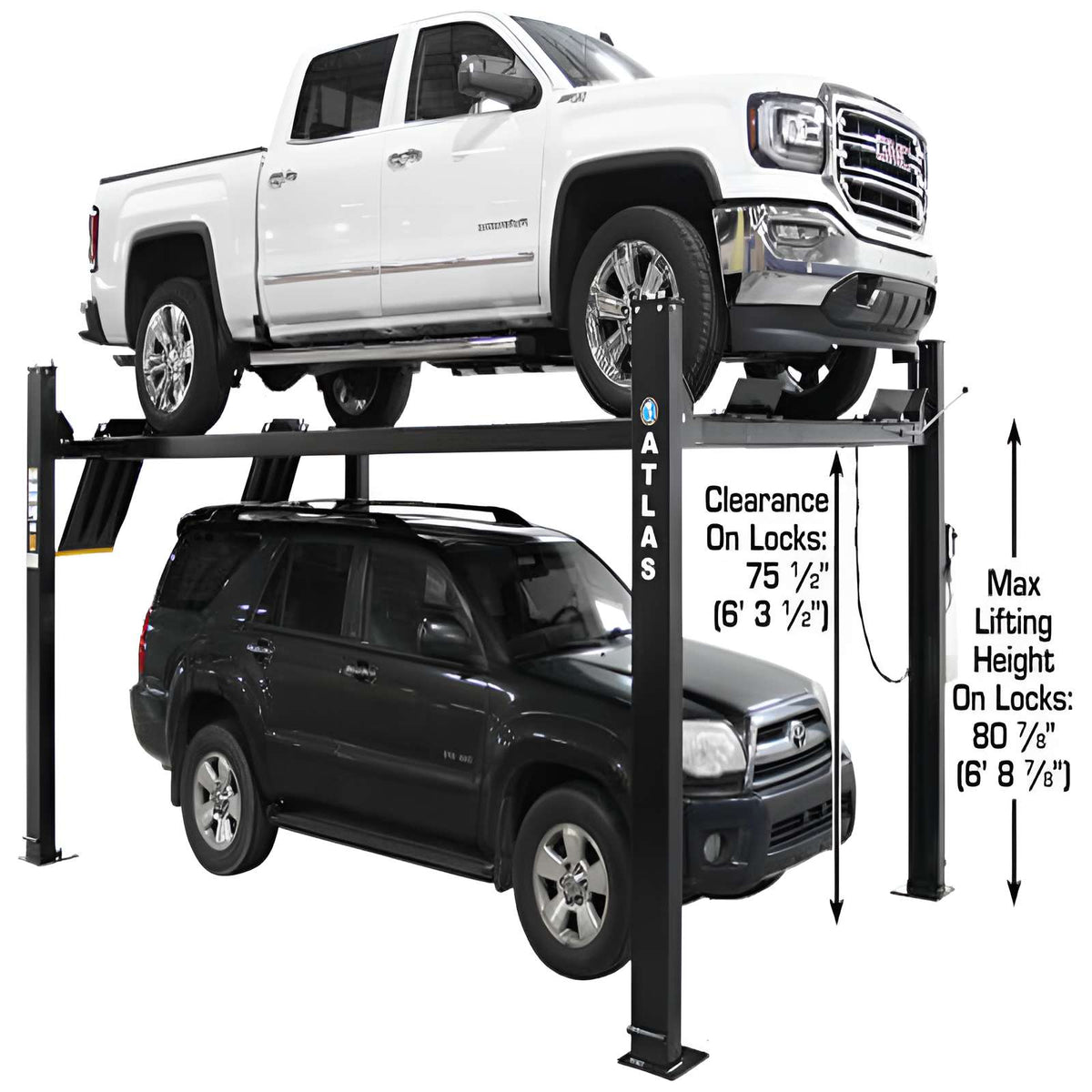

Clearance Under Runways |
81 1/4" (6' 9 1/4") |

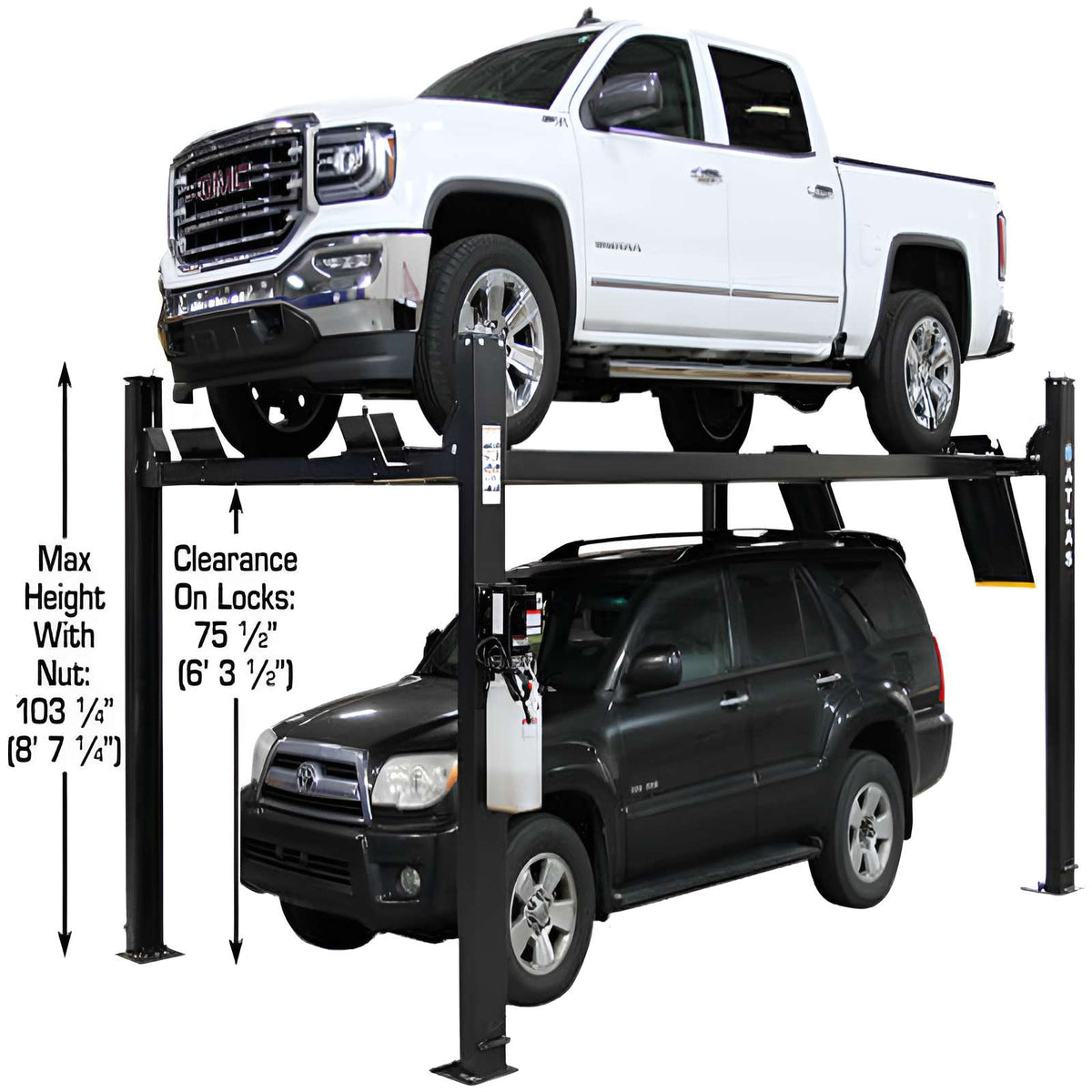

Height of Columns |
99" (8' 3") |

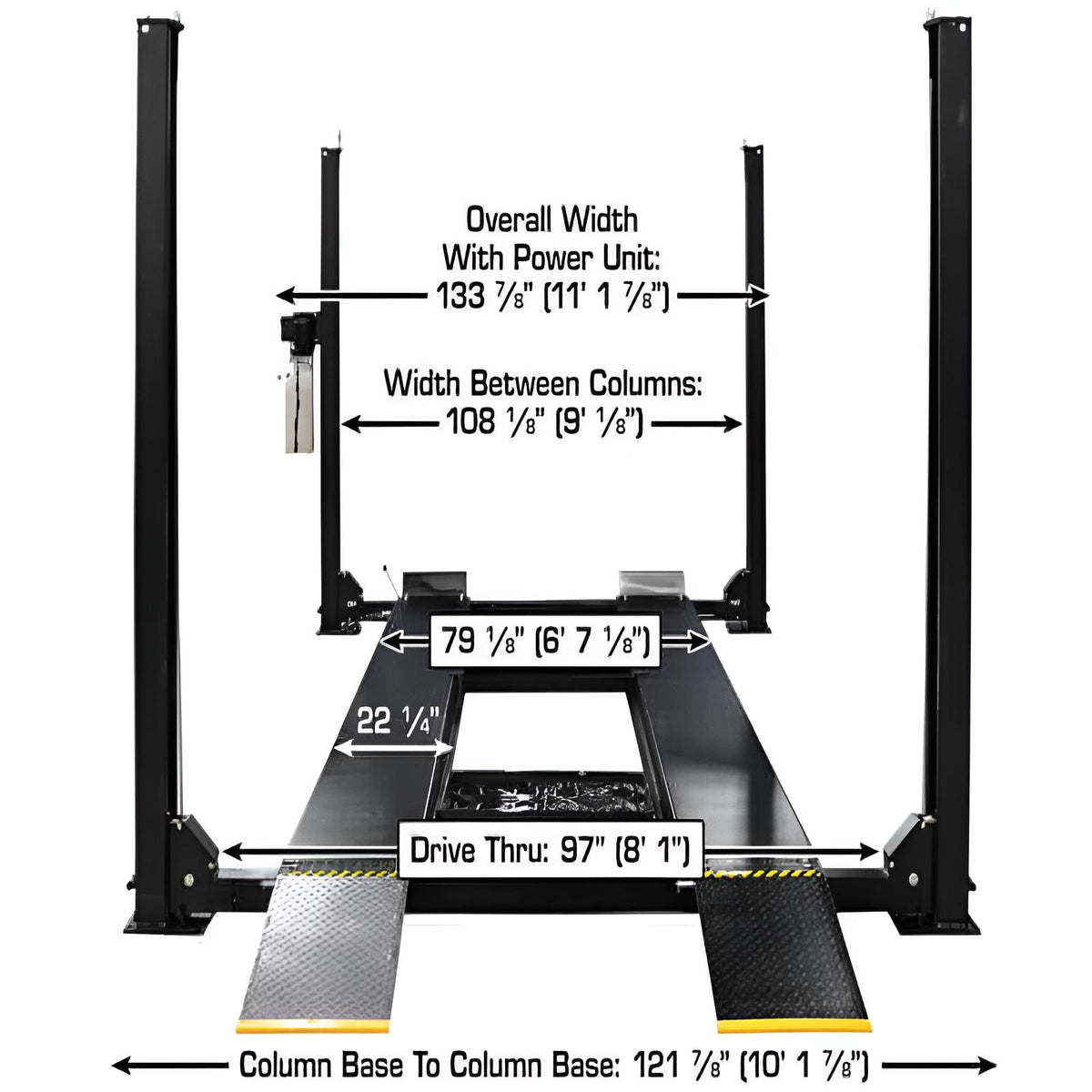

Overall Width |
121 7/8" (10' 1 7/8") w/ motor 133 7/8" (11' 1 7/8") |
Overall Length w/ Ramps |
227 1/2" (18' 11 1/2") |

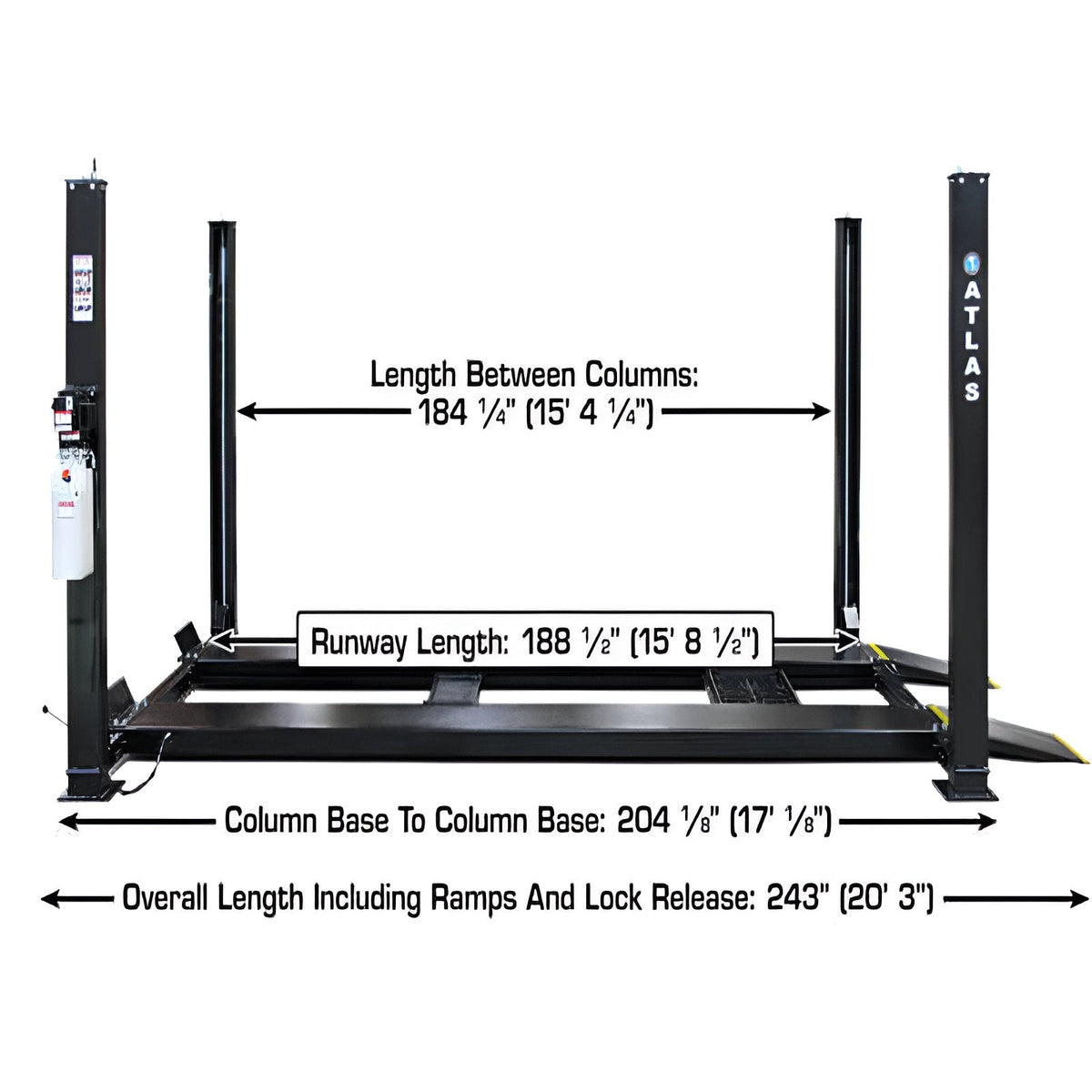

Runway Length |
196 1/2" (16' 4 1/2") |

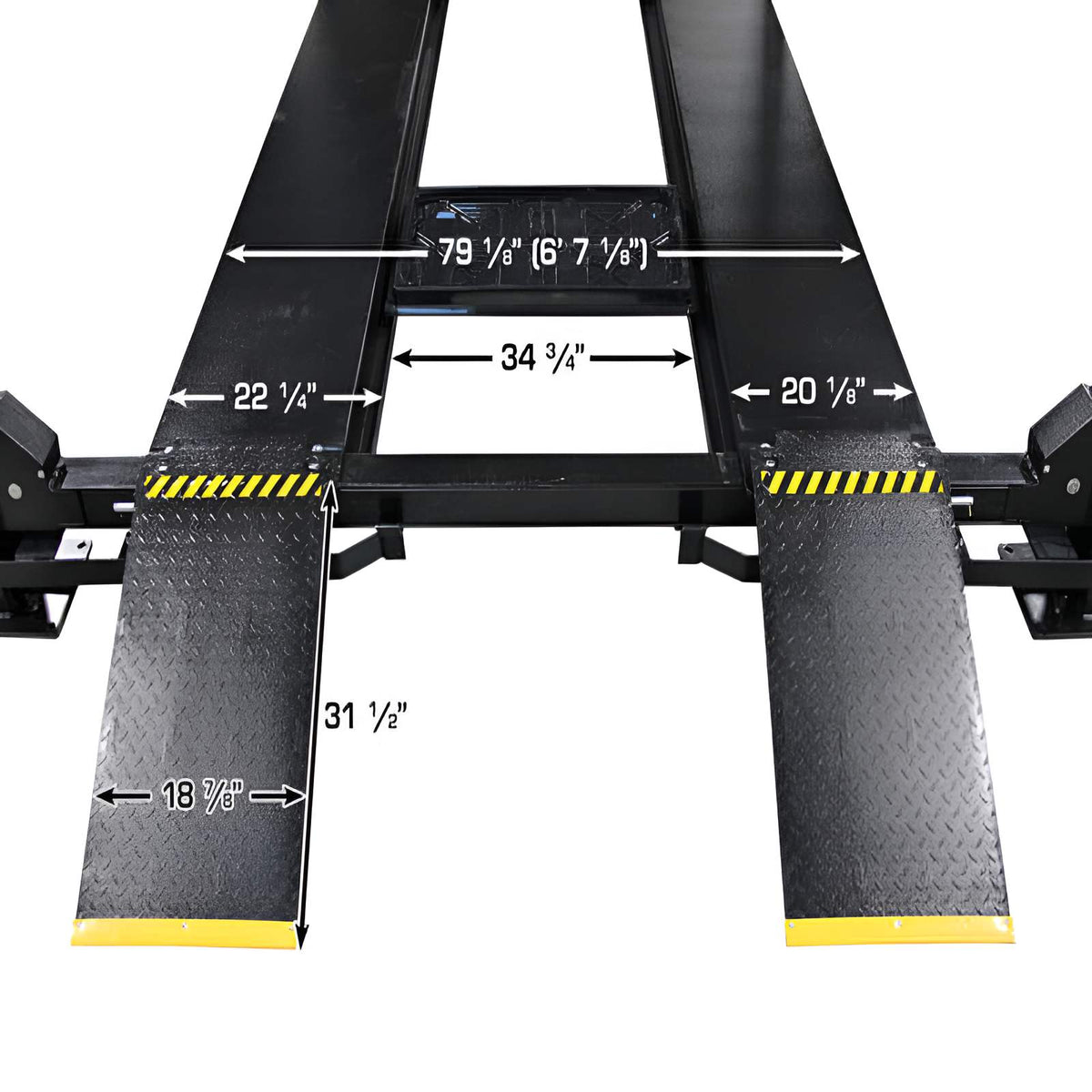

Runway Width |
20 1/8" |
Runway Thickness |
4 3/4" |
Width Between Runways |
38 7/8" w/ Rail 34 3/4" |
Outside Runway to Outside Runway |
79" (6' 7") |

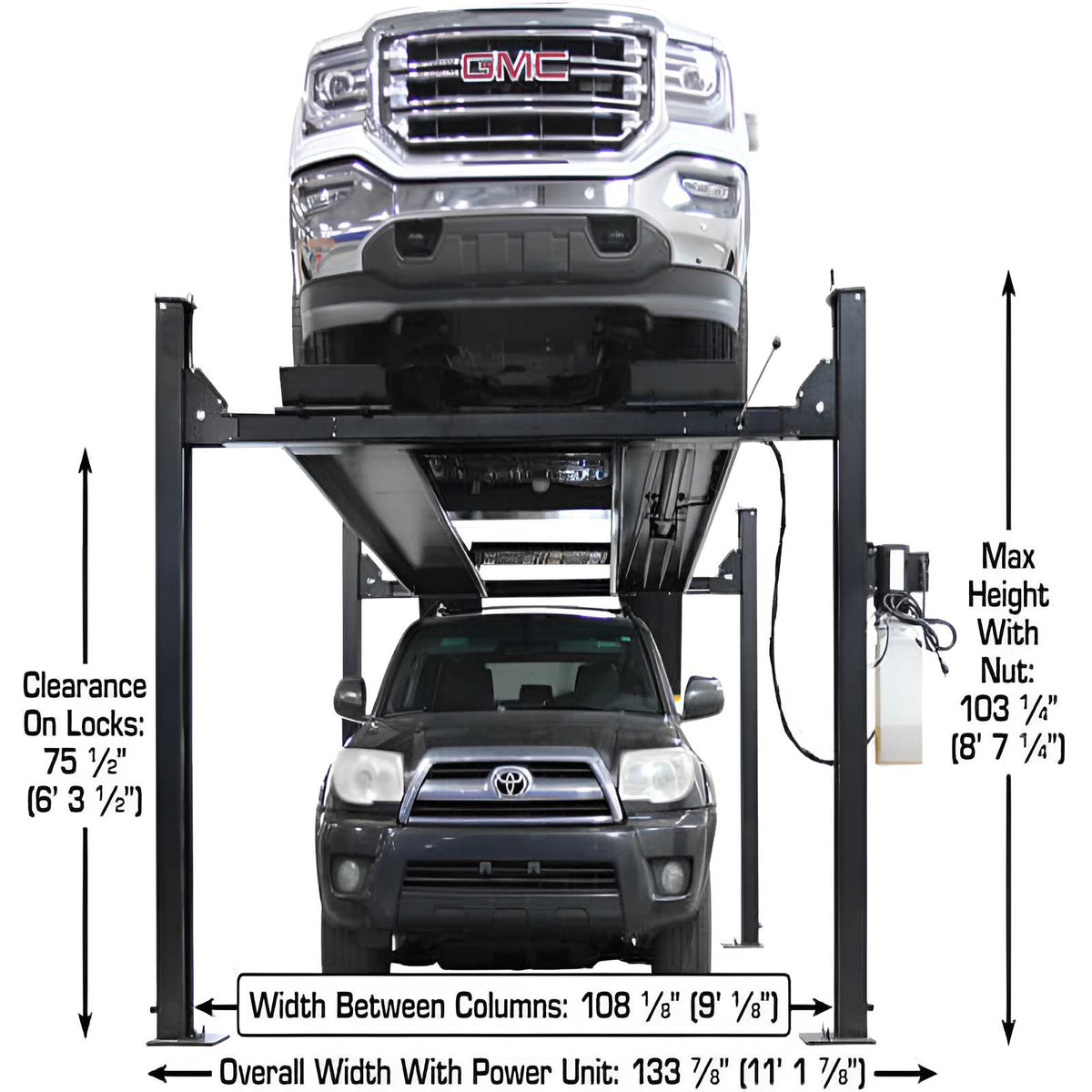

Clearance Between Columns |
108 1/8" (9' 1/8") |

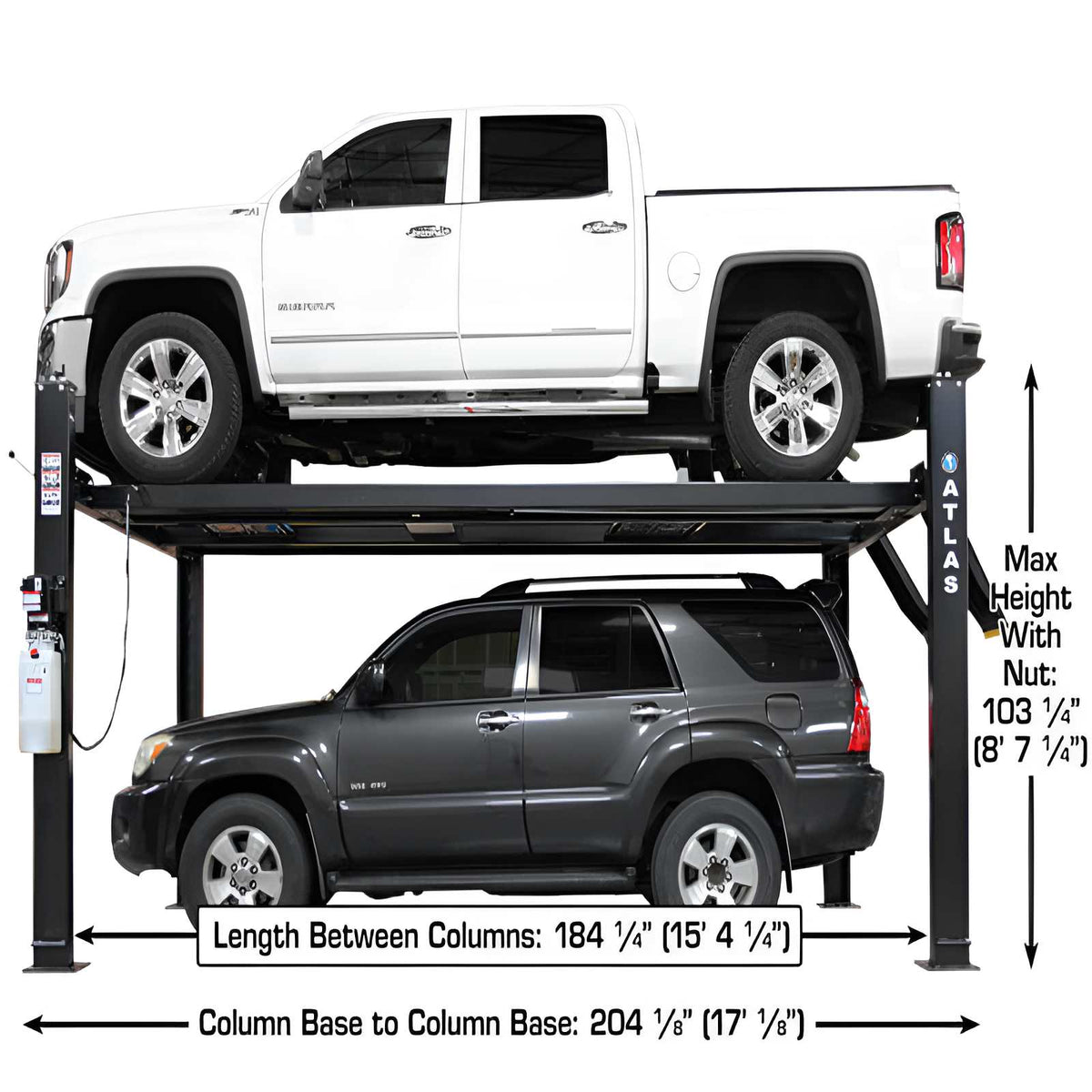

Length Between Columns |
184 1/4" (15' 4 1/4") |
Drive Thru |
98 5/8" (8' 2 5/8") |
Motor/Electrical Requirement |
110volt, 30 amp breaker required |
