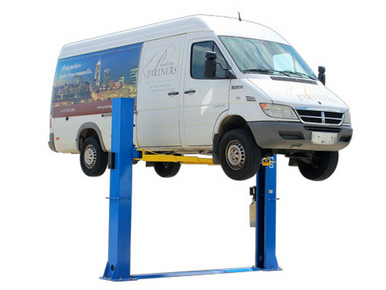

Atlas BP10000 Baseplate Two-Post Lift – 10,000 lb Capacity

The Atlas BP10000 Baseplate 2-Post Lift is a highly reliable and space-efficient solution specifically designed for lifting vehicles up to 10,000 lbs (approximately 4,536 kg). This lift is an excellent choice for automotive repair shops and garages with lower ceiling clearances, as its baseplate design eliminates the need for overhead clearance, while still maintaining exceptional structural stability and robust lifting performance.

Engineered for precision and durability, the BP10000 features powerful dual hydraulic chain-drive cylinders, which ensure smooth and accurate vehicle positioning. Its super-symmetric arm design, including both 2-stage and 3-stage arms with welded gussets, provides balanced support and versatility for a wide array of vehicles. For ease of operation and enhanced safety, the lift incorporates a convenient single-point safety lock release system, complemented by a double lock system for added security. The lift’s components are treated with an Atlas powder-coated anti-corrosion finish, ensuring long-term durability and resistance to harsh workshop environments. Additionally, it comes with a comprehensive 12-piece truck adapter set, guaranteeing compatibility with a broad range of vehicle types and lifting points.

Key Features

• High Lifting Capacity: 10,000 lbs (4,536 kg), suitable for various passenger vehicles and light trucks.

• Baseplate Style Design: Ideal for garages with low ceilings, eliminating overhead obstructions.

• Super-Symmetric Arms: Features 2-stage and 3-stage super-symmetric arms with welded gussets for superior strength, balance, and versatility in vehicle positioning.

• Advanced Lock System: Equipped with a single-point lock release for convenient lowering, enhanced by a double lock safety system for secure operation at various heights.

• Included Accessories: Comes with a comprehensive 12-piece truck adapter set (including 2″, 3″, and 6″ height adapters with a 1.5″ peg size) and all necessary mounting hardware for a complete setup.

• Corrosion Resistance: Protected by an Atlas powder-coated anti-corrosion treatment for extended durability and lifespan.

• Hydraulic System: Utilizes dual hydraulic chain-drive cylinders for smooth, reliable, and consistent lifting.

Ideal For

• Professional auto shops and service centers

• Heavy-duty truck and commercial vehicle service

Technical Specifications
