Atlas Garage Pro 9000 4 Post Lift + (2) RJ35 Sliding Jacks Combo
SKU: ATEXH-PRO9-COMBO1
Atlas 9000 4 Post Lift + RJ35 Sliding Jacks Combo Let’s face it: if you're still messing around with a flimsy lift, it’s time for a serious upgrade. The Atlas PRO9000 4 Post Lift + RJ35 Sliding Jacks Combo is here to save the day and your sanity. Capable of lifting up to 9,000 lbs, this beast is built to handle everything from the longest wheelbase vehicles to the widest Diesel Duallys, no problem. With a lifting height of 85 inches and clearance under the runways of over 80 inches, you can park cars below it, above it, or basically any way you want.
It’s suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
PRO9000
9,000 lb. Capacity

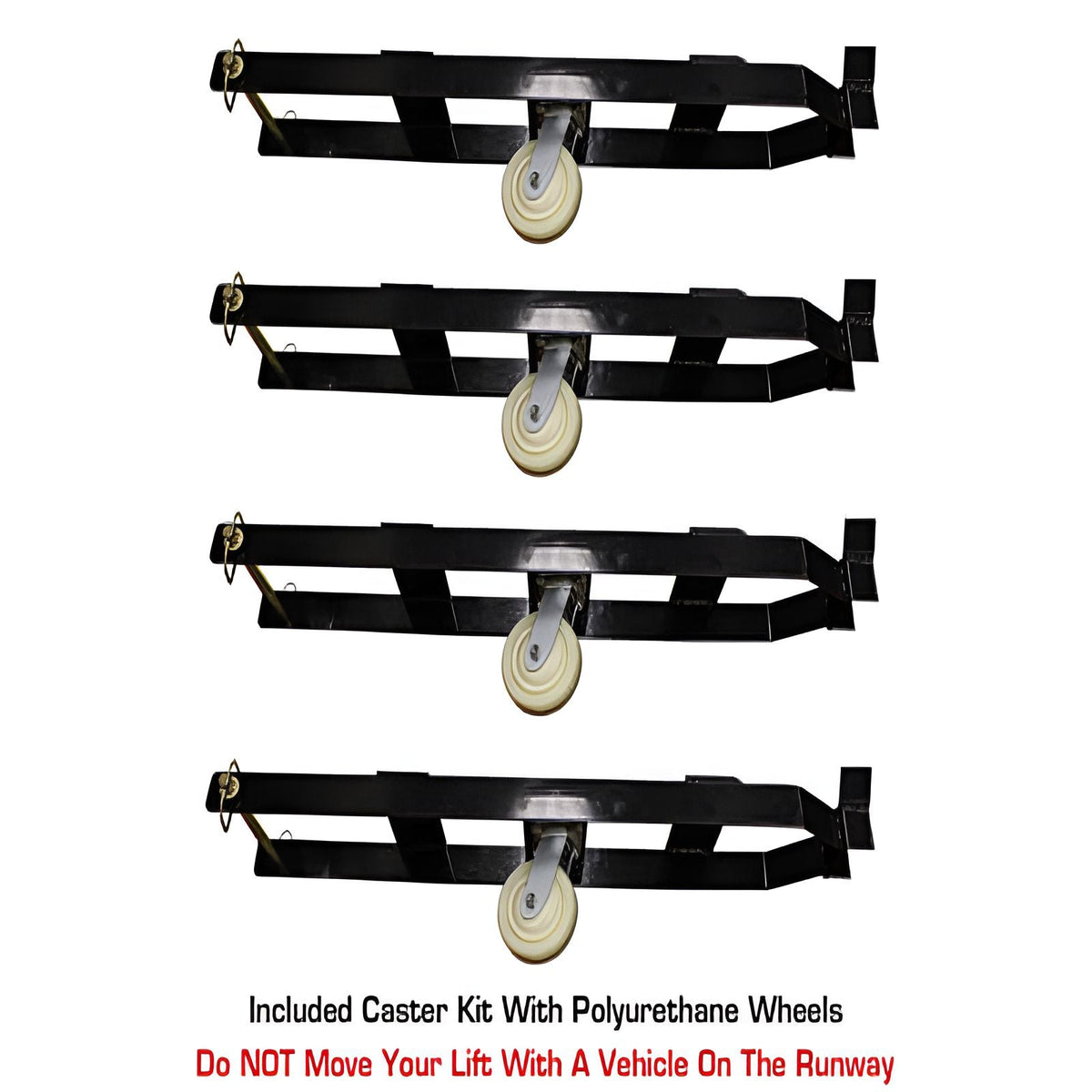

Free Standing/Portable Design
Heavy Duty
Extra Tall/Extra Wide/Extra Long

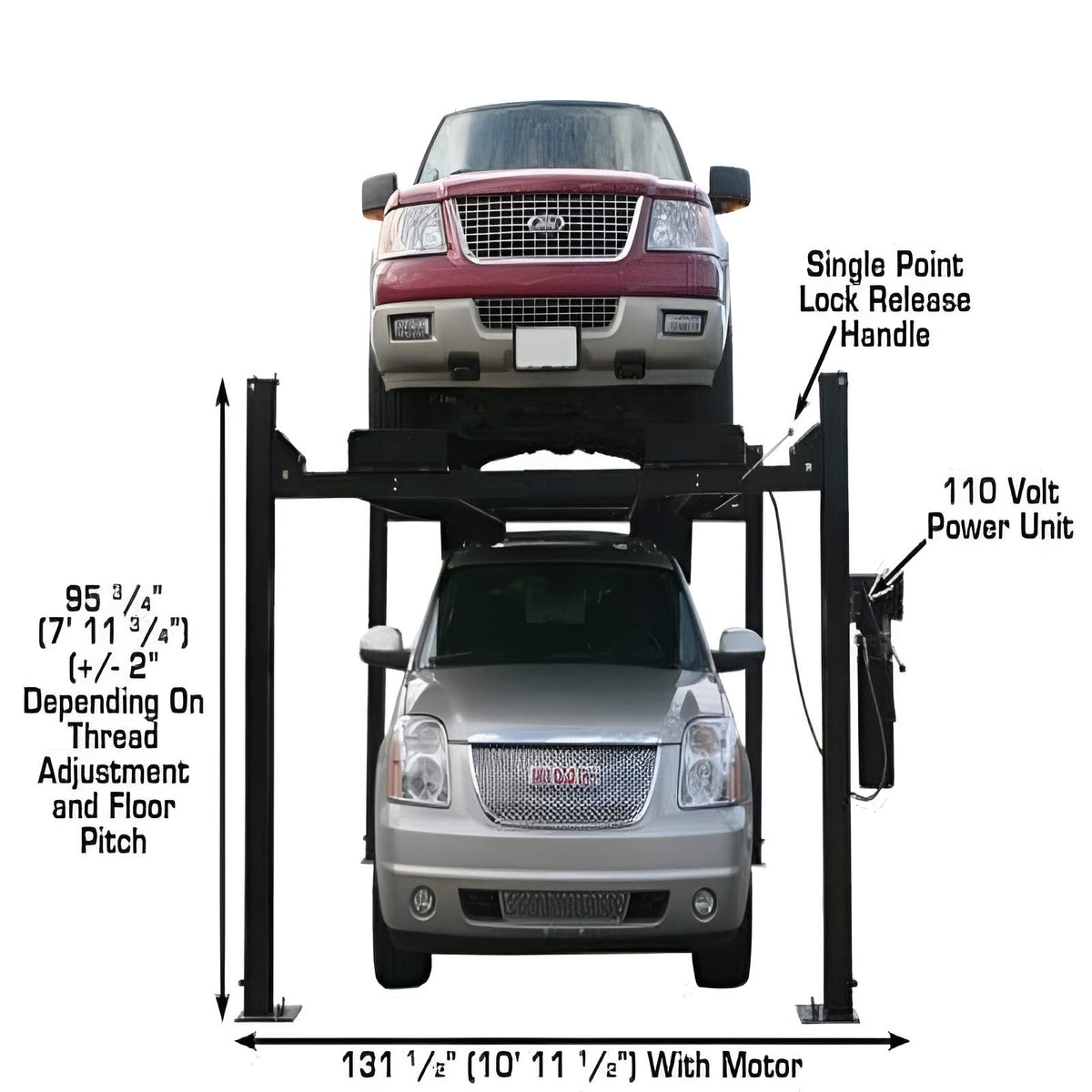

Single-Point Lock Release
Lock Ladder Design
Double Lock Safety System
Ideal For
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types

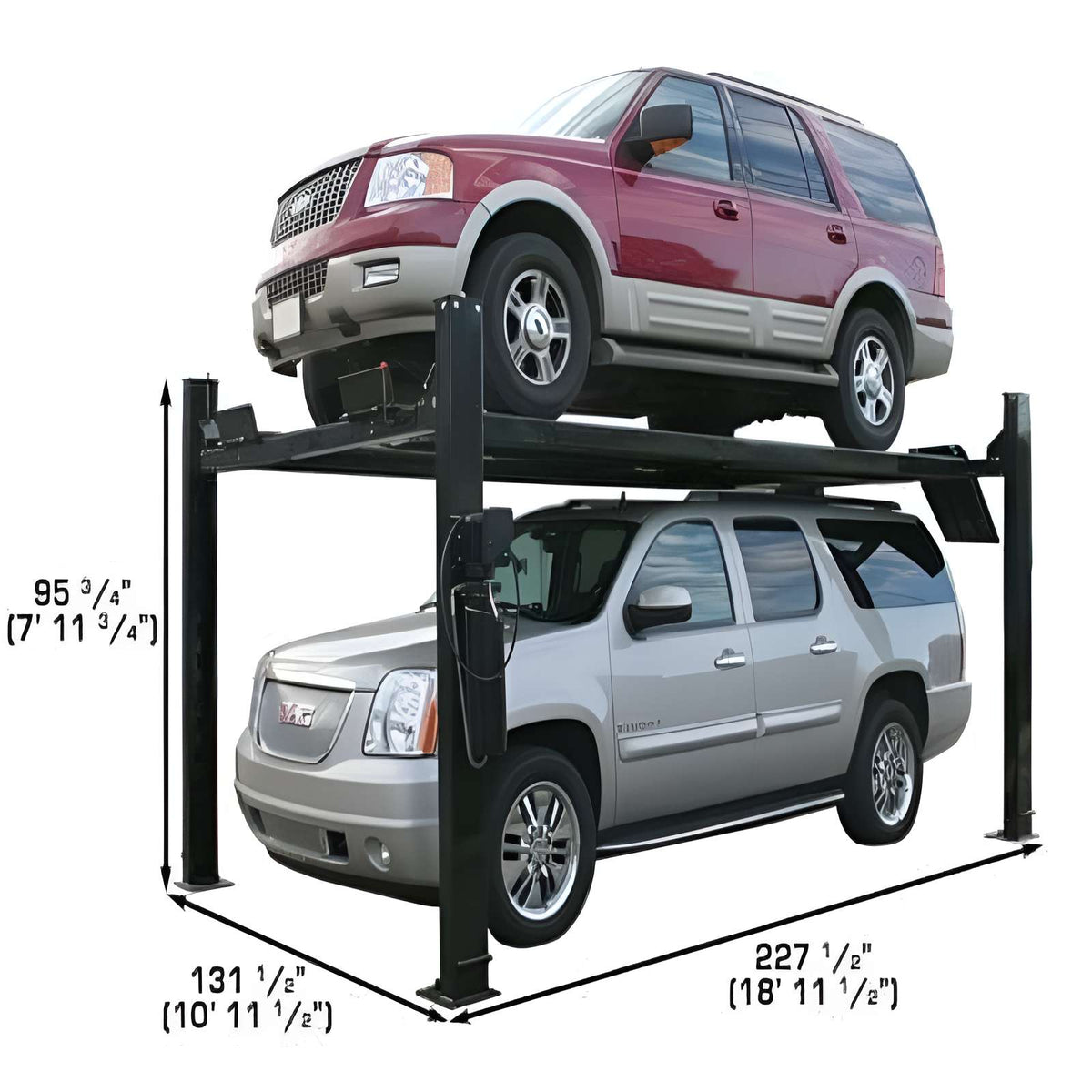

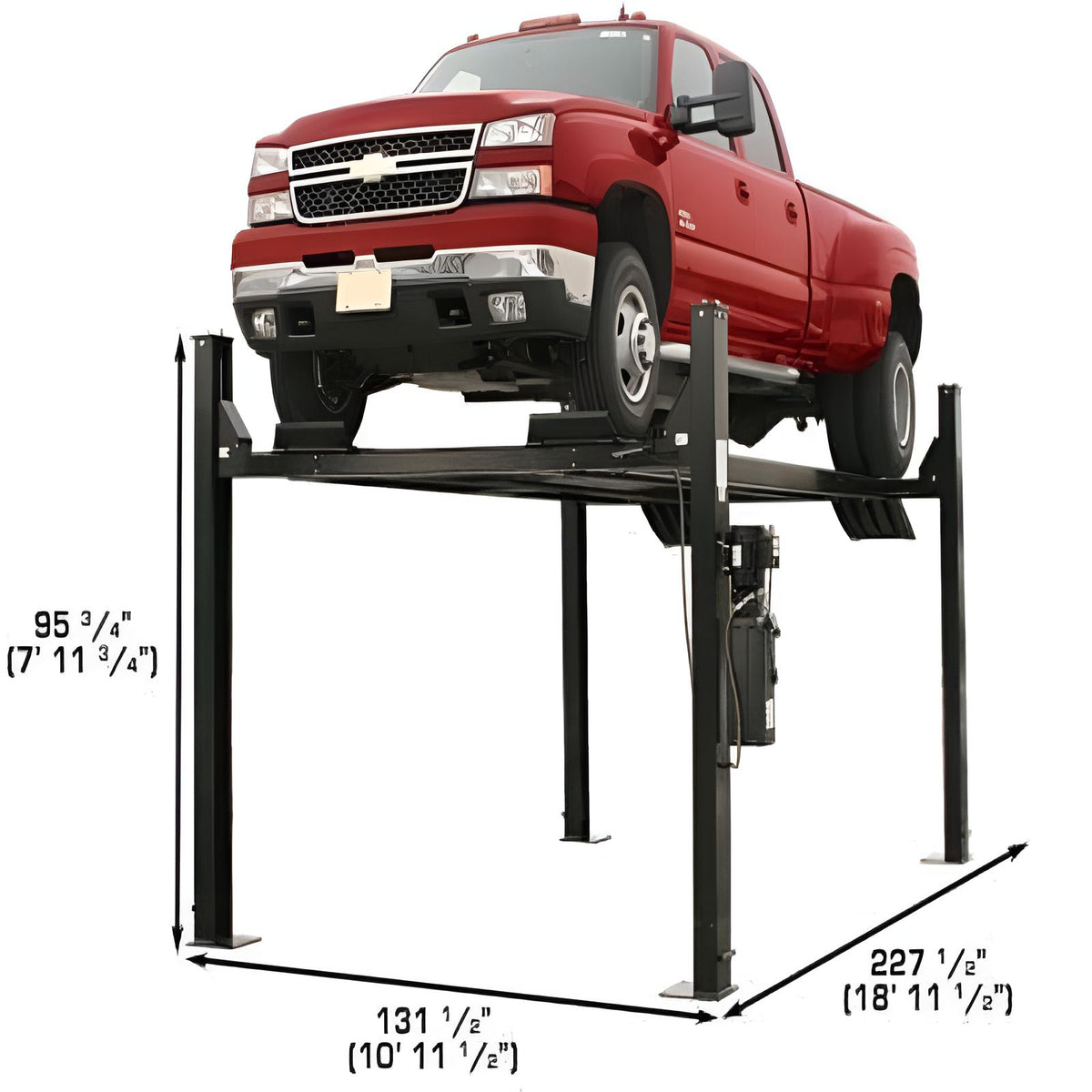

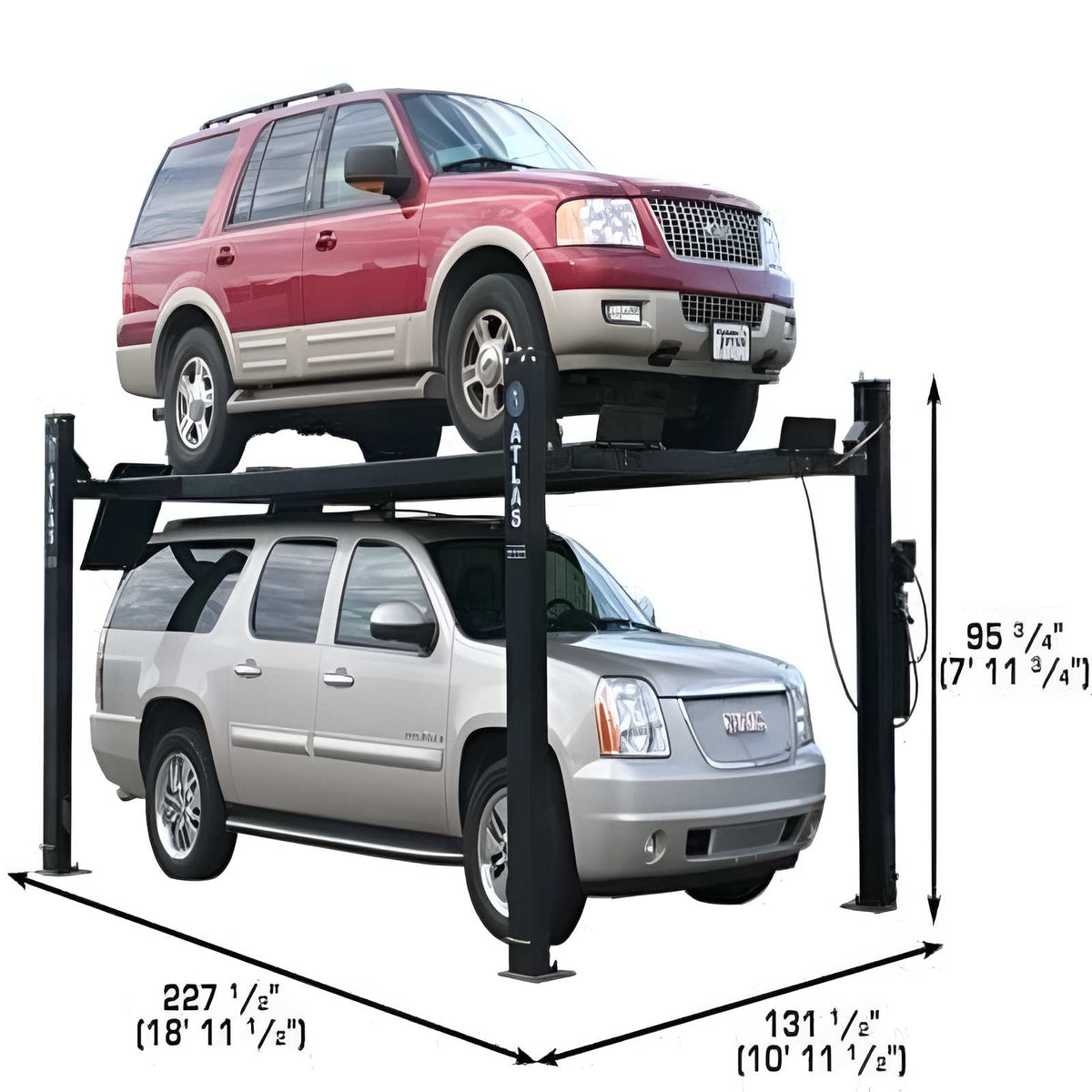

Technical Specifications
Capacity |
9,000 LB |

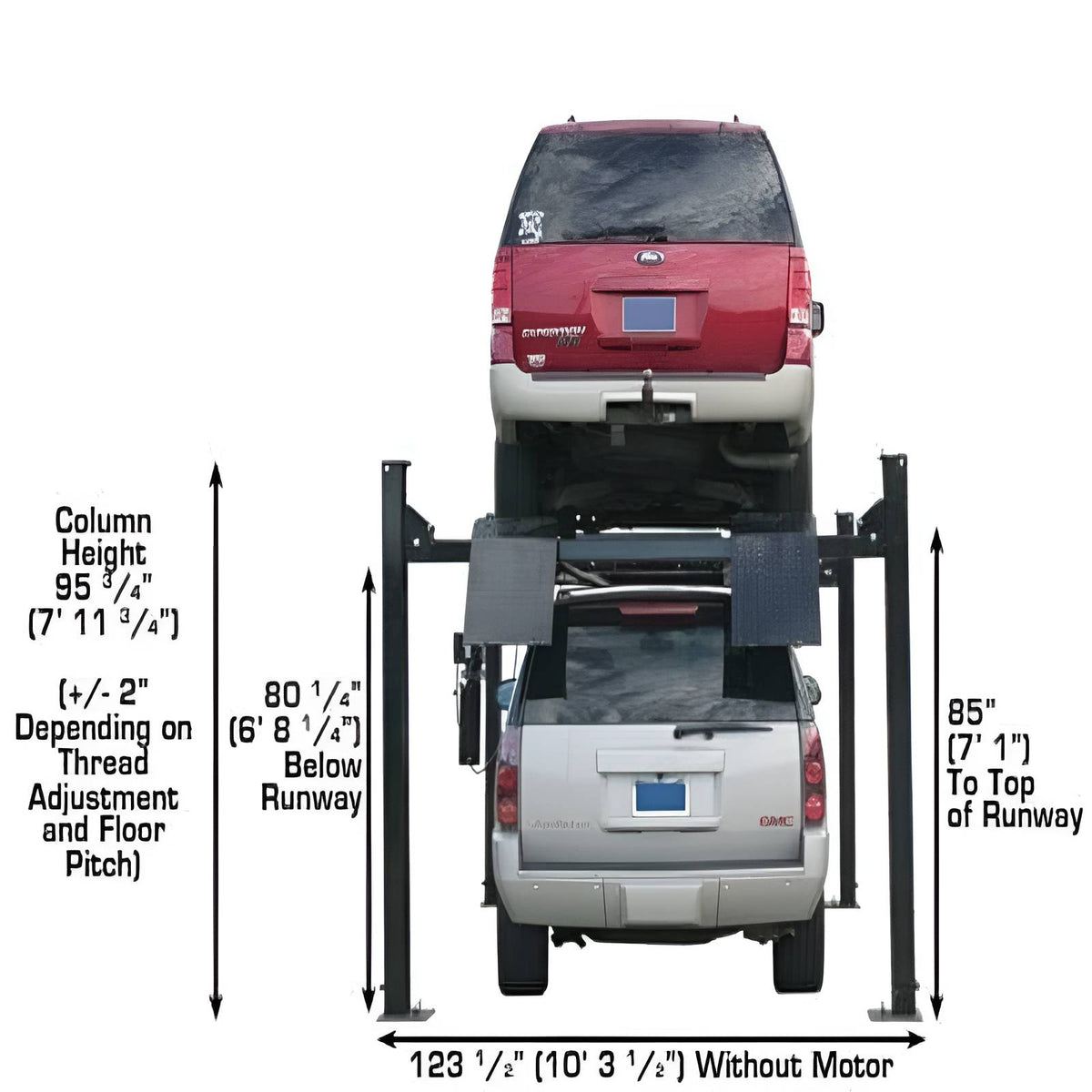

Lifting Height to Top of Runway |
85" (7' 1") |

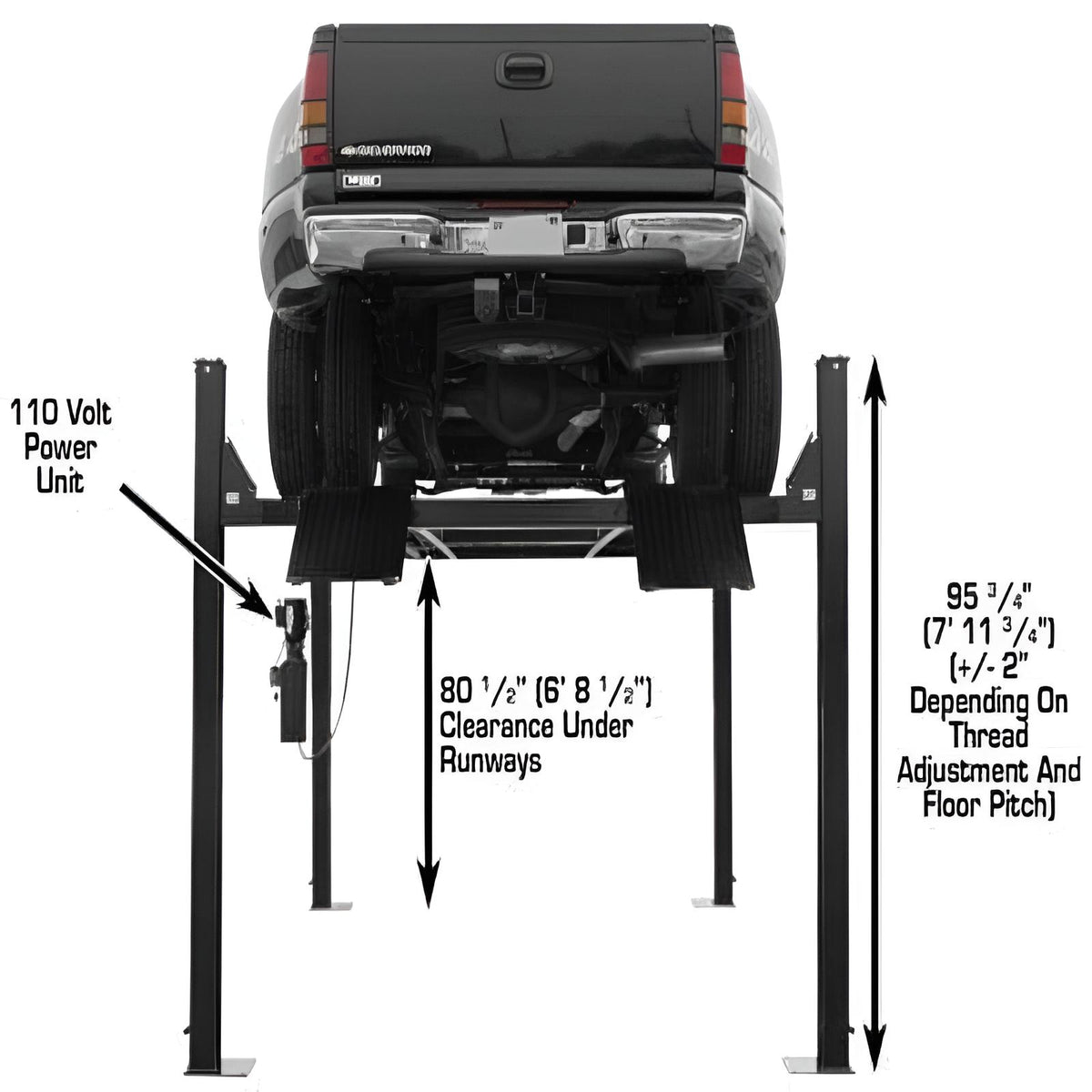

Clearance Under Runways |
80 1/4" (6' 8 1/4") |

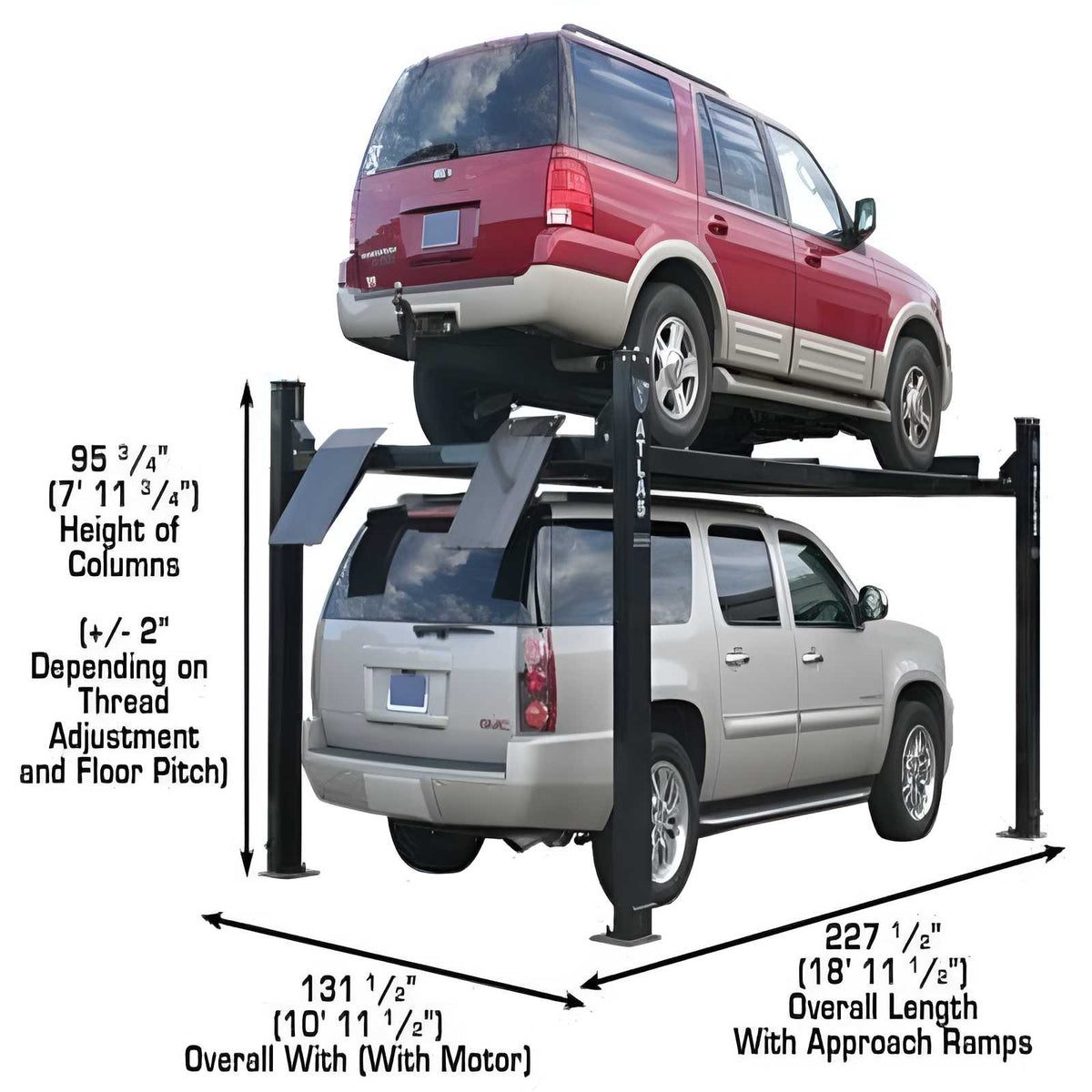

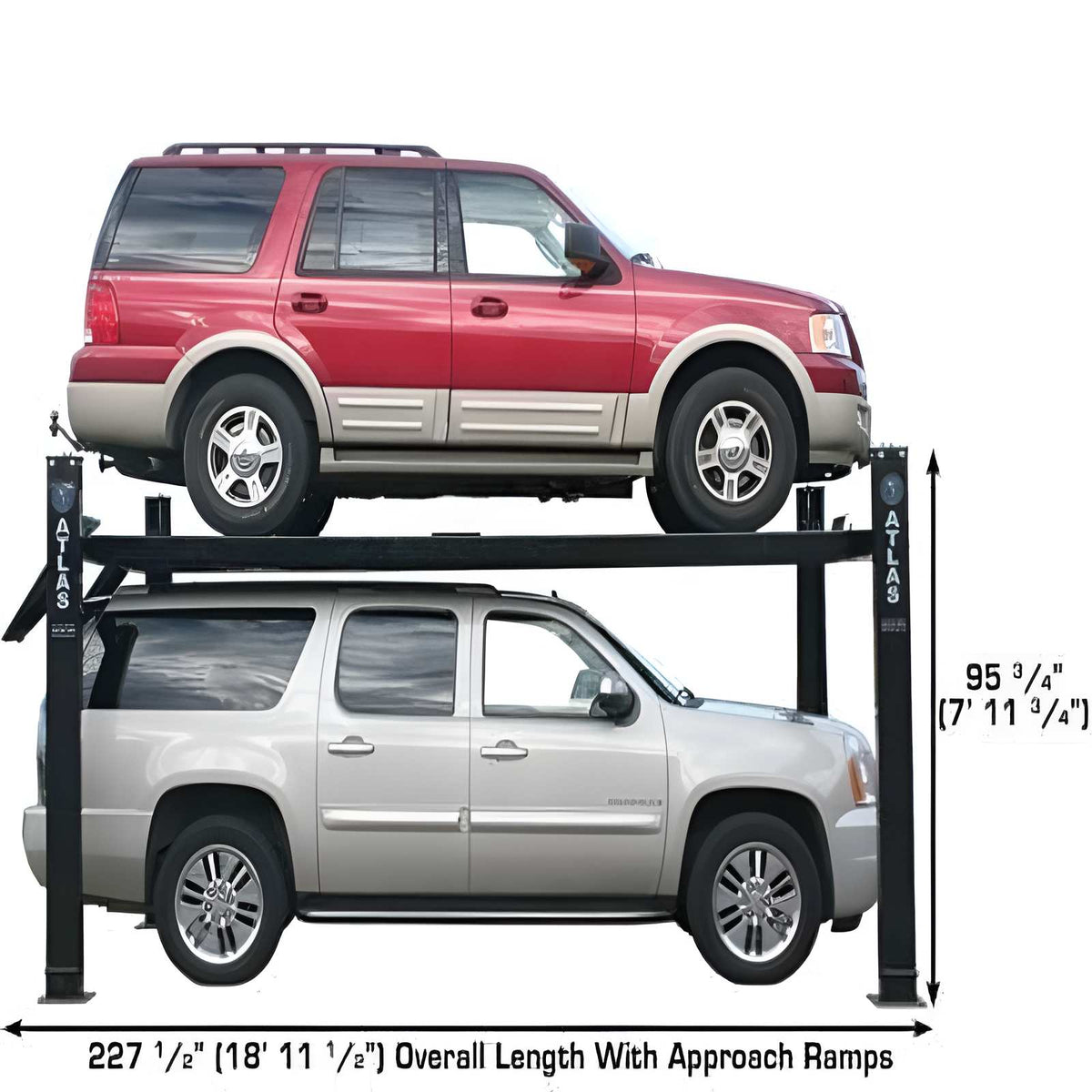

Height of Columns |
95 3/4" (7' 11 3/4") |
Overall Width (Without Motor) |
123 1/2" (10' 3 1/2") |
Overall Width (With Motor) |
131 1/2" (10' 11 1/2") |

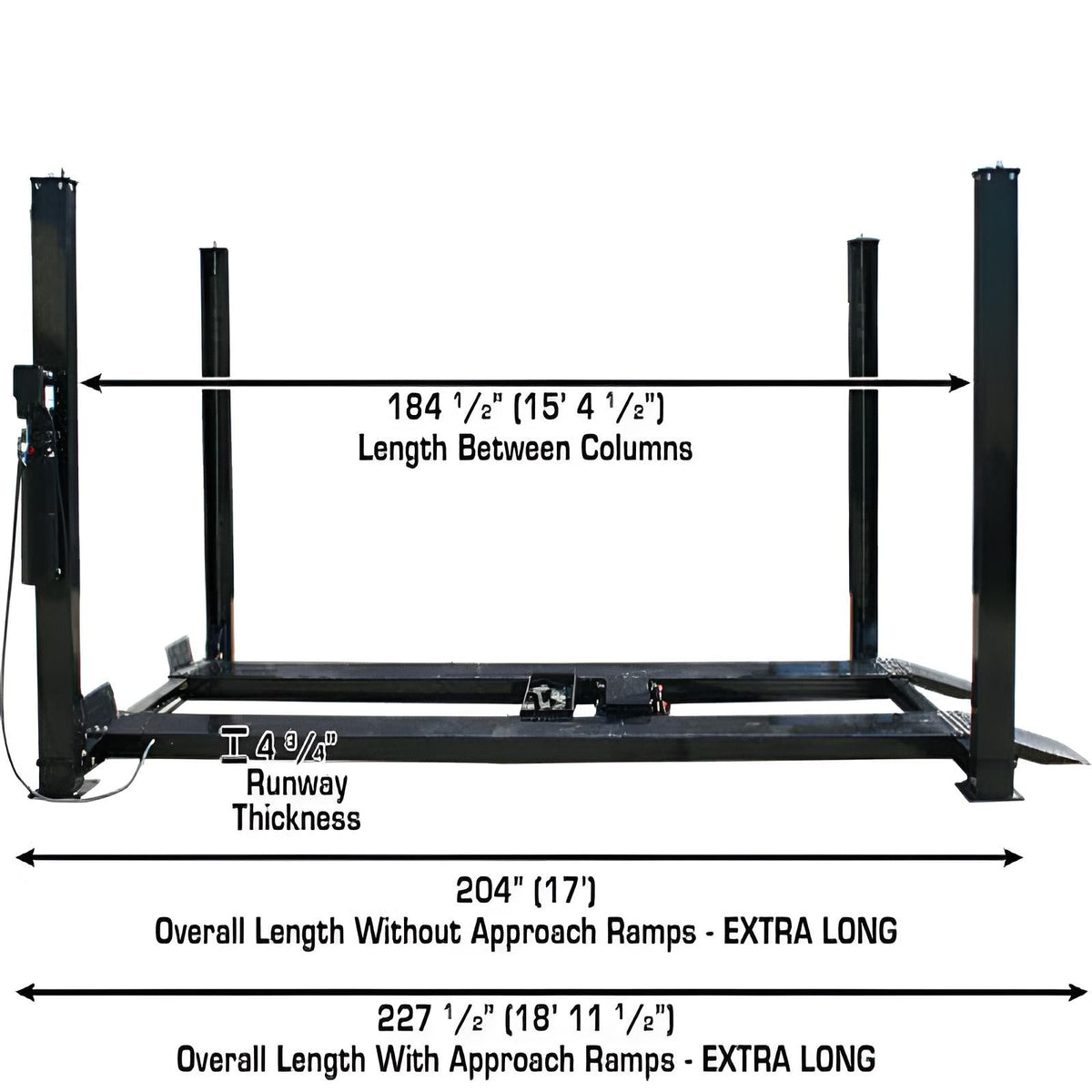

Overall Length with Approach Ramp |
227 1/2" (18' 11 1/2") |

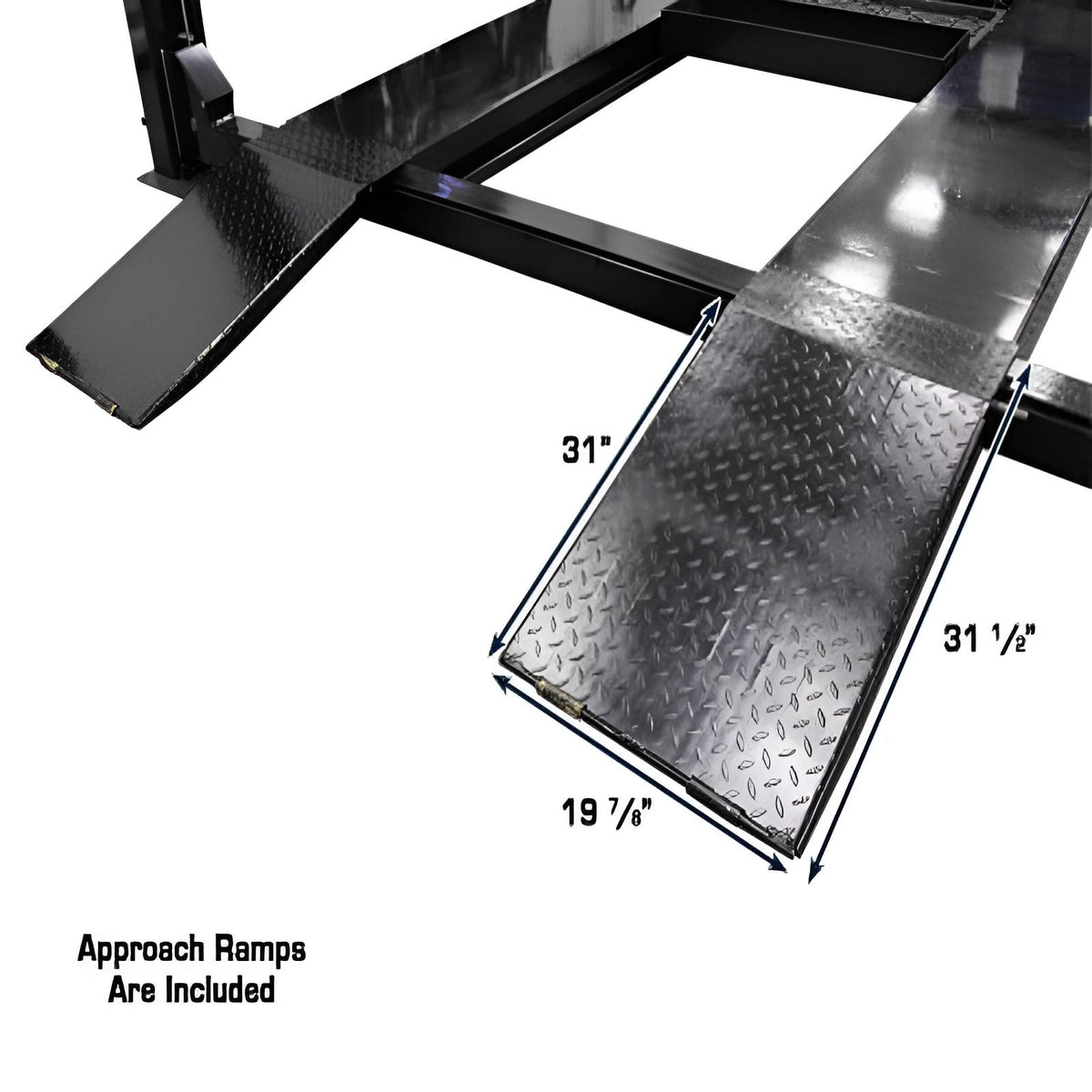

Approach Ramp |
31" (2' 7") |

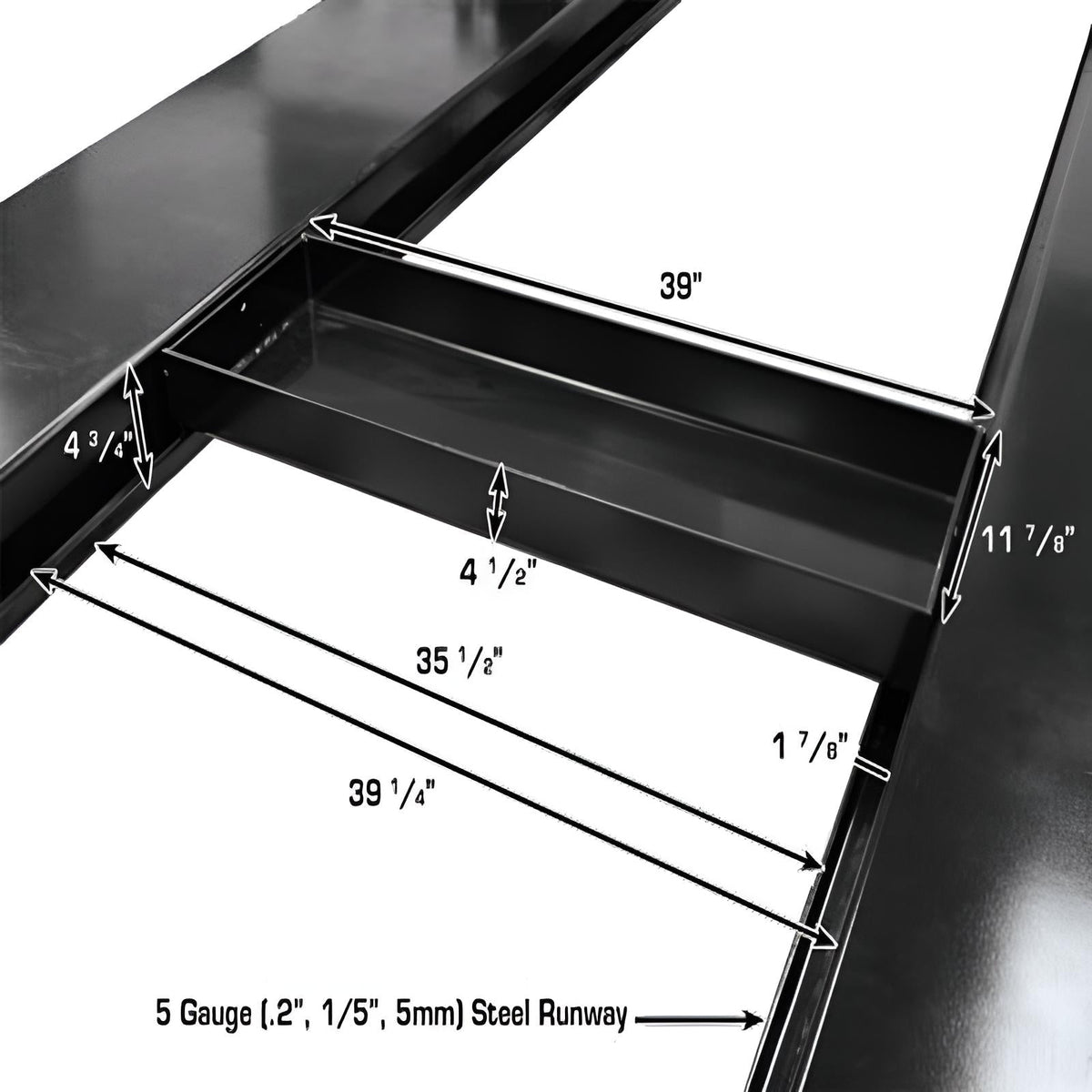

Runway Width |
21 1/4" (with Rails) or 20" (Driving Surface) |
Runway Length |
199 1/2" (16' 7 1/2") |
Runway Thickness |
4 3/4" |

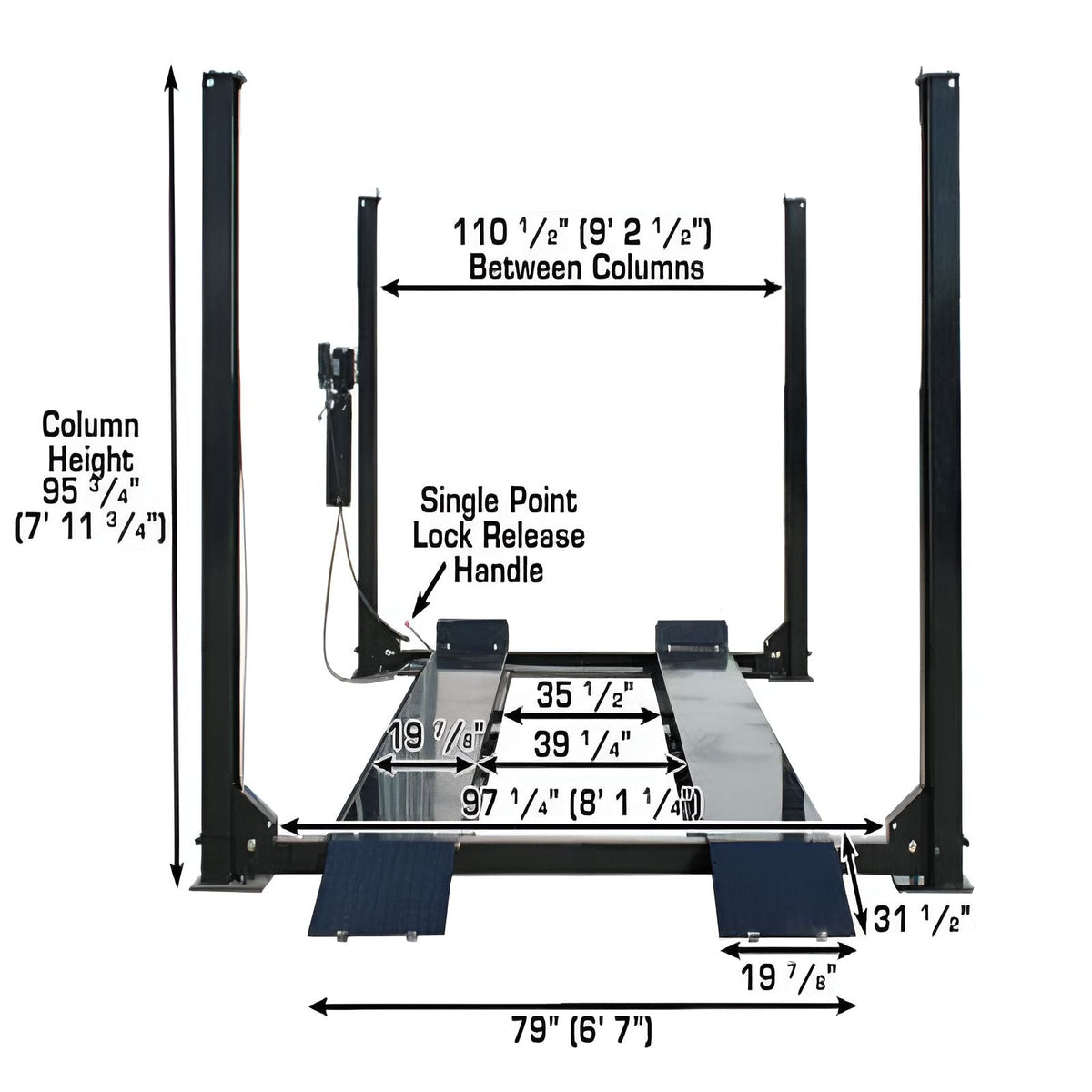

Width Between Runways |
39 3/4" (3' 3 3/4") |
Width Between Runway Rails |
35 1/2" (2' 11 1/2") |
Outside Runway to Outside Runway |
79" (6' 7") |
