Atlas Garage Pro 9000 - 9,000lb Extra Large Vehicle Storage Lift

SKU: ATEXH-PRO9000

2.474₫ MSRP 4.899₫

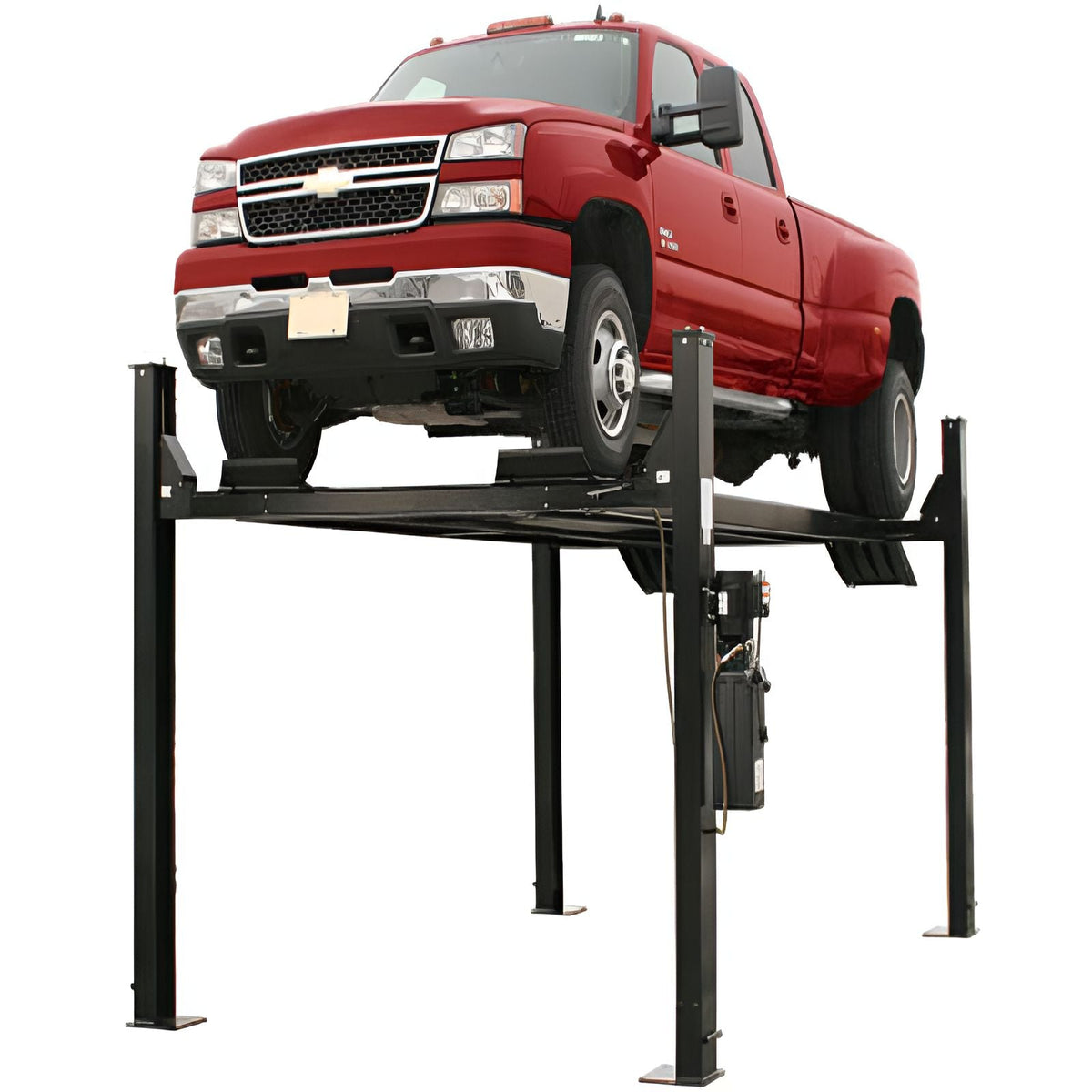

Atlas 9000 4 Post Lift In a world where space is at a premium, many vehicle owners and professionals need a reliable solution to store and work on cars, trucks, and even heavy-duty vehicles. Standard lifts may fall short in terms of height, width, or capacity, making it difficult to accommodate larger vehicles, let alone keep them secure for long-term storage or maintenance. The Atlas Garage Pro 9000 is the ultimate solution for users who need a heavy-duty, extra-large vehicle storage lift with exceptional versatility. With a 9,000 lb. capacity, this lift is built to handle everything from compact cars to diesel dually trucks.

Rated for 9,000 lb, it's suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.

Key Features

  • 9,000 lb. capacity to handle a wide range of vehicles, from compact cars to heavy-duty trucks

  • Extra tall, wide, and long design accommodates large vehicles, including diesel duallys

  • Free-standing, portable design allows for easy relocation within the shop or even outdoors

  • Single-point lock release and lock ladder design ensure easy, secure lifting

  • Double-lock safety system for enhanced security during operation

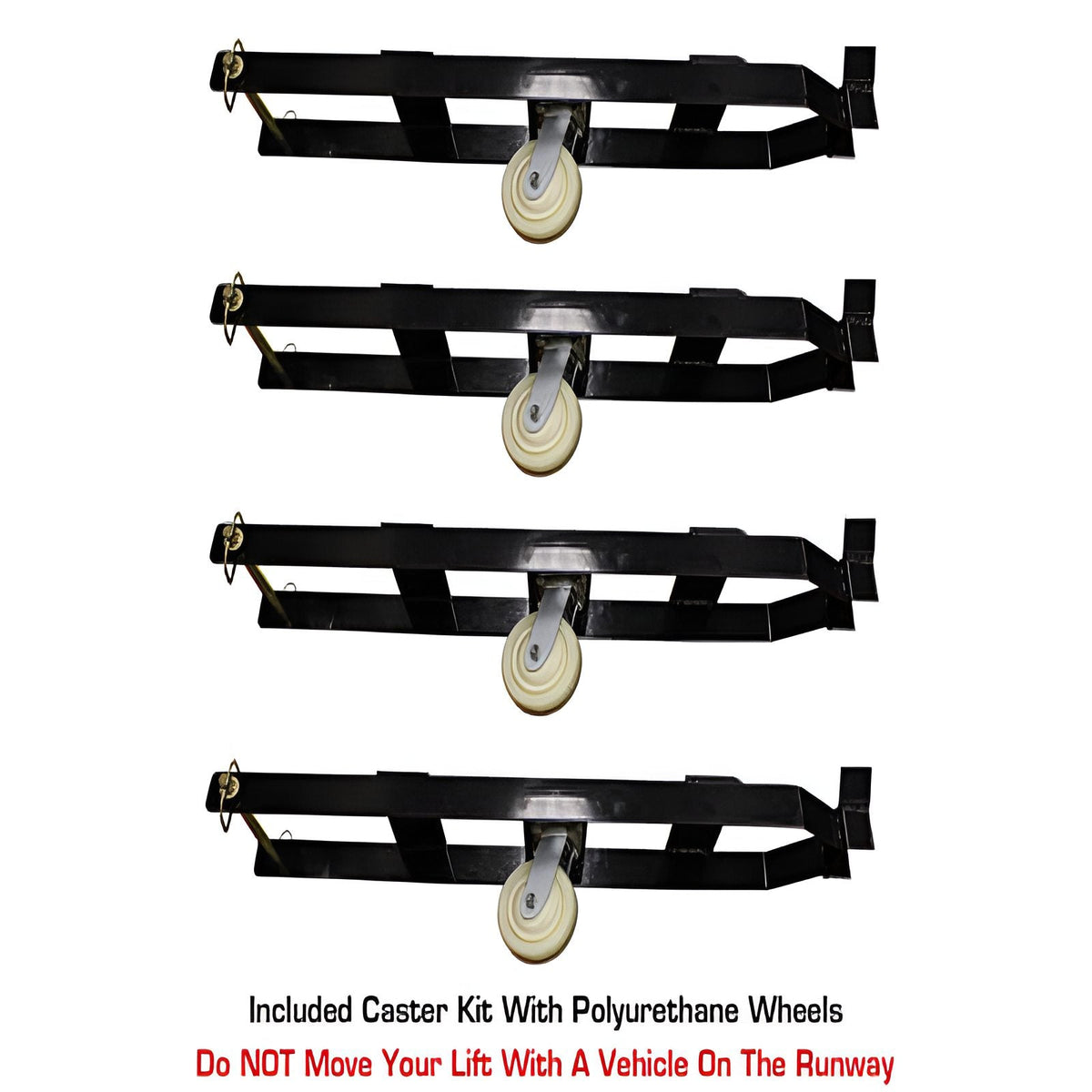

  • Caster kit with polyurethane wheels for effortless mobility

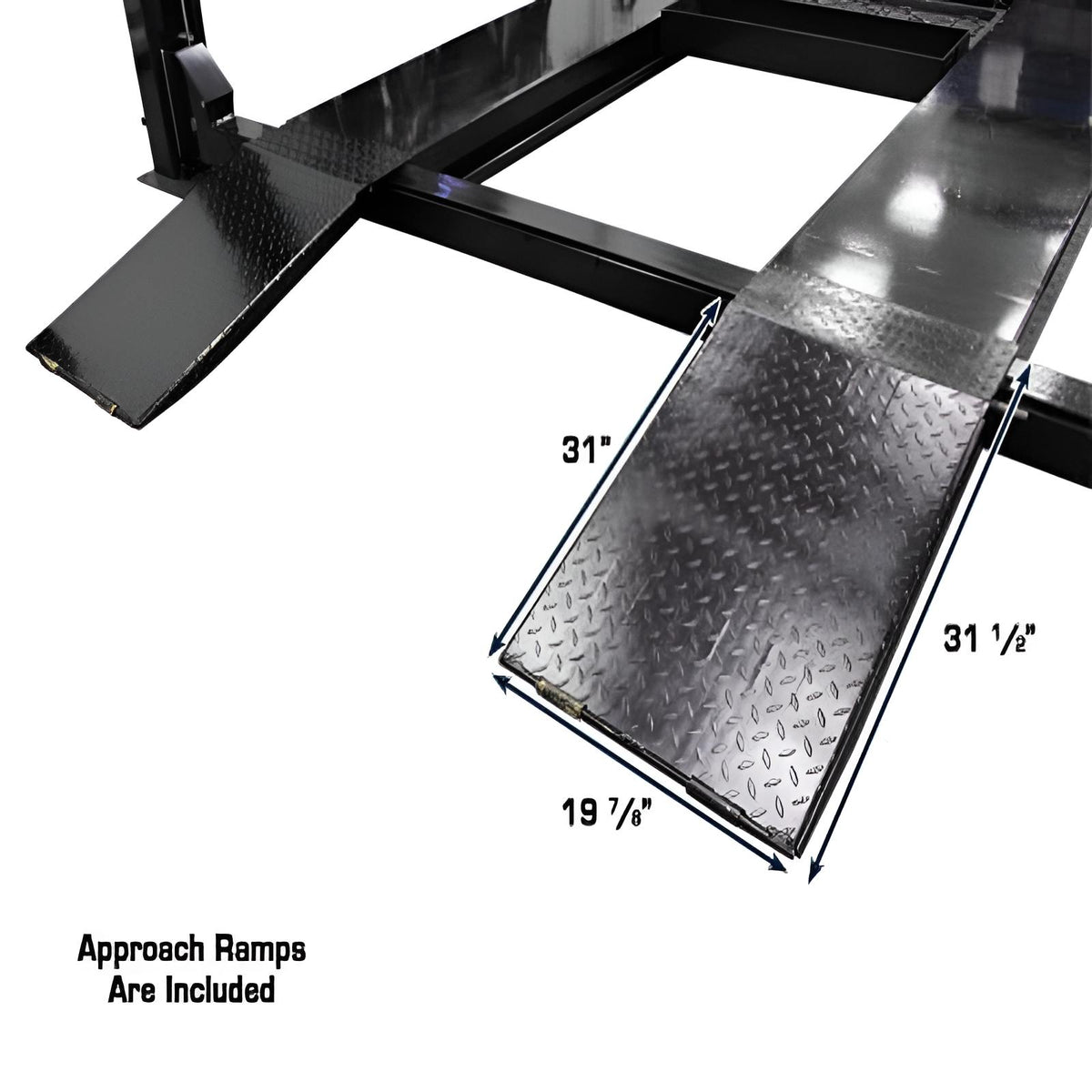

  • Steel approach ramps for easy drive-on and access

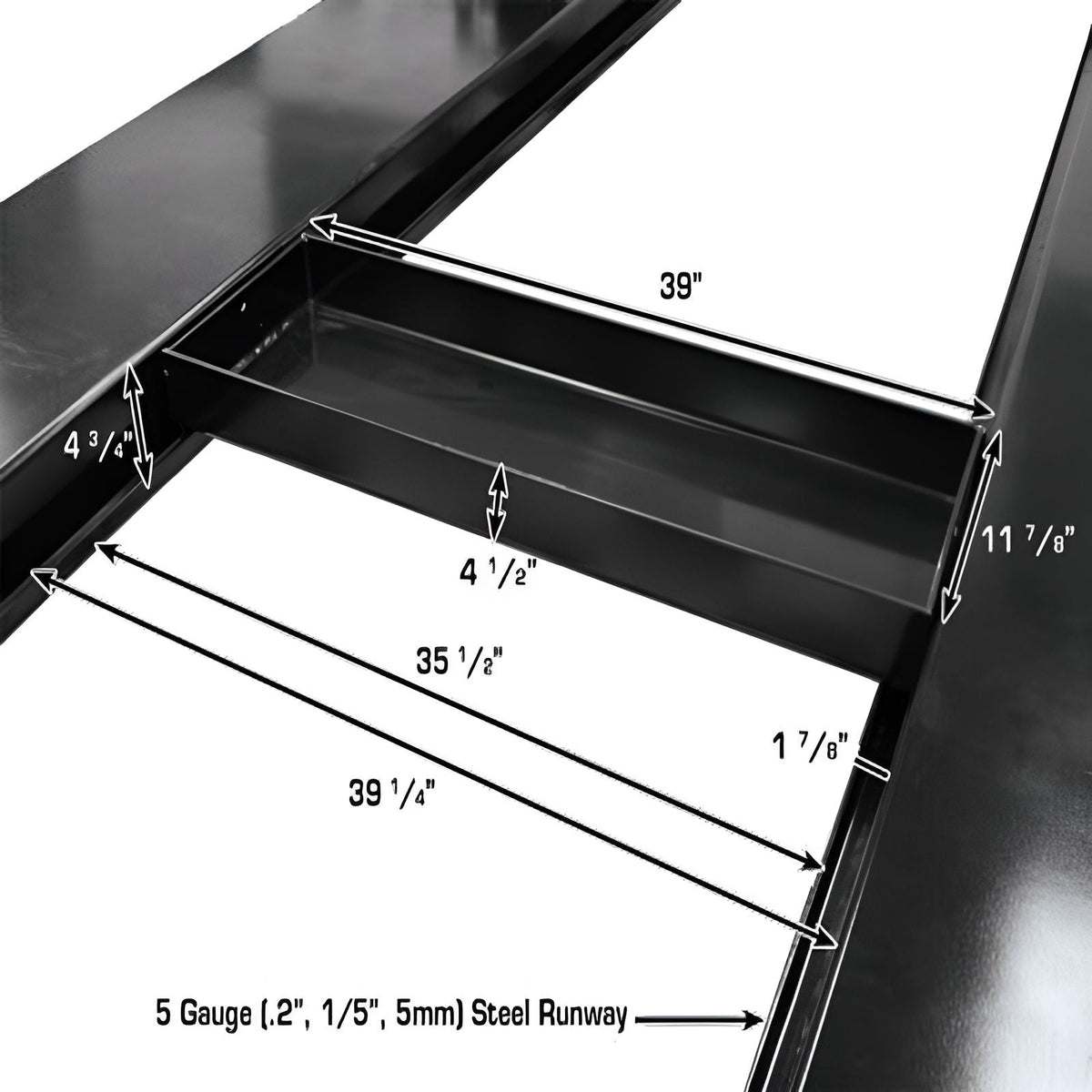

  • Plastic drip trays and steel jack tray included for added convenience

Ideal For

  • Home garages using it for both service and elevated vehicle storage

  • Professional repair shops needing a fast drive-on/drive-off workflow

  • Commercial garages running higher vehicle throughput

  • Car collectors storing an extra vehicle above usable floor space

  • Fleet maintenance operations servicing a mix of vehicle types

Technical Specifications

Capacity

9,000 lbs

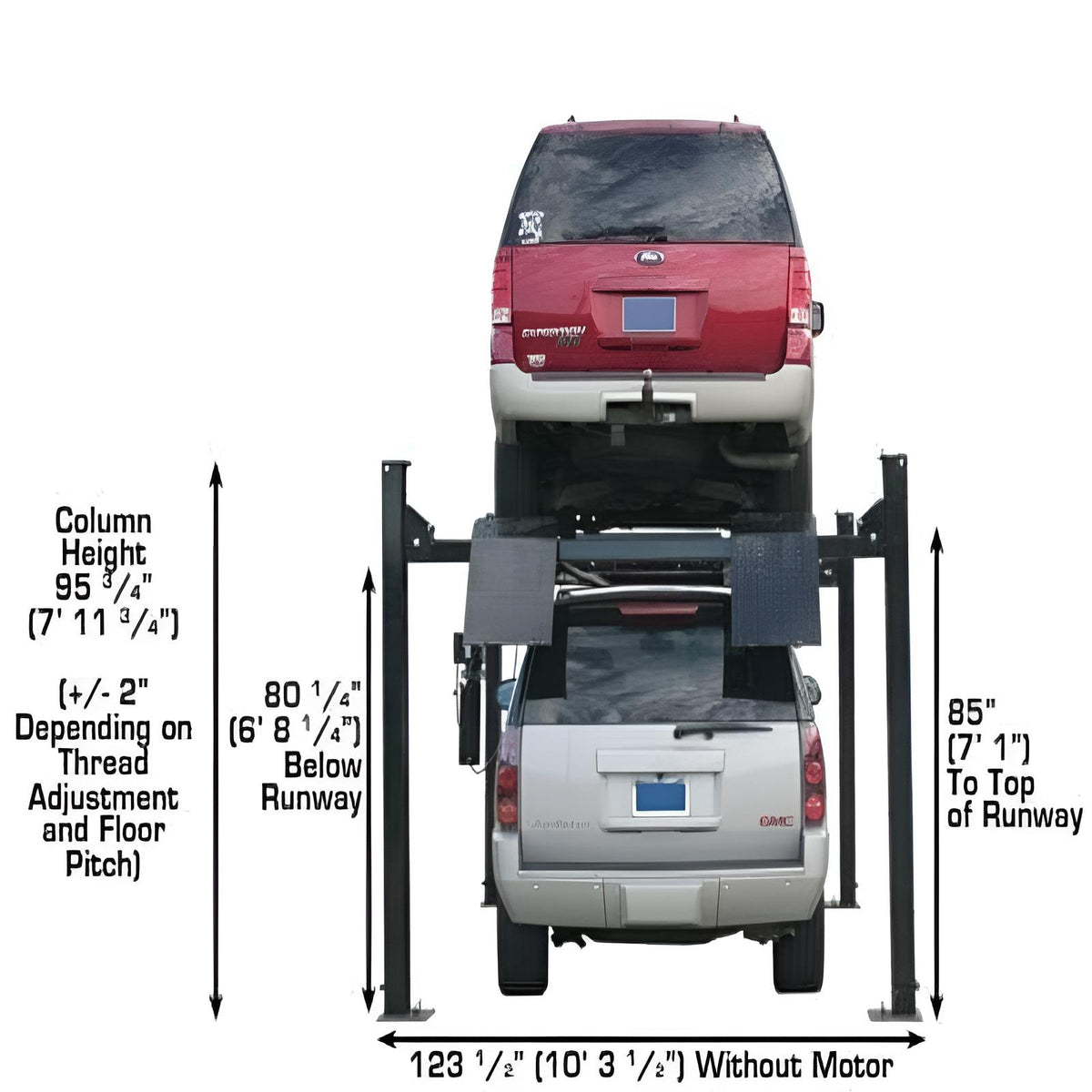

Lifting Height to Top of Runway

85" (7' 1")

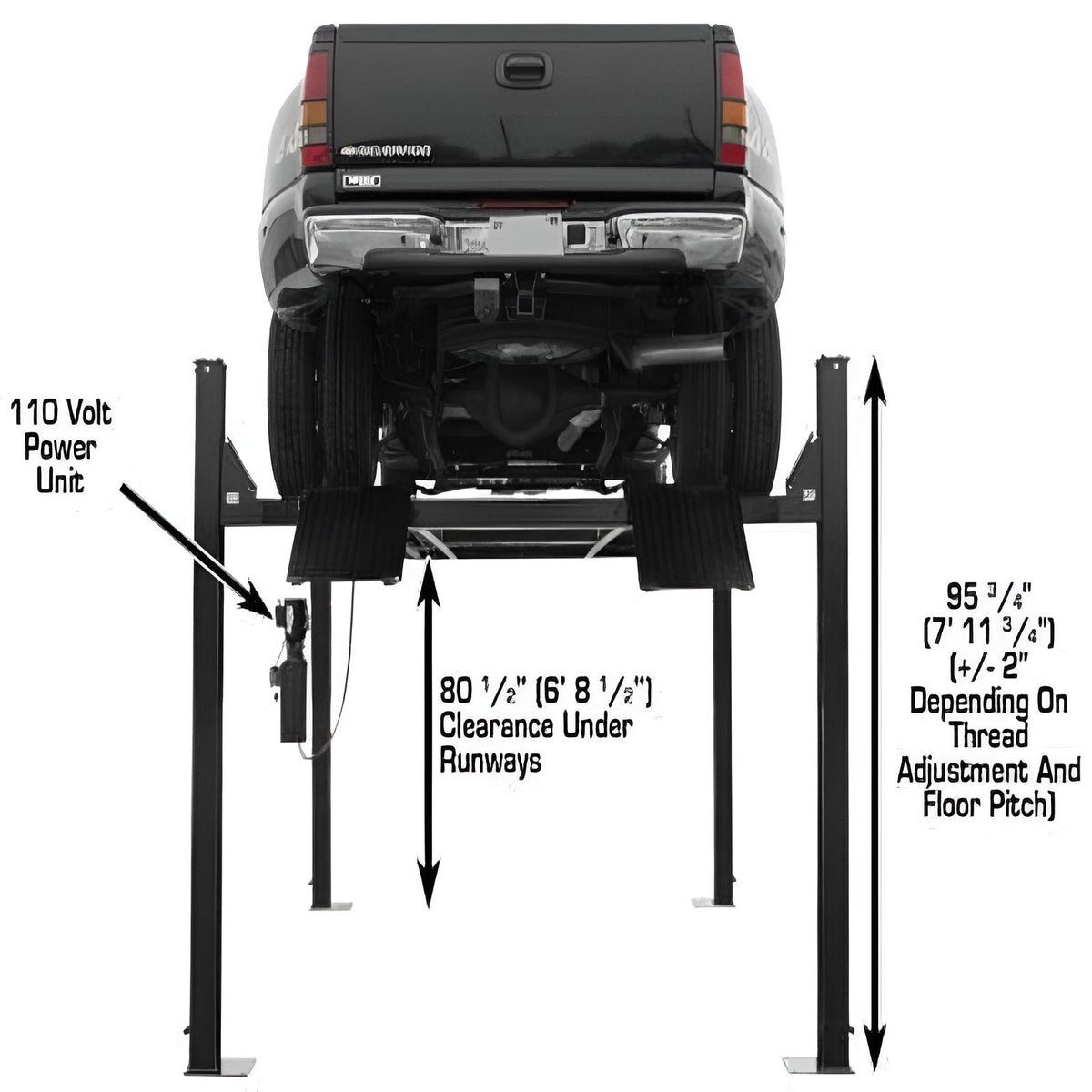

Clearance Under Runways

80 1/4" (6' 8 1/4")

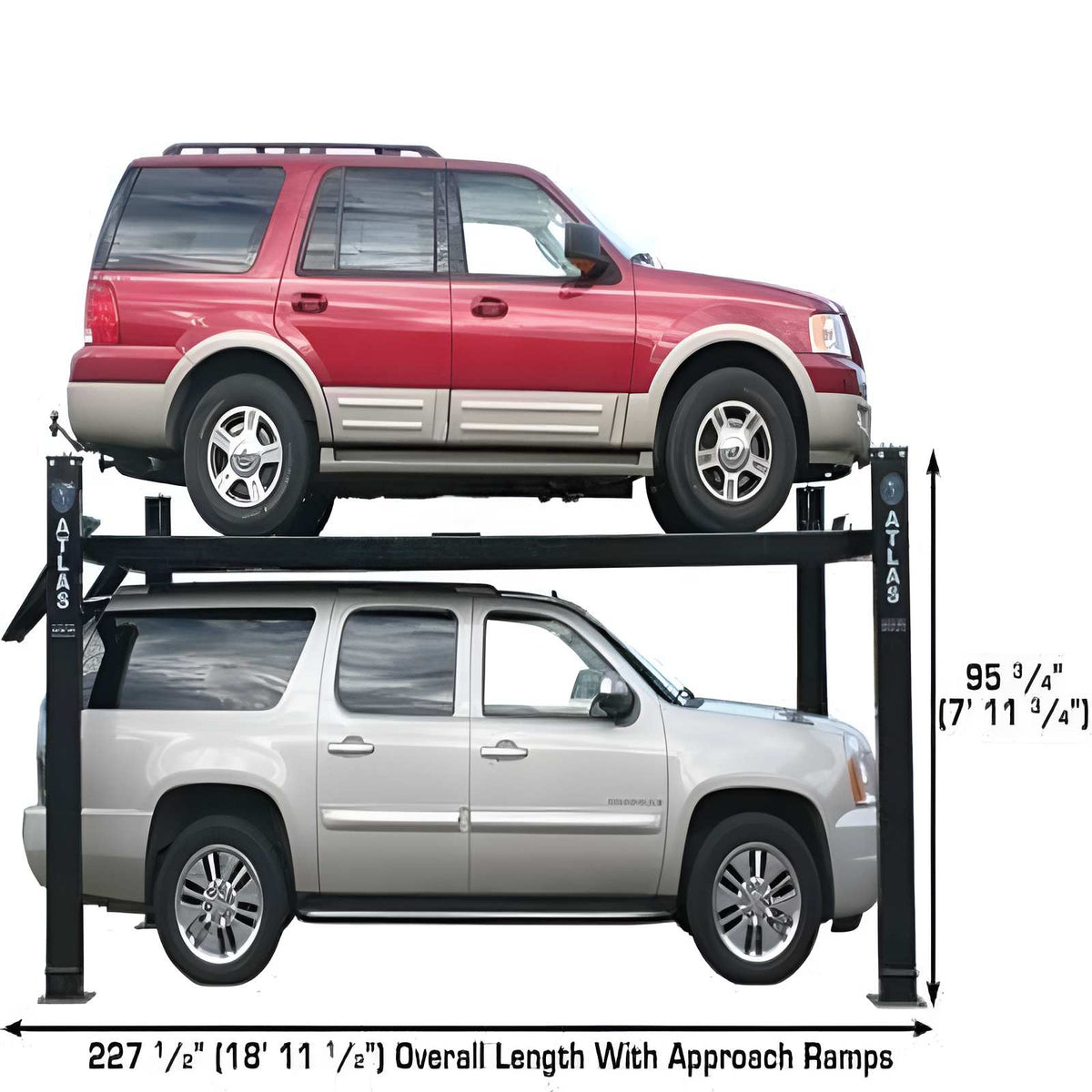

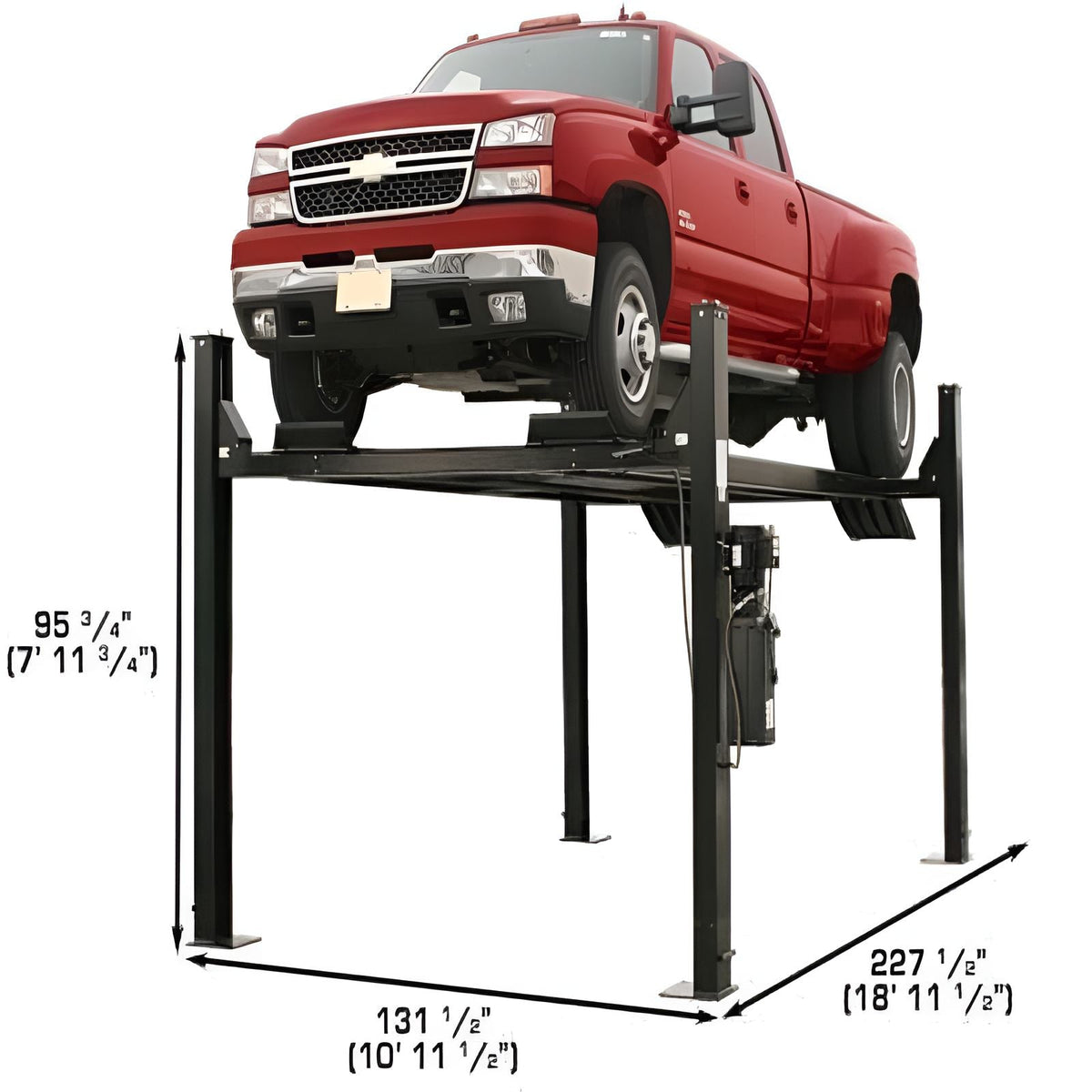

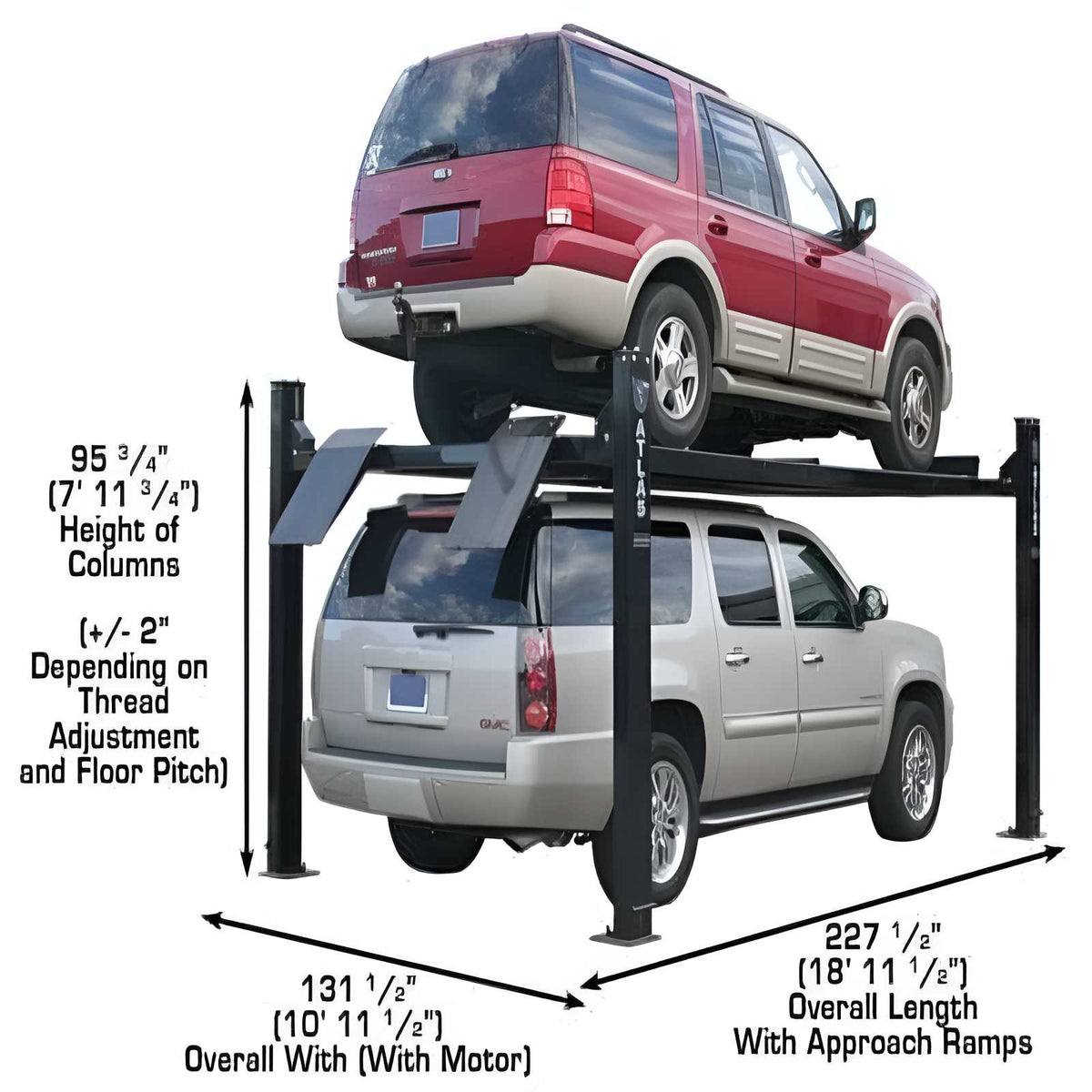

Height of Columns

95 3/4" (7' 11 3/4")

Overall Width (Without Motor)

123 1/2" (10' 3 1/2")

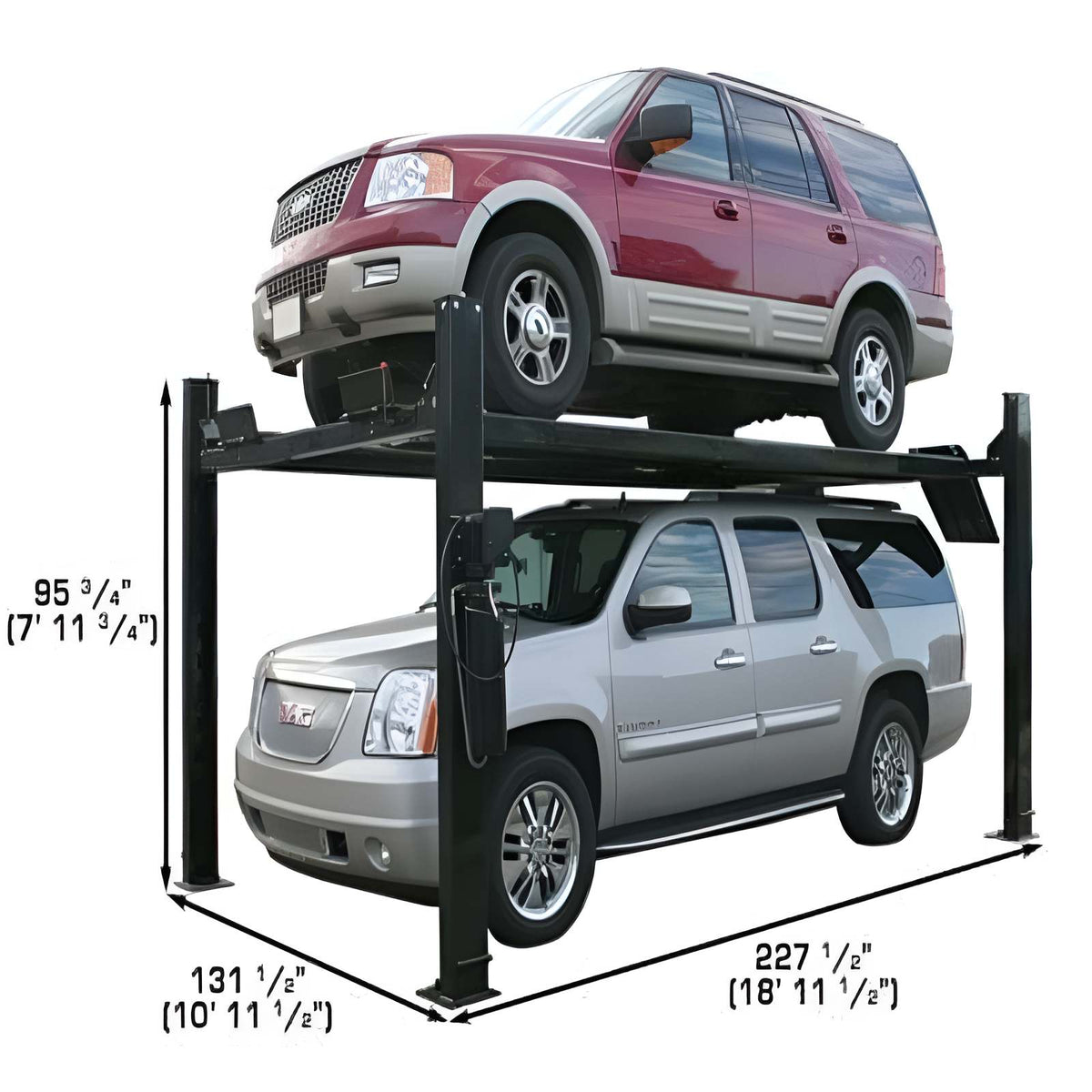

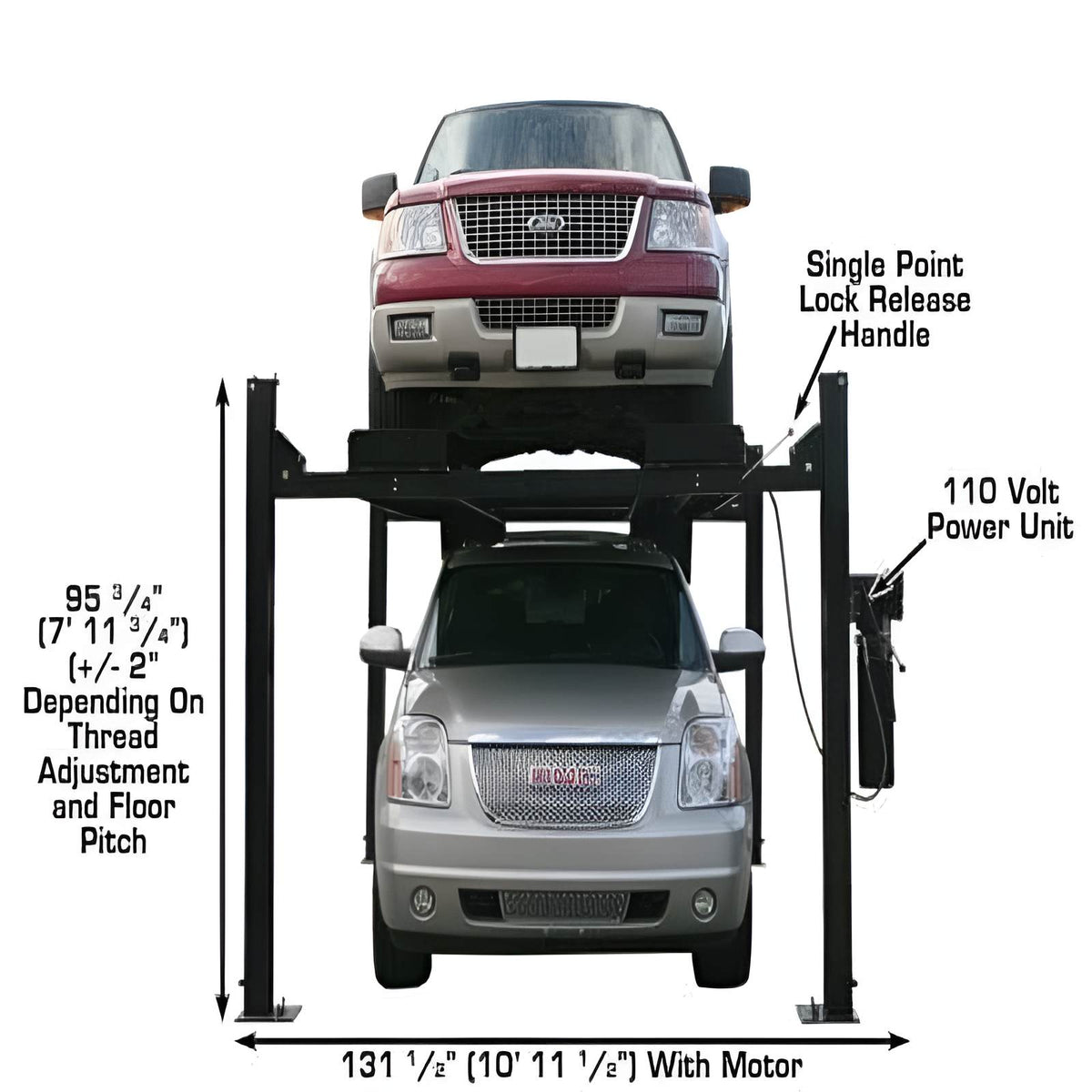

Overall Width (With Motor)

131 1/2" (10' 11 1/2")

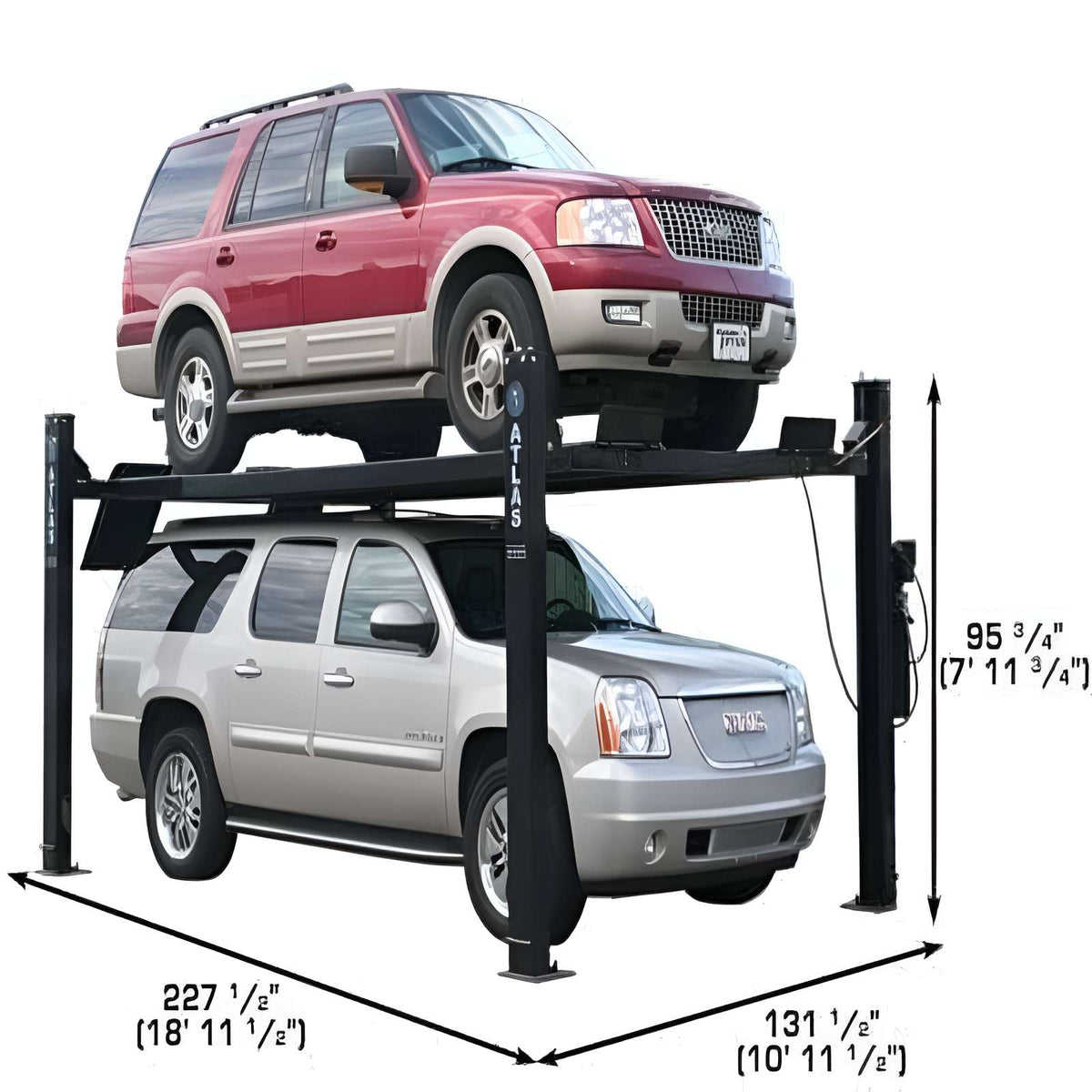

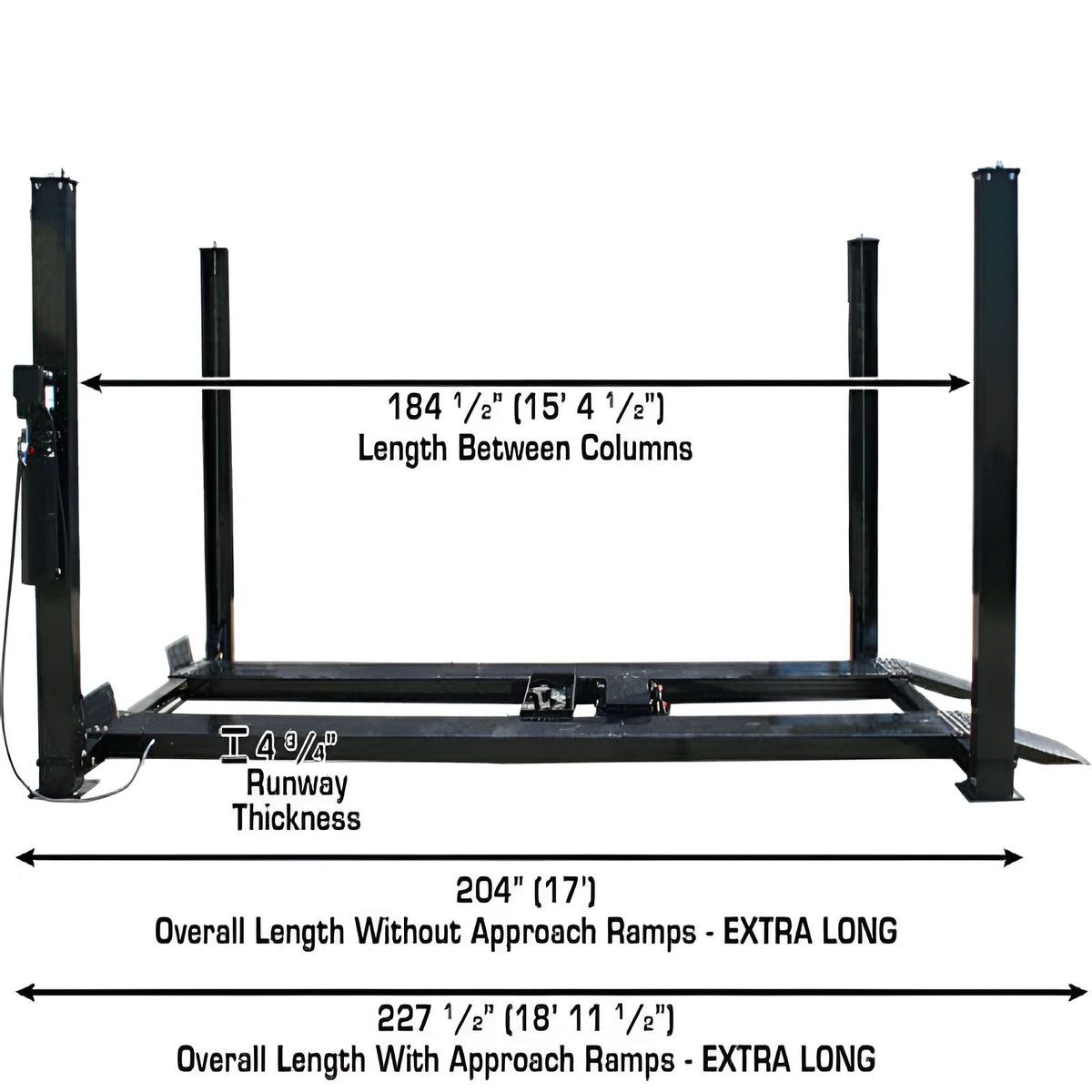

Overall Length with Approach Ramp

227 1/2" (18' 11 1/2")

Approach Ramp

31" (2' 7")

Runway Width

21 1/4" (with rails) or 20" (driving surface)

Runway Length

199 1/2" (16' 7 1/2")

Runway Thickness

4 3/4"

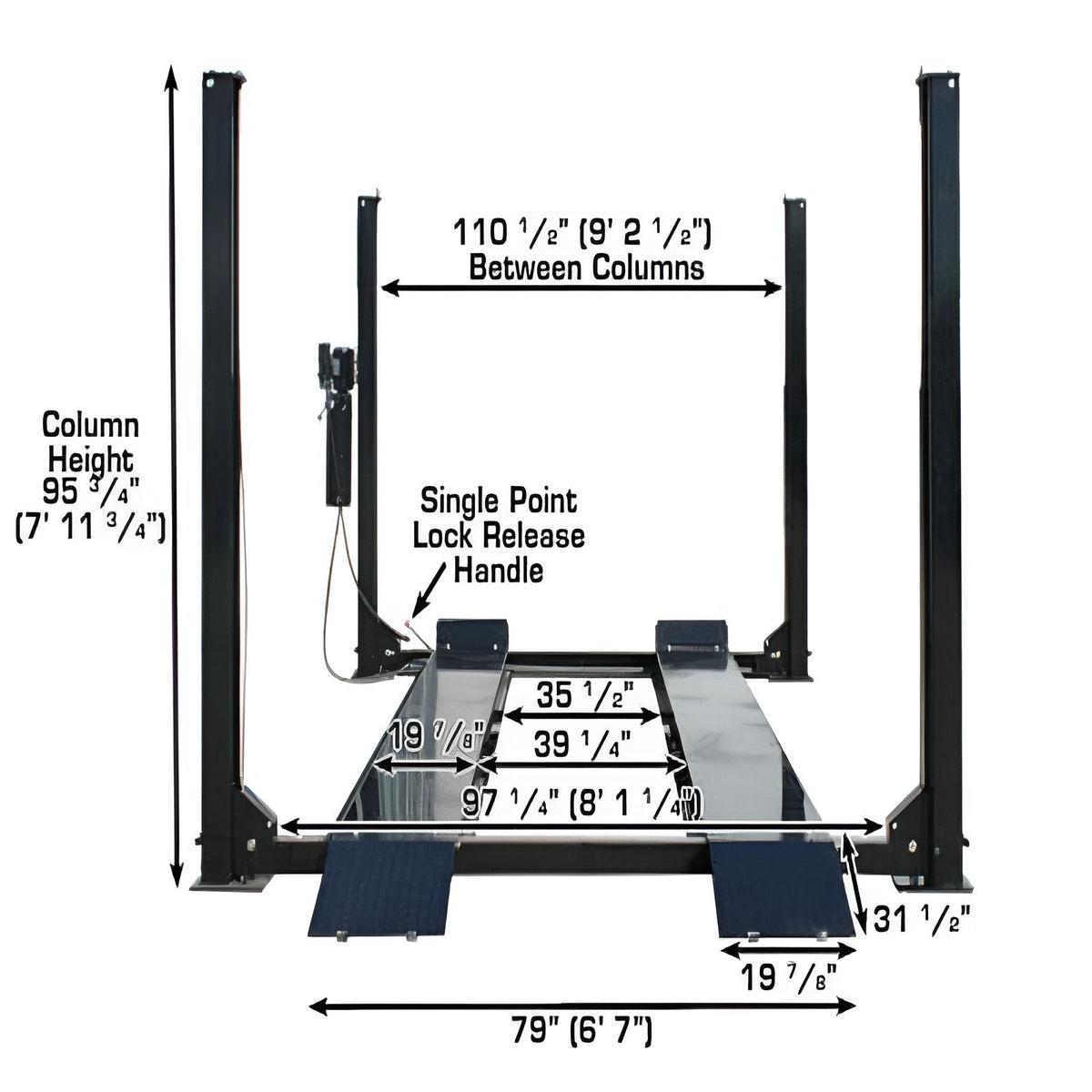

Width Between Runways

39 1/4" (3' 3 1/4")

Width Between Runway Rails

35 1/2" (2' 11 1/2")

Outside Runway to Outside Runway

79" (6' 7")
