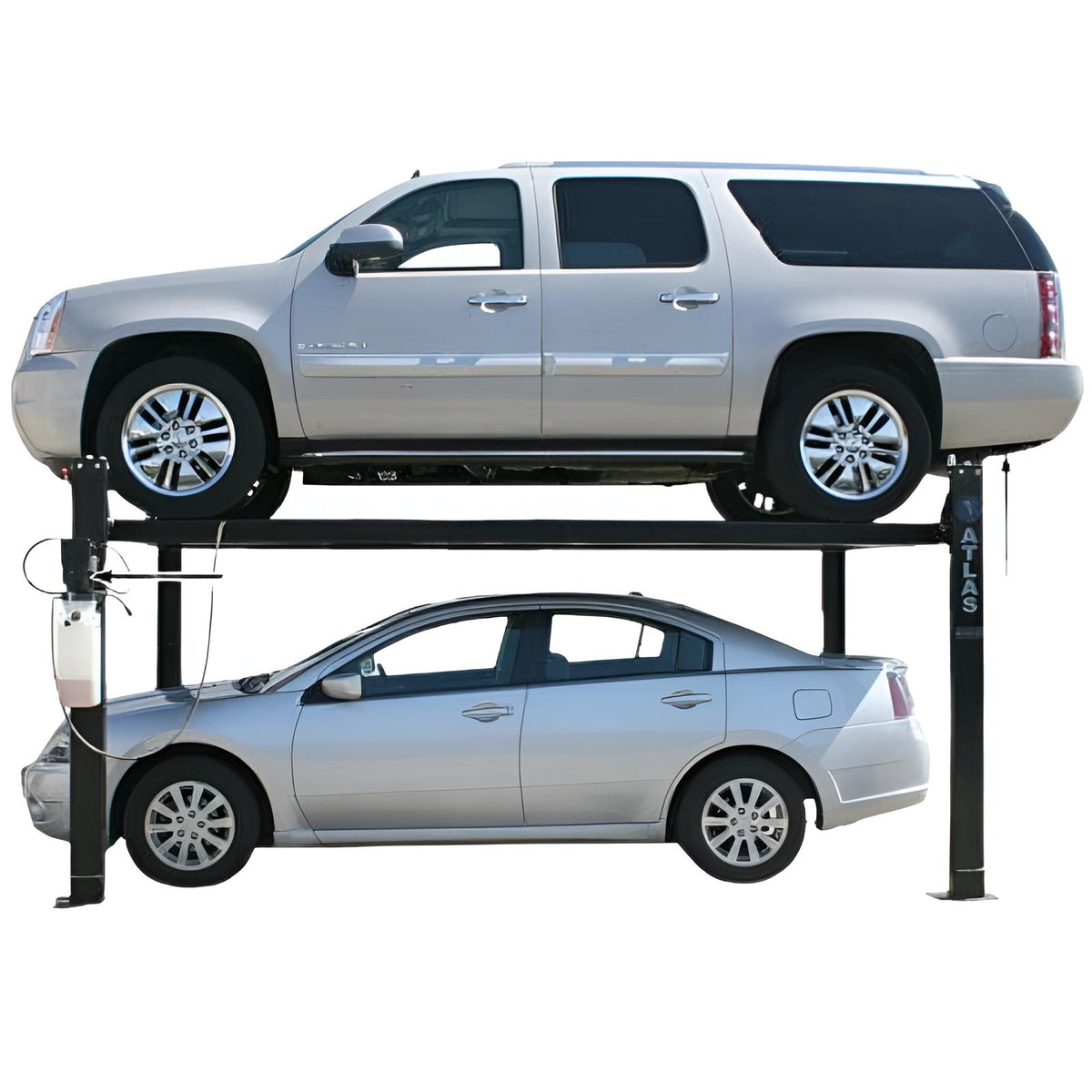

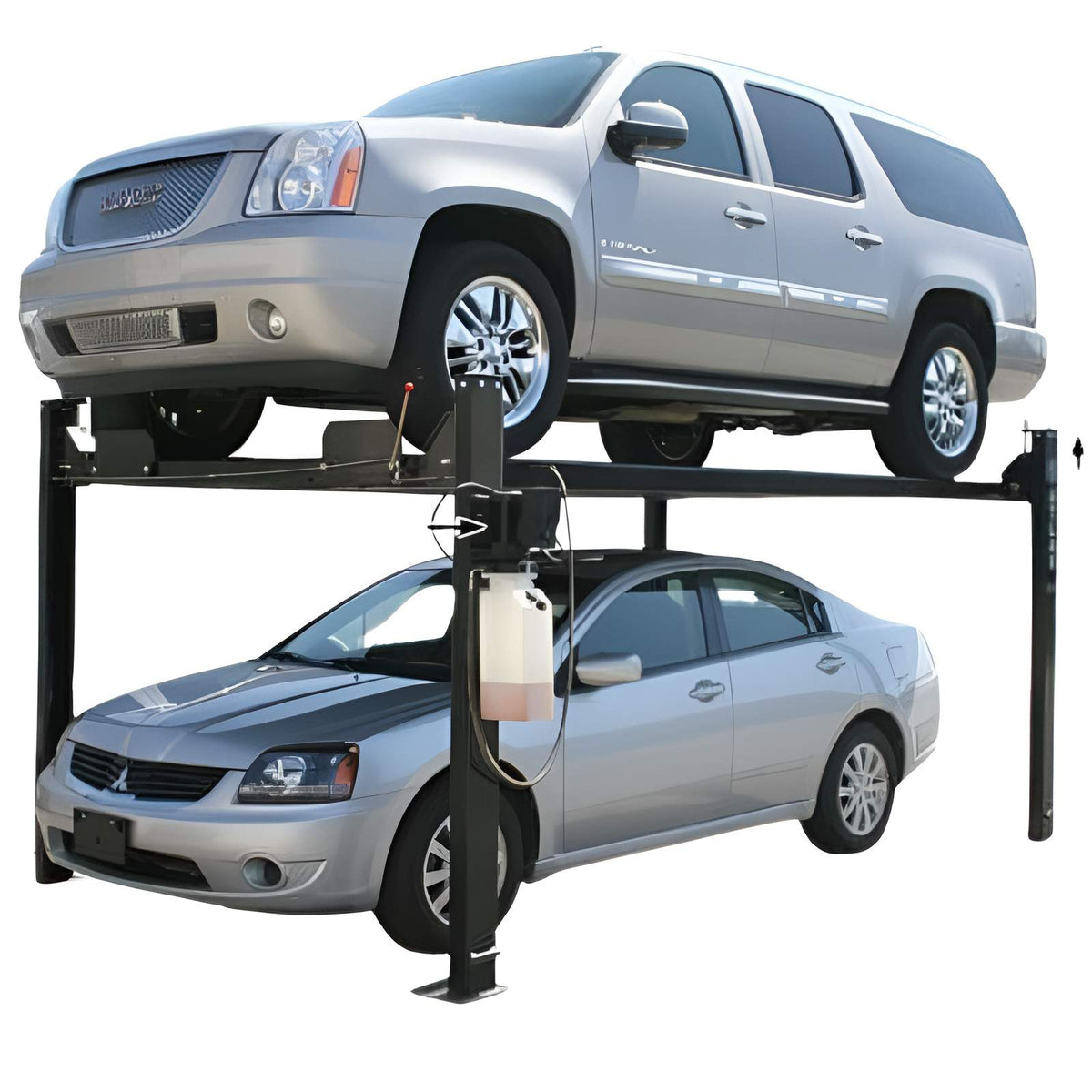

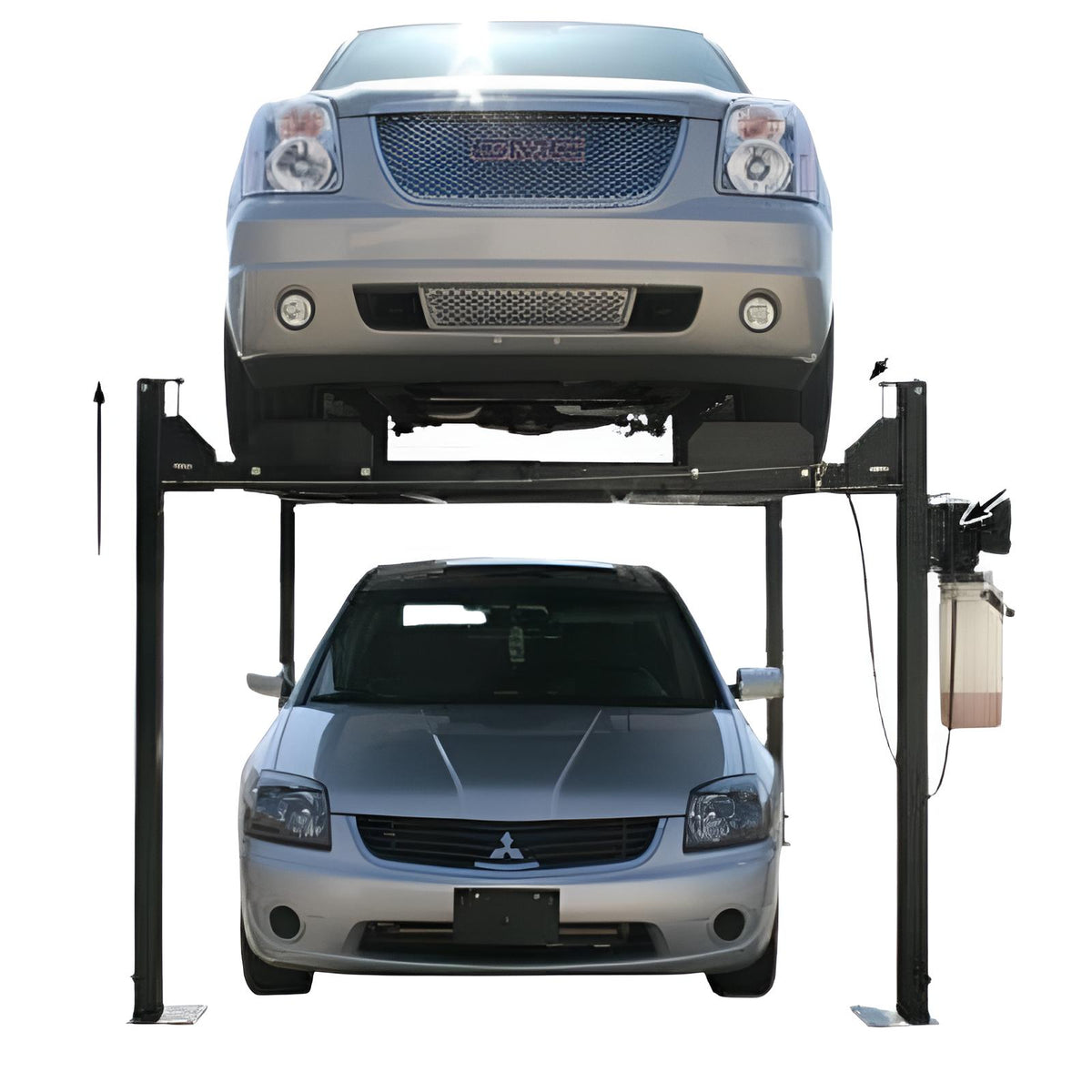

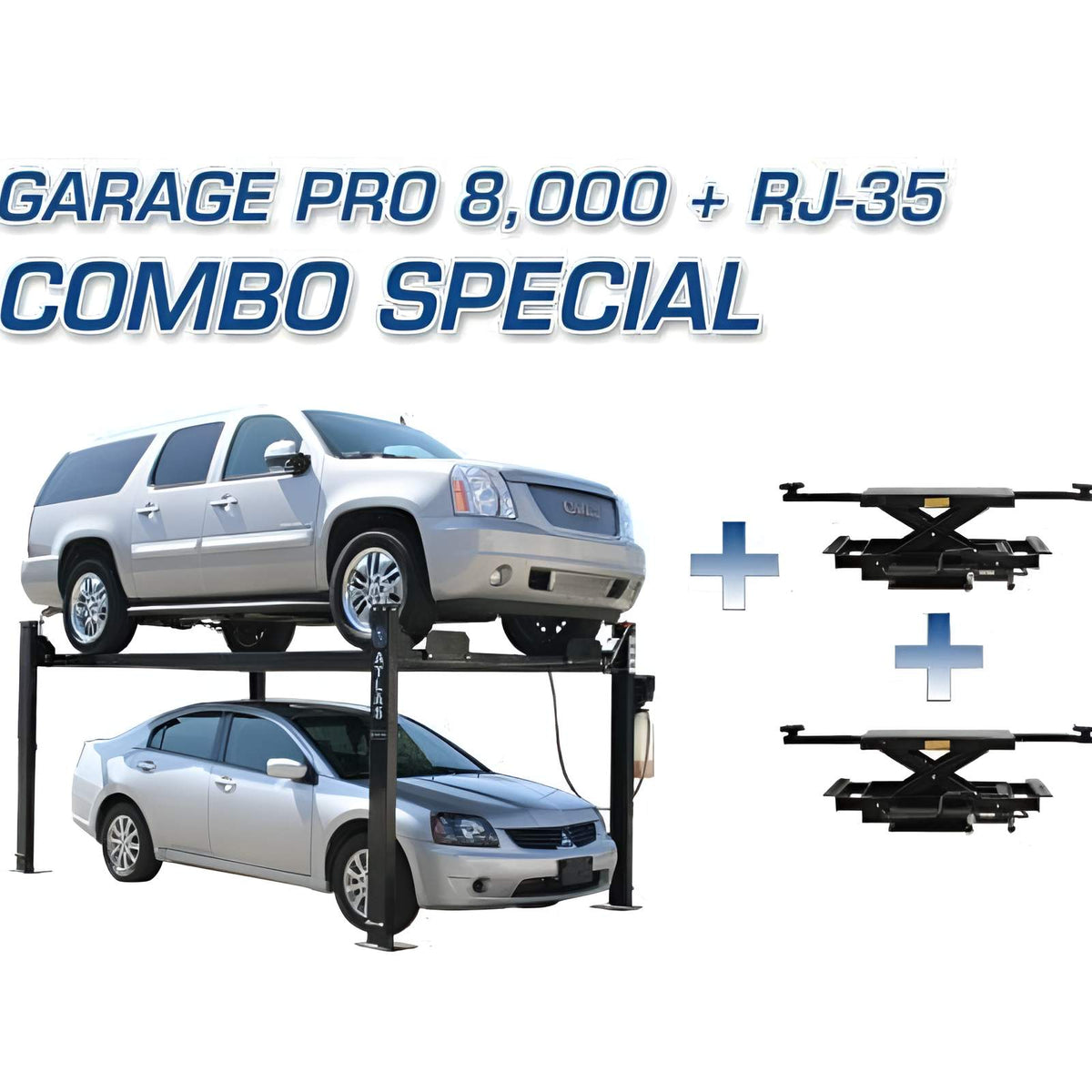

Atlas Garage PRO8000 4 Post Lift + (2) ProJack35 Sliding Jack Combo
SKU: ATETCWB-COMBO3

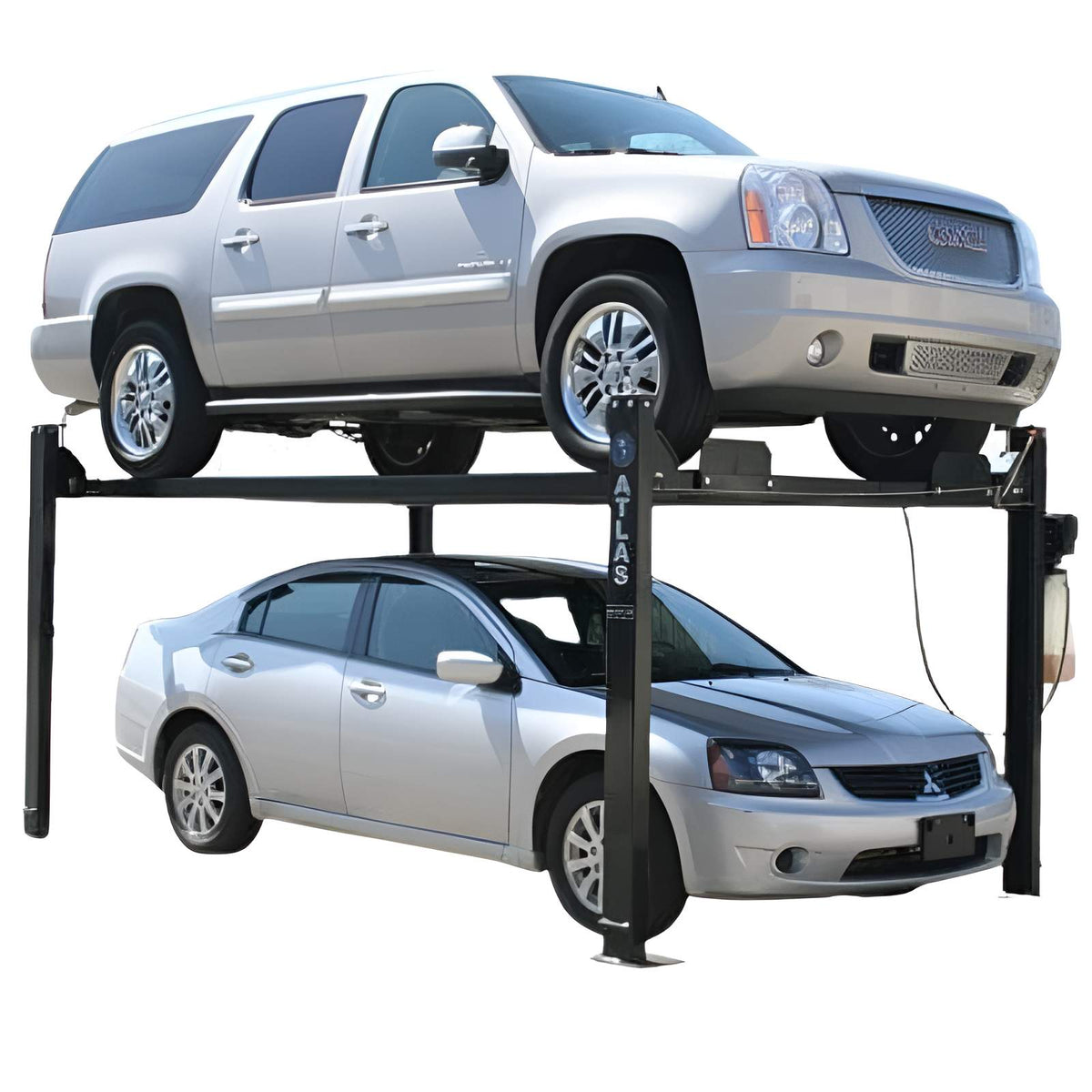

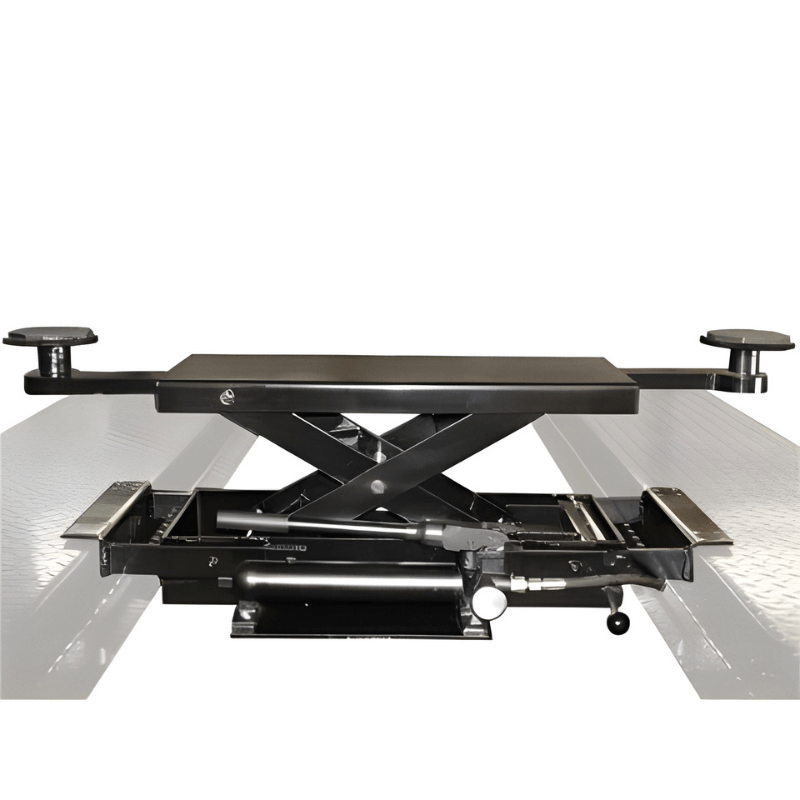

Garage PRO8000 4 Post Lift + RJ35 Sliding Jacks Combo by Atlas Shift gears in your service with the Atlas Garage PRO8000 combo - it's not just a lift, it's a space-multiplying marvel! This 8,000 lb capacity beast is the Batman to your garage's Gotham City, ready to stack cars faster than you can say "parking problem solved." With a lifting height of 72 inches, it's tall enough to create a cozy cave for your favorite ride while giving you a bird's eye view of another on top. This combo comes with two Atlas RJ35 sliding bridge jacks, the Robin to your Batman.
It’s suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
8,000 lb. Capacity
Free Standing/Portable Design
Diamond Plated Runways
Single-Point Lock Release

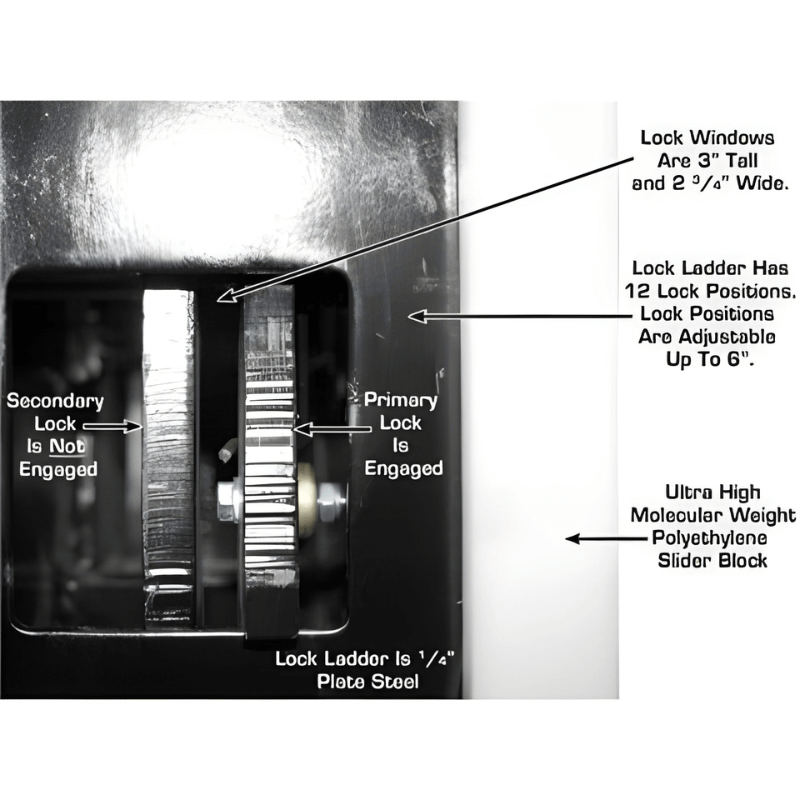

Lock Ladder Design

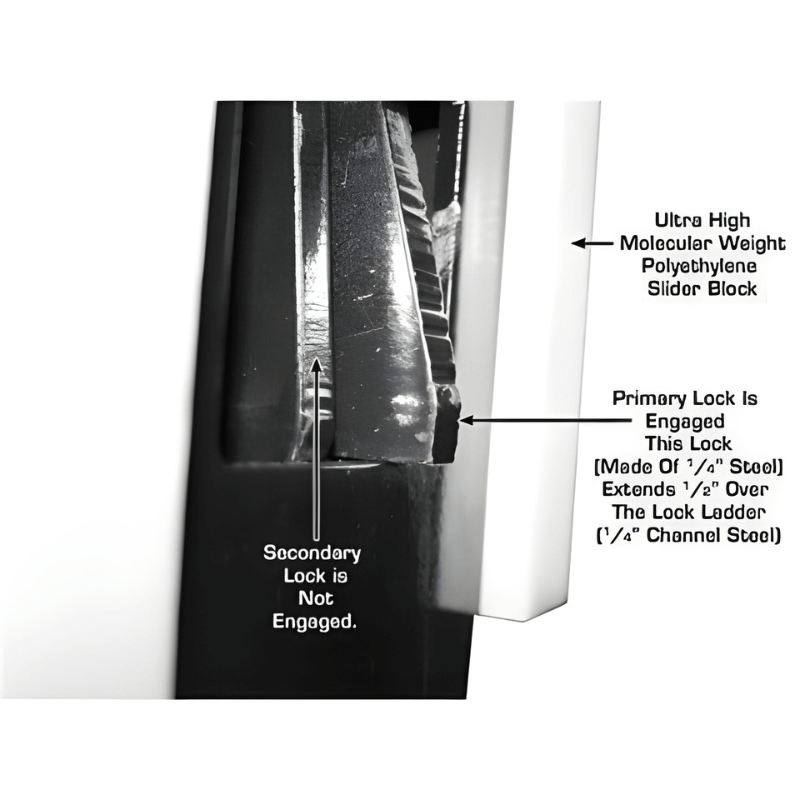

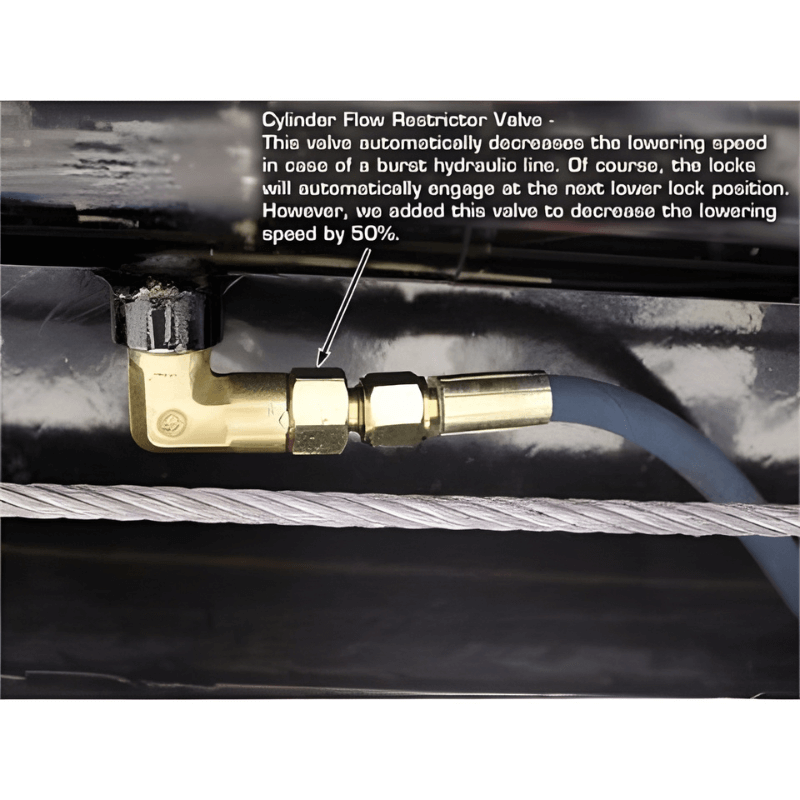

Double Lock Safety System

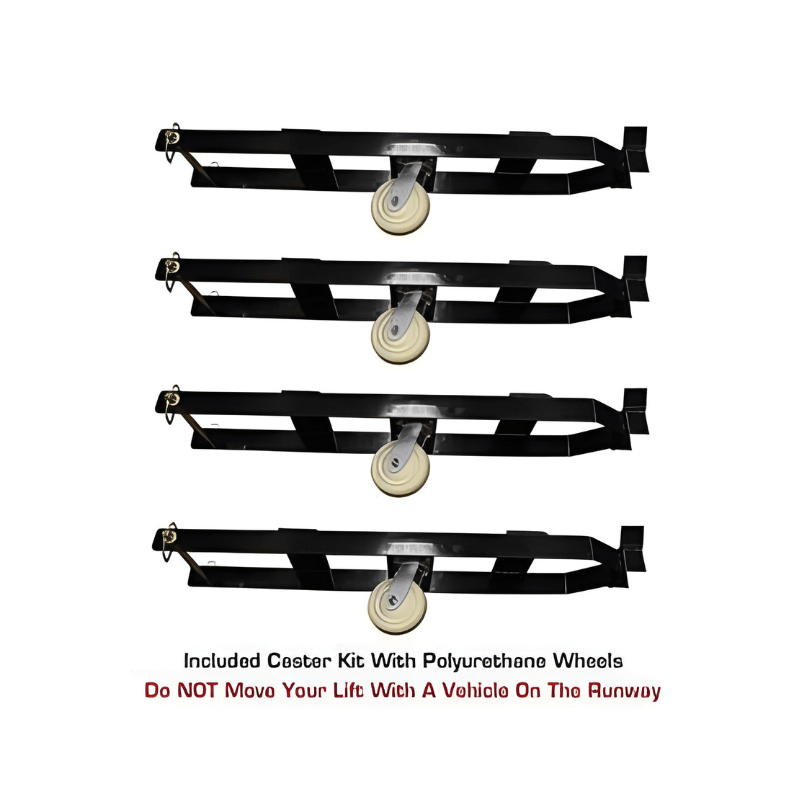

Caster Kit With Polyurethane Wheels Included

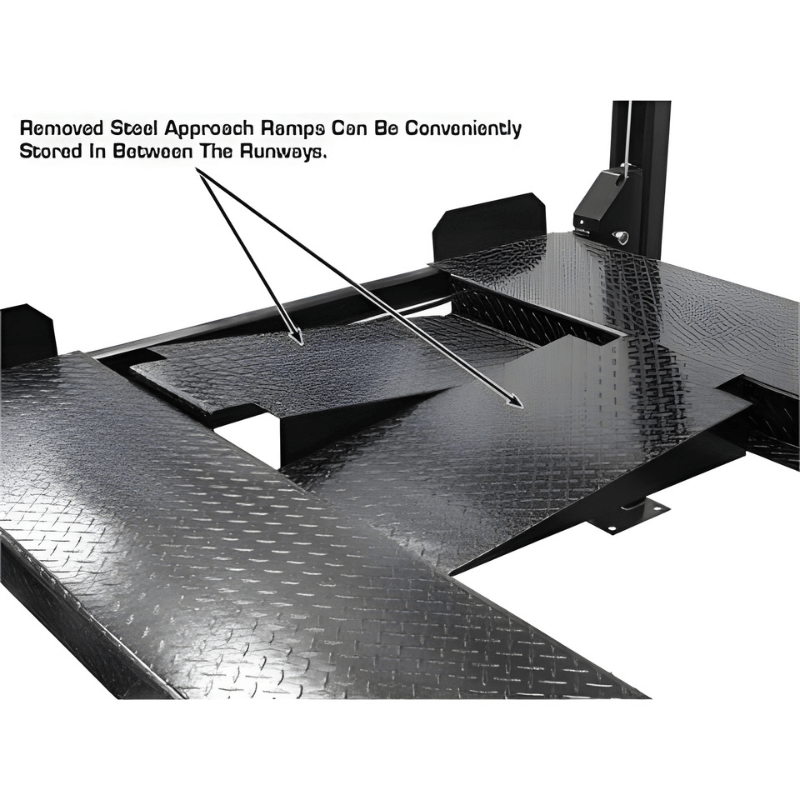

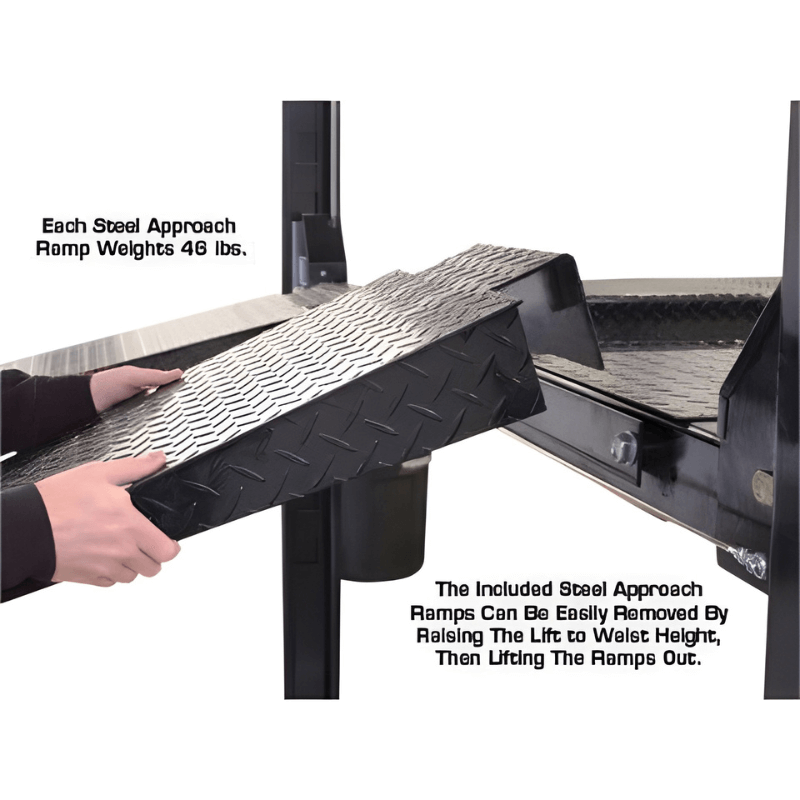

Steel Approach Ramps Included
Ideal For
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Technical Specifications
Capacity |
3,500 LB |
Lifting Height to Top of Runway |
72" (6') |
Clearance Under Runways |
67 ½" (5' 7 ½") |

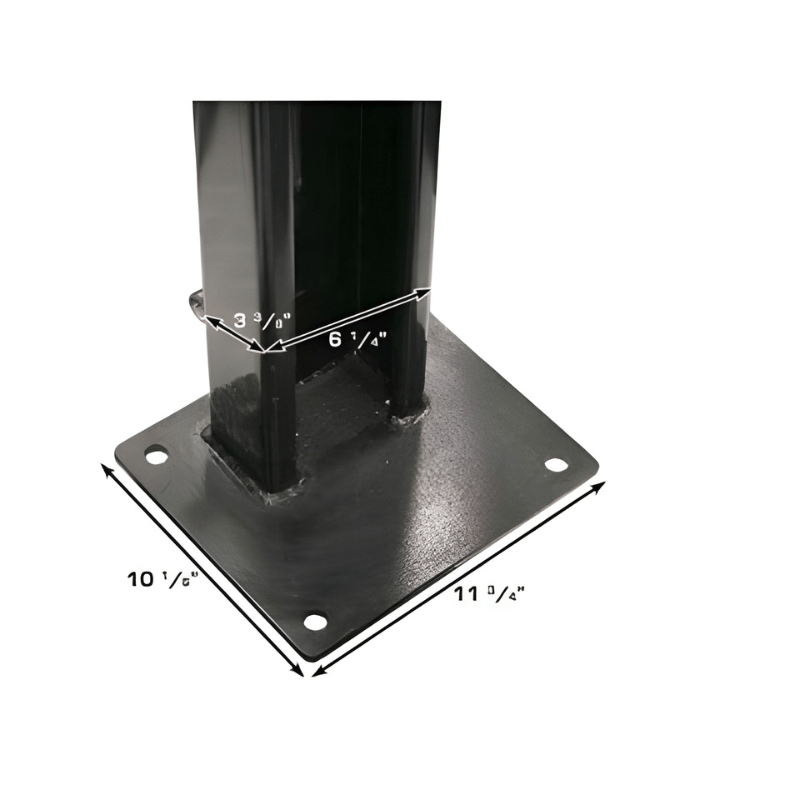

Height of Columns |
83" (6' 11") |
Overall Width (Without Motor) |
104 ½" (8' 8 ½") |
Overall Width (With Motor) |
115" (9' 7") |
Overall Length with Approach Ramps |
206 ¾" (17' 2 ¾") |
Approach Ramps |
36 3/8" (3' 3/8") |
Runway Width |
18 ½" (1' 6 ½") |
Runway Length |
165 ¾" (13' 9 ¾") |
Runway Thickness |
4 ½" |

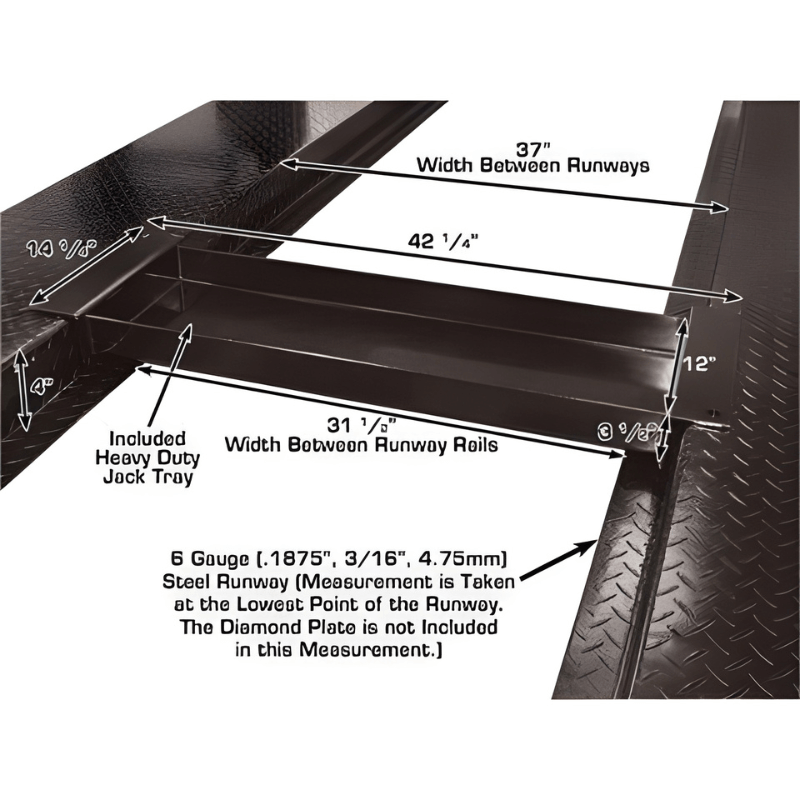

Width Between Runways |
37" (3' 1") |
Width Between Runway Rails |
31 ½" (2' 7 ½") |
Outside Runway to Outside Runway |
74 5/8" (6' 2 5/8") |
