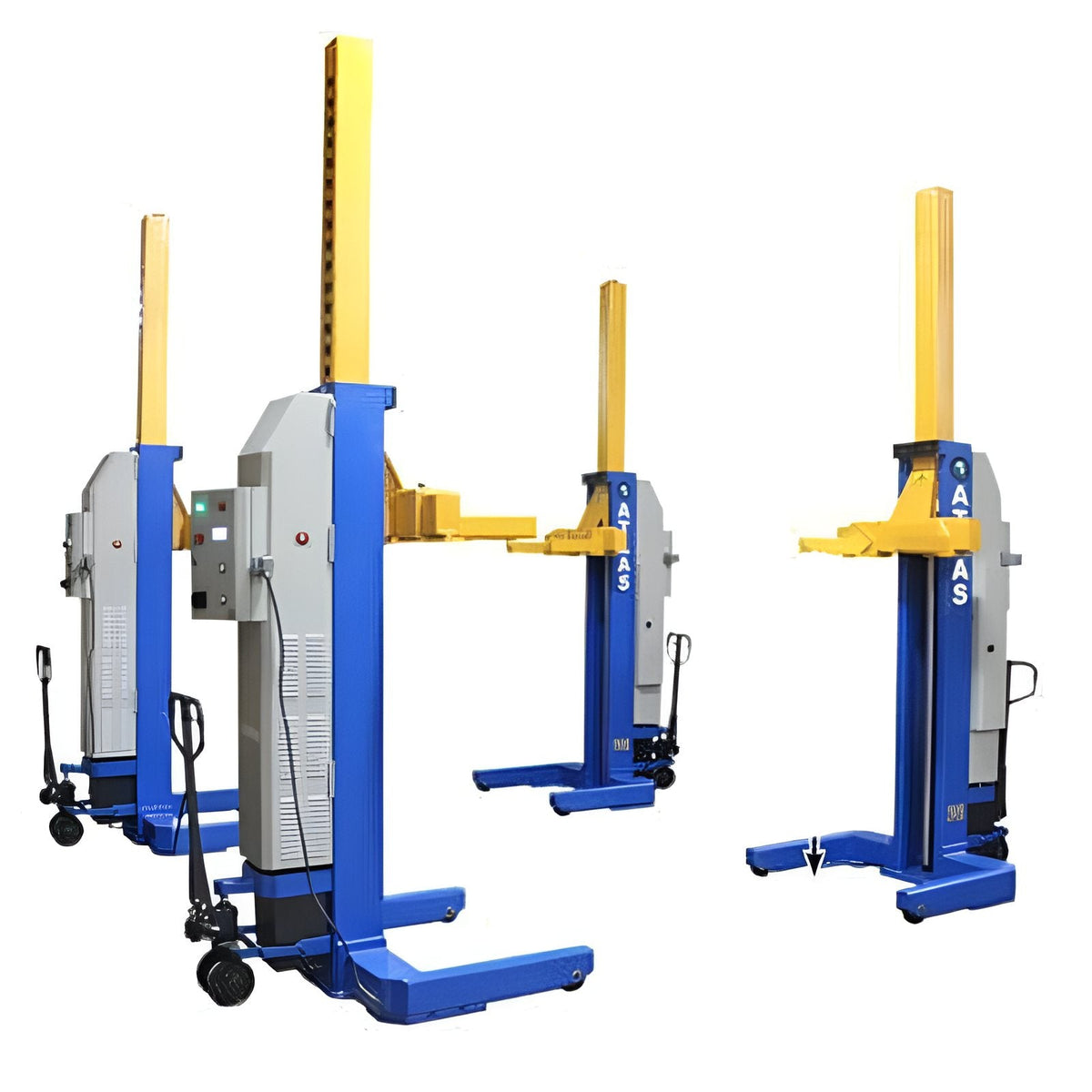

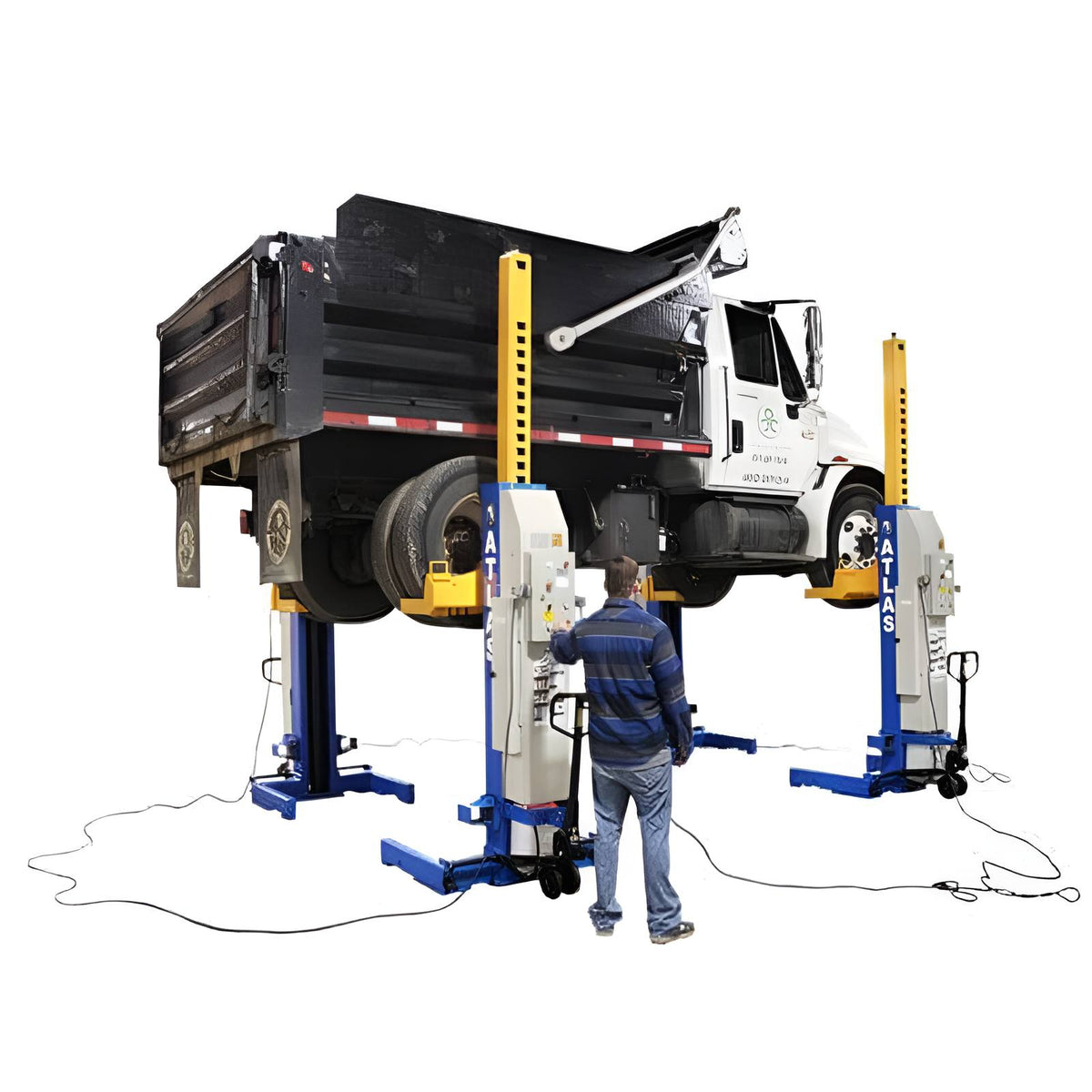

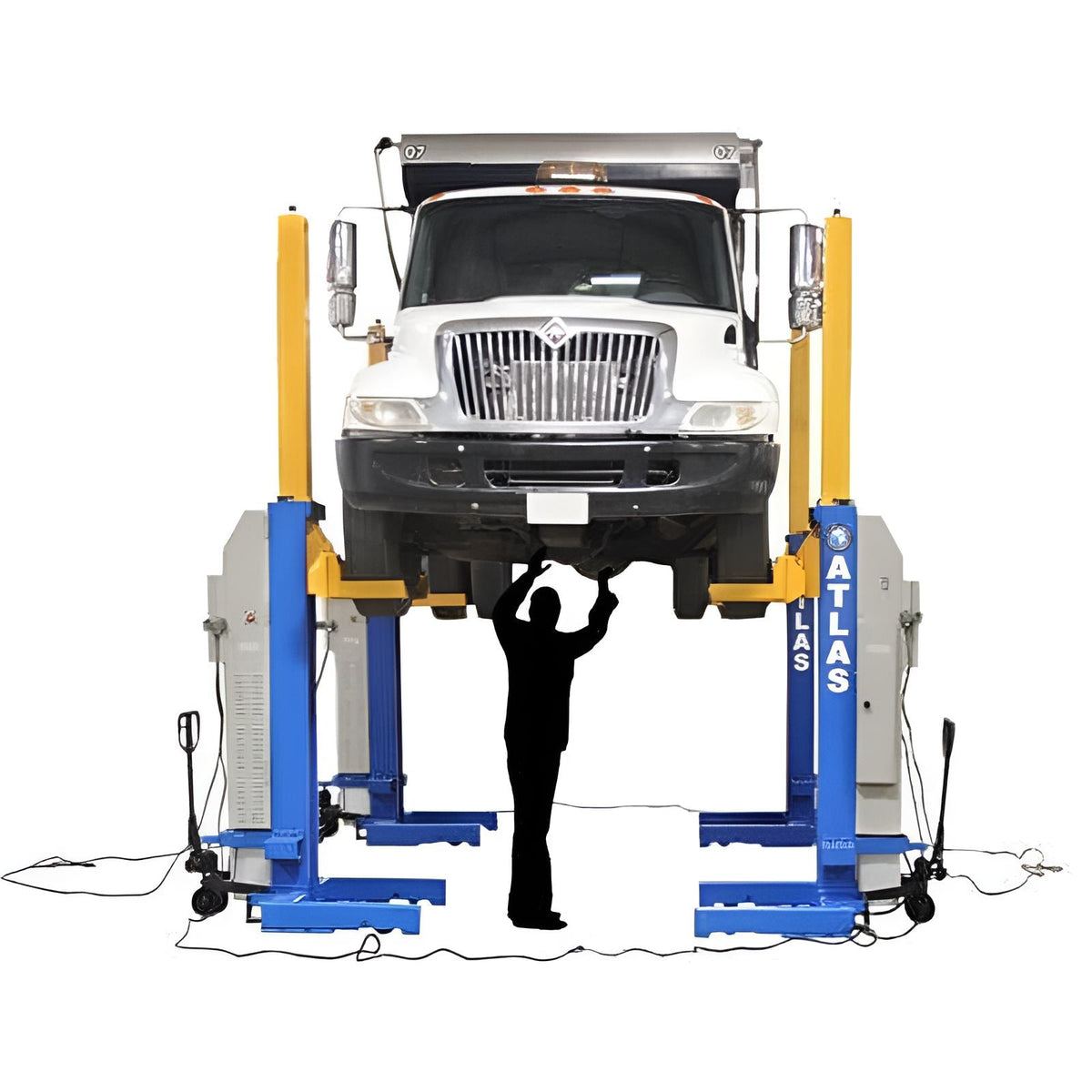

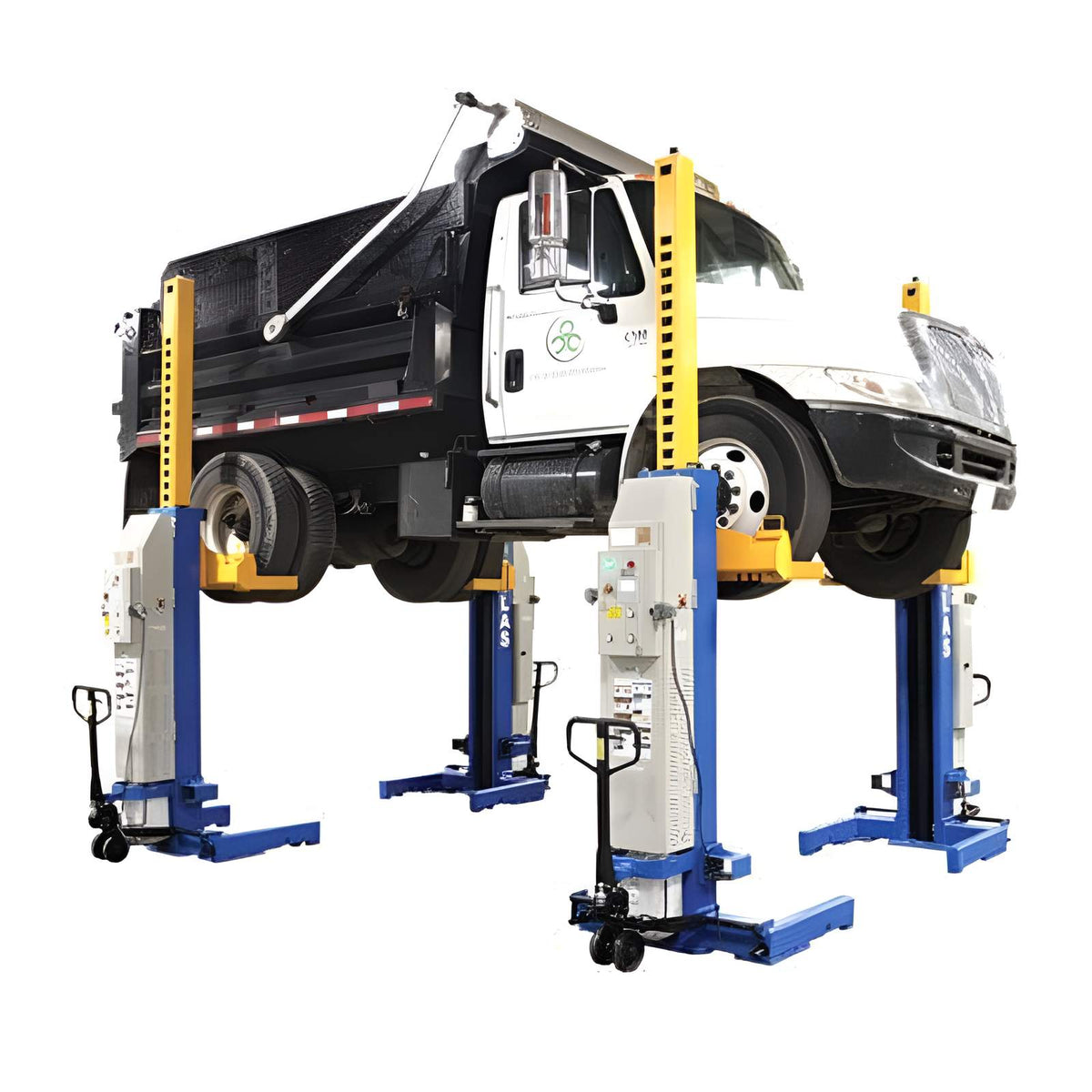

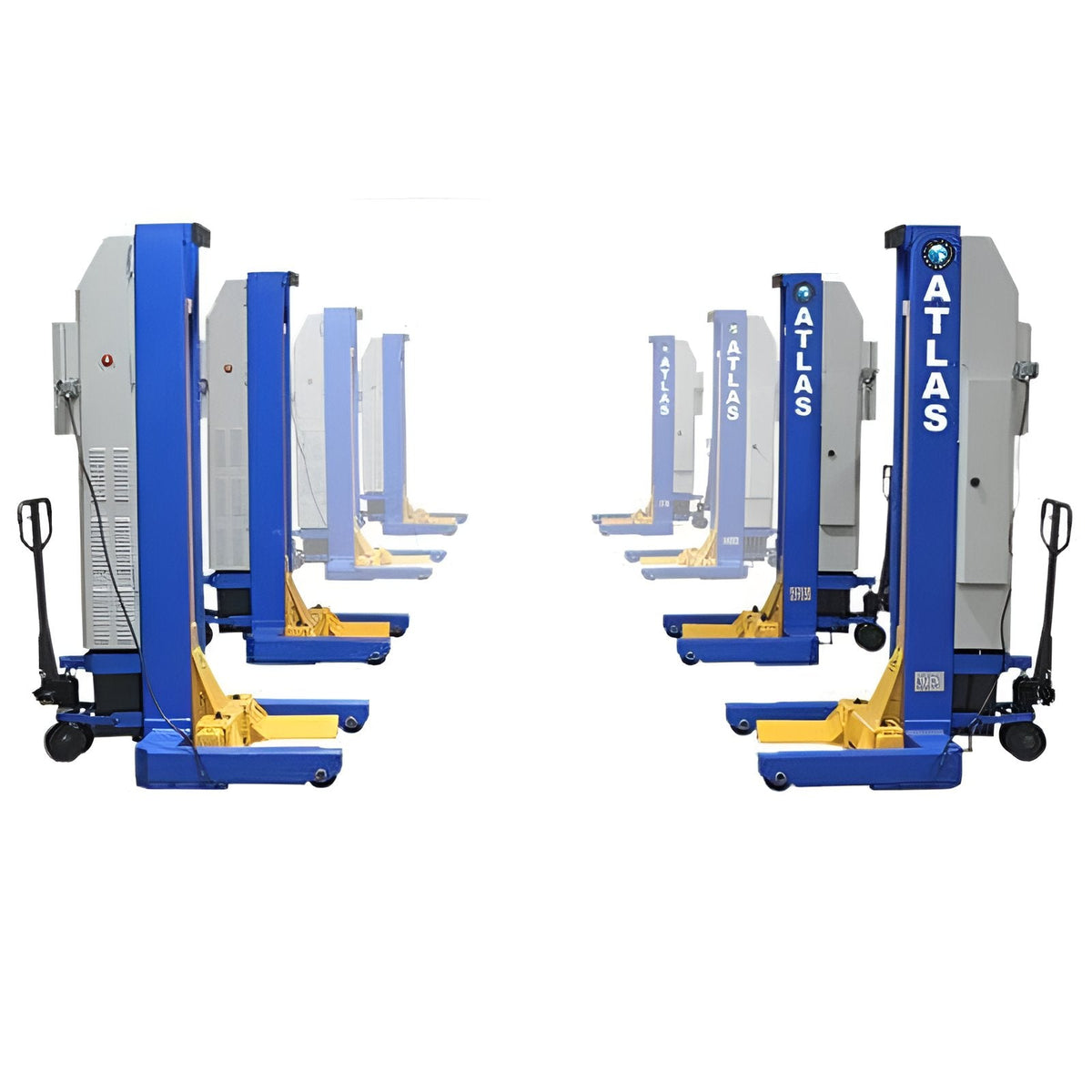

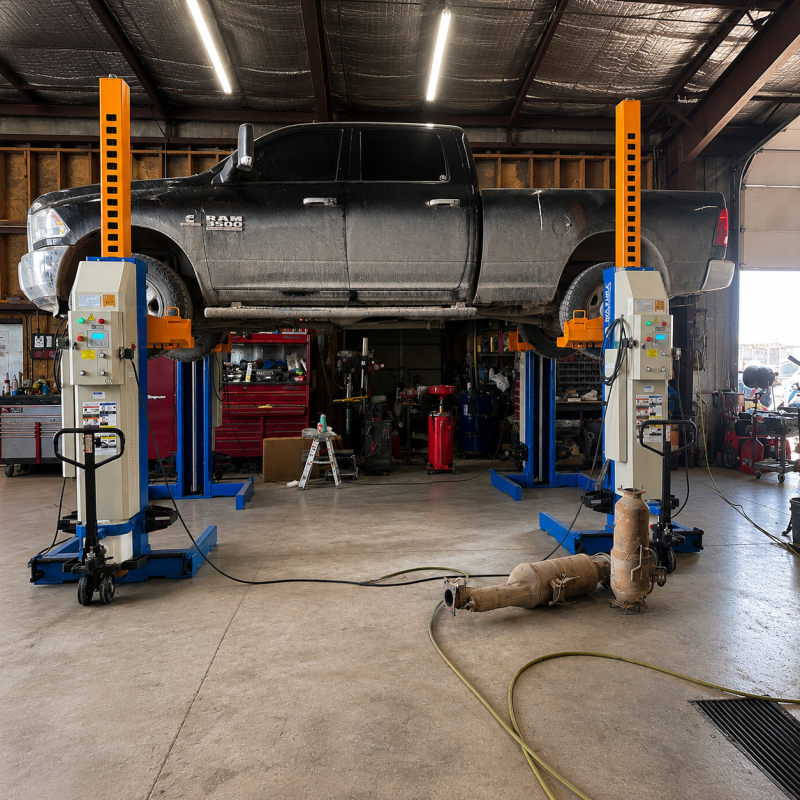

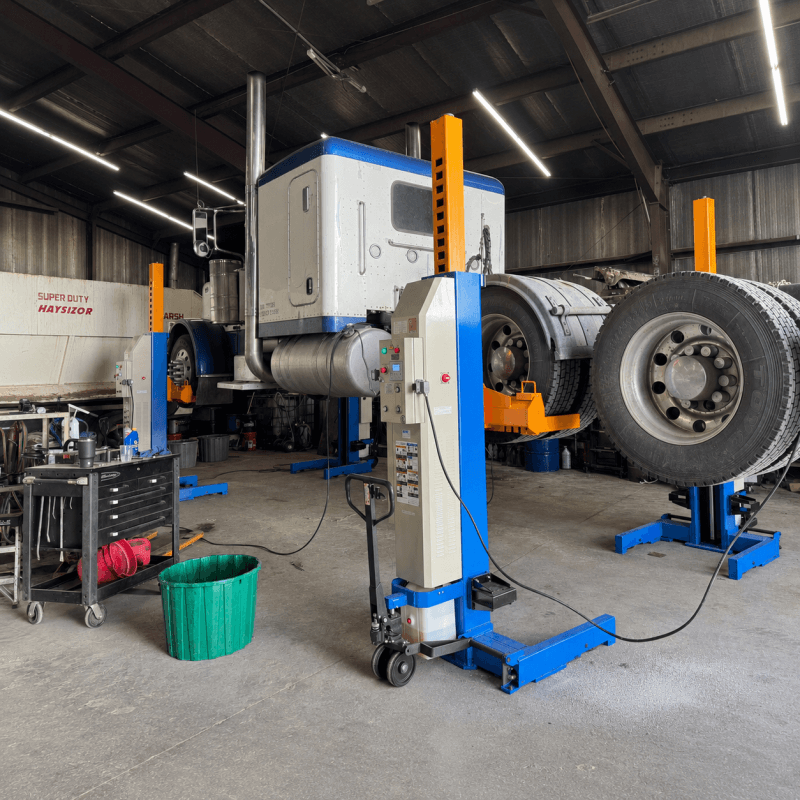

Atlas ML-4030BC 16,500lb Mobile Column Lift (4-pack) - ALI Certified
SKU: ATEML-4030BC
ML-4030BC Mobile Column Lift by Atlas Forget about those clunky, permanent lifts that suck up your shop space like a black hole. The Maxima® mobile column lift system is the superhero your garage deserves. Each column packs a powerful 2.2 kW DC motor and dual rechargeable batteries, giving you the freedom to move your workspace around like it's nobody's business. With a lifting capacity of 16,500 lbs per column, you can tackle any job, from tiny compacts to full-sized trucks. Say goodbye to wasted space and hello to maximum lifting prowess. And guess what? These columns are as smart as they are strong. Each one comes with a handy LCD screen and an emergency stop button for your peace of mind.
Rated for 16,500 lb, it's suited to heavy-duty fleet and commercial vehicle service, bus and truck maintenance facilities, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
ALI CERTIFIED
Lift Qty: 4
Simultaneous operation of all columns
LCD screen shows exact lifting height of each column
Electronic system ensuring synchronization of all columns
Double-safety guaranteed by both hydraulic flow control and mechanical locks
Portable columns make your work easy and comfortable
Can be Expanded from a four (66,000 lb. capacity) column system to a six (99,000 lb. capacity) or eight (132,000 lb. capacity) column system
Ideal For
Heavy-duty fleet and commercial vehicle service
Bus and truck maintenance facilities
Shops needing flexible, relocatable heavy-vehicle lifting without in-ground installation
Technical Specifications
Capacity per Column |
16,500 LB. |
Motor |
2.2 Kw 24V DC motor with two batteries per column |
Max. Lifting Height |
67" (5' 7") |
Overall Height |
145" (12' 1") |
Resting Height |
88 1/2" (7' 4 1/2") |
Width |
43 1/2" (3' 7 1/2") |
Length |
55 1/2" (4' 7 1/2") |
Column Width |
13 1/4" |
Max Tire Diameter |
44" |
Min Tired Diameter |
19" |
Warranty |
2 Year Limited |
Shipping Weight (For Four Columns) |
6,400 LB. |
Shipping Weight Per Column |
1,600 LB. each |
Concrete Requirements |
Minimum of 4"-3000psi |
