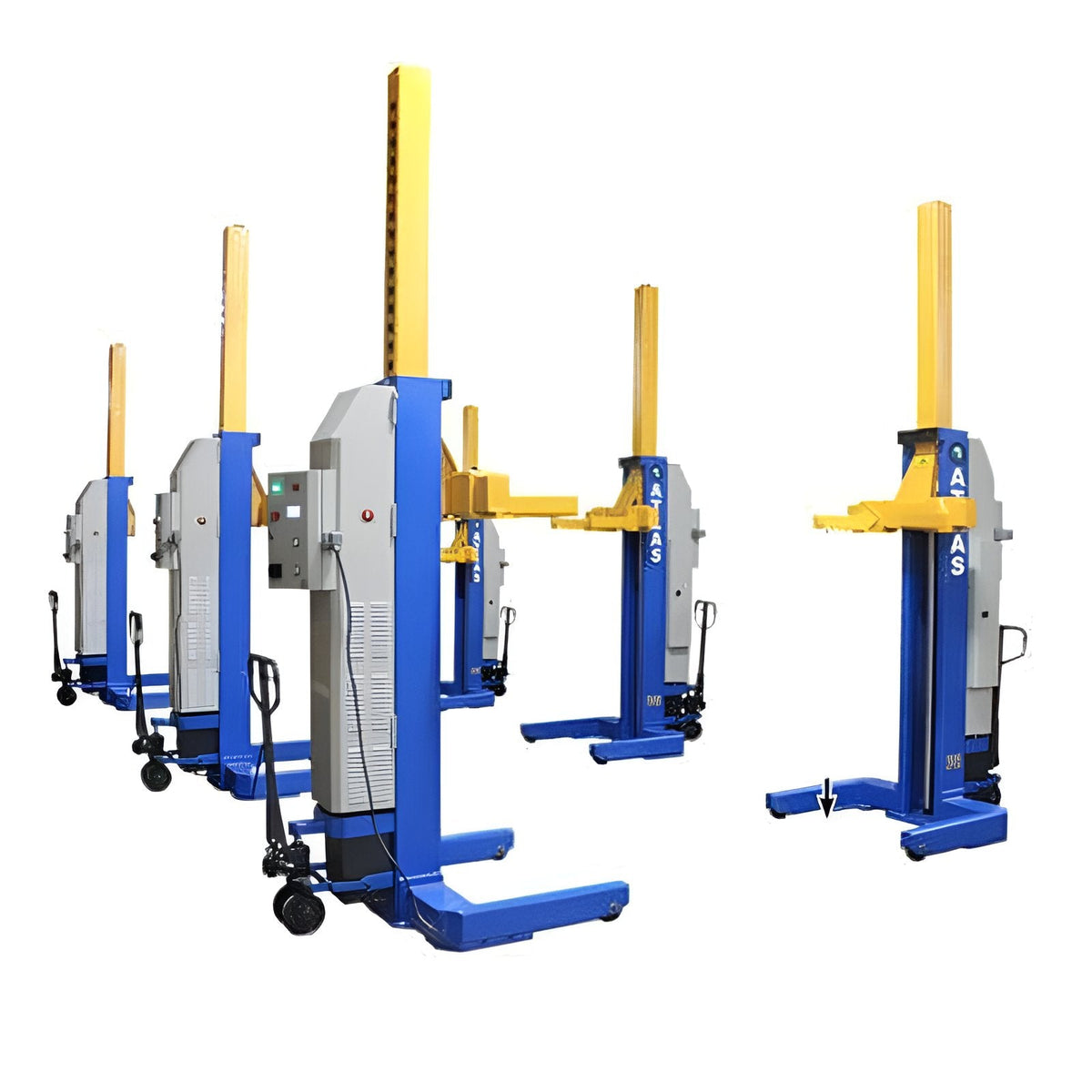

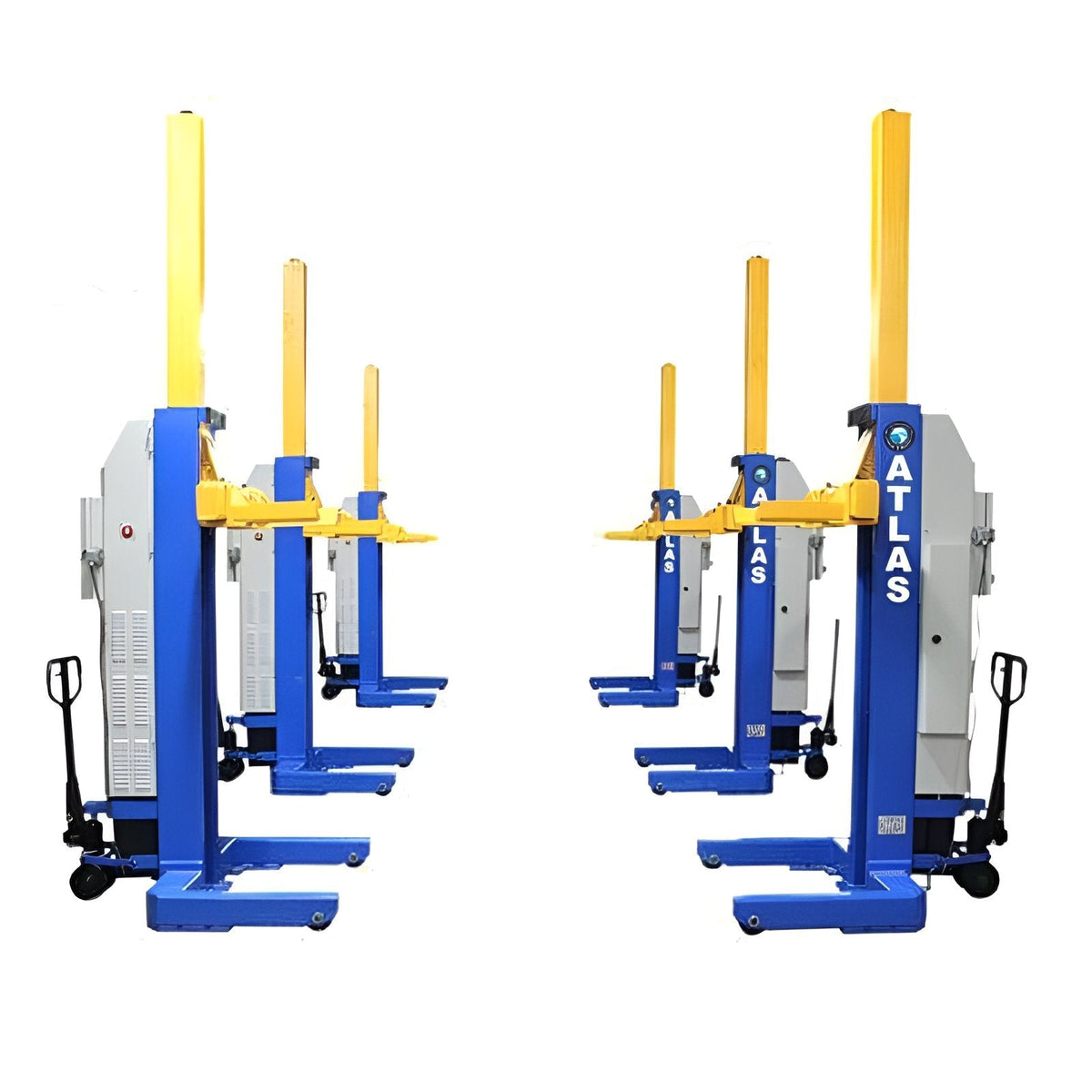

Atlas ML-6045BC 16,500lb Mobile Column Lift System (6 Pack) - ALI Certified
SKU: ATEML-6045BC
ML-6045BC Mobile Column Lift System by Atlas Is your garage struggling with heavy trucks and limited space? Do you find yourself turning away jobs due to inadequate lifting equipment? The ALI Certified Maxima® ML6045BC mobile column lift system is about to transform your workshop. This versatile system boasts a remarkable 16,500 lbs lifting capacity per column, handling tire diameters from 19 to 44 inches. Picture effortlessly moving these lifts around your shop or even outdoors, thanks to the hydraulic pallet jack system and minimal 6-inch concrete thickness requirement. With 10-20 lifts per battery charge and convenient 110V recharging, your work never stops.
Rated for 16,500 lb, it's suited to heavy-duty fleet and commercial vehicle service, bus and truck maintenance facilities, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
ALI CERTIFIED
Lift Qty: 6
Simultaneous operation of all columns
LCD screen shows exact lifting height of each column
Electronic system ensuring synchronization of all columns
Double-safety guaranteed by both hydraulic flow control and mechanical locks
Portable columns make your work easy and comfortable

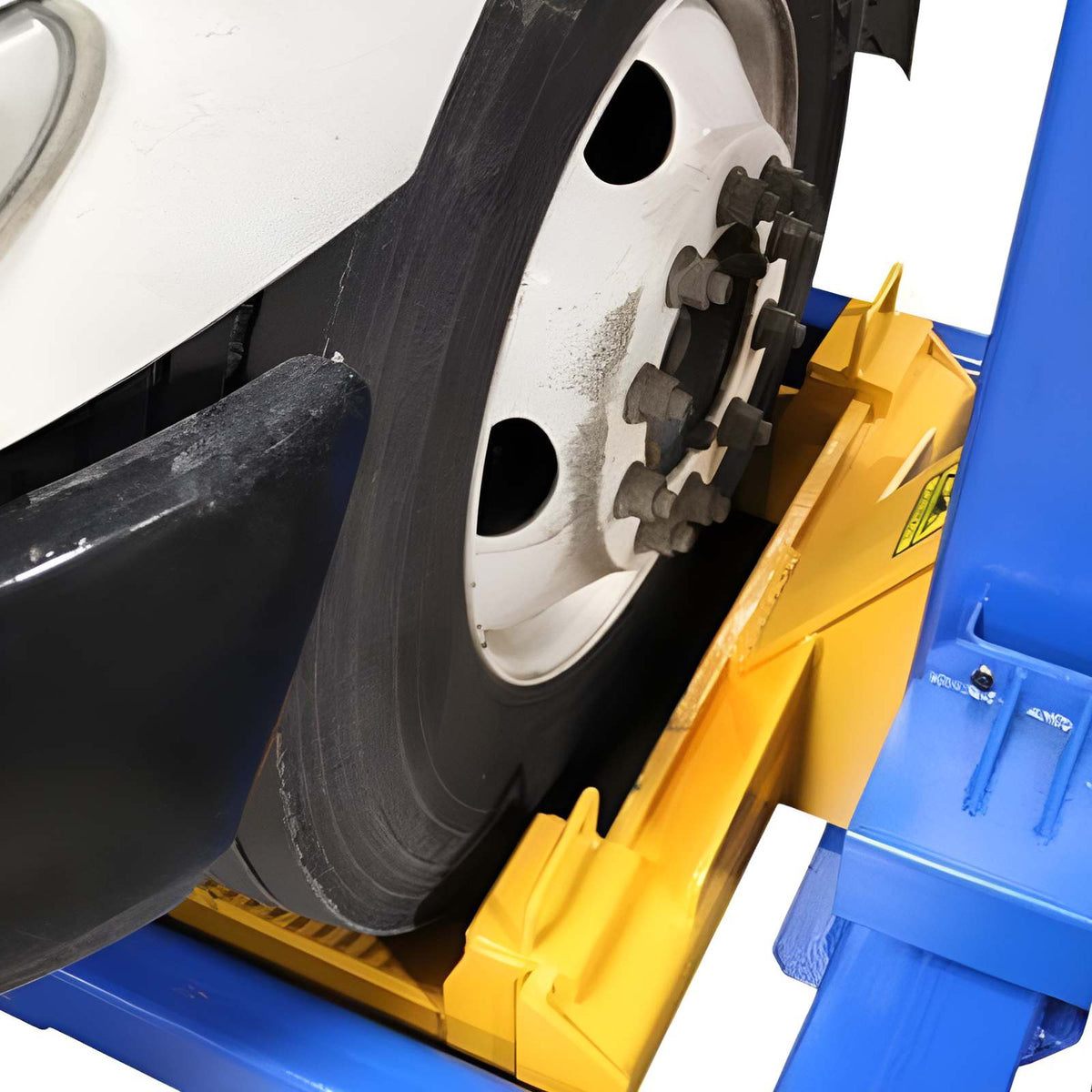

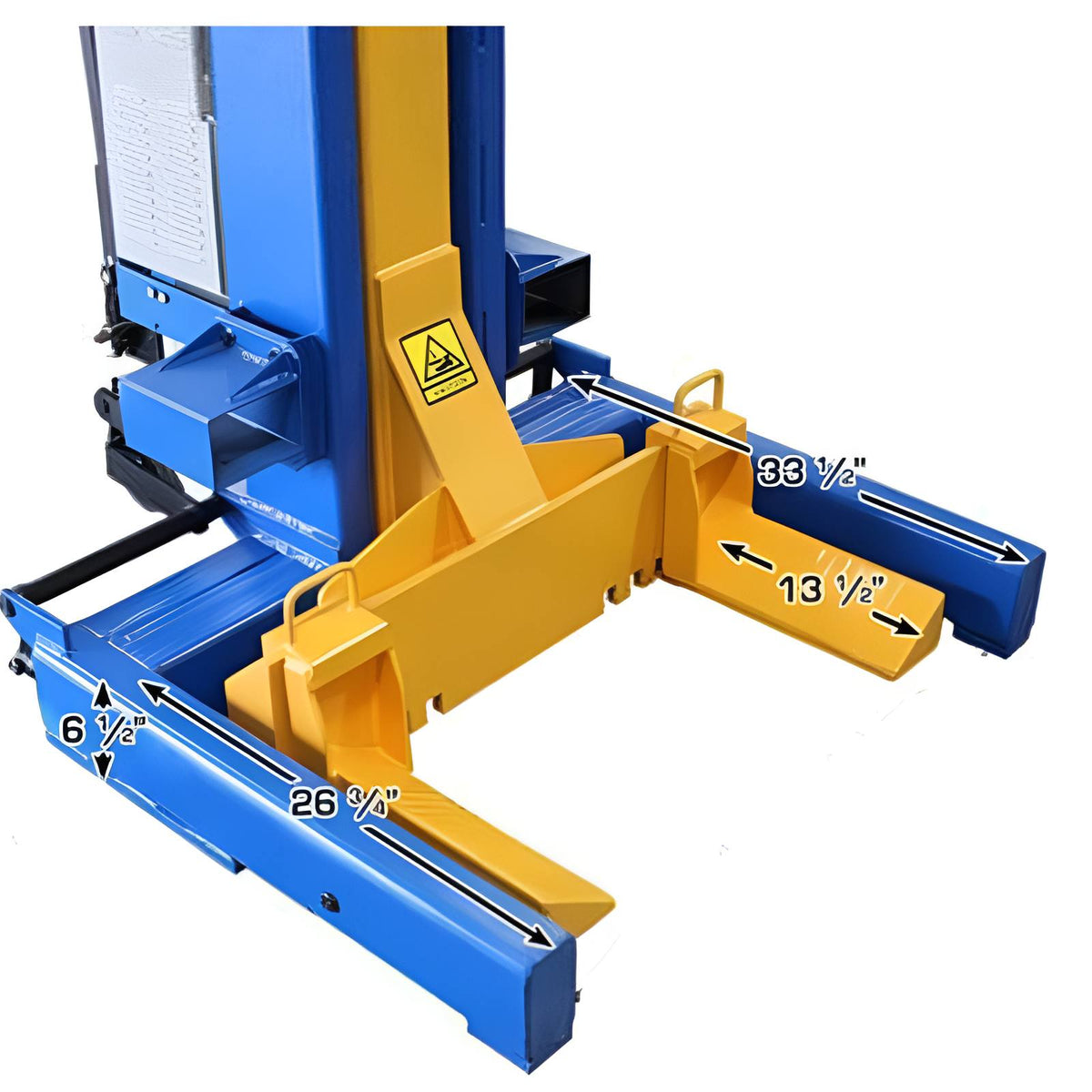

Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
Ideal For
Heavy-duty fleet and commercial vehicle service
Bus and truck maintenance facilities
Shops needing flexible, relocatable heavy-vehicle lifting without in-ground installation
Technical Specifications
Capacity per Column |
16,500 LB. |
Motor |
2.2 Kw 24V DC motor with two batteries per column |
Max. Lifting Height |
67" (5' 7") |
Overall Height |
145" (12' 1") |
Resting Height |
88 1/2" (7' 4 1/2") |
Width |
43 1/2" (3' 7 1/2") |
Length |
55 1/2" (4' 7 1/2") |

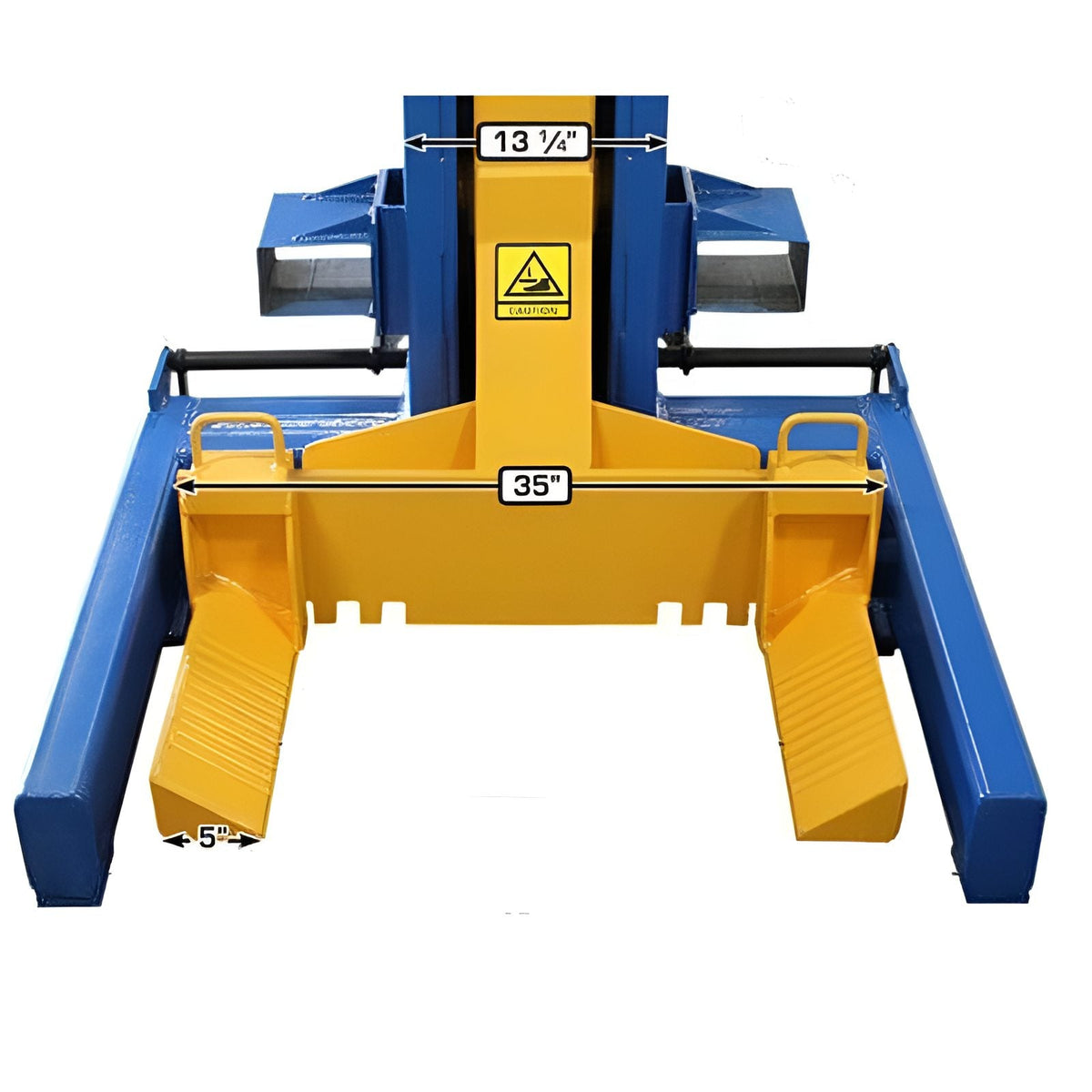

Column Width |
13 1/4" |
Warranty |
2 Year Limited |
Max Tire Diameter |
44" |
Min Tired Diameter |
19" |
Concrete Requirements |
Minimum of 4"-3500psi |
Shipping Weight (For Four Columns) |
9,600 LB. each |
Shipping Weight Per Column |
1,600 LB. each |
