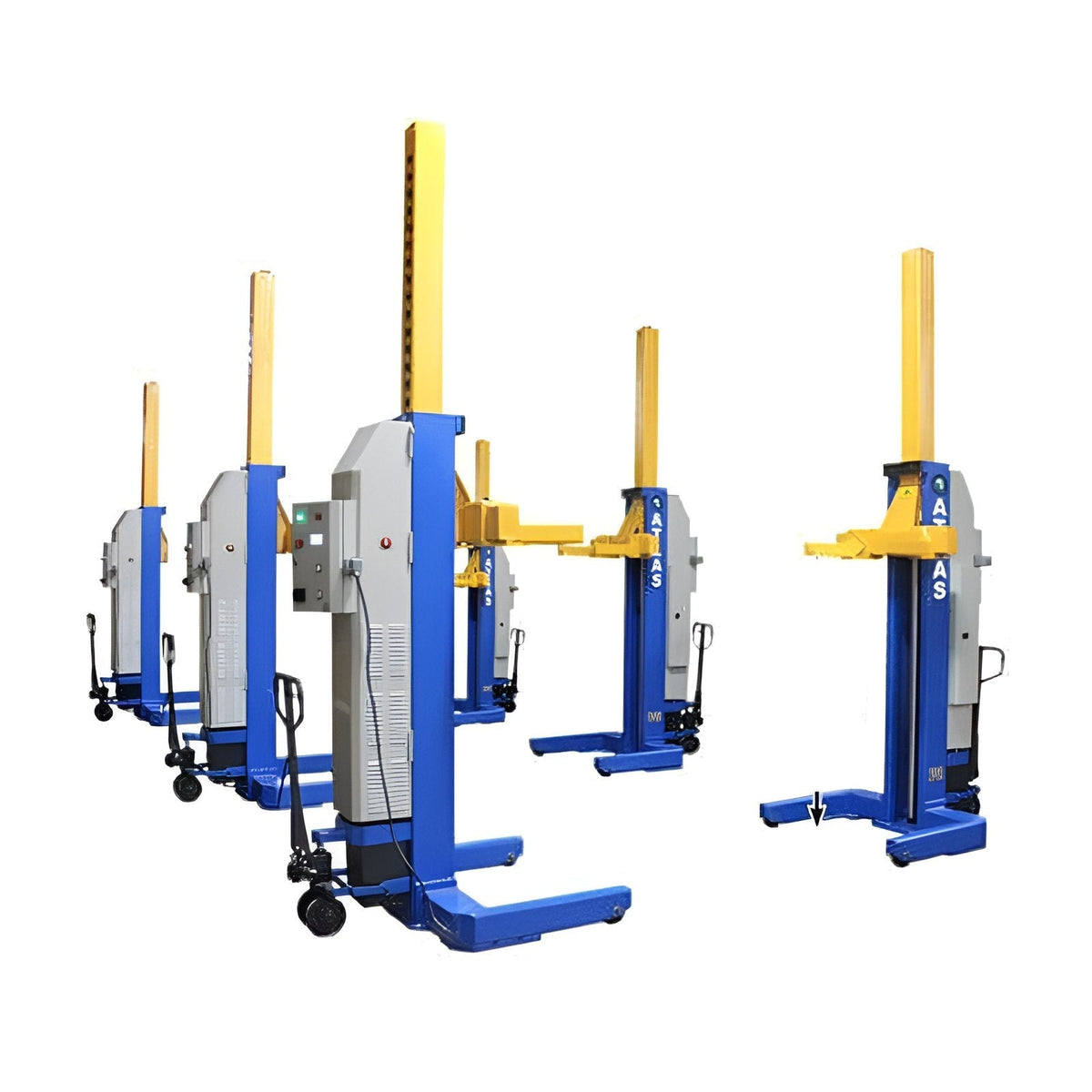

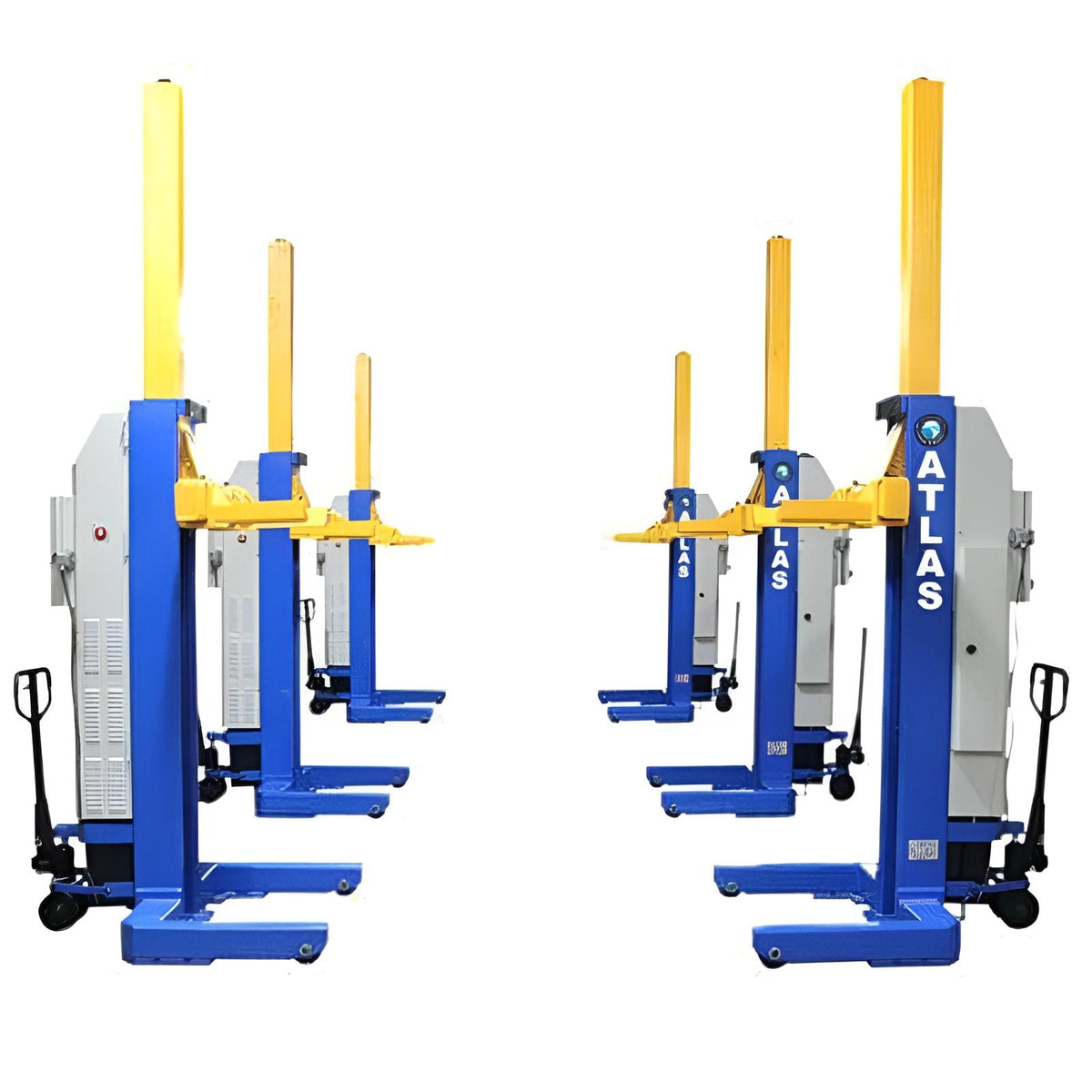

Atlas ML-6051BC 18,500lb Mobile Column Lift System (6-Pack) - ALI Certified
SKU: ATEML-6051BC
ML-6051BC Mobile Column Lift System by Atlas Is your workshop's layout limiting the types of vehicles you can service? Are you constantly battling space constraints when working on heavy trucks? Your current lifting equipment is holding you back, forcing you to turn away jobs you're otherwise capable of handling. The Maxima® ML6051BC mobile column lift system is the solution to these challenges. This versatile system isn't just a lift; it's a game-changer for your workshop. Tired of being confined to a single spot in your shop? These columns go wherever you need them, even outdoors on level concrete. Frustrated by lifts that can't handle diverse truck sizes?
Rated for 18,500 lb, it's suited to heavy-duty fleet and commercial vehicle service, bus and truck maintenance facilities, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
ALI CERTIFIED
Lift Qty: 6
Simultaneous operation of all columns
LCD screen shows exact lifting height of each column
Electronic system ensuring synchronization of all columns
Double-safety guaranteed by both hydraulic flow control and mechanical locks
Portable columns make your work easy and comfortable

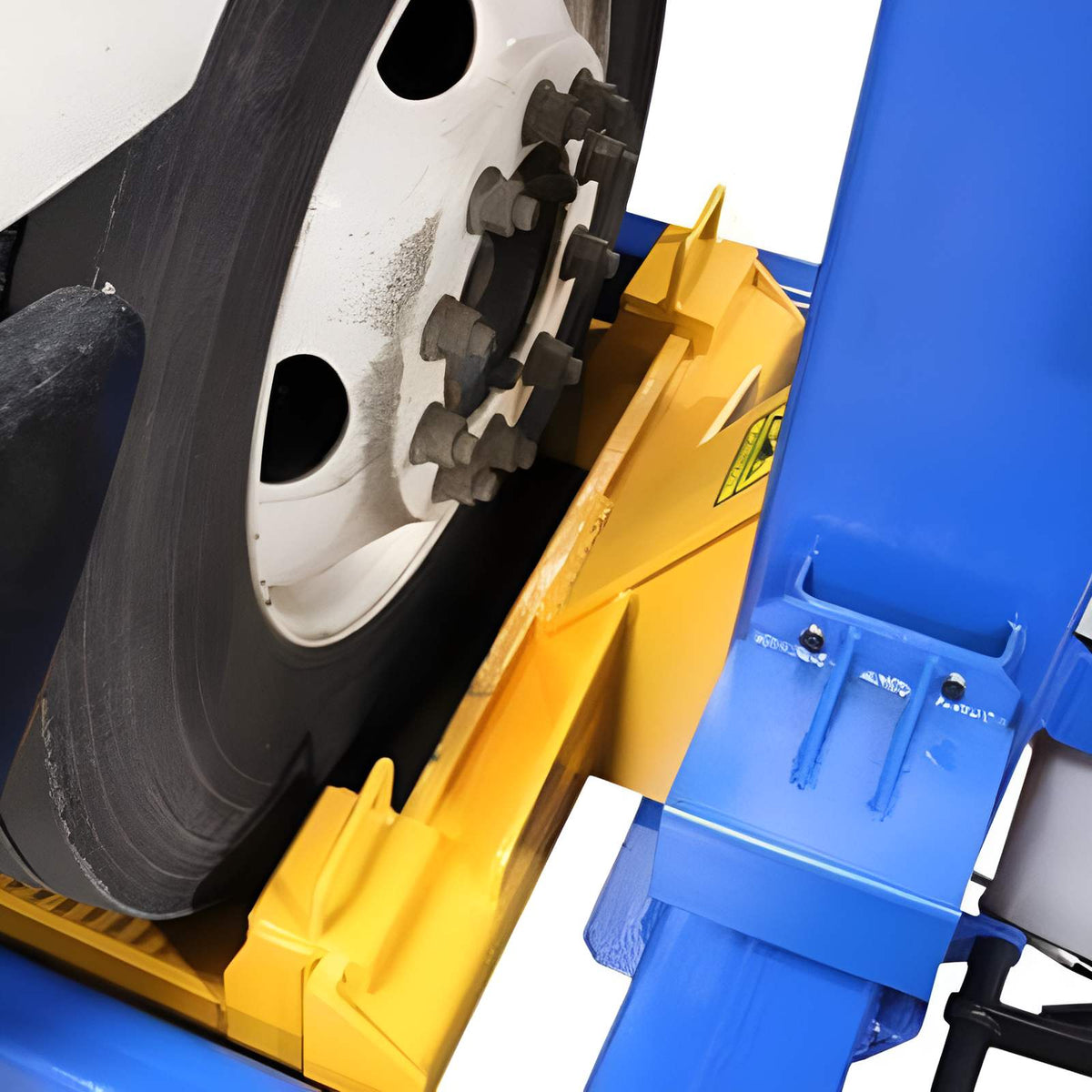

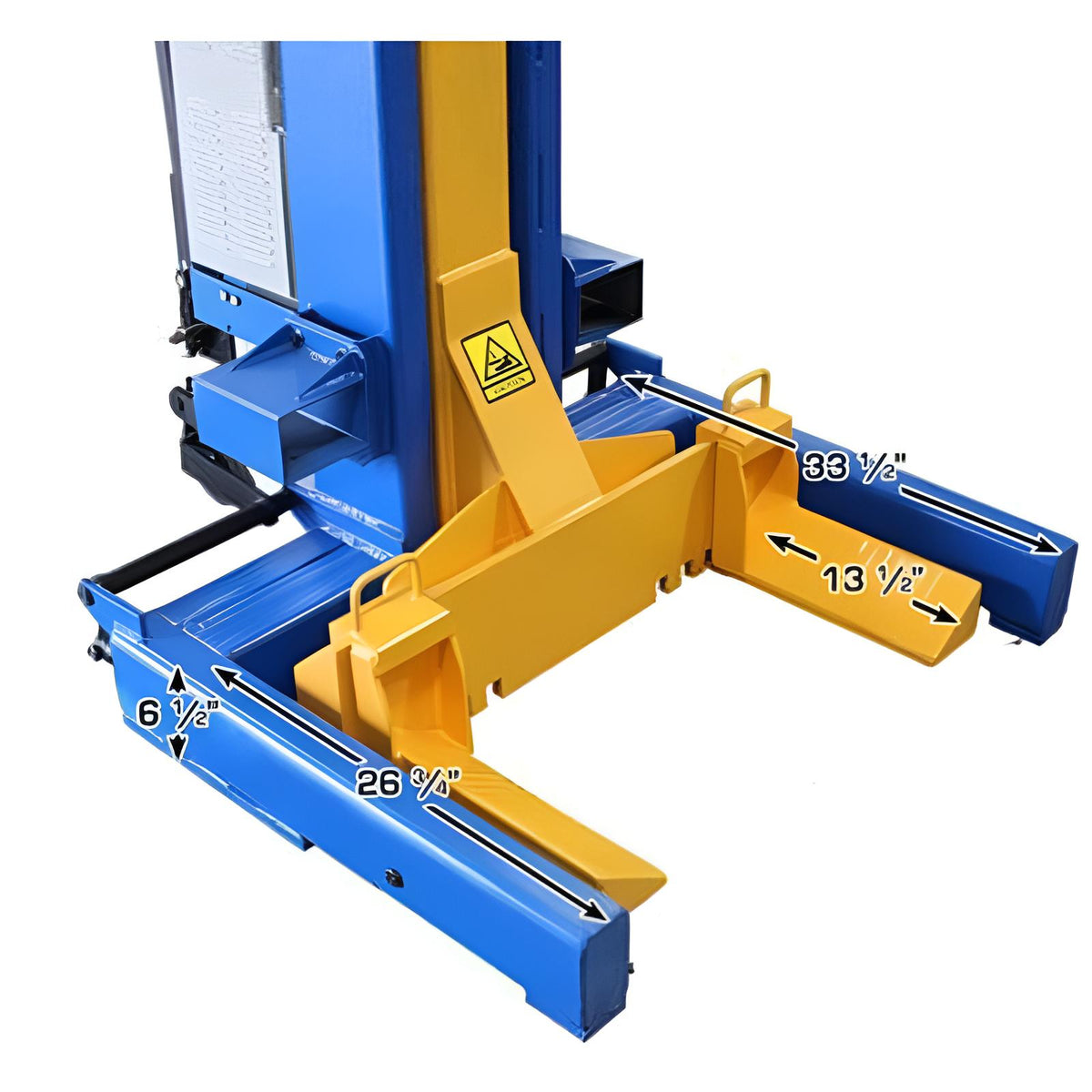

Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
Ideal For

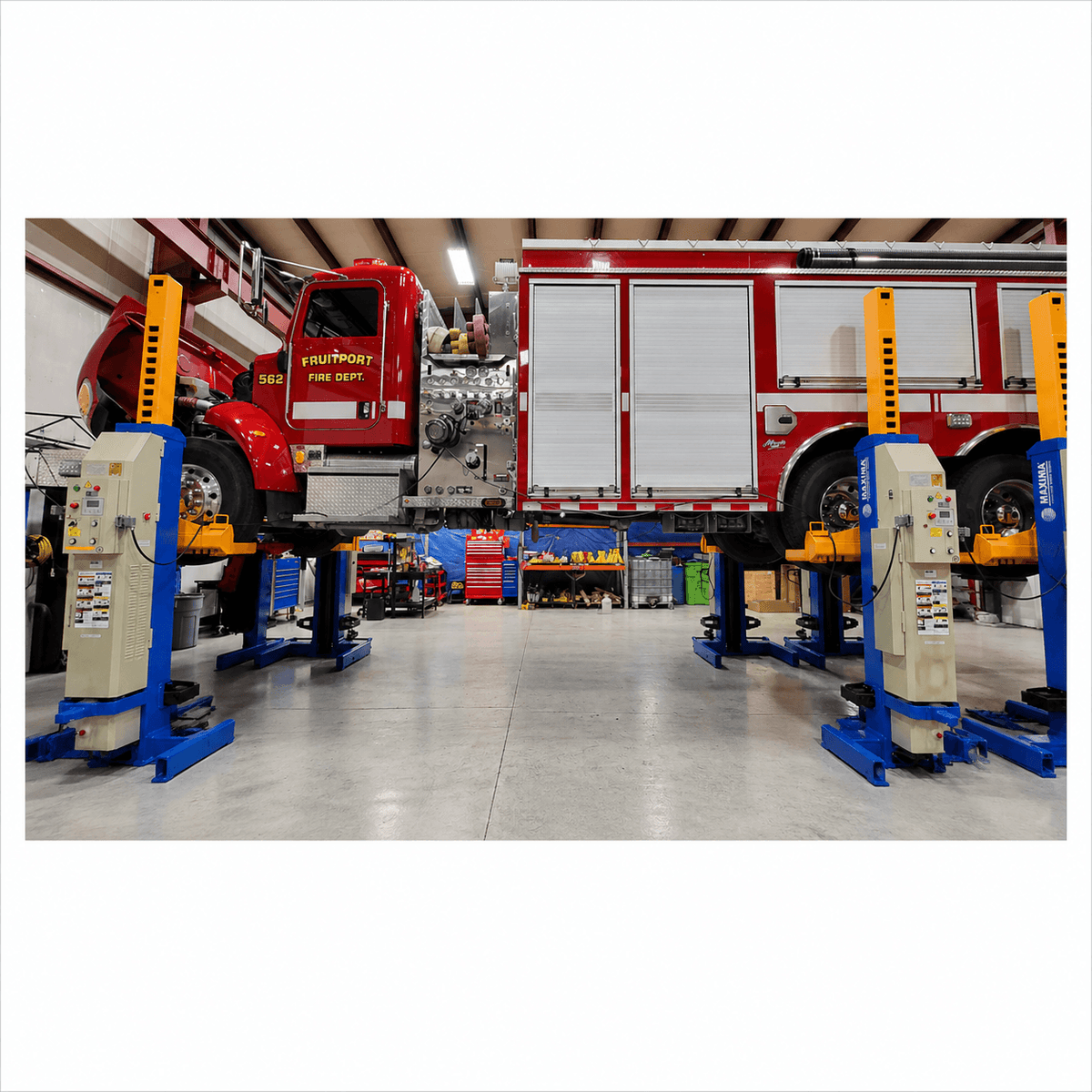

Heavy-duty fleet and commercial vehicle service
Bus and truck maintenance facilities
Shops needing flexible, relocatable heavy-vehicle lifting without in-ground installation
Technical Specifications
Capacity per Column |
18,500 LB. |
Motor |
2.2 Kw 24V DC motor with two batteries per column |
Max. Lifting Height |
67" (5' 7") |
Overall Height |
145" (12' 1") |
Resting Height |
88 1/2" (7' 4 1/2") |
Width |
43 1/2" (3' 7 1/2") |
Length |
55 1/2" (4' 7 1/2") |

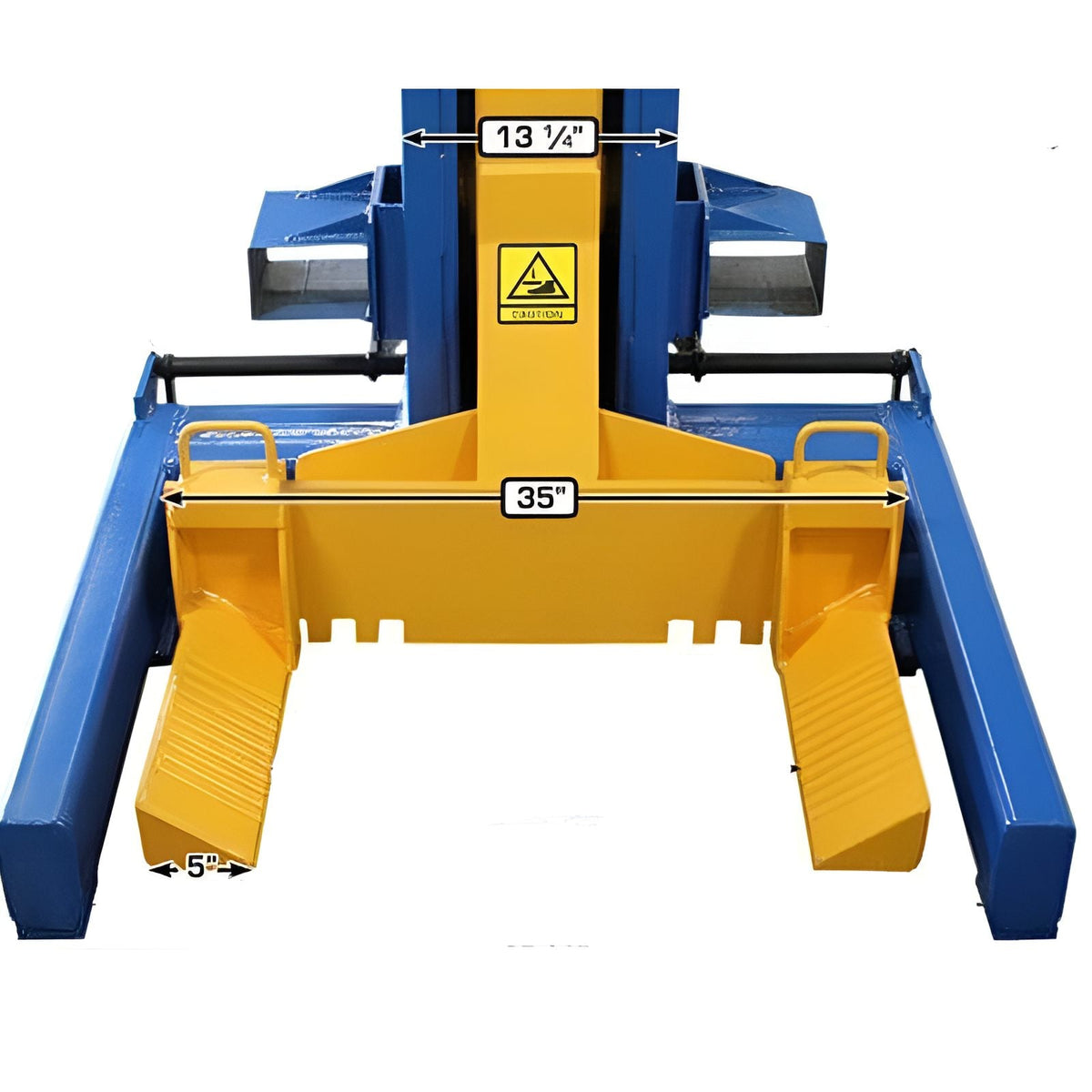

Column Width |
13 1/4" |
Max Tire Diameter |
44" |
Min Tired Diameter |
19 |
Warranty |
2 Year Limited |
Concrete Requirements |
Minimum of 4"-3500psi |
Shipping Weight (For Six Columns) |
10,200 LB. each |
Shipping Weight Per Column |
1,700 LB. each |
Before you order
Freight, returns and installation, stated plainly.
Shipping & delivery
Free freight to the lower 48.
- Delivery
- LTL freight, curbside. The carrier calls to schedule; you move the crate from the curb.
- Alaska, Hawaii & territories
- Custom freight quote
Freight damage
Inspect at the curb, before you sign.
- At delivery
- Note any damage on the delivery receipt and take photos
- Report within
- 48 hours; we handle the carrier claim
Returns
30 days from delivery. No restocking fee.
- Condition
- Unused, in original condition, with a return authorization first
- Return freight
- Paid by the buyer unless the item arrived damaged, defective or not as ordered
- Refund
- To the original payment method after inspection
Installation help
Independent installers, arranged by quote.
- Coverage
- Many areas; we help you arrange one
- Price
- Quote-based
Manufacturer warranty on every product. Terms vary by brand and model. Ask for a free copy of the written warranty before you buy; we help you file claims.Warranty details
