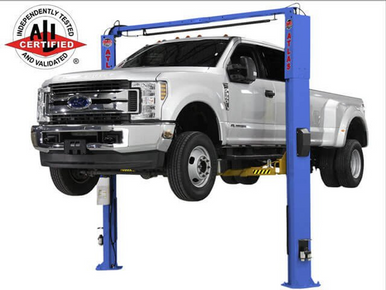

Atlas Platinum PVL-10 Two-Post Overhead Lift – 10,000 lb, ALI Certified
SKU: ATLAS-PVL-10
The Atlas Platinum PVL-10 is a high-performance 2-post lift that seamlessly integrates industrial strength with advanced versatility. With an impressive 10,000 lb (approximately 4,536 kg) lifting capacity and a flexible dual symmetric/asymmetric arm configuration, this lift is engineered to adapt to an extensive variety of vehicles, ranging from compact sedans to robust trucks. Its prestigious ALI (Automotive Lift Institute) certification is a testament to its adherence to the highest safety and performance standards, making it an ideal choice for both professional workshops and dedicated home garage environments.
Designed with adjustable installation heights, the PVL-10 is particularly well-suited for garages with low ceilings, while still boasting the capability to reach significant lift heights of up to 81.5″ (approximately 207 cm). The lift features rugged 6mm steel construction with a durable powder-coated finish for longevity. Operational safety and stability are ensured through integrated automatic arm restraints and robust dual-point safety locks, complemented by padded carriages to protect vehicles. This premium model is further enhanced by the inclusion of an 8-piece truck adapter set and convenient double screw-up adapters, specifically designed to accommodate oversized frames and a broader range of vehicle lifting points. It utilizes dual hydraulic cylinders powered by a premium ALLY power unit for smooth and reliable lifting, and all necessary mounting hardware is included for a complete installation.
Key Features
High Lifting Capacity: 10,000 lbs (4,536 kg), accommodating a wide range of vehicles.
ALI Certified: Ensures adherence to the highest safety and performance standards.
Versatile Arm Design: Features 3-stage front and 2-stage rear arms for flexible vehicle engagement.
Flexible Configuration: Supports both symmetric and asymmetric installation setups to optimize garage space and vehicle access.
Robust Construction: Built with durable 6mm steel and finished with a powder coat for corrosion resistance and longevity.
Efficient Lift System: Employs dual hydraulic cylinders powered by a premium ALLY power unit for smooth and reliable operation.
Advanced Safety: Includes automatic arm restraints, dual-point safety locks, and padded carriages for vehicle protection.
Comprehensive Adapters: Comes with an 8-piece truck adapter set and double screw-up adapters for diverse vehicle types and oversized frames (2″ peg size, with 3″ and 6″ height adapters included).
Complete Mounting: All necessary mounting hardware is included for straightforward installation.
Adjustable Height: Designed for adjustable installation heights to fit various garage ceiling clearances.
Ideal For
Home garages and DIY automotive enthusiasts
Professional auto shops and service centers
Heavy-duty truck and commercial vehicle service
Technical Specifications
Lifting Capacity |
10,000 lbs. (4,536 kg) |
Overall Height (Adjustable) |
135 7/8″ (11 ft. 3 7/8 in. or 3,451 mm) or 139 7/8″ (11 ft. 7 7/8 in. or 3,553 mm) |
Cylinder Extension Height |
Up to 148″ (12 ft. 4 in. or 3,759 mm) |
Overall Width (Asymmetric) |
139″ (11 ft. 7 in. or 3,531 mm) |
Overall Width (Symmetric) |
137 1/2″ (11 ft. 5 1/2 in. or 3,493 mm) |
Outside Column Width (Asymmetric) |
130″ (10 ft. 10 in. or 3,302 mm) |
Outside Column Width (Symmetric) |
129 1/4″ (10 ft. 9 1/4 in. or 3,283 mm) |
Lift Height (Without Adapters) |
72 1/2″ (1,842 mm) |
Lift Height (With Adapters) |
81 1/2″ (2,070 mm) |
Inside Column Width (Asymmetric) |
107 3/4″ (8 ft. 11 3/4 in. or 2,737 mm) |
Inside Column Width (Symmetric) |
112 1/2″ (9 ft. 4 1/2 in. or 2,858 mm) |
Drive-Thru Clearance (Asymmetric) |
91″ (7 ft. 7 in. or 2,311 mm) |
Drive-Thru Clearance (Symmetric) |
99 1/2″ (8 ft. 3 1/2 in. or 2,527 mm) |
Base Plate Size |
15″ x 18″ (381 mm x 457 mm) |
Electrical Requirements |
220V single phase, 30 amp breaker recommended |
Oil Requirement |
3–5 gallons AW32/AW46 (not included) |
Adapter Peg Size |
2″ (51 mm) |
Included Adapter Heights |
4 each of 3″ (76 mm), 4 each of 6″ (152 mm) |
