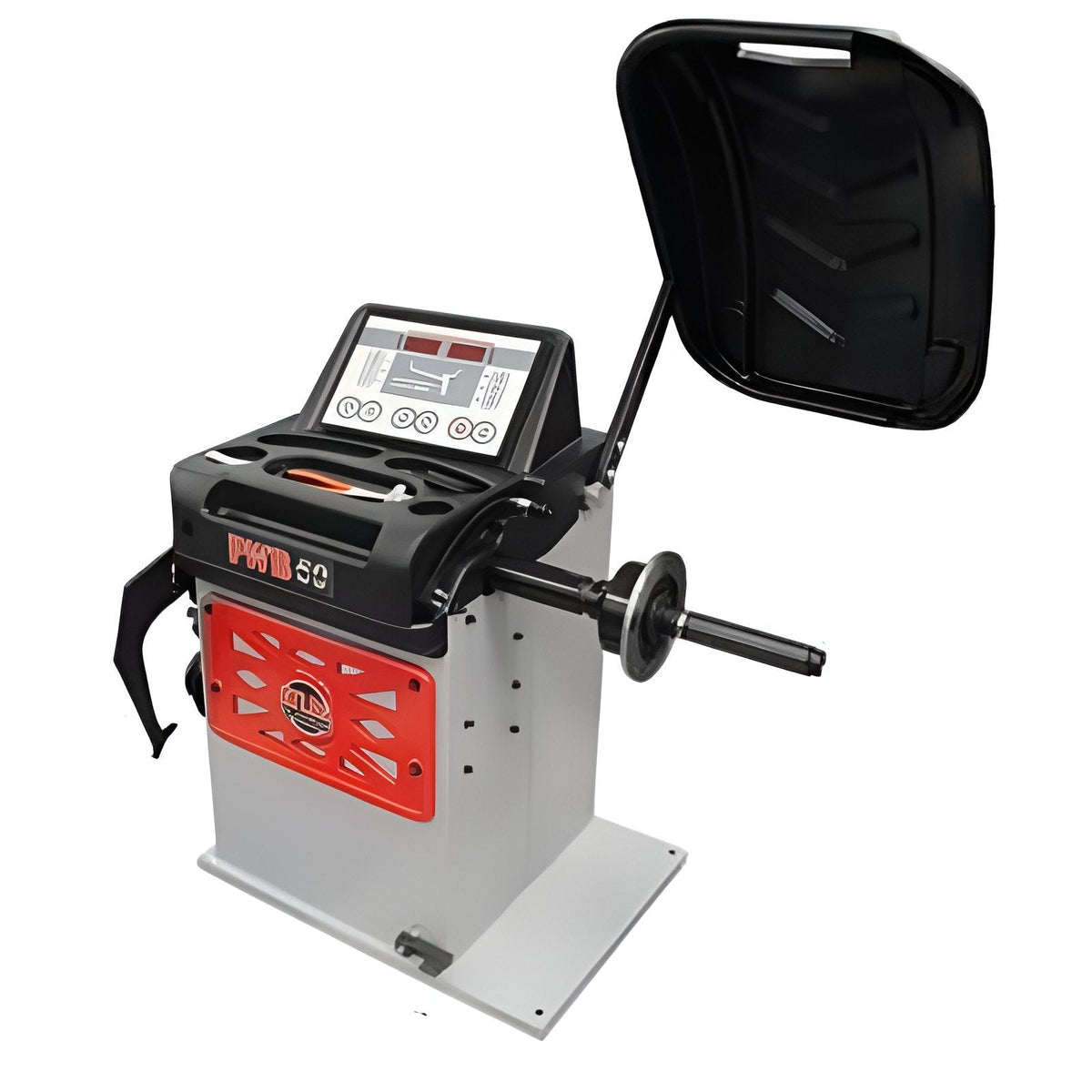

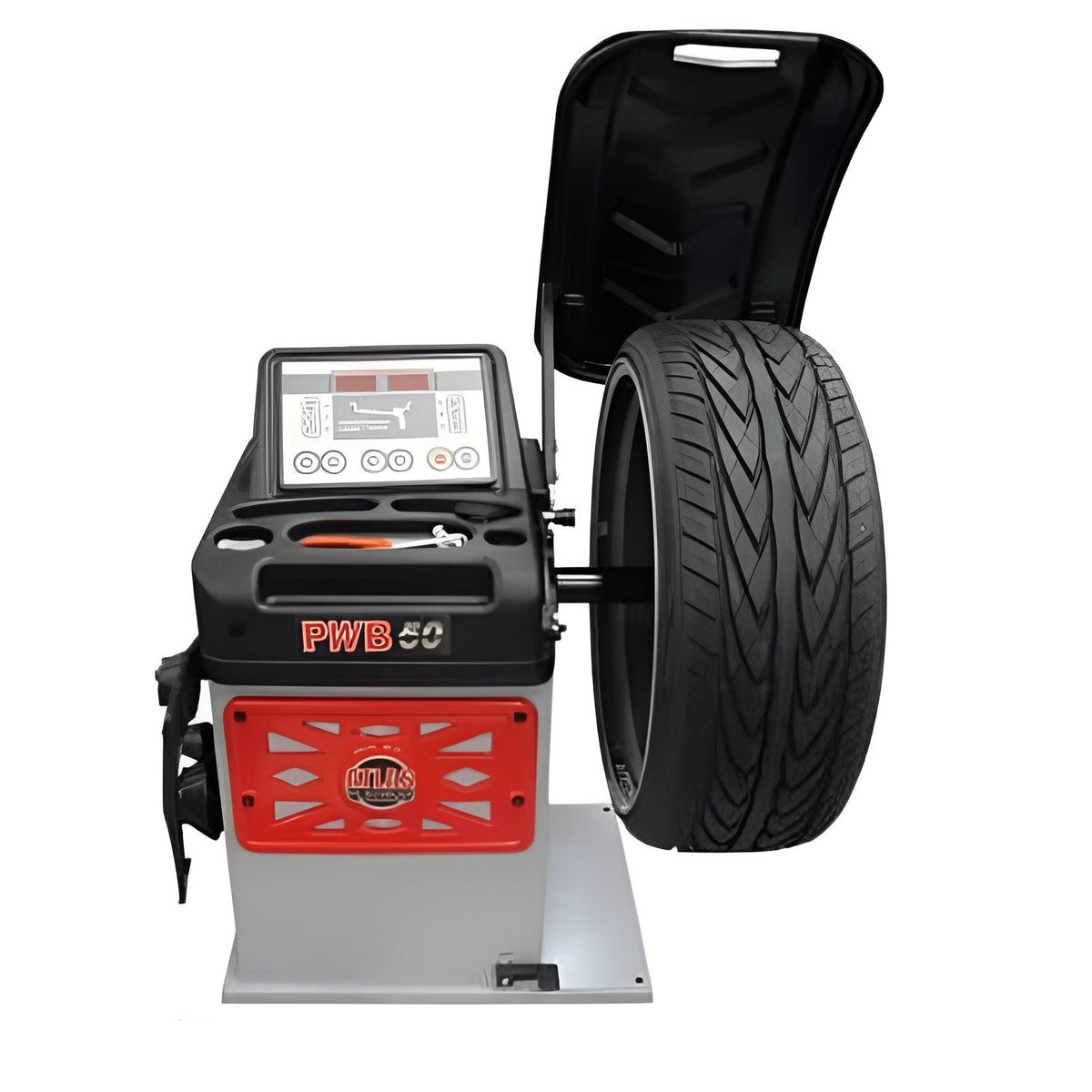

Atlas Platinum PWB50 Premium 2D Computer Wheel Balancer

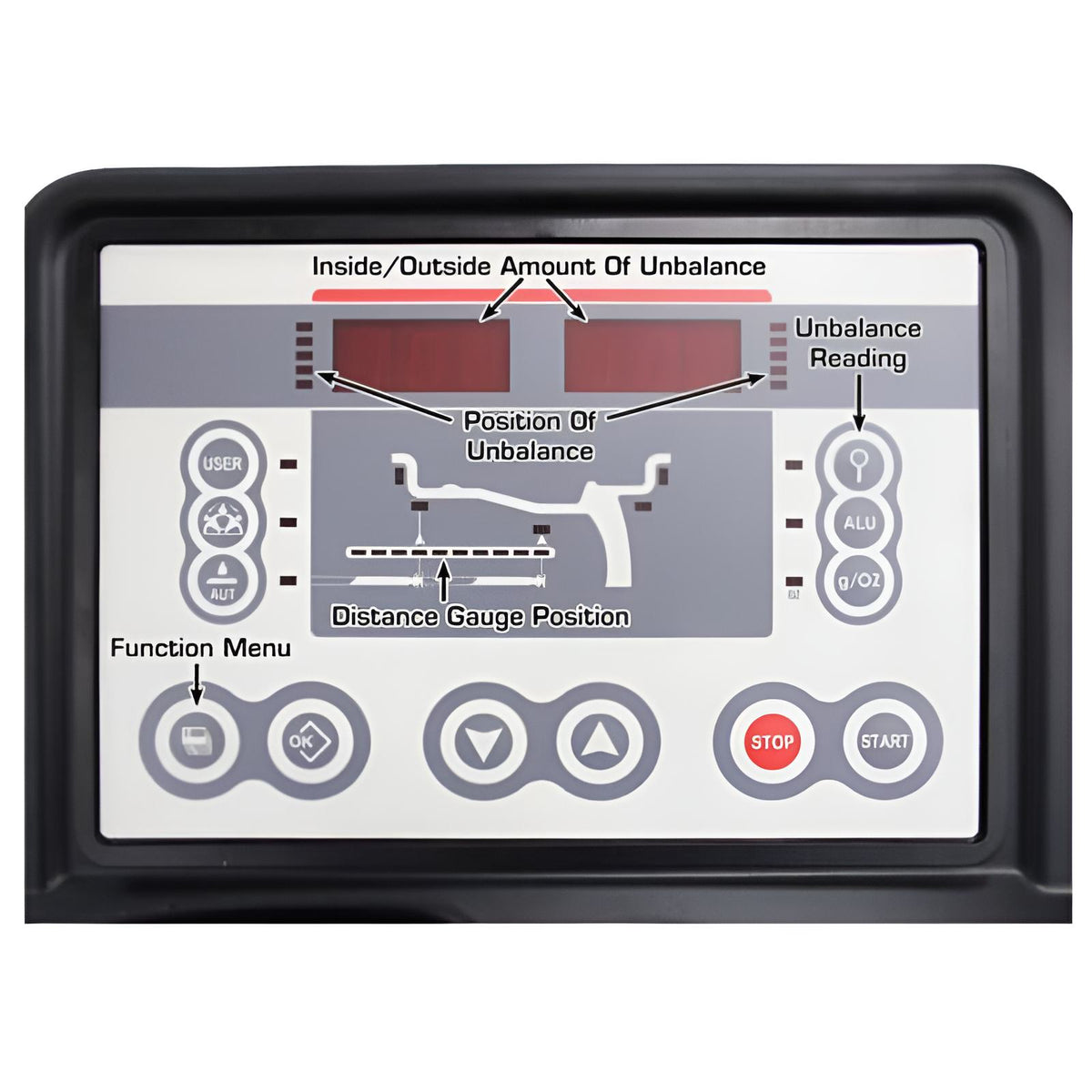

Spending countless hours figuring out out-of-balance wheels? The Atlas® Platinum PWB50 is your secret weapon. This isn't just a wheel balancer; it's a precision instrument designed to turbocharge your shop's efficiency. With its maximum rim width capacity of 20 inches and intuitive LED display with automatic 2D data entry, balancing wheels becomes a breeze. No more guessing or eyeballing weight placement – the PWB50 guides you every step of the way.

Imagine a world where balancing even the toughest wheels is a simple, stress-free process. With features like Fast & Easy Split (FES) and Opposite Weight Function (OWF), you'll be amazed at how quickly and accurately you can get the job done. Plus, the OPTIMATCH software helps you find the perfect weight placement for optimal performance. Don't settle for mediocrity. Upgrade to the PWB50 and experience the difference.

Wheel Balancer PWB50 Specification:

Rim Sizes (Cars And Light Trucks): 10"-30"

Rim Width: 1 1/2"-20"

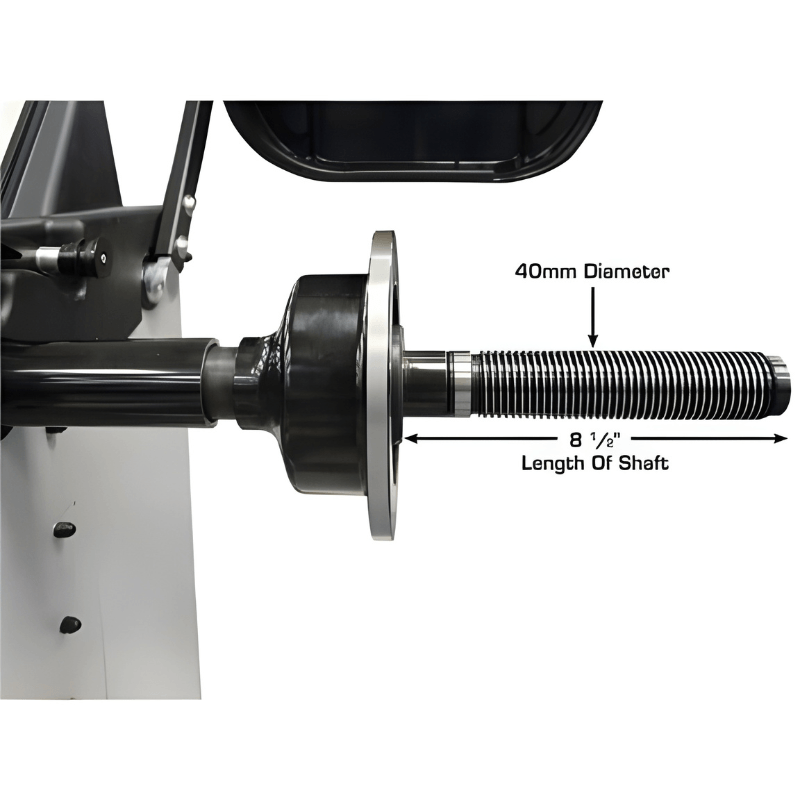

Shaft Size: 40mm

Max. Wheel Weight: 165 lbs.

Balancing Speed: 130 rpm

Data Entry: Automatic 2D

Measurements: Standard Or Metric

Accuracy: 1 gram

Weight Position Resolution: 1.4 Degrees

Self Calibration: Yes

Cycle Time: 7 seconds

Power Supply: 110volt

Shipping Weight: 230 lbs.

Key Features

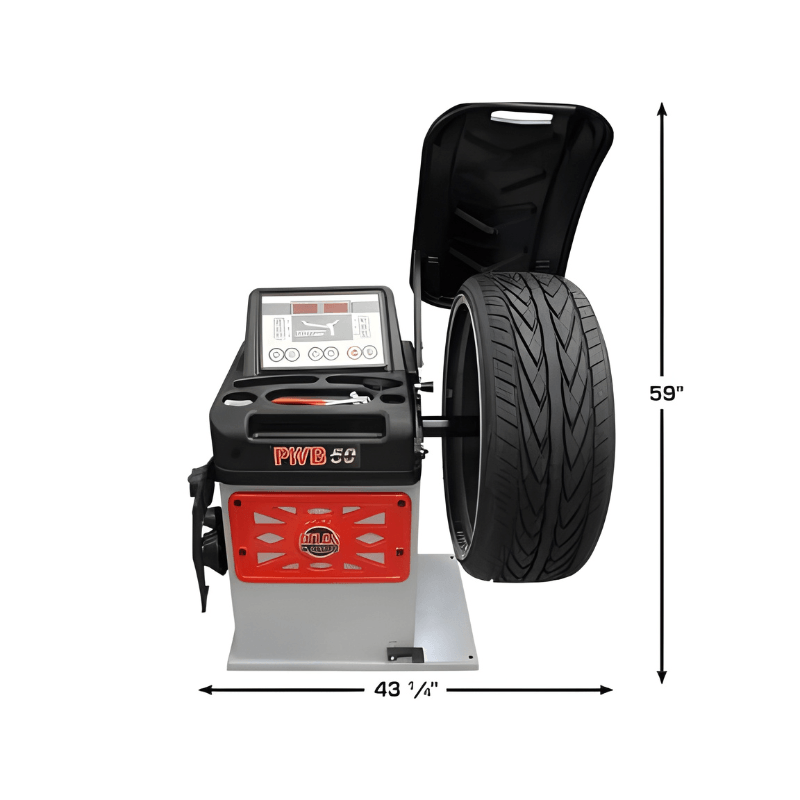

• Max Tire Diameter: 43"

• Platinum Computer Controlled Motorized Spin Balancer

• Italian Engineering and Components

• Automatic and pedal operated brake.

• Automatic start/stop when hood is lowered/raised.

• Static and dynamic balancing modes.

• Optimatch, FES (Split), OPF (Opposite Position) Functions

• Special ALU-S and other ALU Programs

• Automatic 2D Data Entry

• NWN (no wheel need) System

• Self-Diagnosing and Self-calibrating

• USB hub for firmware update through PC/Notebook

• Exceptional stability in reading the unbalance between planes.

• Display in grams or ounces, and in mm or inches.

• No anchor-down installation needed

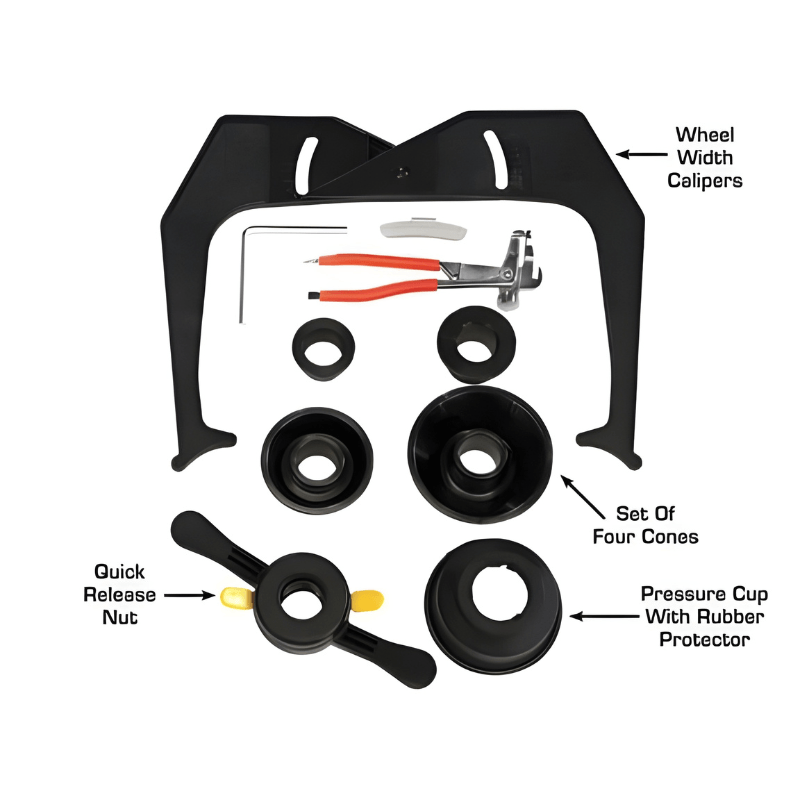

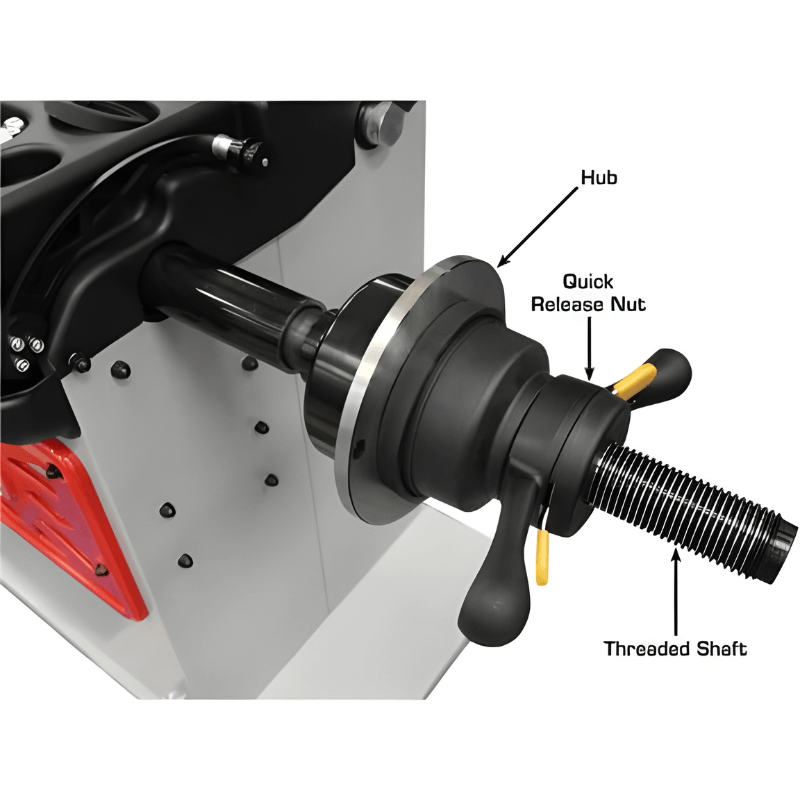

• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

• Replacement parts & wear items available

• 2 Year Parts Only Warranty

• Optional Item (Sold Separately)

• Truck Adapter Set

Ideal For

• Tire shops and dealerships handling daily tire service

• Auto repair centers adding wheel and tire work

• Home garages and serious DIY mechanics

• Fleet maintenance operations
