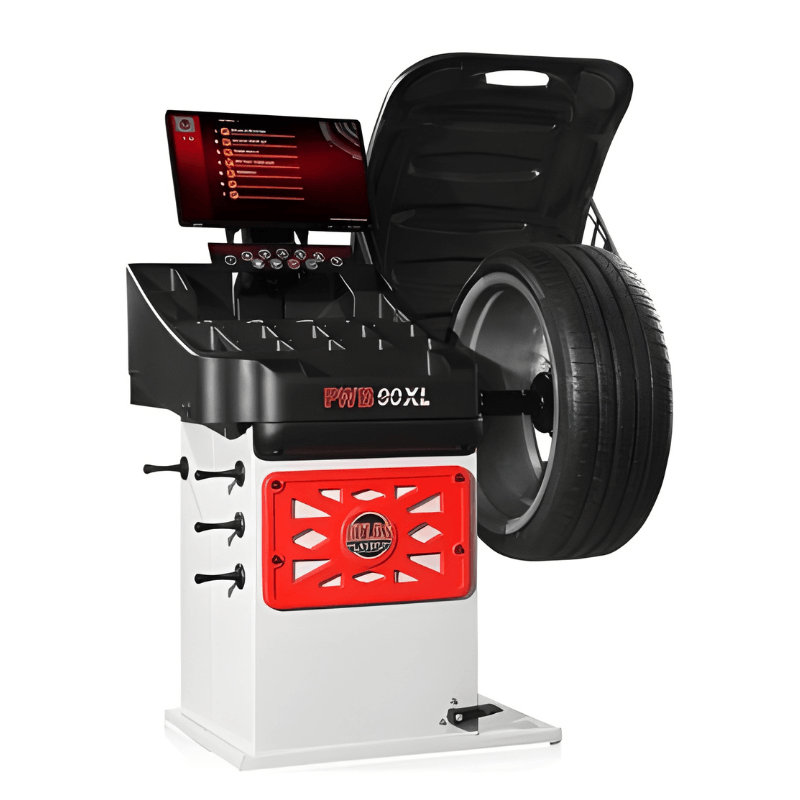

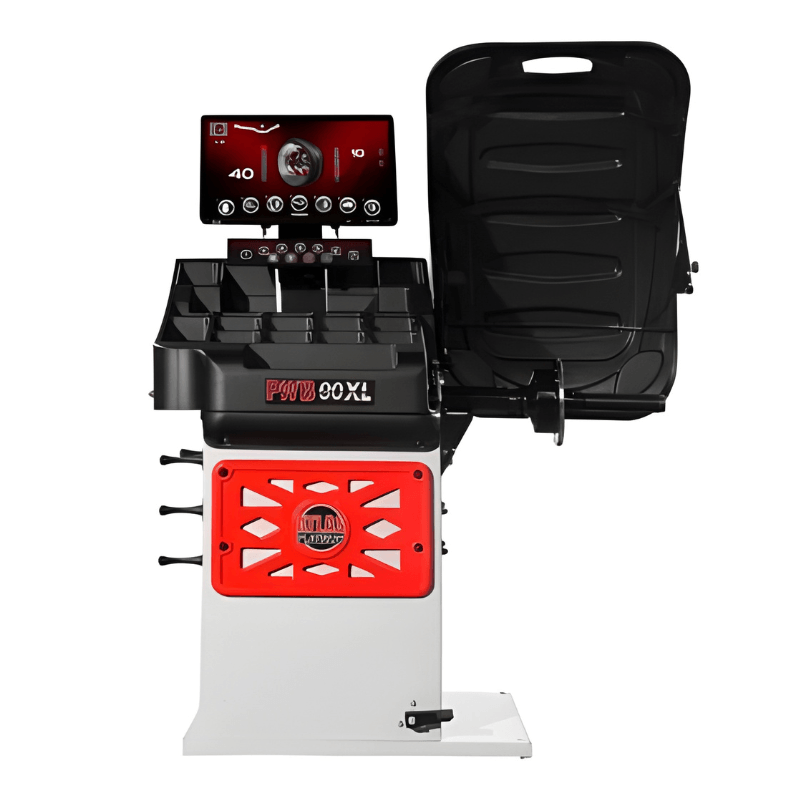

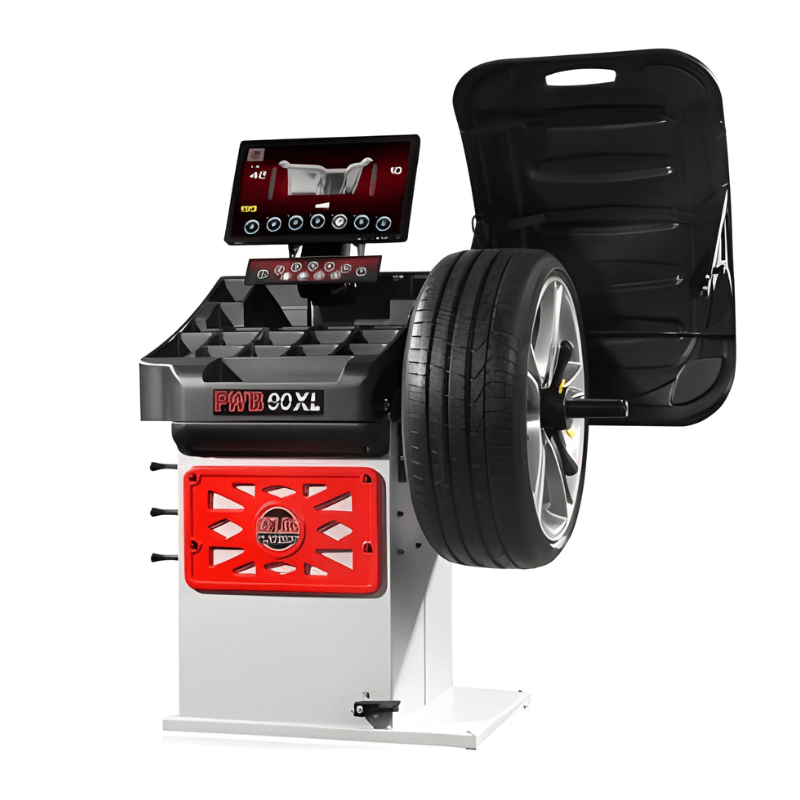

Atlas Platinum PWB90XL 3D Video Wheel Balancer W/ Laser Line

Unfinished balancing jobs leave you sweating at night? Meet the Atlas® Platinum PWB90XL – the future of wheel balancing is here. This isn't just a machine; it's a game-changer. With its mind-blowing Super Automatic 3D Data Entry and touchless sonar technology, wheel balancing has never been easier or more accurate. Imagine easy balancing thanks to the intuitive weight placement arm and laser line guidance.

The PWB90XL can handle wheels up to 43 inches in diameter and 20 inches wide, making it perfect for cars, light trucks, and even some SUVs. With its 165-pound weight capacity, you can balance practically any wheel that comes your way. From the Fast & Easy Split function to the OPTIMATCH software, every detail has been carefully considered to maximize efficiency and precision. Don't settle for ordinary when you can have extraordinary. Upgrade to the PWB90XL and experience a good night’s sleep.

Wheel Balancer PWB90XL Specification:

Max Tire Diameter: 43"

Rim Sizes (Cars And Light Trucks): 10"-30"

Rim Width: 1 1/2"-20"

Shaft Size: 40mm

Max. Wheel Weight: 165 lbs.

Balancing Speed: 130 rpm

Data Entry: Super Automatic 3D

Measurements: Standard Or Metric

Accuracy: 1 gram

Weight Position Resolution: 1.4 Degrees

Self Calibration: Yes

Cycle Time: 7 seconds

Power Supply: 110volt

Shipping Weight: 290 lbs.

Key Features

• Platinum 3D Video Motorized Spin Balancer

• Italian Engineering and Components

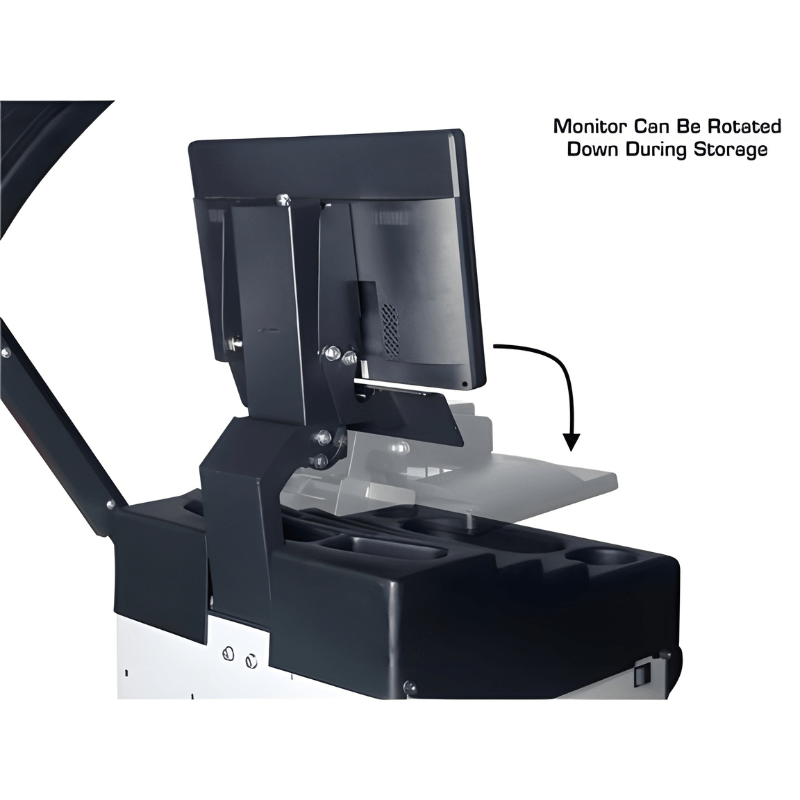

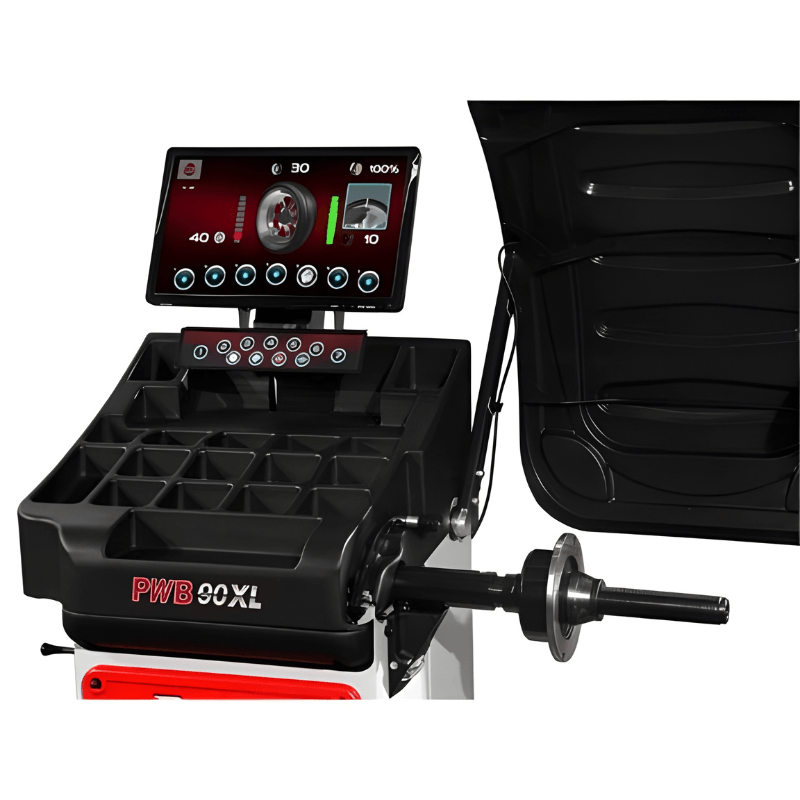

• High-Resolution Video Monitor Display

• Super Automatic 3D Data Entry (touchless sonar to measure rim width)

• Laser Line to guide weight placement

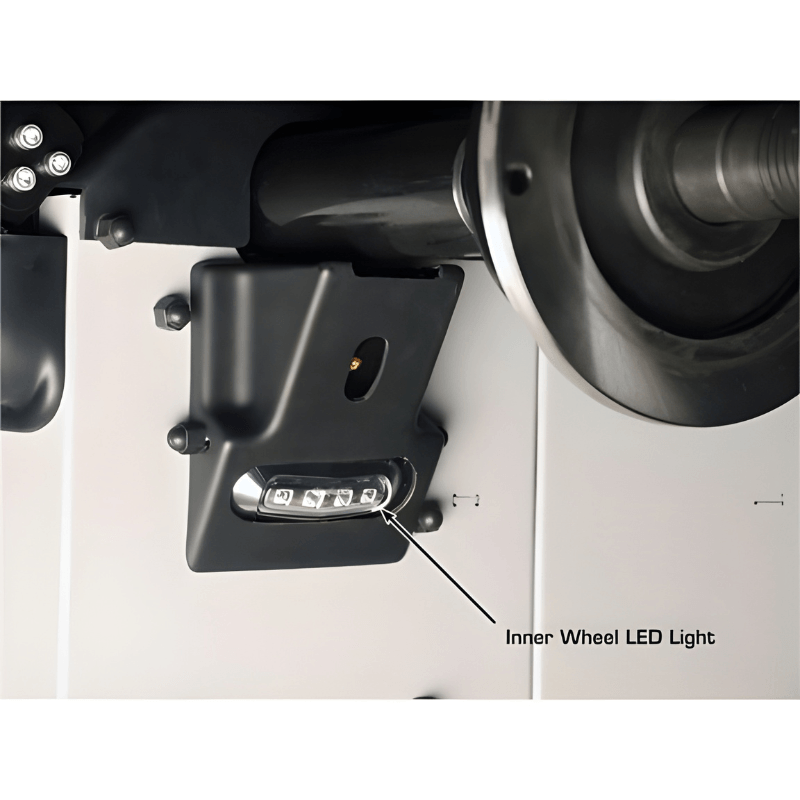

• LED light illuminates wheel interior

• Static and dynamic balancing modes.

• Optimatch, FES (Split), OPF (Opposite Position) Functions

• Special ALU-S and other ALU Programs

• NWN (no wheel need) System

• Self-Diagnosing and Self-calibrating

• USB hub for firmware update through PC/Notebook

• Exceptional stability in reading the unbalance between planes.

• Display in grams or ounces, and in mm or inches.

• No anchor-down installation needed

• Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

• Replacement parts & wear items available

• 2 Year Parts Only Warranty

• Optional Item(Sold Separately)

• Truck Adapter Set

Ideal For

• Tire shops and dealerships handling daily tire service

• Auto repair centers adding wheel and tire work

• Home garages and serious DIY mechanics

• Fleet maintenance operations
