Atlas SLP9K 9,000 lb Full Rise Scissor Lift

SKU: ATEATTD-SLP9K

5.224₫ MSRP 9.499₫

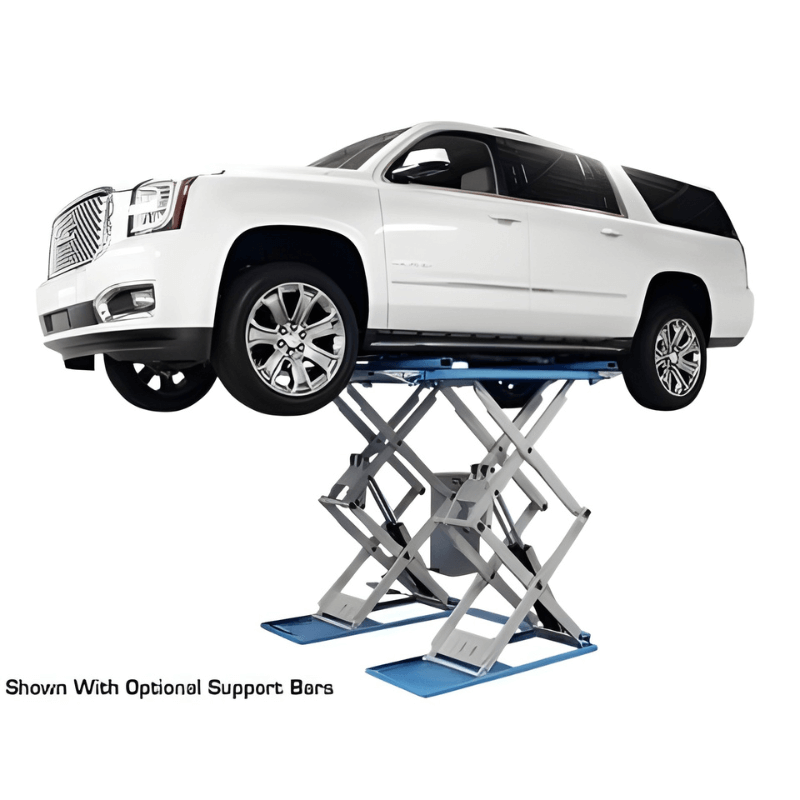

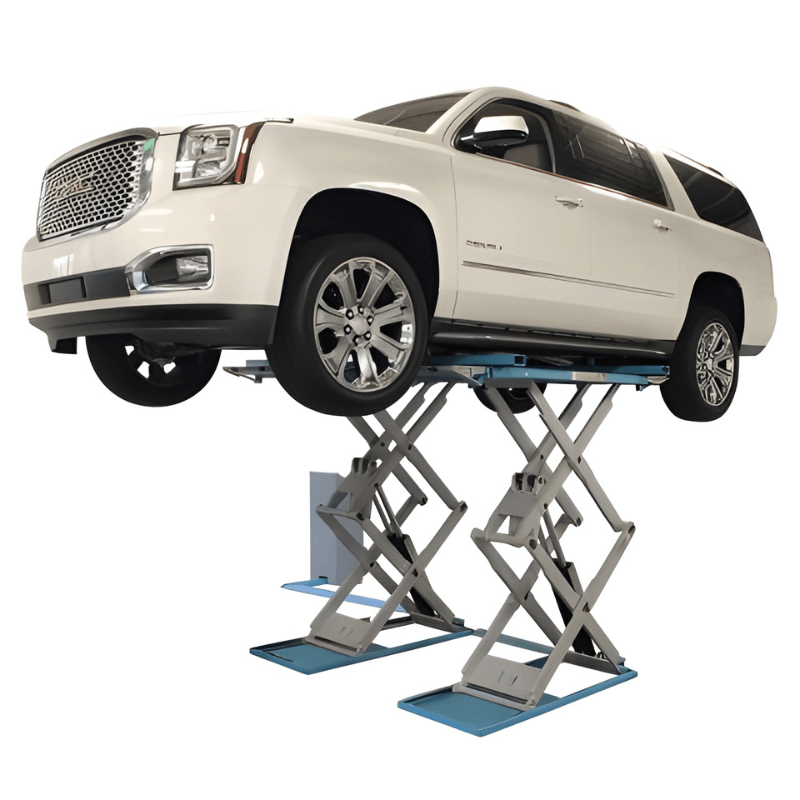

SLP9K Scissor Lift by Atlas When was the last time you had to turn away a lucrative job because your lift couldn't handle it? And it's not just about the immediate loss - that customer might never come back, taking all their future business with them. How long can your shop survive if you can't service the full range of vehicles in your area? Introducing the Atlas® SLP9K full-rise scissor lift. With a lifting capacity of 9,000 lbs and a full-rise height of 78 inches, it handles everything from compact cars to hefty pickup trucks. Its remarkably low 4-inch lowered height means even the lowest-profile vehicles can roll on with ease.

Rated for 9,000 lb, it's suited to quick-service and inspection bays, shops needing a low-profile lift that doesn't require tall ceiling clearance, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.

Key Features

  • 9,000 LB. Capacity

  • Commercial Grade

  • Full Rise Lift

  • Use: Above Ground or Flush Mount

  • Open Center Design for Easy Access

  • Adjustable width

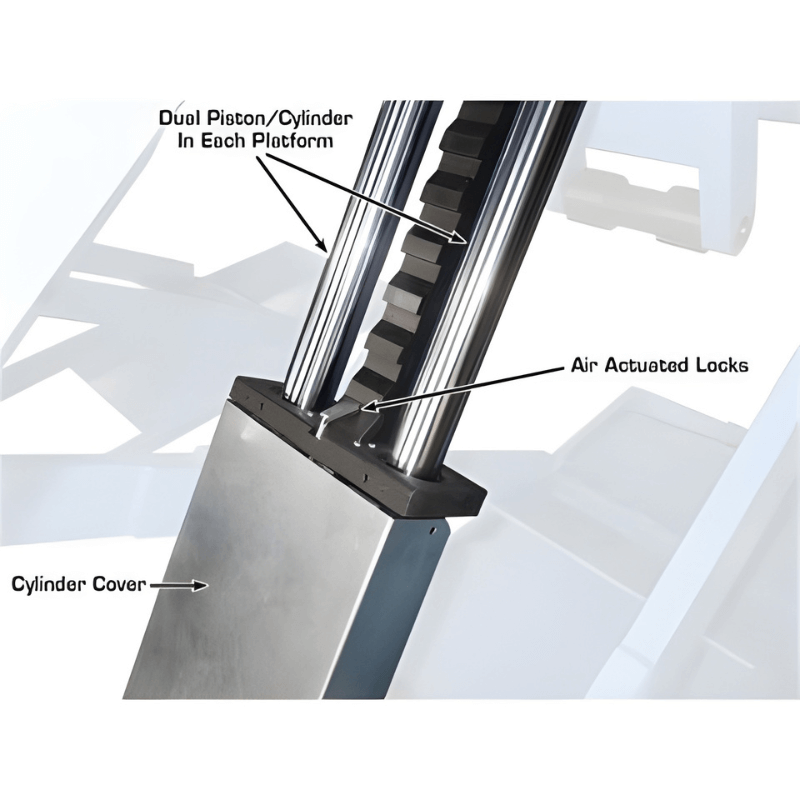

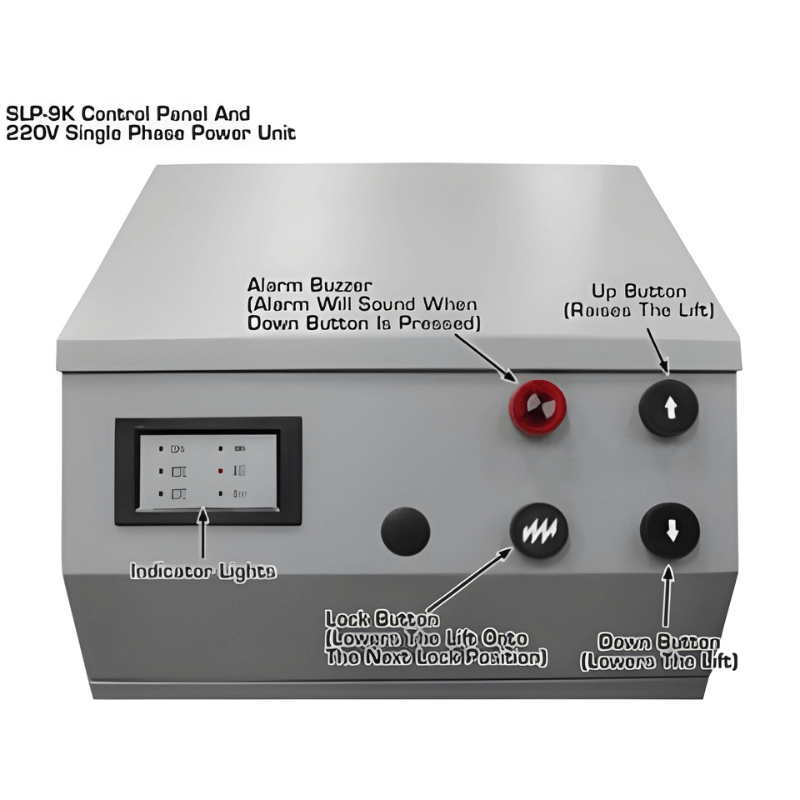

  • Air-Operated Single Point Lock Release (External Air Supply Required)

  • 10 Locking Positions

Ideal For

  • Quick-service and inspection bays

  • Shops needing a low-profile lift that doesn't require tall ceiling clearance

  • Mobile or portable service setups

  • Tire and brake service stations

Technical Specifications

Lifting Capacity

9,000 lbs.

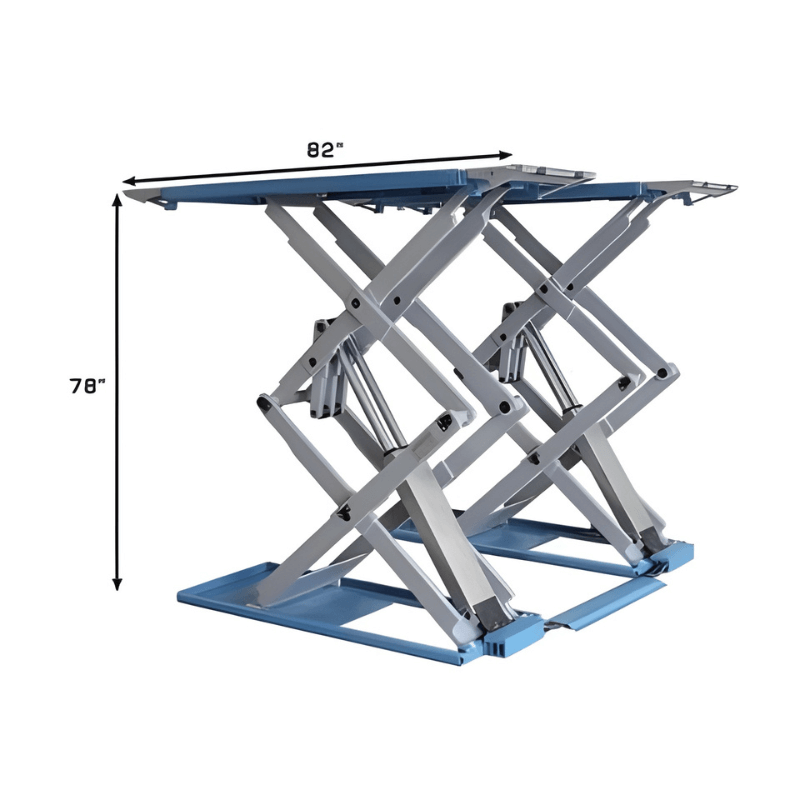

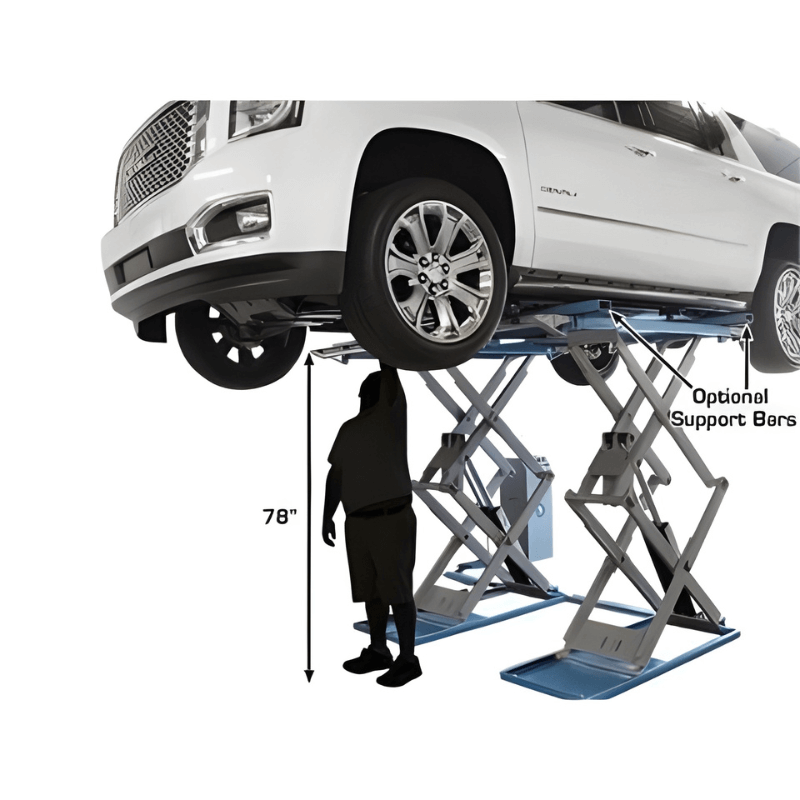

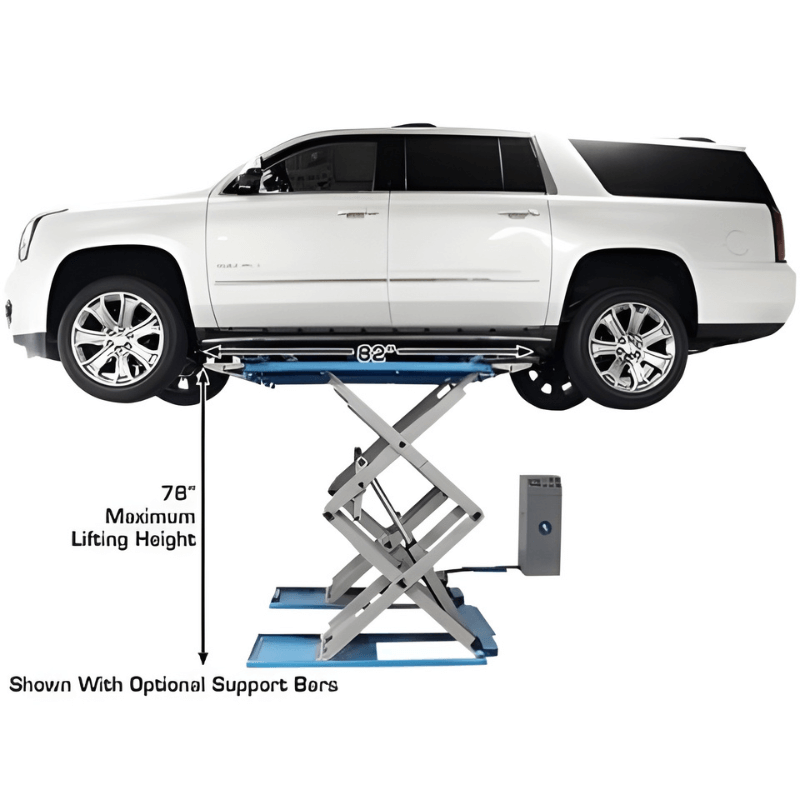

Max Lifting Height

78" (6' 6")

Overall Length

82" (6' 10")

Max Overall Width

82" (6' 10")

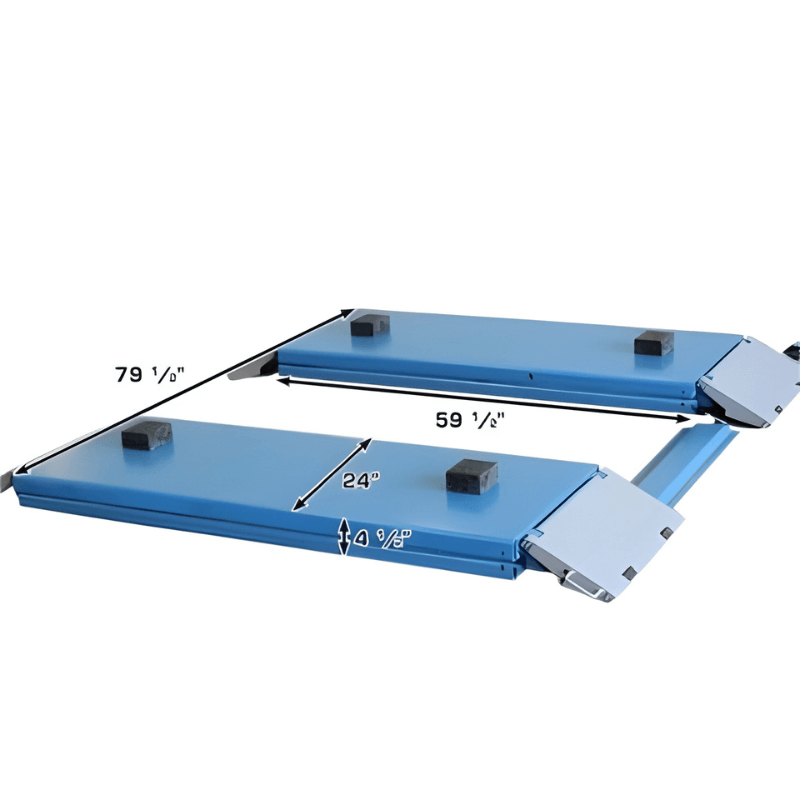

Lift Platform

59" x 24"

Lowered Height

4"

Width Between Platforms

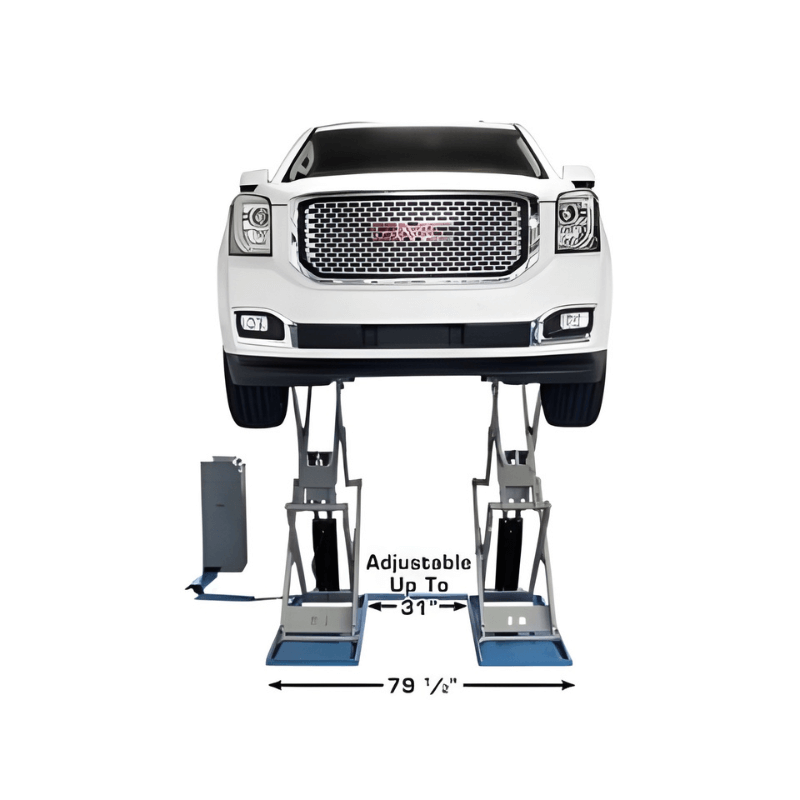

Adjustable up to 31"

Approach Ramps

11" x 24"

Air Requirement

90-120 PSI

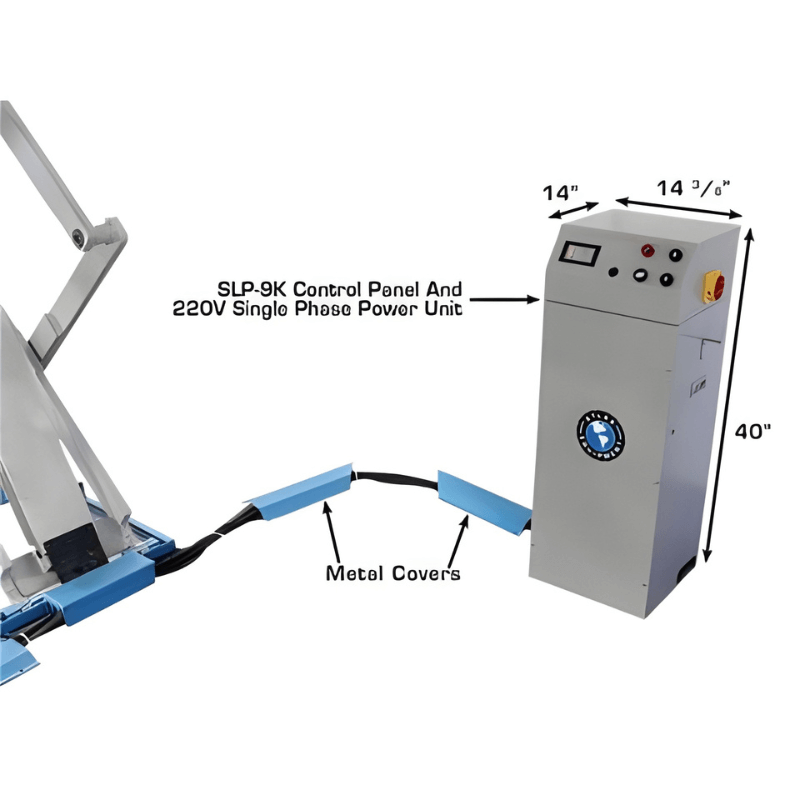

Power Unit

220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.

Oil Requirement

3-5 Gallons AW32 or AW46 (NOT INCLUDED)

Concrete Requirements

Minimum of 4.5"

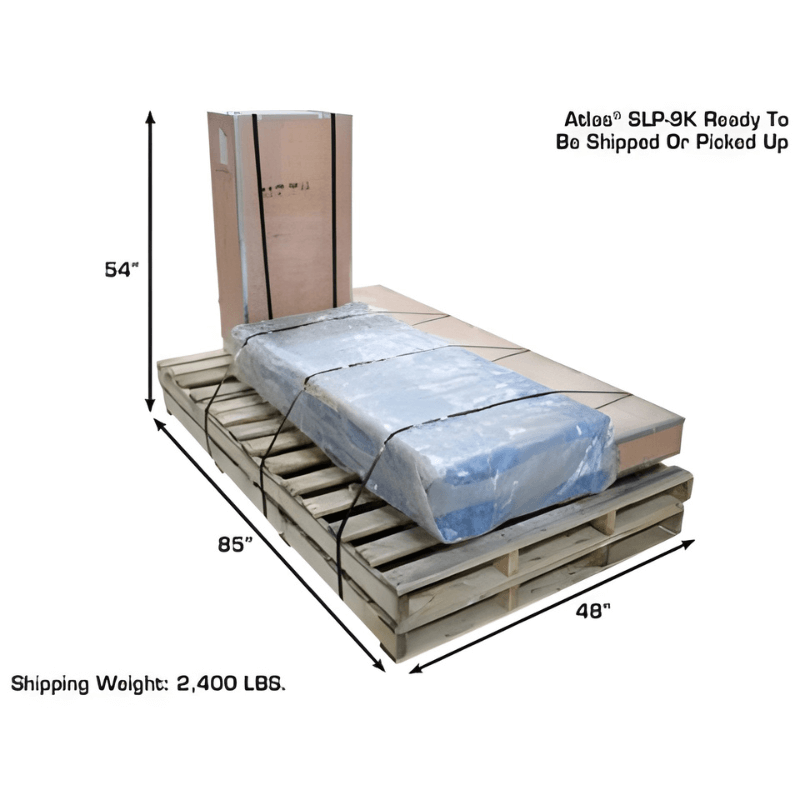

Shipping Dimensions

85"L x 48"W x 54"H - 2,400 lbs.

Mounting Hardware Included

220volt/1phase Electric Operation (Requires a 30amp Breaker)
