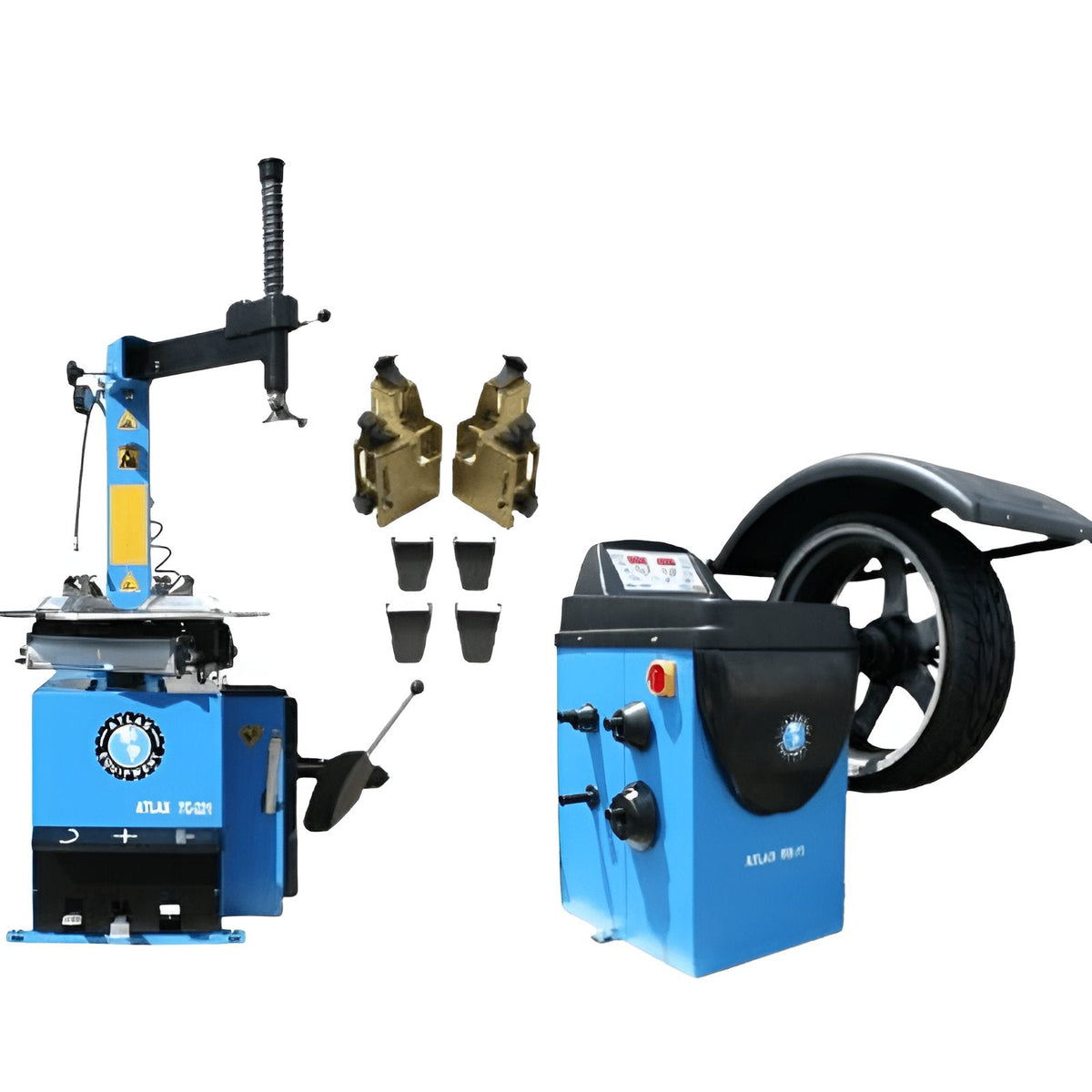

Atlas TC221 Tire Changer + WB11 Wheel Balancer Motorcycle Combo
SKU: ATETCWB-MC-COMBO1
Dealing with motorcycle tires shouldn’t feel like arm-wrestling a gorilla. If you’ve been fighting with bead breakers and wobbly tires, it's time for an upgrade. The TC221 Tire Changer + WB11 Wheel Balancer Motorcycle Combo by Atlas takes all the hassle out of tire changes and balancing. The TC221 makes tire changes a breeze with its rim clamp swing arm design and a 5,500 lb. bead breaker that practically forces the tire to behave. With its deluxe motorcycle adapters and adjustable jaws, your motorcycle tires won’t stand a chance.
And let’s not forget the WB11 wheel balancer, with 1-gram accuracy and a motorized spin balancing system that makes sure every ride is smooth. You get precision, ease, and even self-calibration so you can focus on hitting the road instead of fussing with weights.
Tire Changer TC221 + WB11 Wheel Balancer Specification
Ideal For
Shops wanting a complete tire-service setup in one purchase
Powersport dealerships and motorcycle service centers
Home garages maintaining motorcycles, ATVs, or UTVs
Custom and restoration bike builders
Technical Specifications
Rims |
Steel, Aluminum, Alloy |

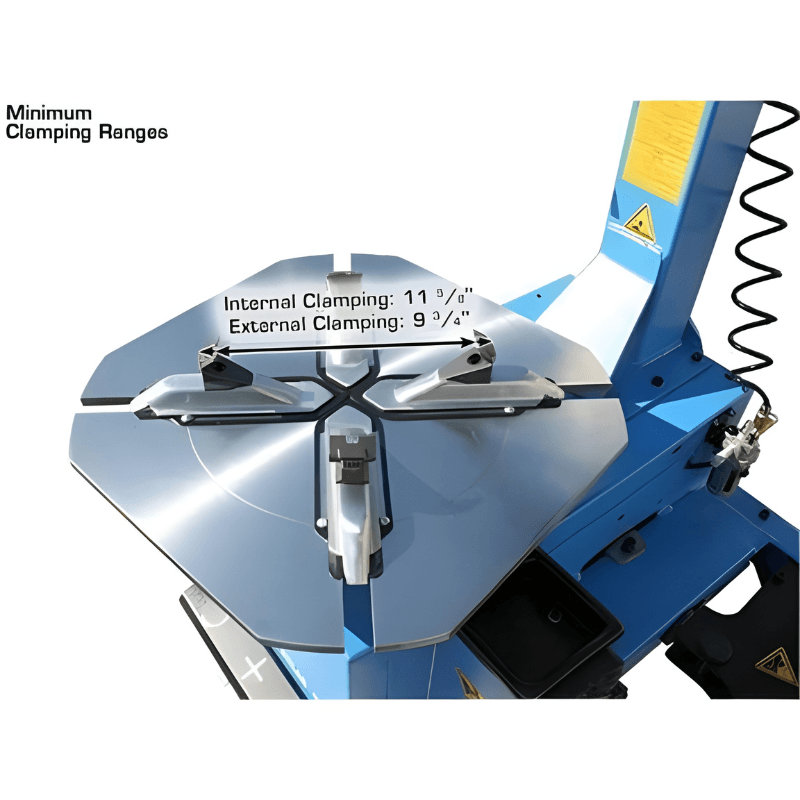

External Locking Rim Dimensions (3 Positions) | |
9 3/4" - 21 5/8" | |
10 3/4" - 22 1/2" | |
11 5/8" - 23 1/4" | |

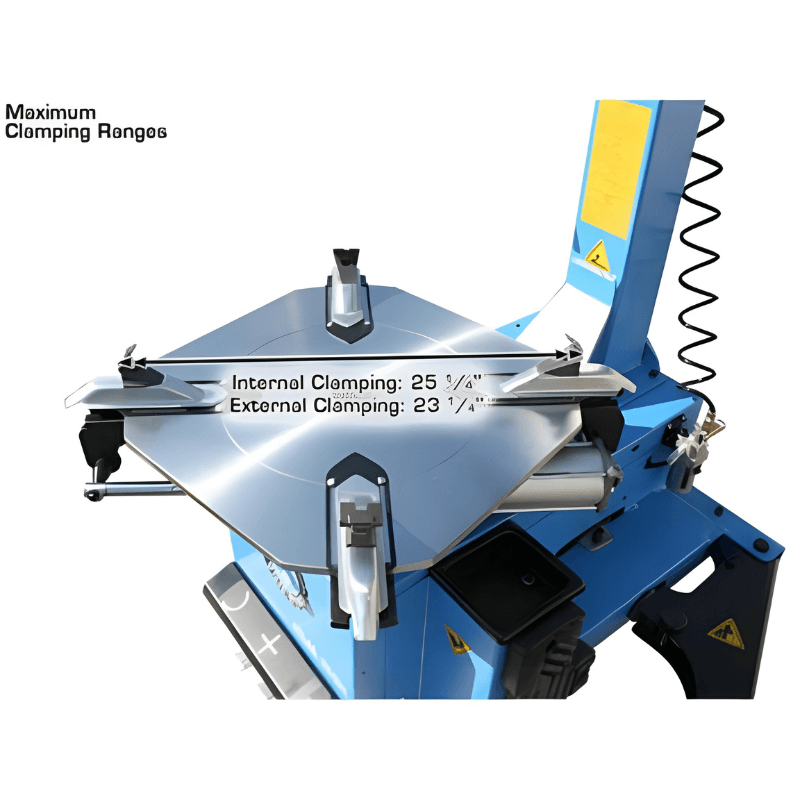

Internal Locking Rim Dimensions (3 Positions) | |
11 5/8" - 23 1/4" | |
12 5/8" - 24 1/4" | |
13 1/2" - 25 1/4" | |
Maximum Tire Diameter |
39" |
Maximum Wheel Width (Bead Breaker) |
13" |
Table Motor |
1 HP |
Turntable Rotating Torque |
885 ft/lbs |
Bead Breaker |
5,500 lb. Force |
Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
Operating Voltage |
110V |
Shipping Weight |
550 lbs. |
Max Tire Diameter |
39" (3' 6") |
Rim Sizes (Cars and Light Trucks) |
10" - 32" |
Rim Width |
1 1/2" - 20" |

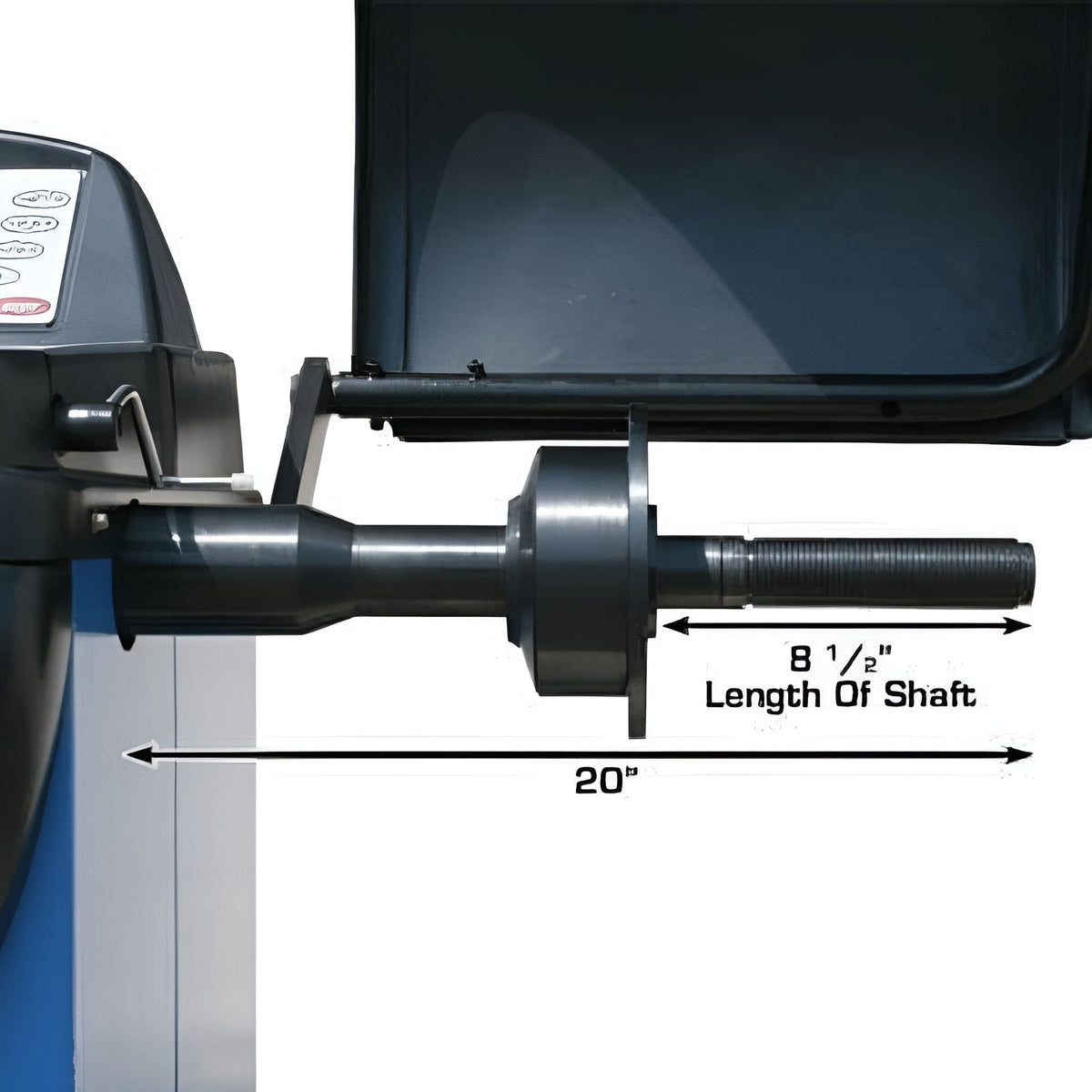

Shaft Size |
40mm |
Max. Wheel Weight |
150 lbs. |
Balancing Speed |
150 rpm |
Data Entry |
All Dimensions Manual |
Measurements |
Standard or Metric |
Accuracy |
1 gram |
Weight Position Resolution |
1.4 Degrees |
Self Calibration |
Yes |
Motor |
1/4 HP |
Power Supply |
110V |
TC221 Tire Changer + WB11 Wheel Balancer | |

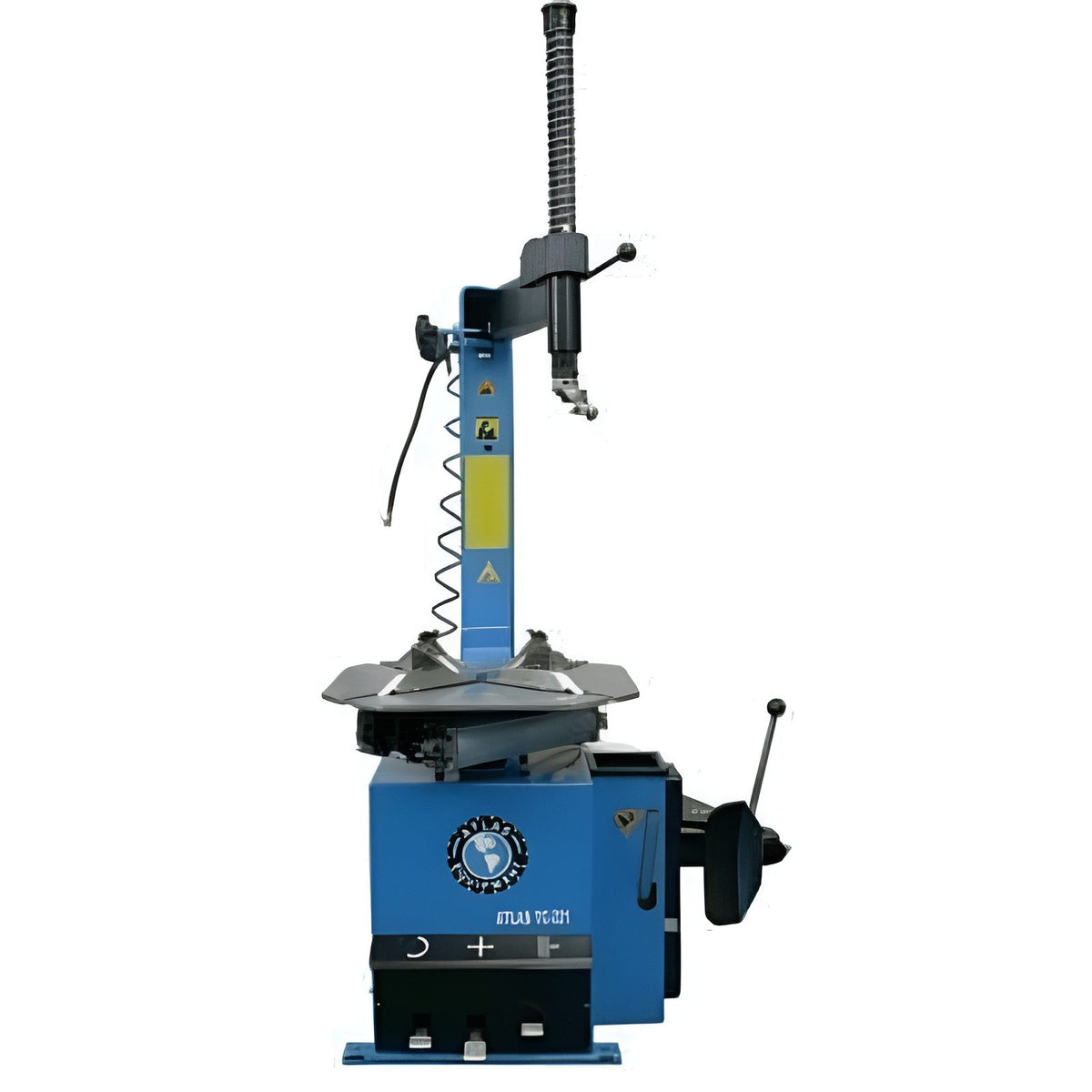

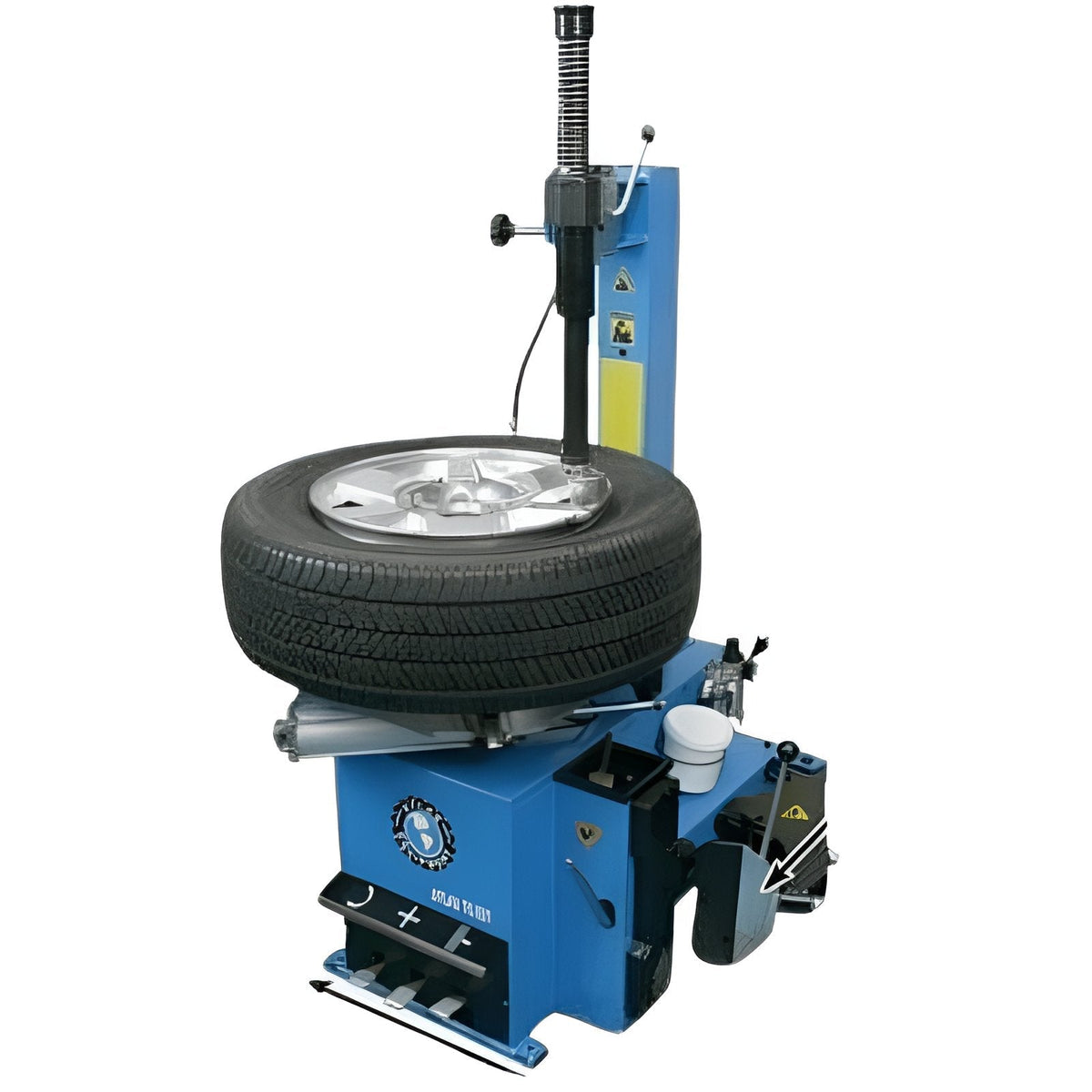

TC221 Tire Changer | |

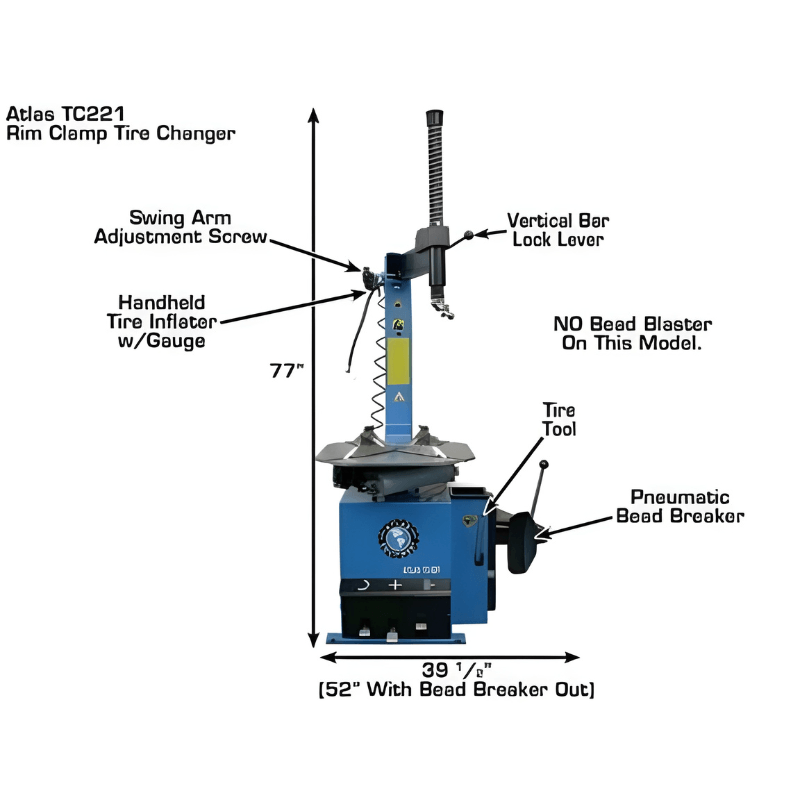

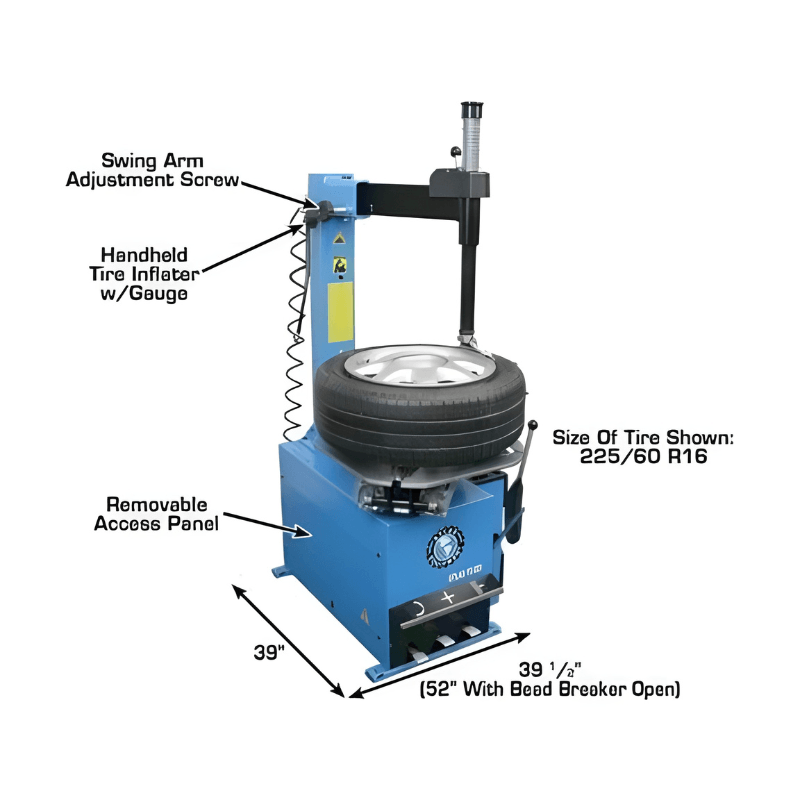

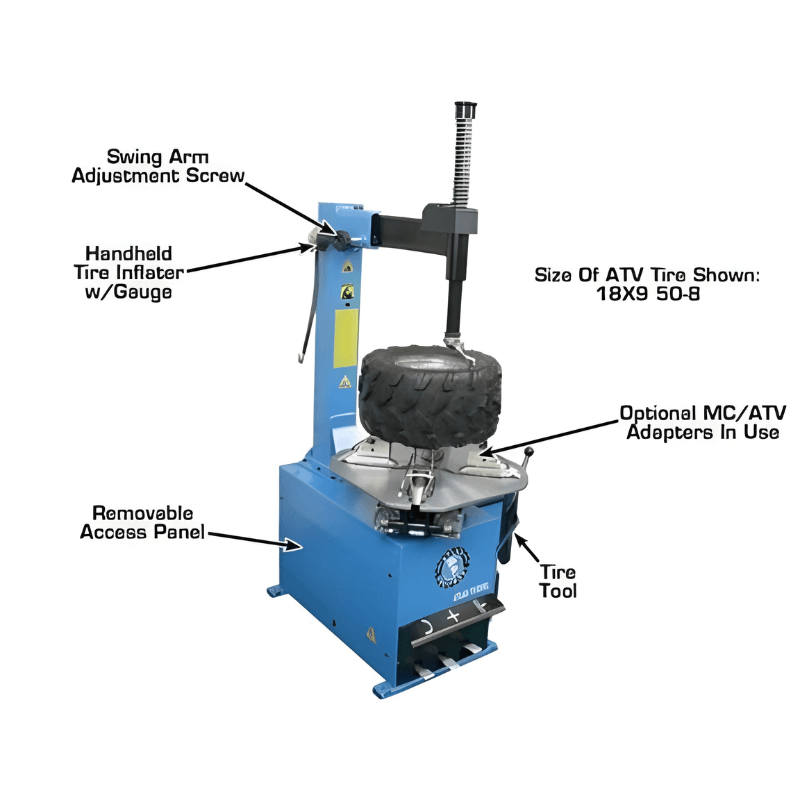

Rim Clamp/Swing Arm Tire Changer | |

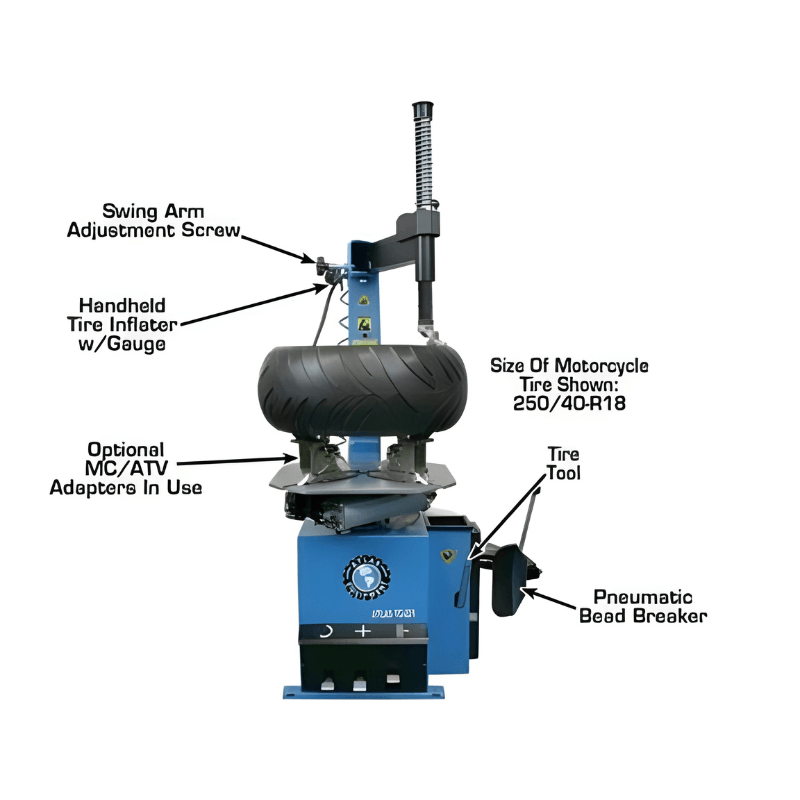

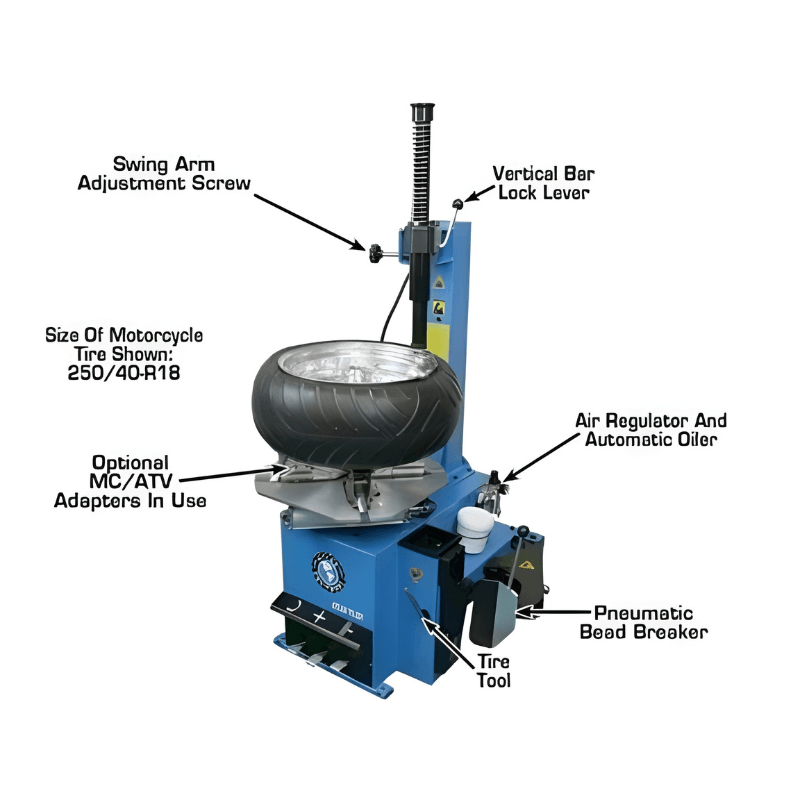

Deluxe Motorcycle Adapters w/ Plastic Jaw Covers Included | |

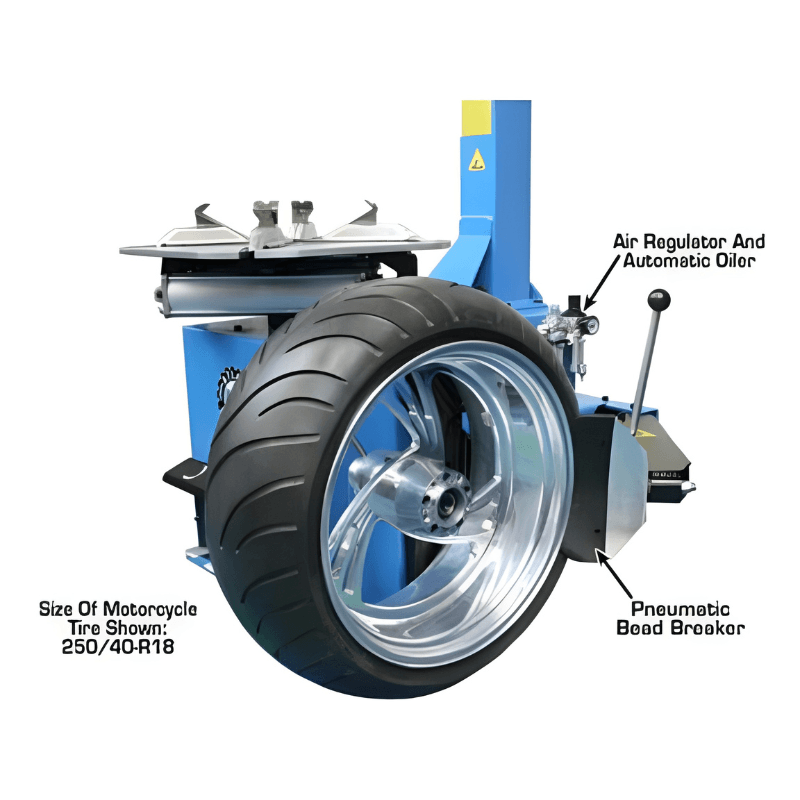

Air operated jaws & bead breaker (external air supply required) | |
Electric turntable | |
Adjustable jaws, three mounting positions | |

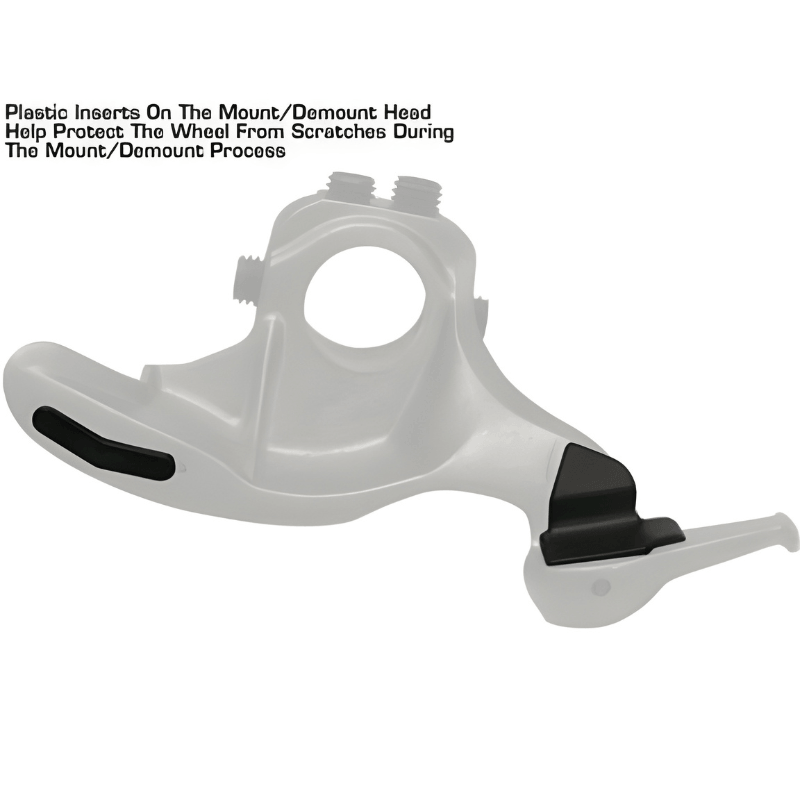

Metal mount/demount head w/ metal roller or replaceable plastic inserts | |
Column mounted inflator gun w/ gauge Included | |

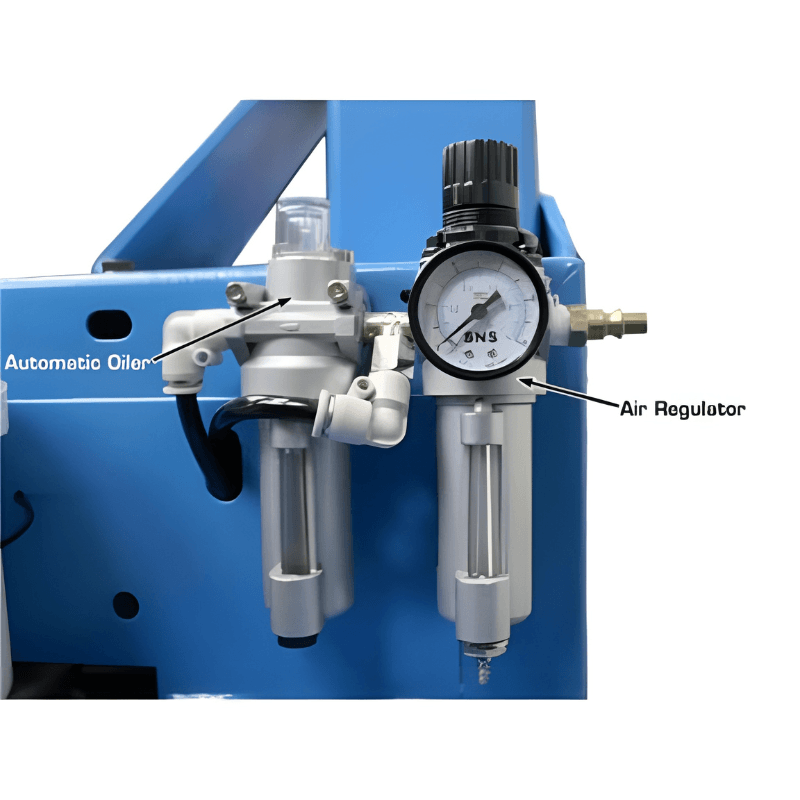

Filter/Regulator/Lubricator Included | |
20″ Tire Tool Included | |
Lube Bucket with Brush Included | |
Set of Large Plastic Jaw Covers Included | |
Plastic Cover for Bead Breaker Shovel Included | |
Multiple Replacement Plastic Inserts for M/D Head Included | |
WB11 Wheel Balancer | |
Computer Controlled Motorized Spin Balancer | |
Standard 14mm Motorcycle Adapter Kit Included | |
Automatic and pedal operated brake | |
Automatic start/stop when hood is lowered/raised | |
Static and dynamic balancing modes | |
Rapid optimization (OPT) | |
Self-Diagnosing and Self-calibrating | |
Exceptional stability in reading the unbalance between planes | |
Display in grams or ounces, and in mm or inches | |
No anchor-down installation needed | |
Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers | |
Optional Item(Sold Separately) | |
Standard Motorcycle Adapter Kit | |
Deluxe ATV Adapters | |
Deluxe Motorcycle Adapters | |
Atlas TC221 Tire Changer Optional Item (Sold Separately) | |
Atlas TC221 Tire Changer | |
Atlas WB11 Wheel Balancer | |
Free freight shipping to the contiguous 48 states and 30-day returns with no restocking fee. Questions about this product? Contact Triumph Auto Lift Center at support@TriumphAutoLiftCenter.com or (320) 279-4890. |
