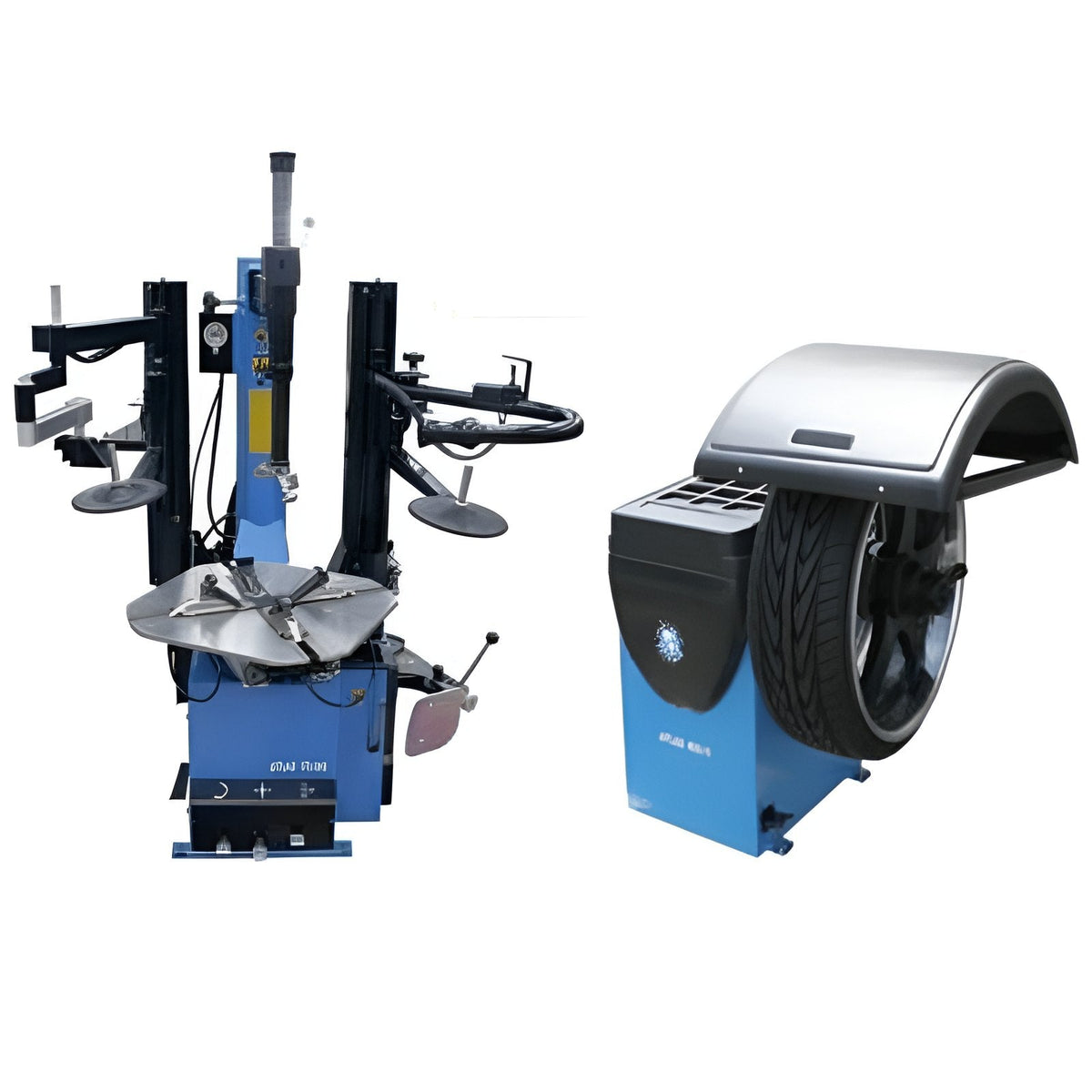

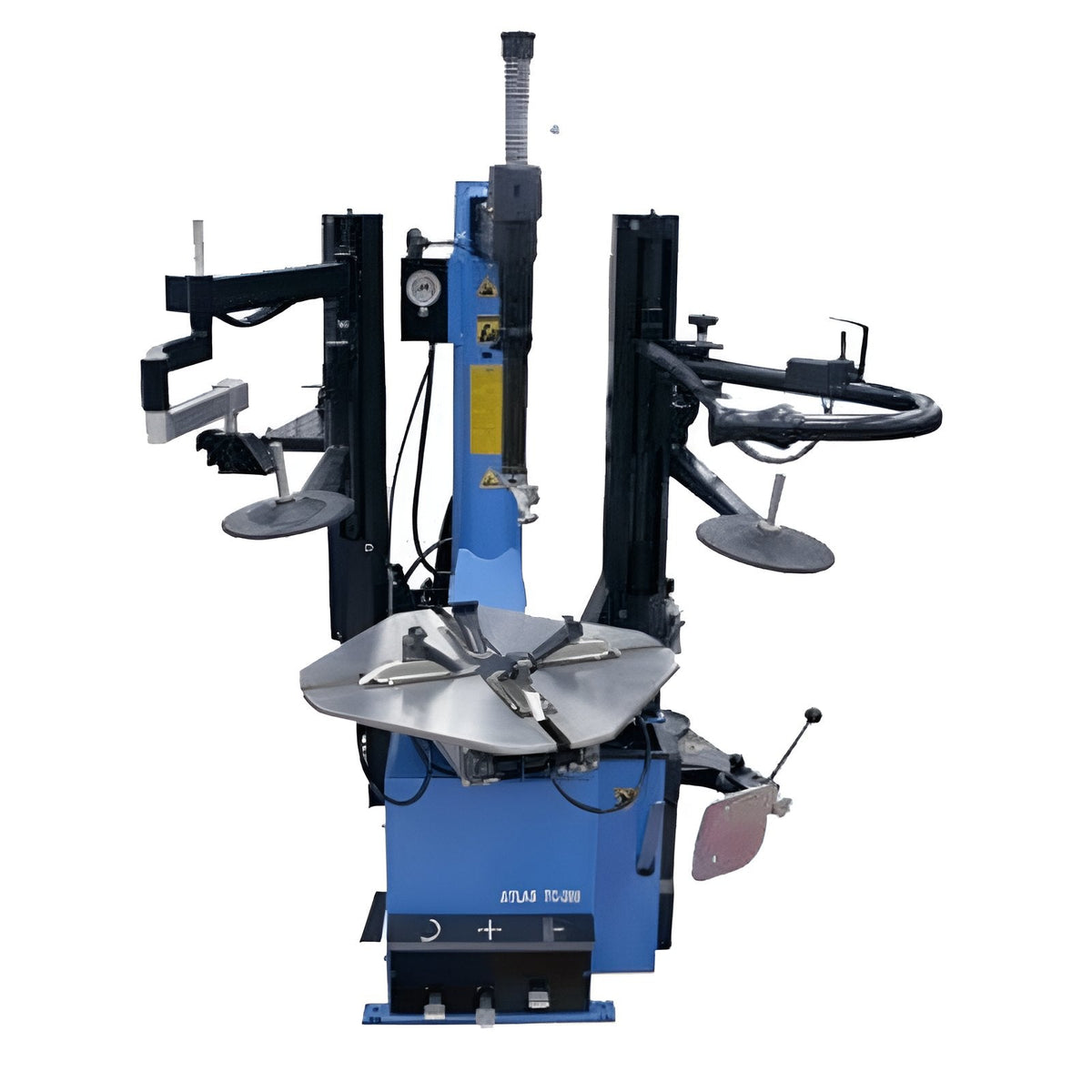

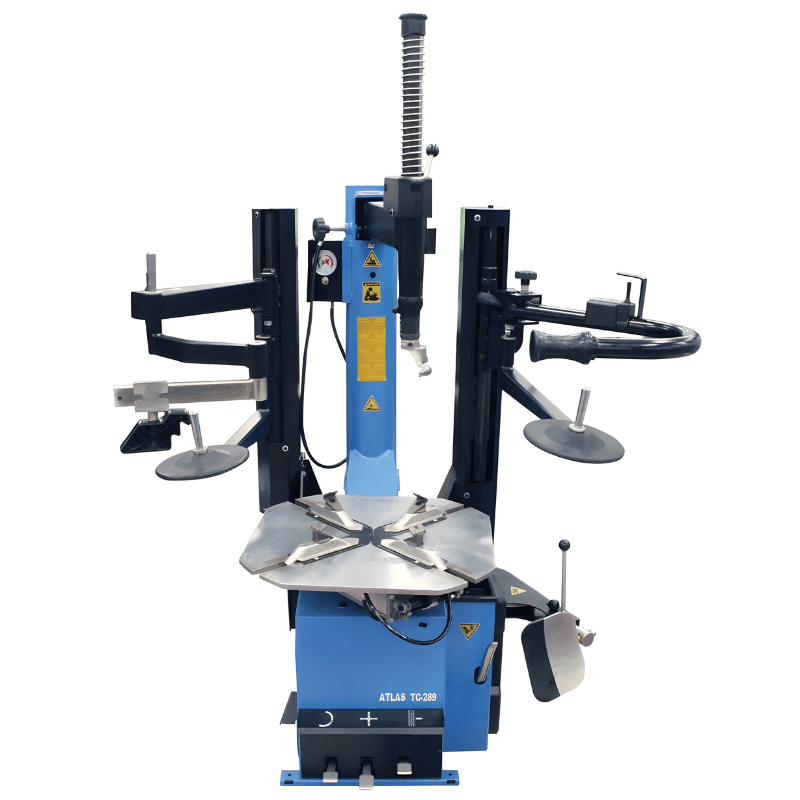

Atlas TC289DAA Tire Changer With WB11 Wheel Balancer Combo 9
SKU: ATETCWB-COMBO9
Tired of tire changers that can't keep up? Balancers that leave you cussing words that we can’t type here? The Atlas TC289DAA and WB11 are here to end your tire troubles. The TC289DAA's 885 ft/lbs of torque and 5,500 lb bead breaker force make light work of even the toughest tires, while its dual assist arms give you the extra hands you've always wanted.
But what good is a perfect dismount without precise balancing? Enter the WB11. Its computer-controlled system handles wheels up to 150 lbs with 1-gram accuracy. No more callbacks for vibrations or uneven wear. With features like rapid optimization and self-diagnosis, you'll blast through your service queue faster than ever. It's time to upgrade your tire game and watch your productivity soar!
Key Features

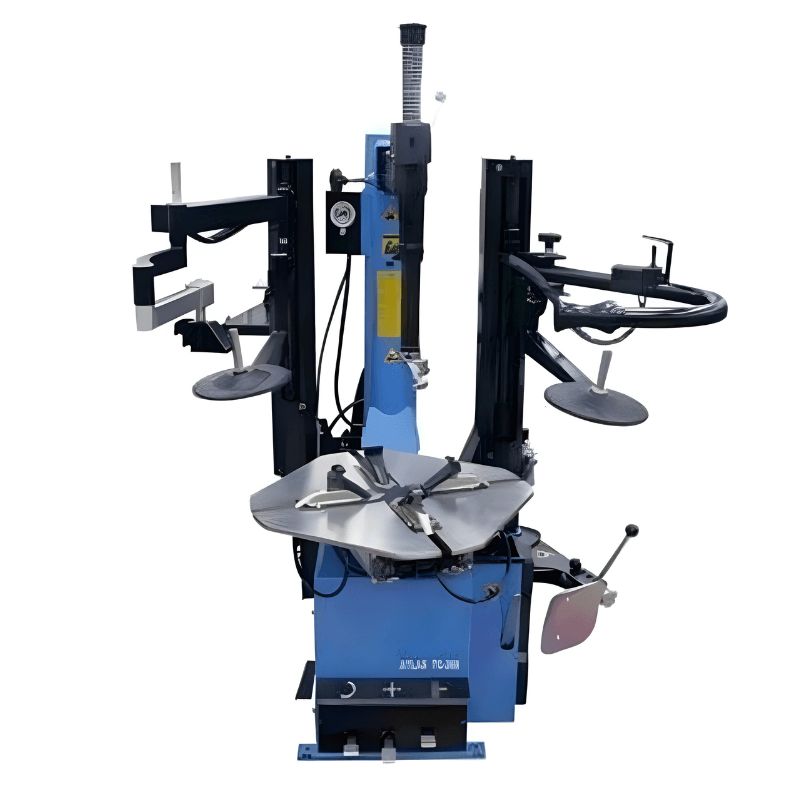

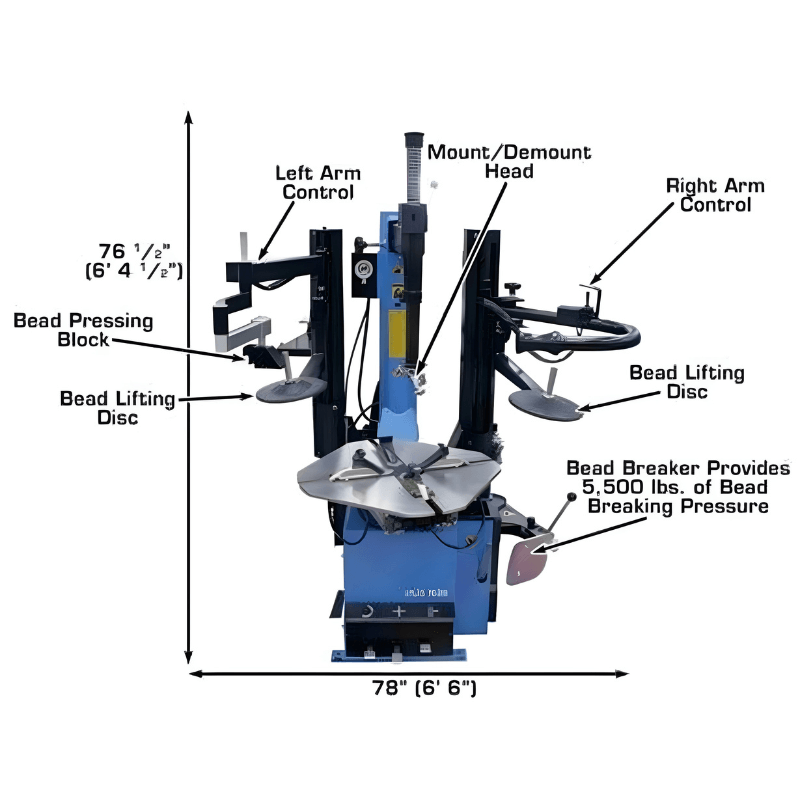

Rim Clamp/Swing Arm Tire Changer

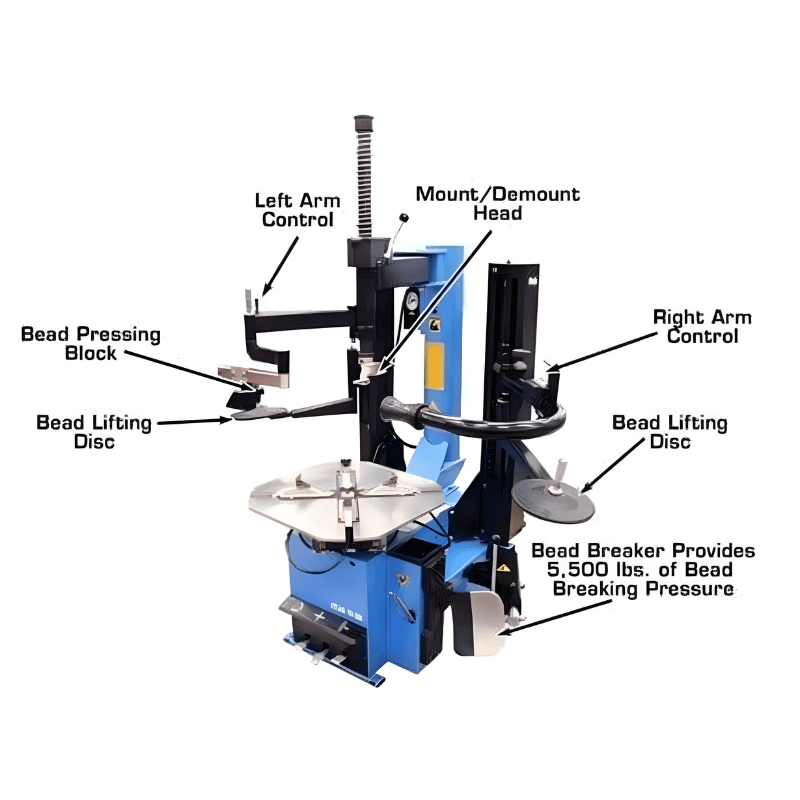

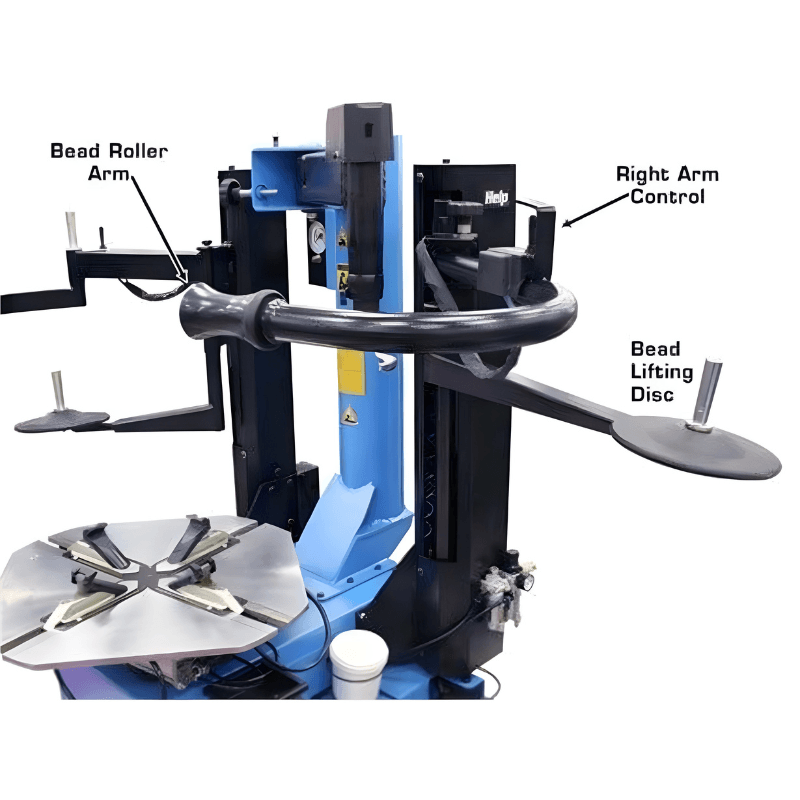

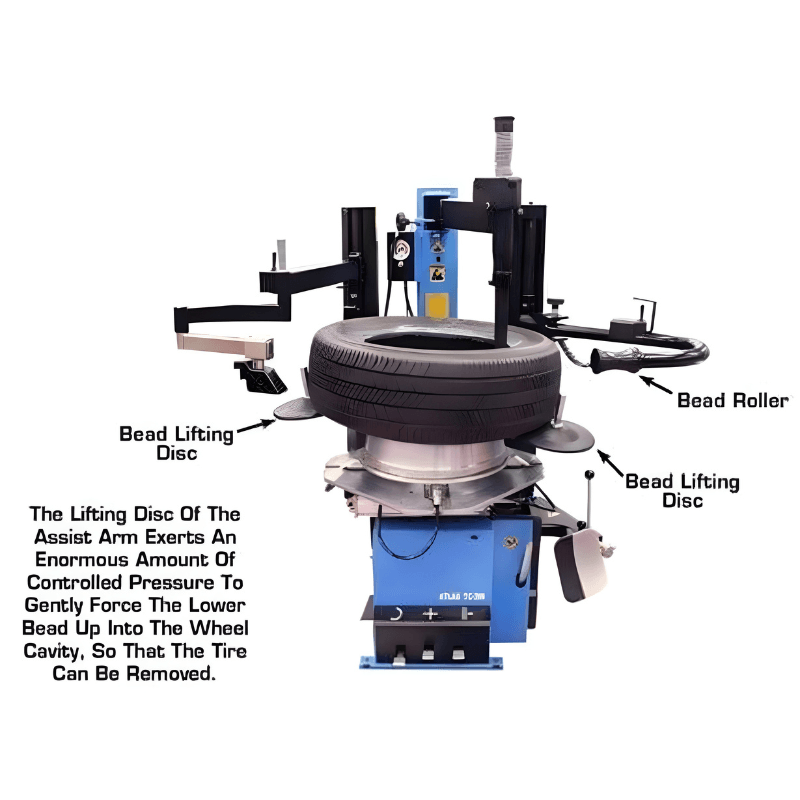

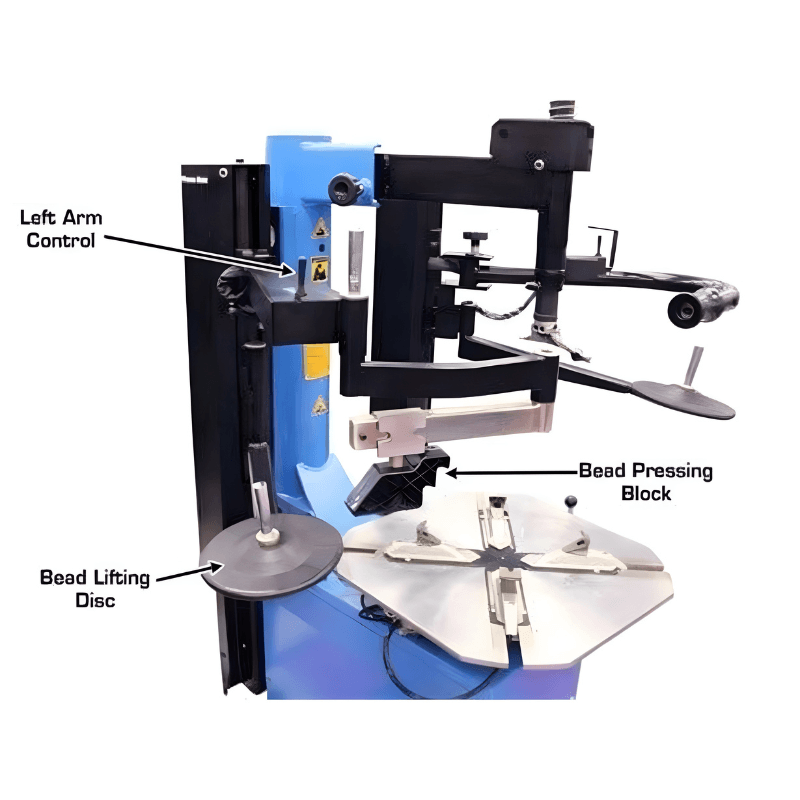

Left Hand and Right Hand Assist Arms Included
Extra Large Turntable, More Clearance
Built-in “Beadblaster”

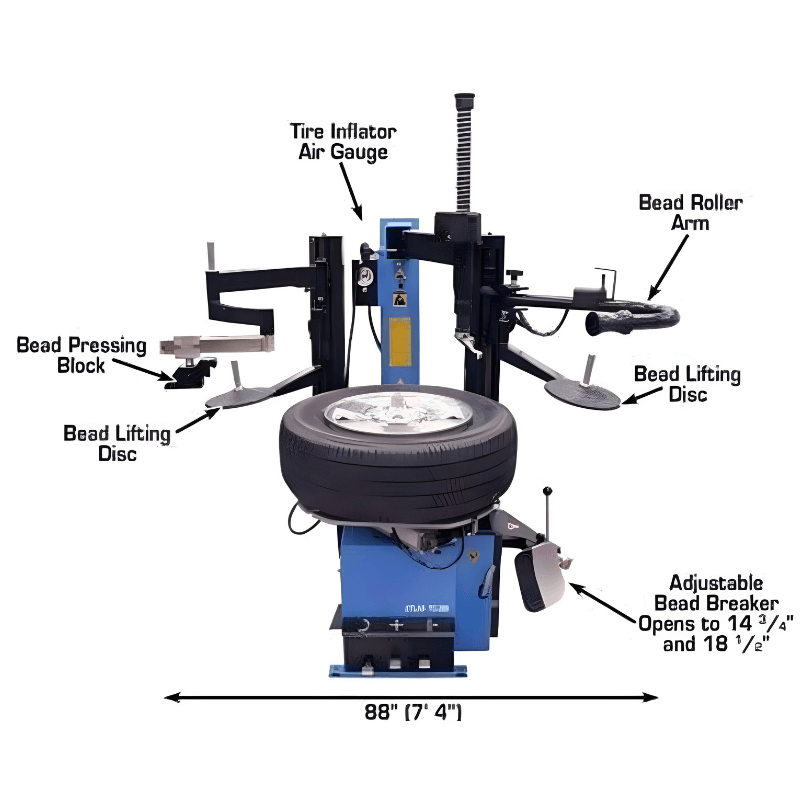

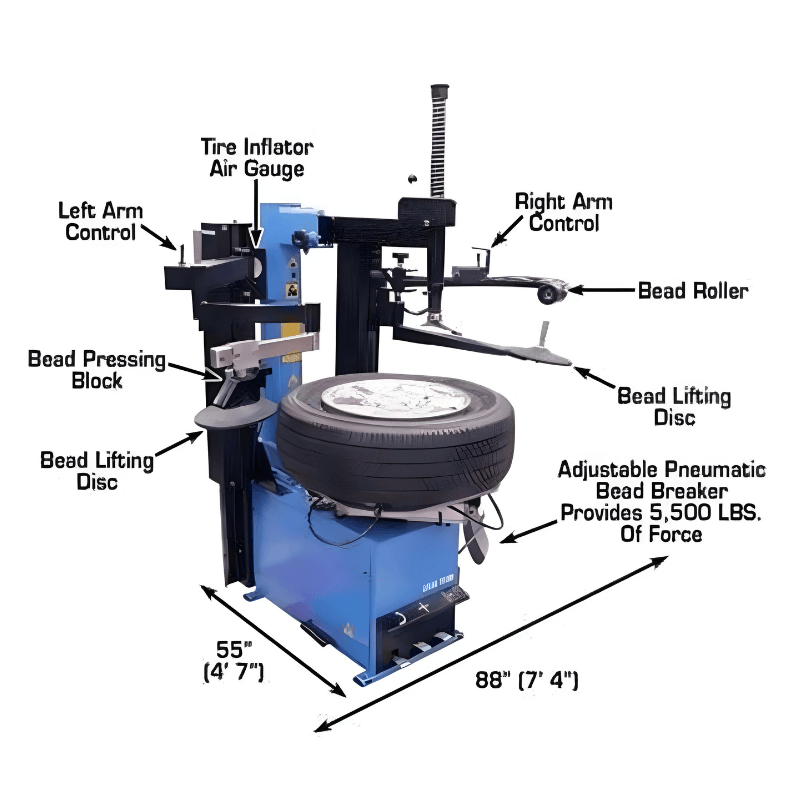

Adjustable Bead Breaker Plate
Adjustable jaws, 3 mounting positions
Oiler, Filter, Regulator included (external air supply required)
Plastic Protectors Included
Tire Tool, Lube Bucket, and Lube Brush Included
Inflation Box w/ Gauge Included

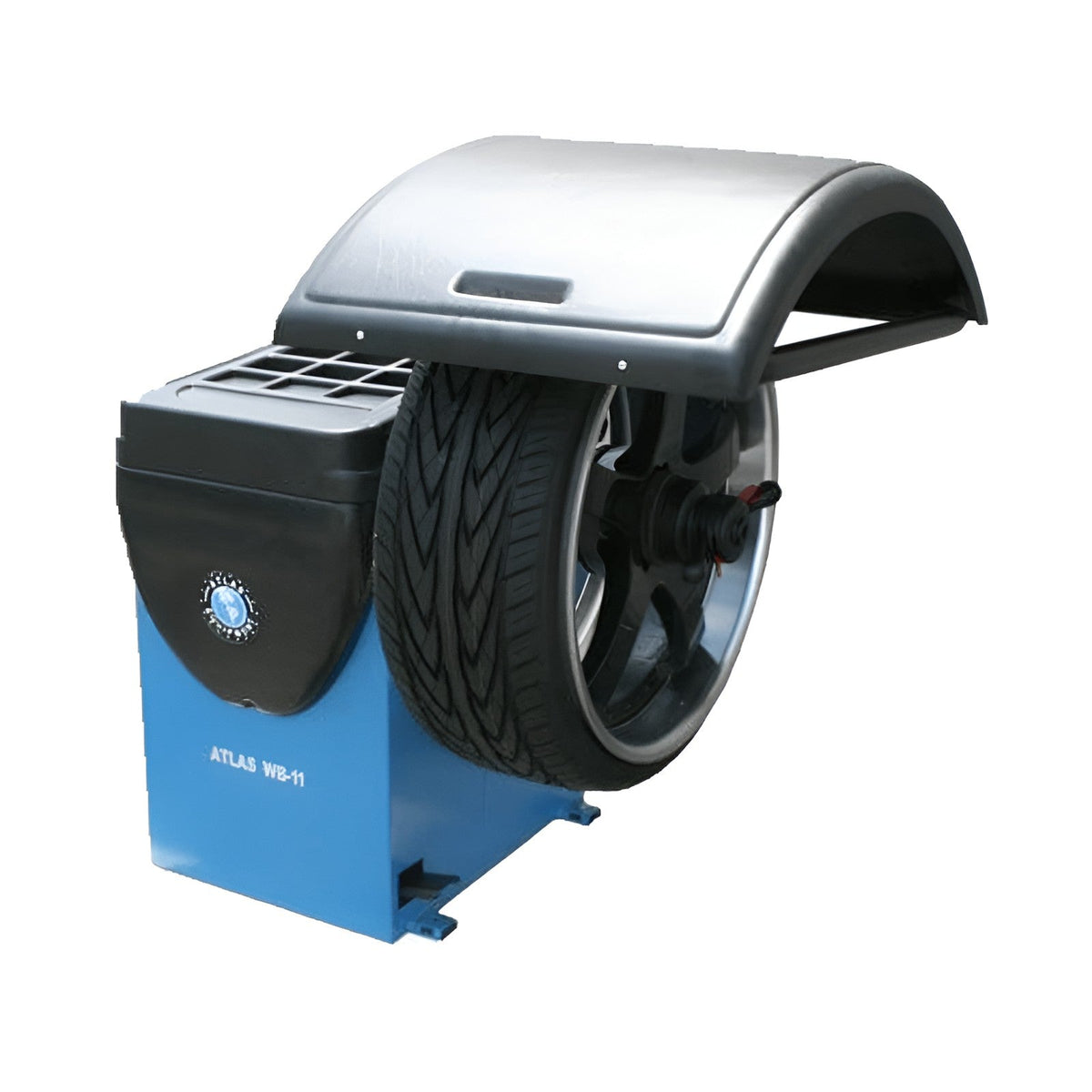

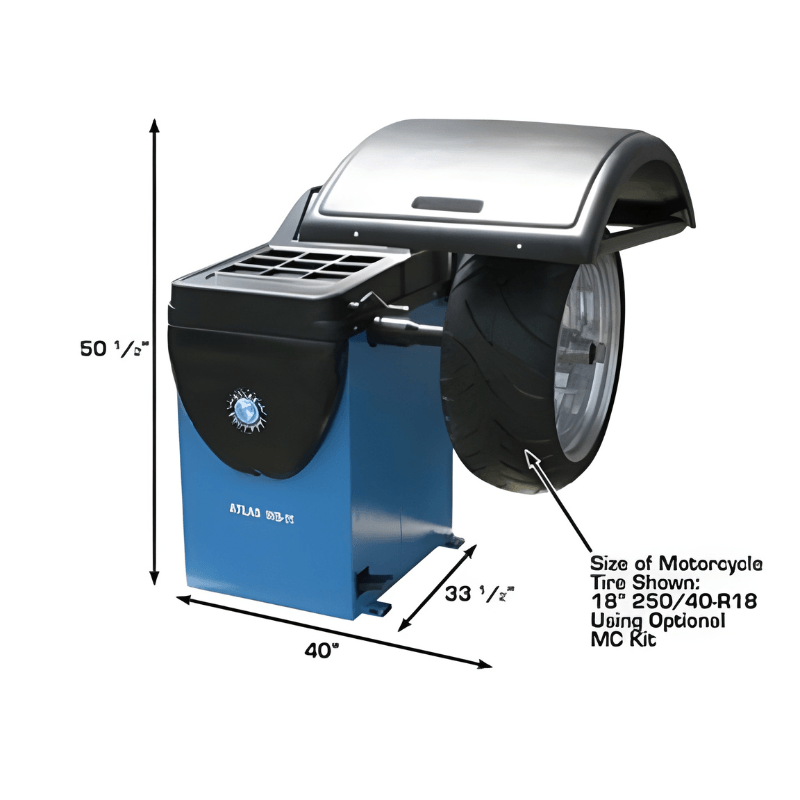

Computer Controlled Spin Balancer
Static and dynamic balancing modes.
Rapid optimization (OPT)
Self Diagnosis/Self Calibration
Display in grams or ounces, in mm or inches

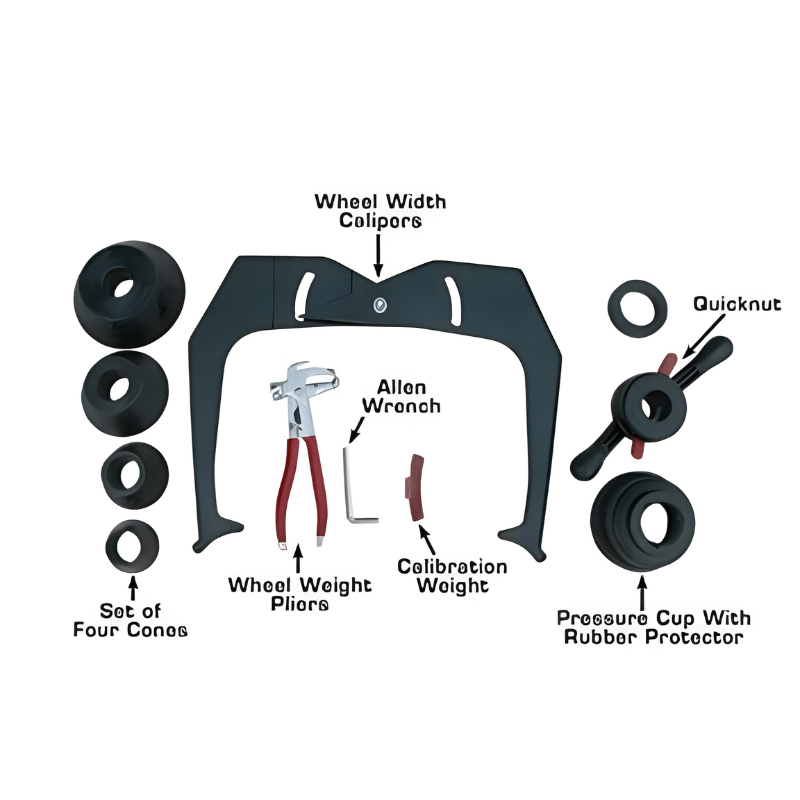

4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
Optional Item(Sold Separately)
Truck Adapter Set
200/700 Series Left-Hand Assist Arm
Universal Adapter
Ideal For
Shops wanting a complete tire-service setup in one purchase
Tire shops and dealerships handling daily tire service
Auto repair centers adding wheel and tire work
Home garages and serious DIY mechanics
Technical Specifications
Rims |
Steel, Aluminum, Alloy |

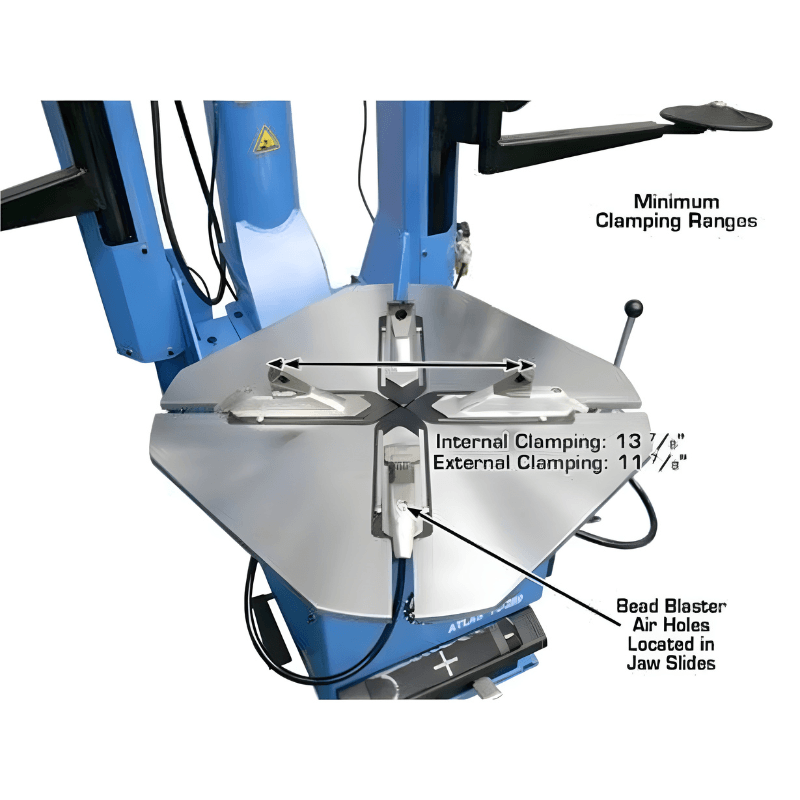

External Locking Rim Dimension (3 Positions) | |
11 7/8" - 26" | |
12 7/8" - 27" | |
13 3/4" - 28" | |
Internal Locking Rim Dimension (3 Positions) | |
13 7/8" - 27 7/8" | |
14 5/8" - 28 7/8" | |
15 5/8" - 29 7/8" | |
Maximum Tire Diameter |
47" |
Maximum Wheel Width (Bead Breaker) |
18" |
Table Motor |
1 HP |
Turntable Rotating Torque |
885 ft/lbs |
Bead Breaker |
5,500 LB. Force |
Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
Operating Voltage |
110volt |
Shipping Weight |
620 lbs. |
Max Tire Diameter |
39" (3' 3") |
Rim Sizes (Cars And Light Trucks) |
10"-32" |
Rim Width |
1 1/2"-20" |
Shaft Size |
40mm |
Max. Wheel Weight |
150 lbs. |
Balancing Speed |
150 rpm |
Data Entry |
All Dimensions Manual |
Measurements |
Standard Or Metric |
Accuracy |
1 gram |
Weight Position Resolution |
1.4 Degrees |
Self Calibration |
Yes |
Motor |
1/4 HP |
Power Supply |
110volt |
Shipping Weight |
355 lbs. |
