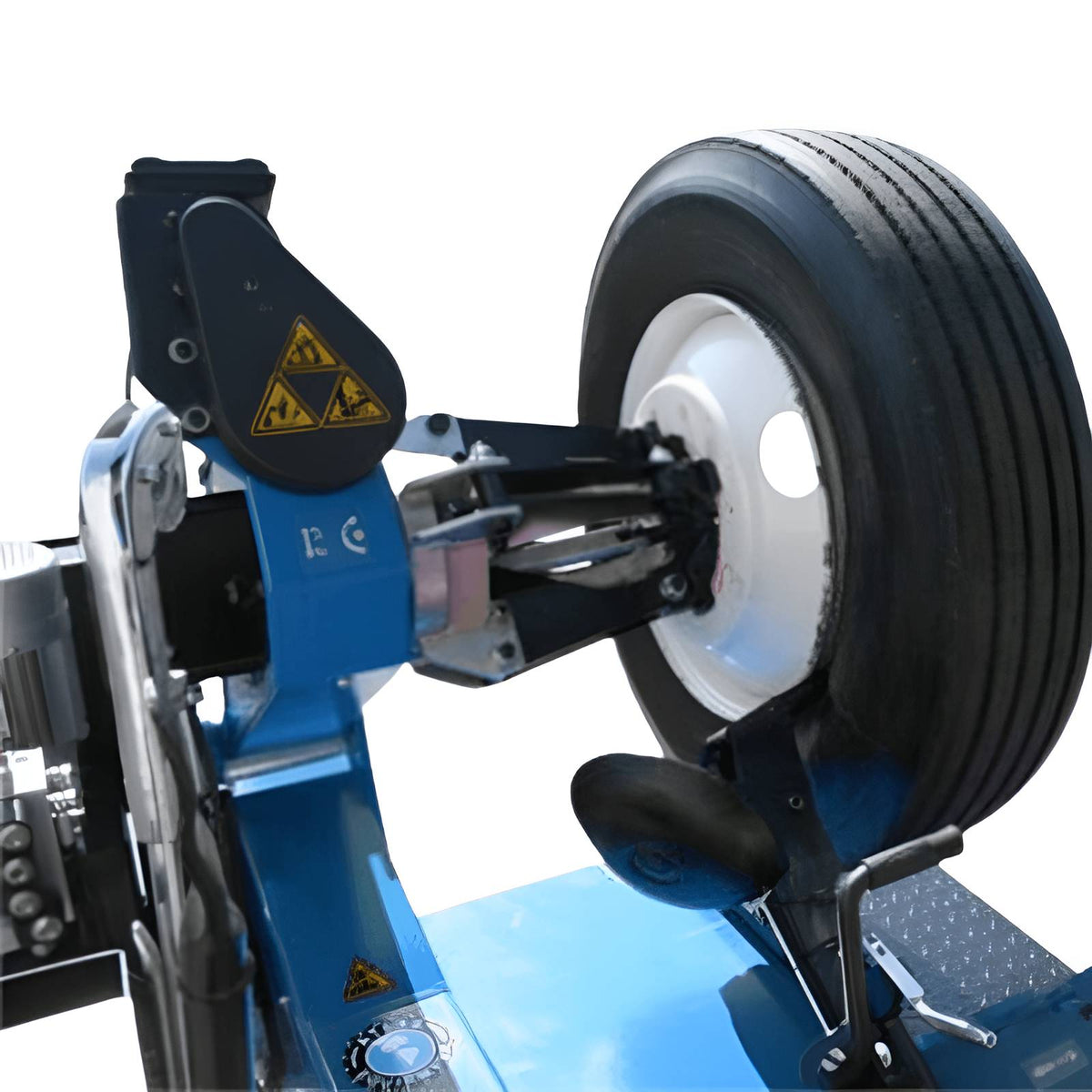

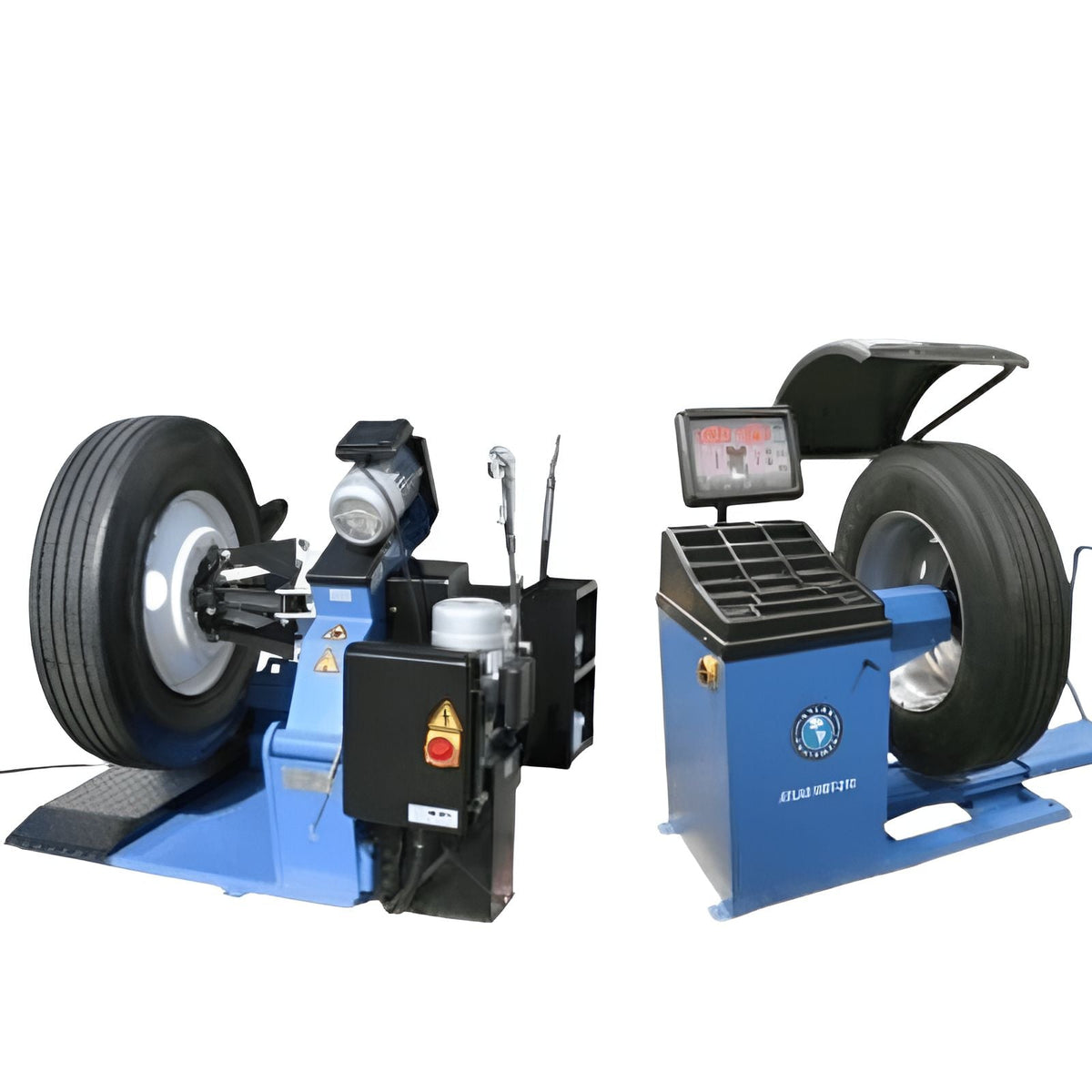

Atlas TTC301 Tire Changer + WBT-210 Wheel Balancer Combo

Is your shop struggling to keep up with the diverse wheel sizes rolling through your doors? The Atlas TC301 and WBT-210 combo package is here to save the day. This versatile pair handles everything from passenger cars to semi-trucks, with the TC301 changing tires up to 63" in diameter and the WBT-210 balancing wheels up to 47" wide.

But here's where it gets really interesting: this combo doesn't just handle a wide range of wheels - it does it with style and precision. The TC301's electric/hydraulic chuck clamps rims with up to 6,614 lbs of force, while the WBT-210's computer-controlled system balances wheels at 150 rpm for cars and 90 rpm for trucks. With features like automatic start/stop, self-calibration, and a wired mobile control unit, you'll breeze through jobs faster than ever. Don't let another day go by watching potential profits roll out of your shop.

Tire Changer TTC301+ Wheel Balancer WBT-210 Specification

Key Features

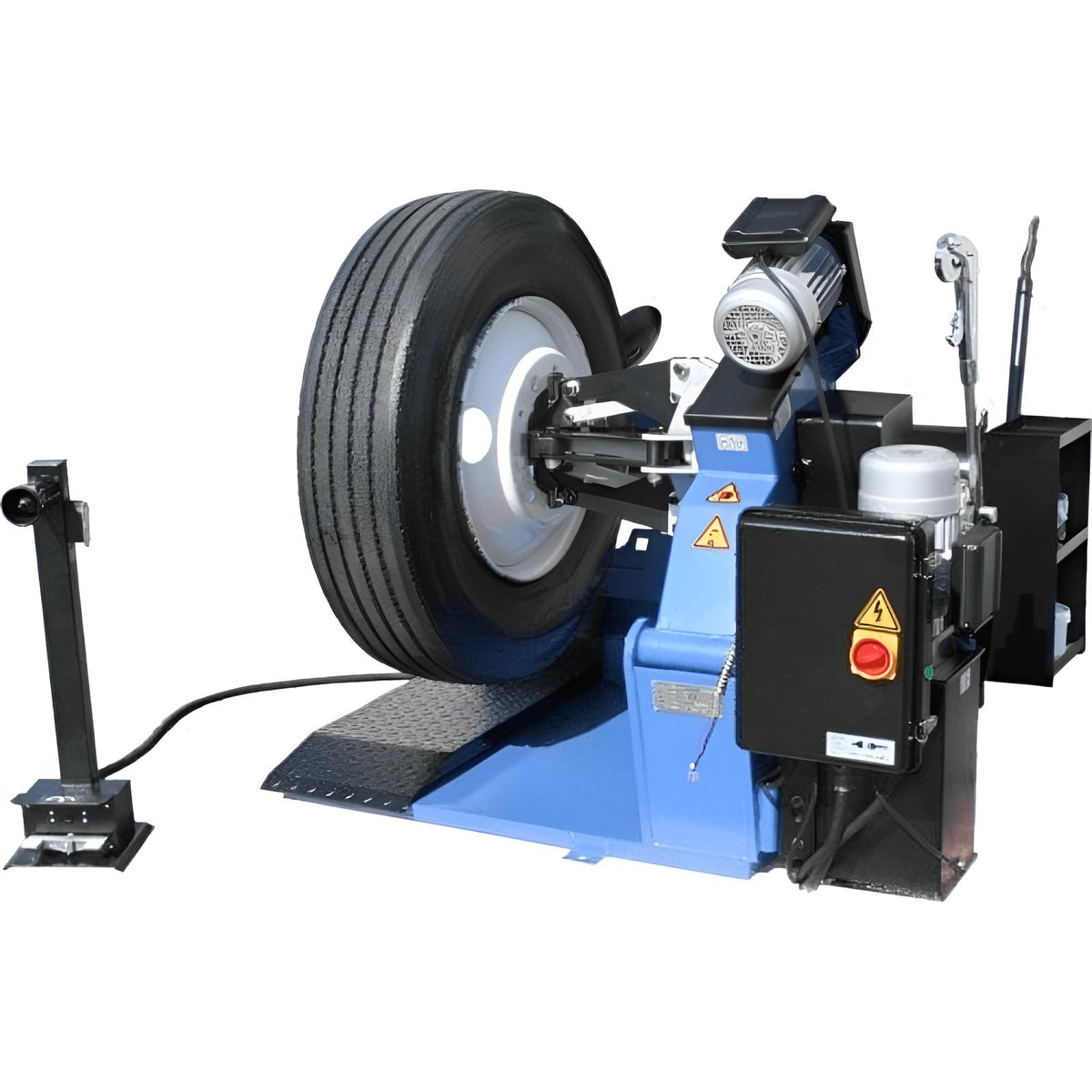

• Standard Truck Tire Changer

• Handles rims from 13″ to 27″ and tire diameters in excess of 63″

• Accommodates tires with a max width of up to 30 1/2″

• Bead Breaker

• Mount/Demount Head

• Electric/Hydraulic Self-Centering Four Jaw Chuck

• 5 different rim locking positions

• Wired Mobile Control Unit

• Heavy Duty Tire Tool Included

• Rim Clamps for Steel and Alloy Wheels Included

• Alloy Rim Adapter Set w/ Plastic Inserts Included

• 1 Year Parts Only Warranty

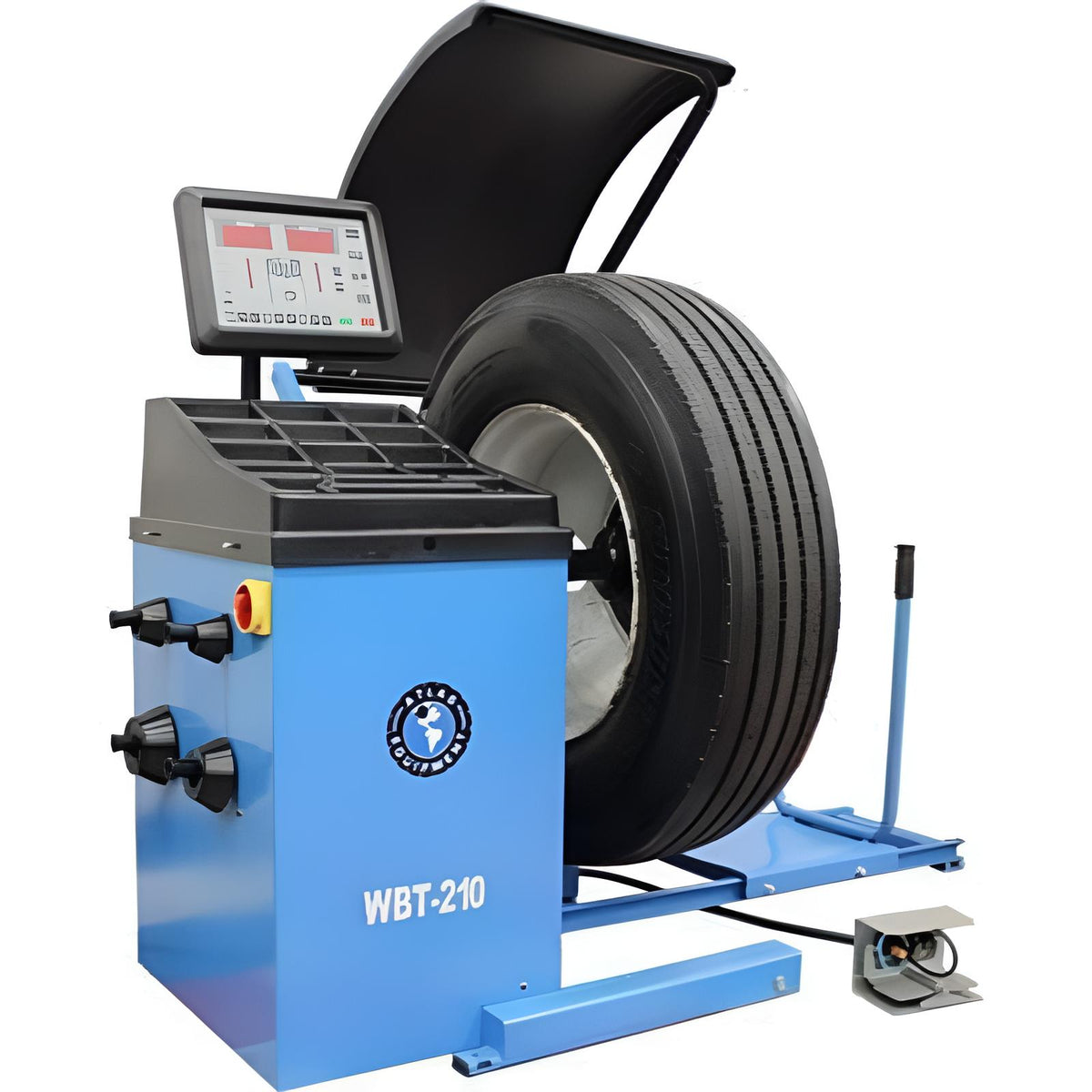

• Computer Controlled Heavy Duty Spin Balancer

• Cone sets for car and light truck tires

• Cone and spacer set for truck, bus, or implement tires

• Plastic Quick Release Nut included

• Heavy duty steel wing nut included

• Pneumatic wheel lift (external air supply required)

• Automatic start/stop when hood is lowered/raised.

• Static and dynamic balancing modes.

• Rapid optimization (OPT)

• Self-diagnosis

• Self-calibration

• Exceptional stability in reading the unbalance between planes

• Display in grams or ounces, and in mm or inches

• Wheel Weight Pliers Included

• Wheel Width Calipers Included

• Replacement parts & wear items available

• 1 Year Parts Only Warranty

Ideal For

• Shops wanting a complete tire-service setup in one purchase

• Tire shops and dealerships handling daily tire service

• Auto repair centers adding wheel and tire work

• Home garages and serious DIY mechanics

Technical Specifications
