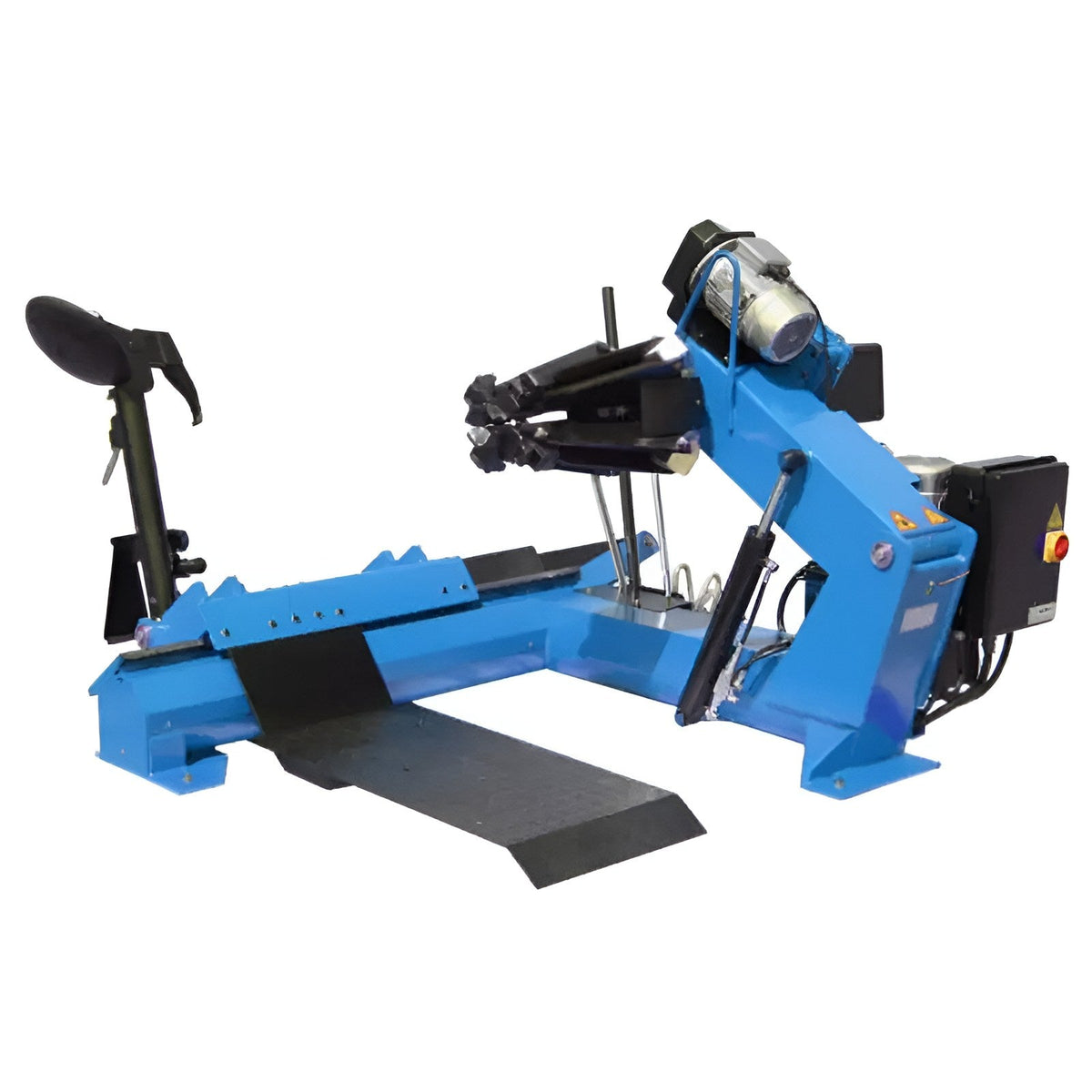

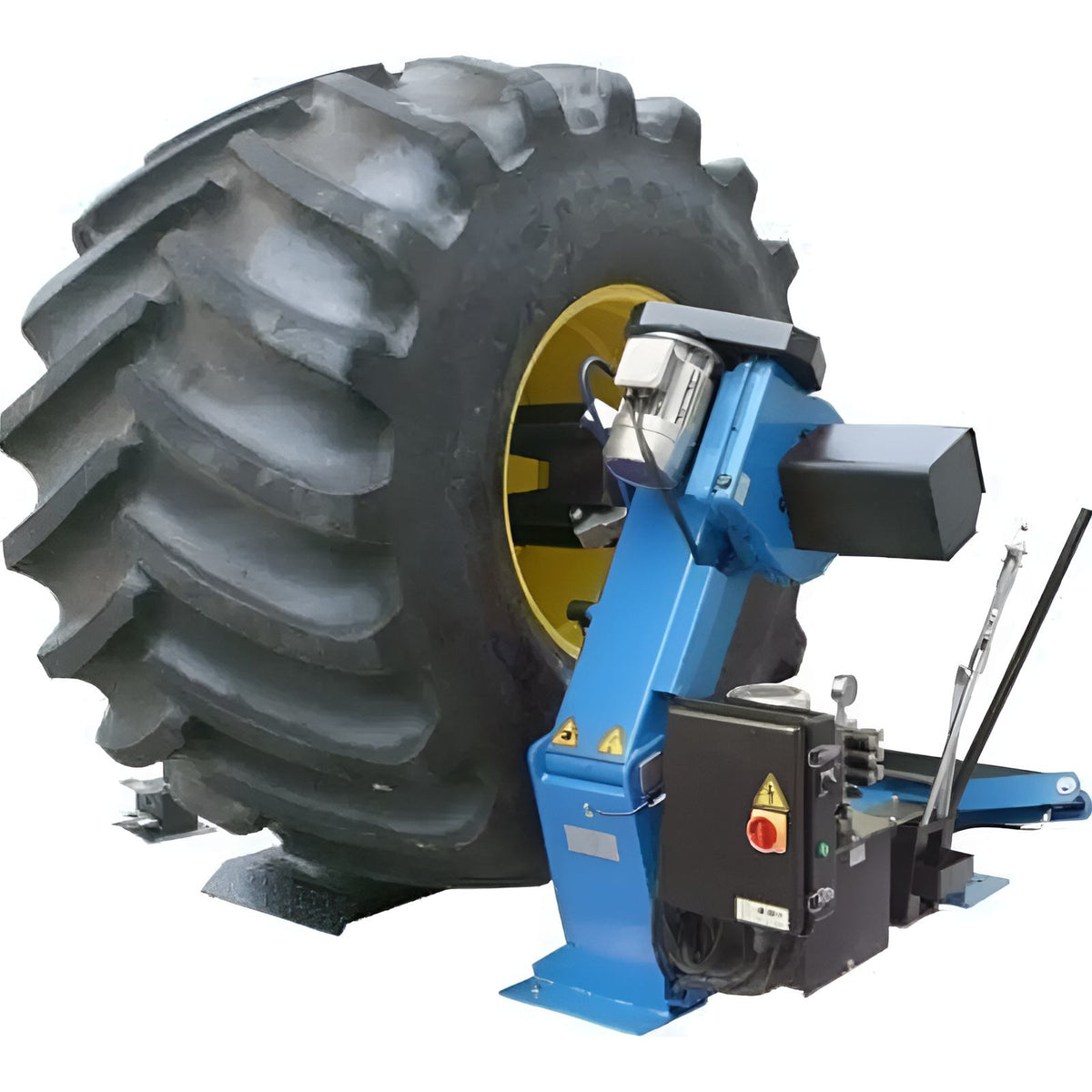

Atlas TTC303 Large Truck Tire Changer

Is your current tire changer cowering in fear when faced with super-sized tires? Introducing the Super Duty Atlas TTC303 truck tire changer, the heavyweight champion of the tire world. This beast tackles rim sizes from a petite 4-1/4 inches all the way up to a massive 56 inches, and it doesn't break a sweat handling tires over 90 inches in diameter. Born from a collaboration between Italian design genius and Asian manufacturing prowess, it's the tire changer that makes other machines look like toys.

With a clamping power of 13,173 lbs and a bead breaker force of 5,930 lbs, it manhandles everything from off-road monsters to agricultural giants and skidder tires. Its single-piece frame construction ensures rock-solid stability, while the manual tool arm and head positioning give you pinpoint control. Whether you're running a high-volume truck tire shop or tackling the toughest agricultural wheels, this tire changer is your gateway to effortless changes.

TTC-303 Specification:

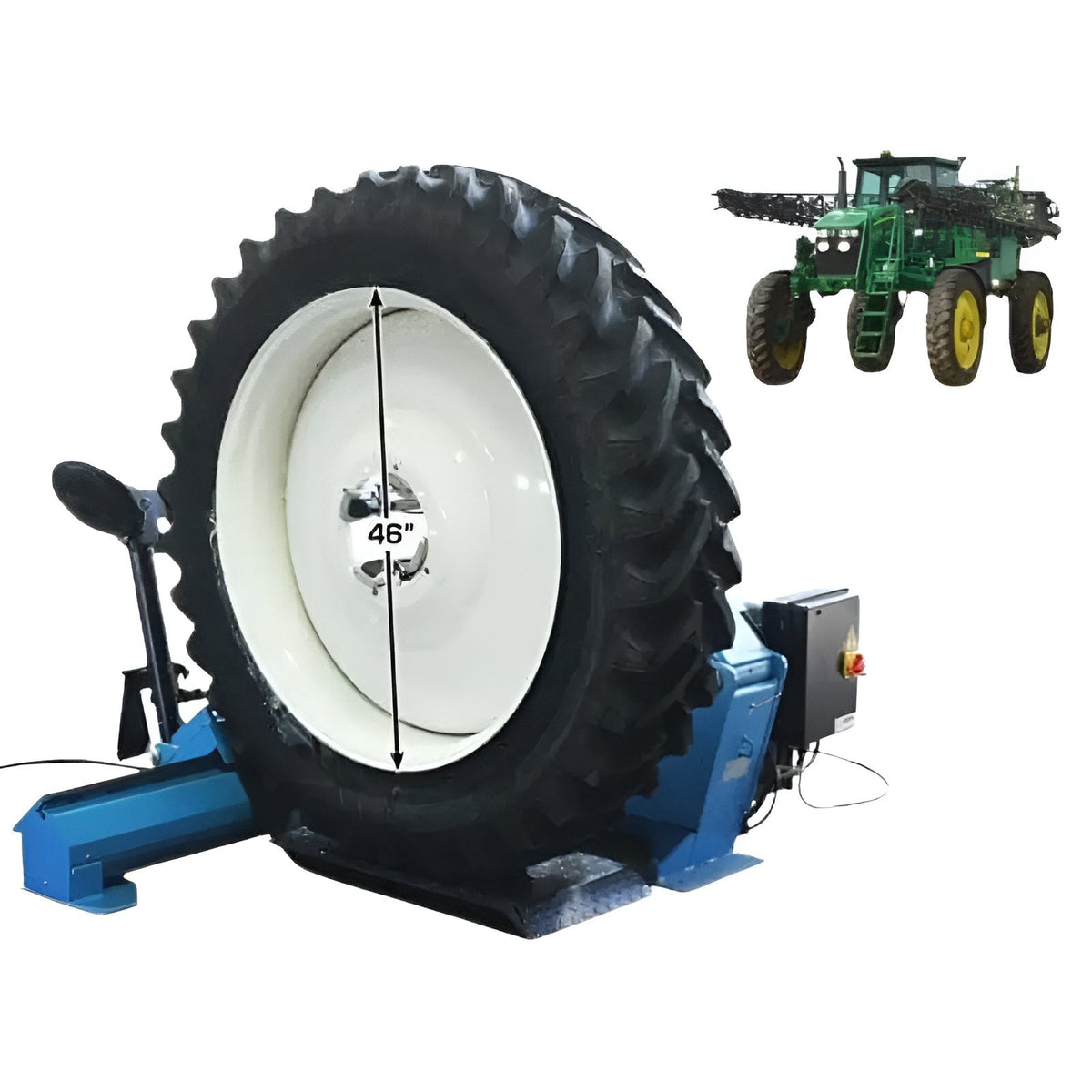

Rim Clamping Range: 14" - 46"

Max Clamping Size W/ Extensions: 56""

Max Wheel Weight: 3,300 lbs.

Max Tire Diameter: 90 1/2" (7' 6 1/2")

Max Tire Width: 42" (3' 6")

Clamping Power: 13,173 lbs.

Operating Pressure: 0-1885 PSI

Acoustic Pressure: <70dBA

Bead Breaker Force: 5930 lbs.

Tool Arm Positioning: Manual

Tool Head Positioning: Manual

Construction: Single Piece Frame w/ Solid Floor Plate

Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required

Chuck Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required

Shipping Dimensions: 83"L x 68"W x 41" H - 1,800 lbs

Key Features

• Super Duty Truck Tire Changer

• 220VOLT 1 PHASE ELECTRIC

• Handles rims from 14″ to 56″ and tire diameters in excess of 90″

• Accommodates tires with a max width of up to 42″

• Bead Breaker

• Mount/Demount Head

• Electric/Hydraulic Self-Centering Four Jaw Chuck

• 5 different rim locking positions

• Wired Mobile Control Unit

• Heavy Duty Tire Tool Included

• Rim Clamps for Steel and Alloy Wheels Included

• Alloy Rim Adapter Set w/ Plastic Inserts Included

• 1 Year Parts Only Warranty

Ideal For

• Truck tire service centers and commercial shops

• Fleet maintenance operations servicing heavy vehicles

• Agricultural and construction equipment service

• High-volume tire shops handling large wheels
