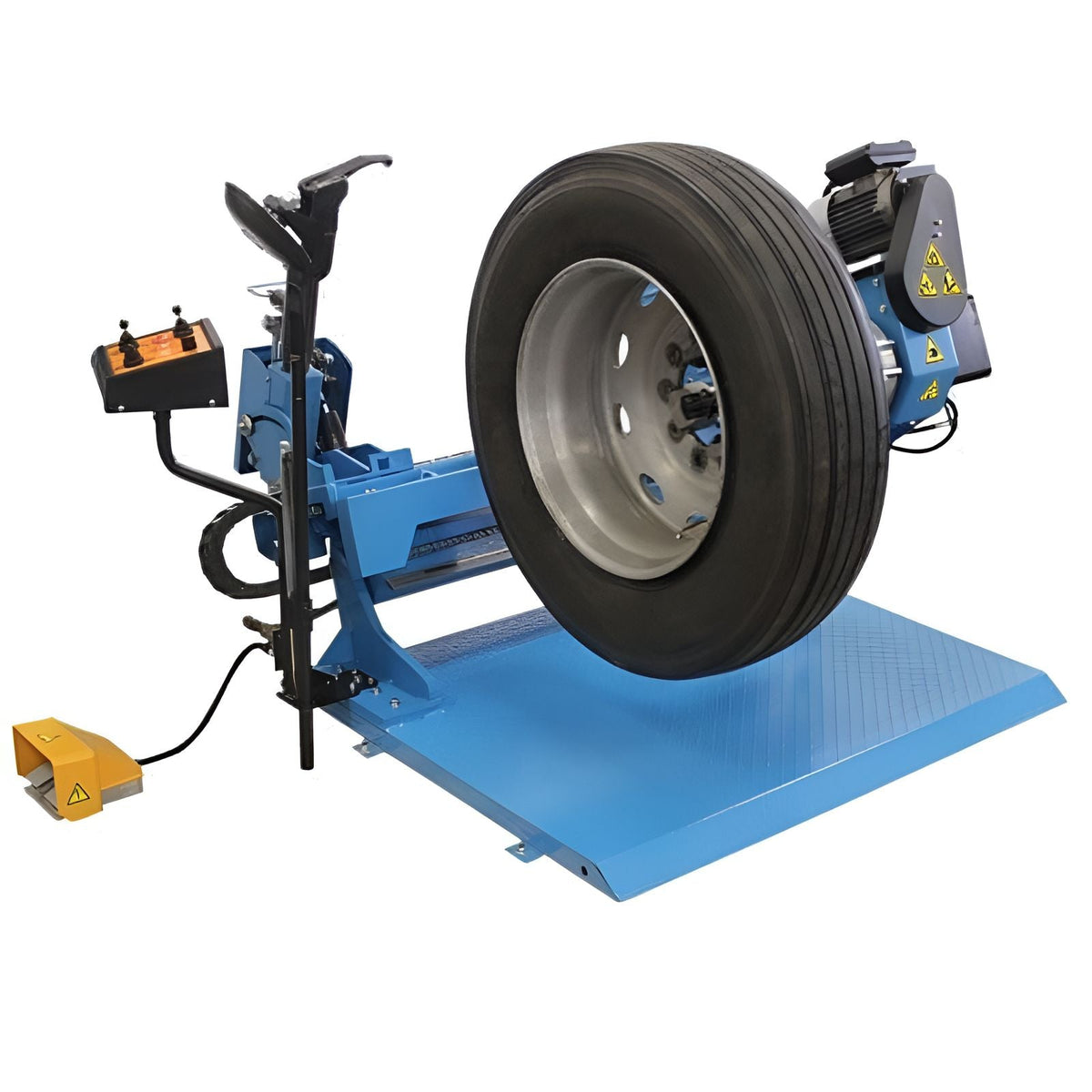

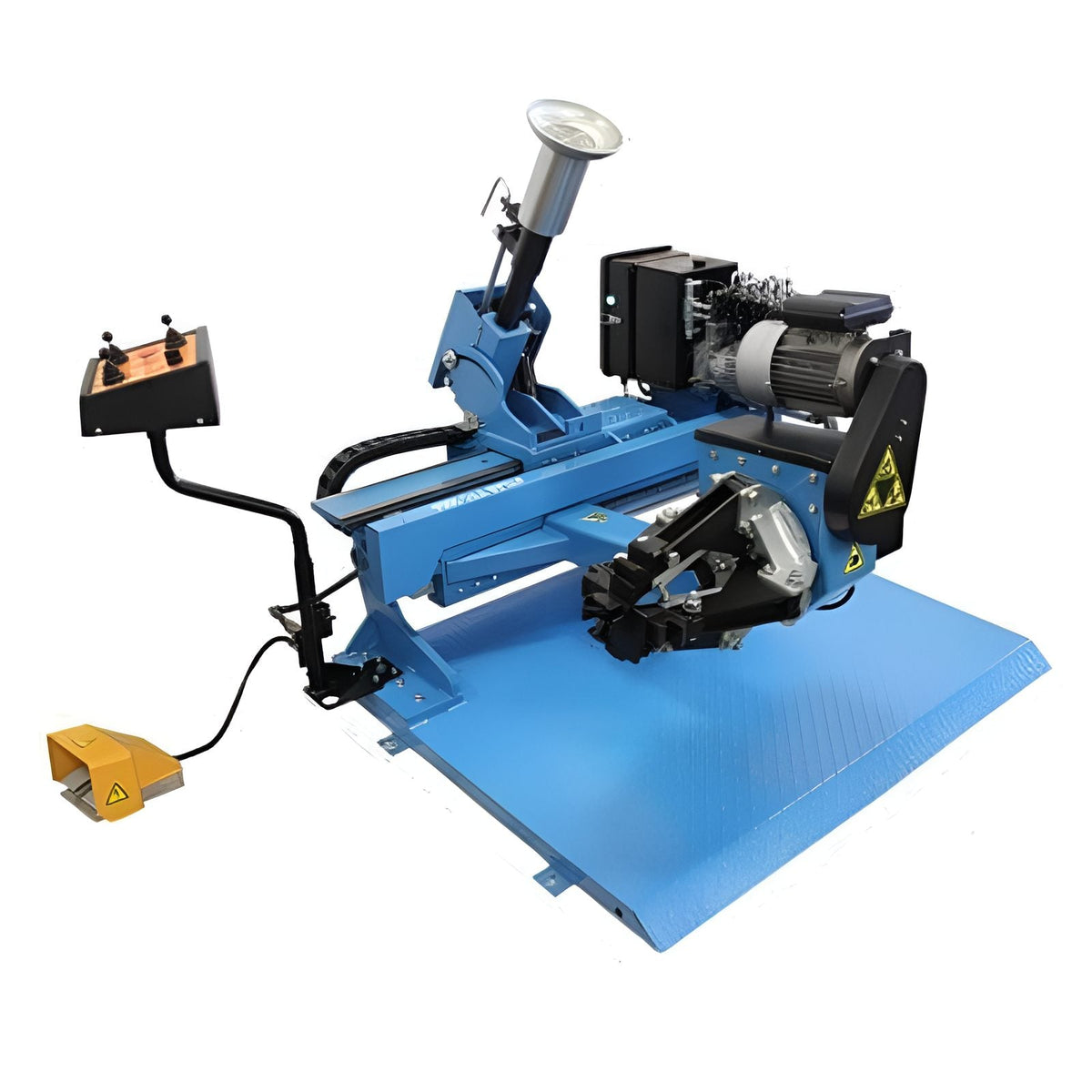

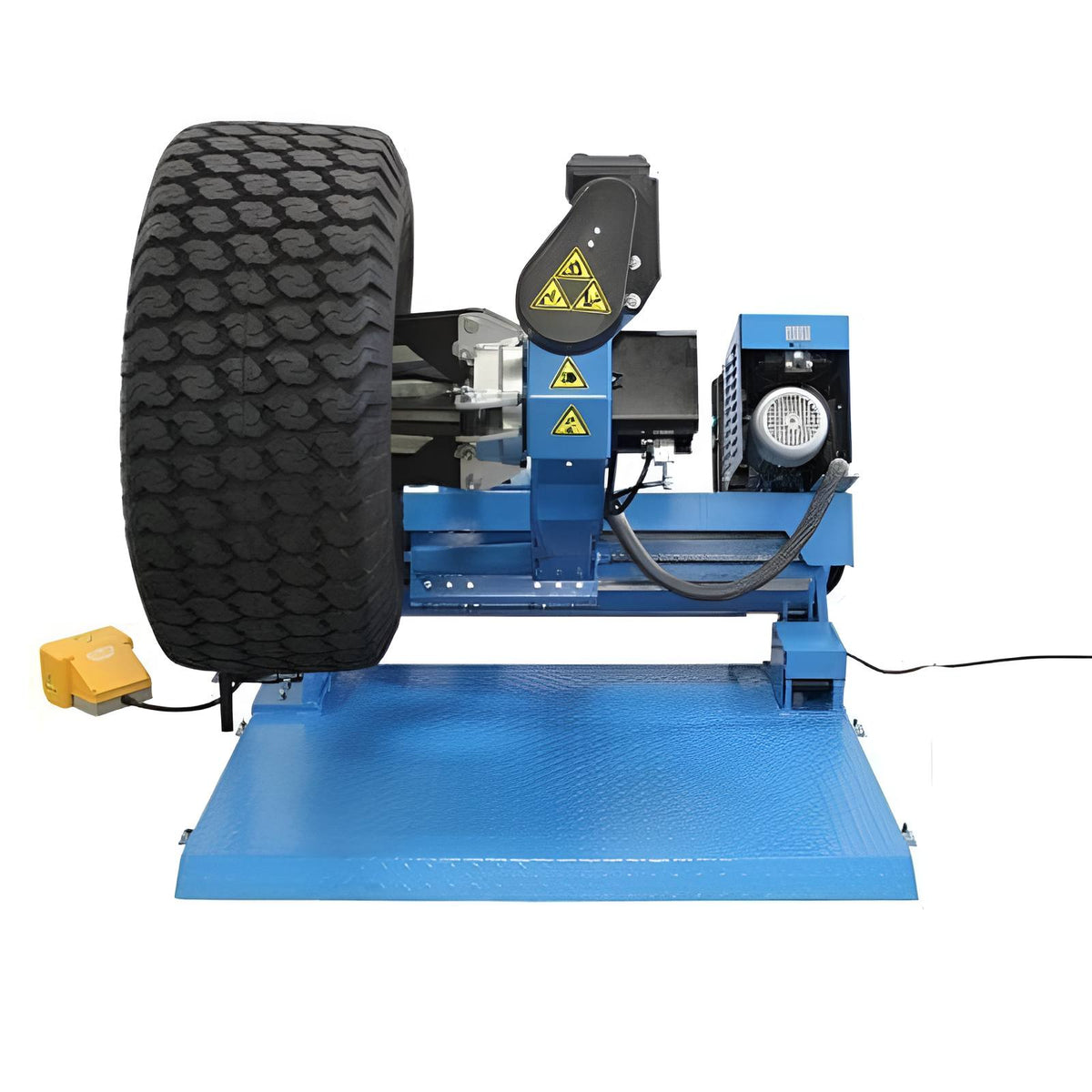

Atlas TTC305 Automated Truck Tire Changer

Are your technicians breaking a sweat over every truck tire change? The Heavy Duty Atlas TTC305A automatic truck tire changer is here to lighten the load. This automated ace handles tires up to 55 inches in diameter and 30 1/2 inches wide, turning those back-breaking jobs into a breeze. It's the answer to the prayers of high-production shops dealing with a constant parade of semi, 19.5, and forklift tires.

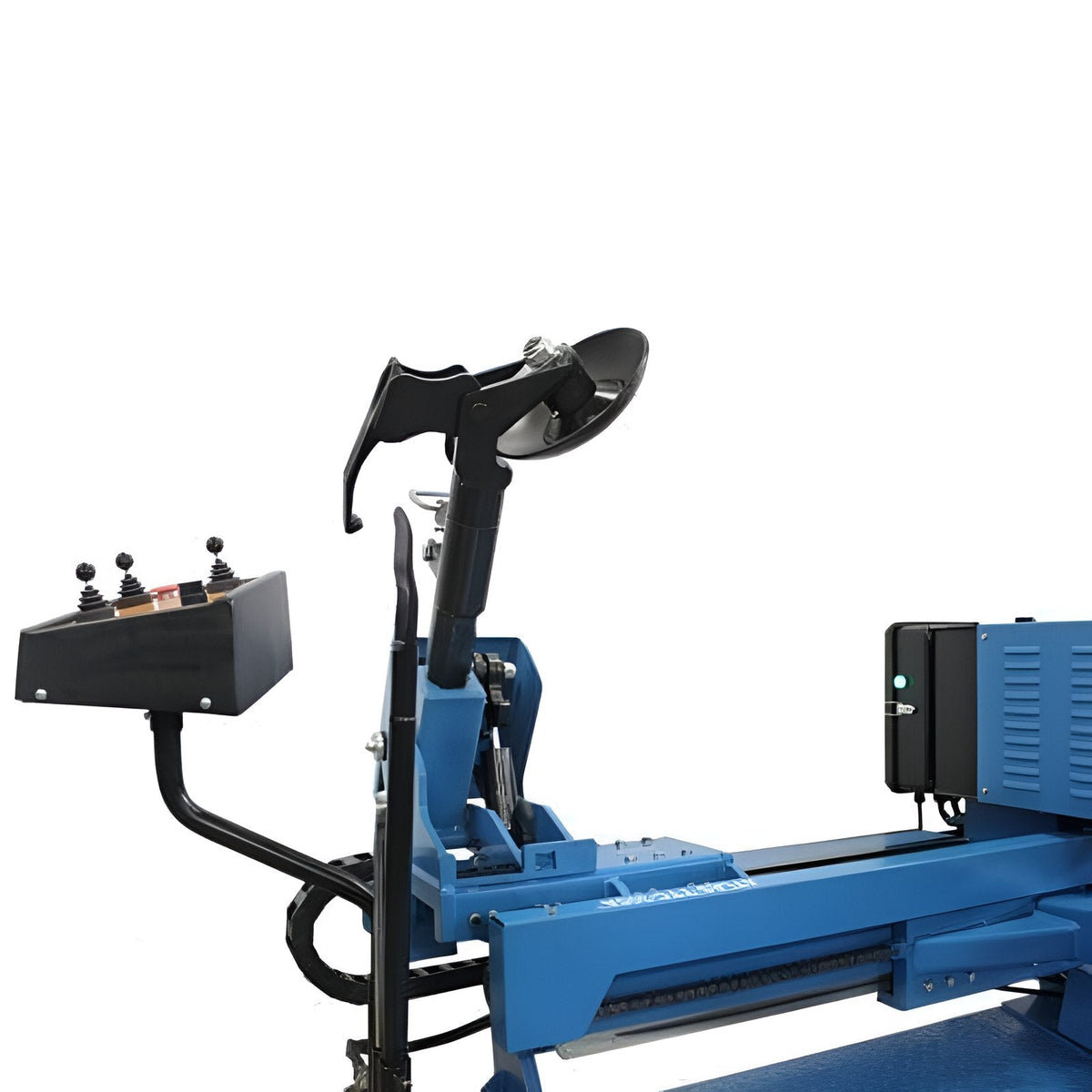

The TTC305A features an ergonomic toggle panel and foot pedals that put total control at your fingertips (and toes). Its single-speed hydraulic chuck with five locking positions grips rims like a pro, while the rapid roller head swaps tires faster than you can blink. Don't let manual labor slow down your operation any longer. With the Atlas TTC305A, you'll be changing tires with the ease of flipping pancakes, all while your competition is still wrestling with tire irons!

TTC 305A Specification:

Rim Clamping Range: 13" - 26"

Minimum Clamping Size W/ Alloy Adapters: 8"

Max Wheel Weight: 838 lbs.

Max Tire DiameterP: 55"

Max Tire Width: 30 1/2" (2' 6 1/2")

Clamping Power: 6,600 lbs.

Operating Pressure: 0-1885 PSI

Acoustic Pressure: <70dBA

Bead Breaker Force: 3990 lbs.

Tool Arm Positioning: Automatic

Tool Head Positioning: Automatic

Construction: Single Piece Frame w/ Solid Floor Plate

Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required

Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required

Shipping Weight: 1,490 lb.

Key Features

• Fully Automatic Truck Tire Changer

• Handles rims from 8″ to 26″ and tire diameters in excess of 55″

• Accommodates tires with a max width of up to 30 1/2″

• Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm

• Bead Breaker

• Interchangeable Mount/Demount and Roller Heads

• Electric/Hydraulic Self-Centering Four Jaw Chuck

• 5 different rim locking positions

• Mounted Control Unit w/ additional Foot Pedal Controls

• Heavy Duty Tire Tool Included

• Rim Clamps for Steel and Alloy Wheels Included

• Alloy Rim Adapter Set w/ Plastic Inserts Included

• 1 Year Parts Only Warranty

Ideal For

• Truck tire service centers and commercial shops

• Fleet maintenance operations servicing heavy vehicles

• Agricultural and construction equipment service

• High-volume tire shops handling large wheels
