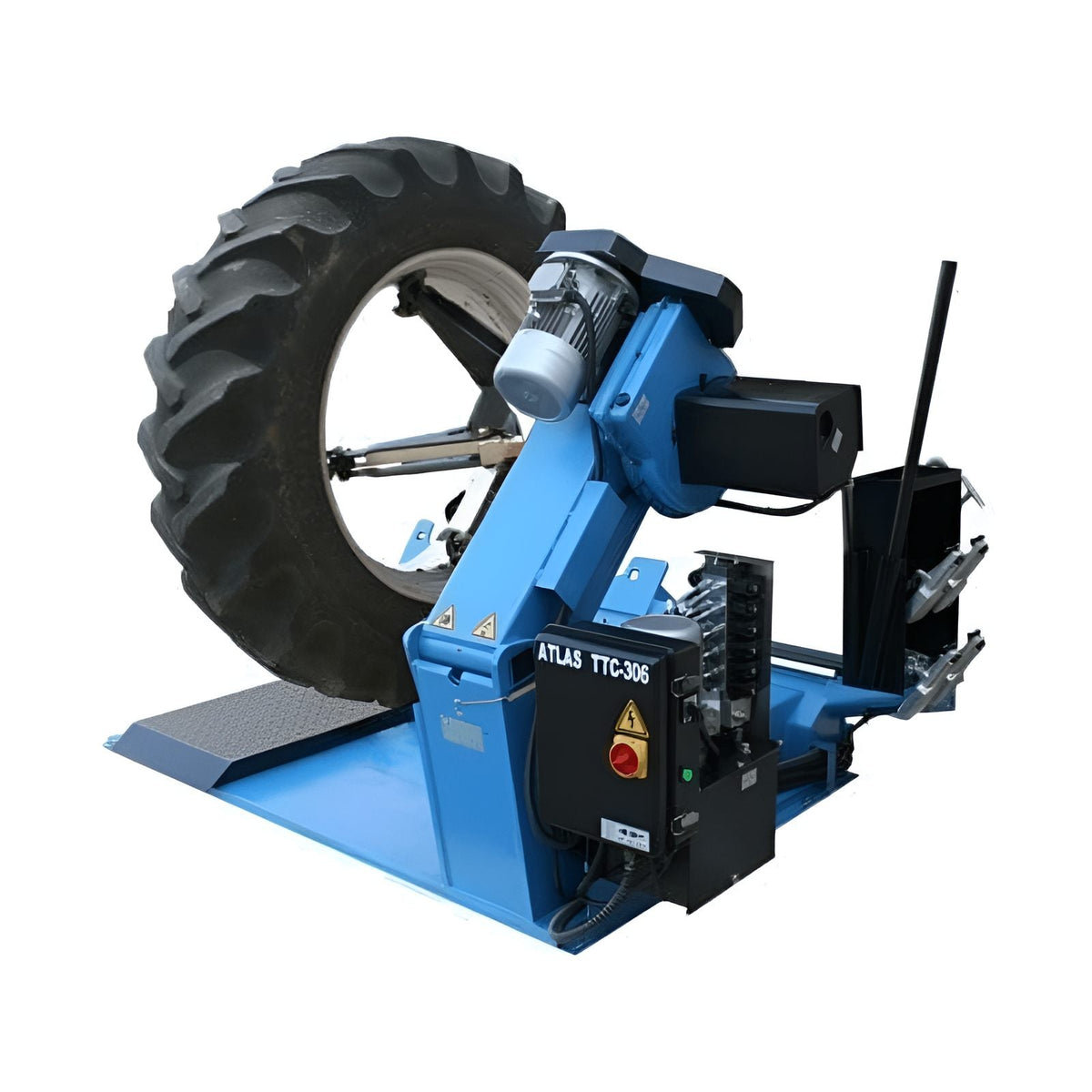

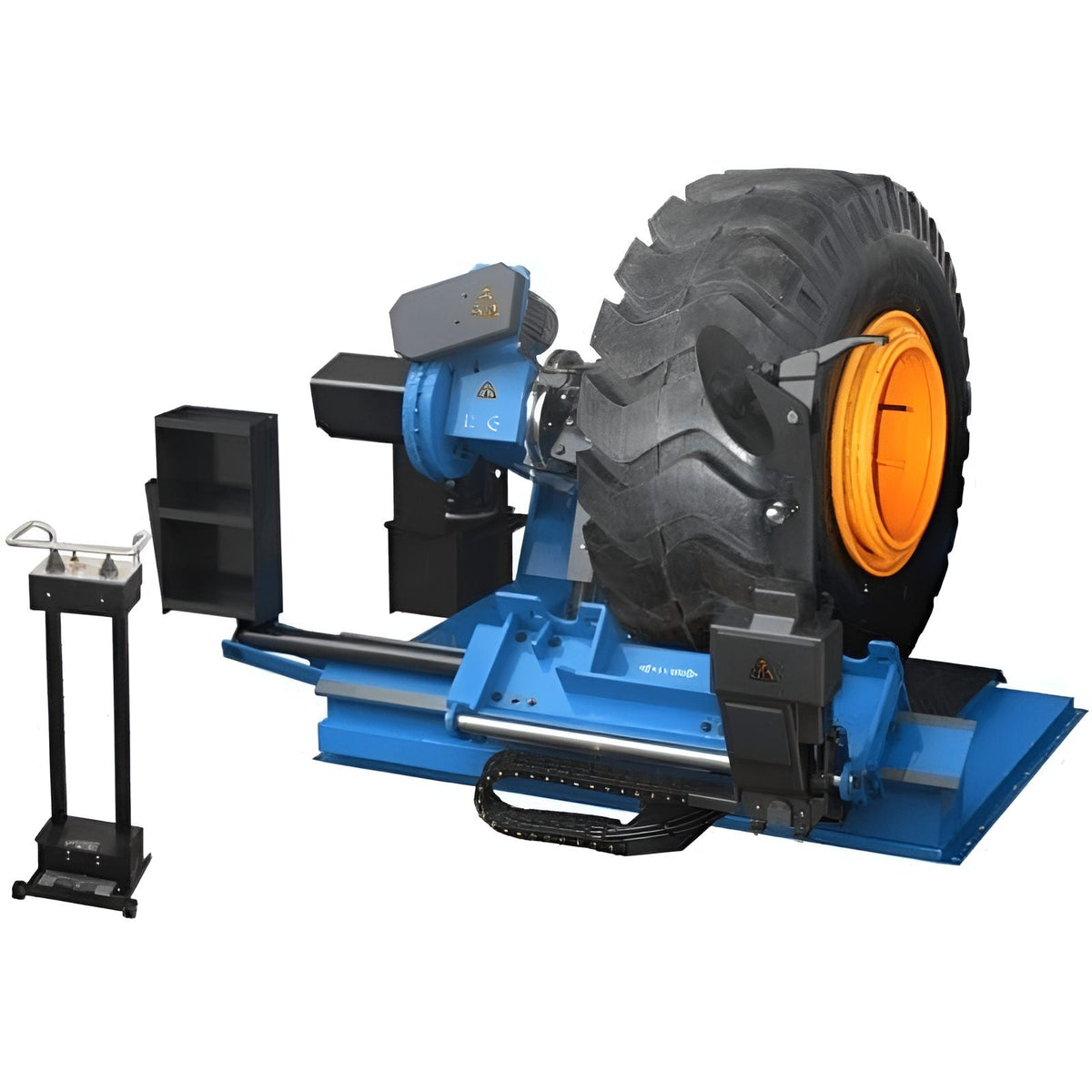

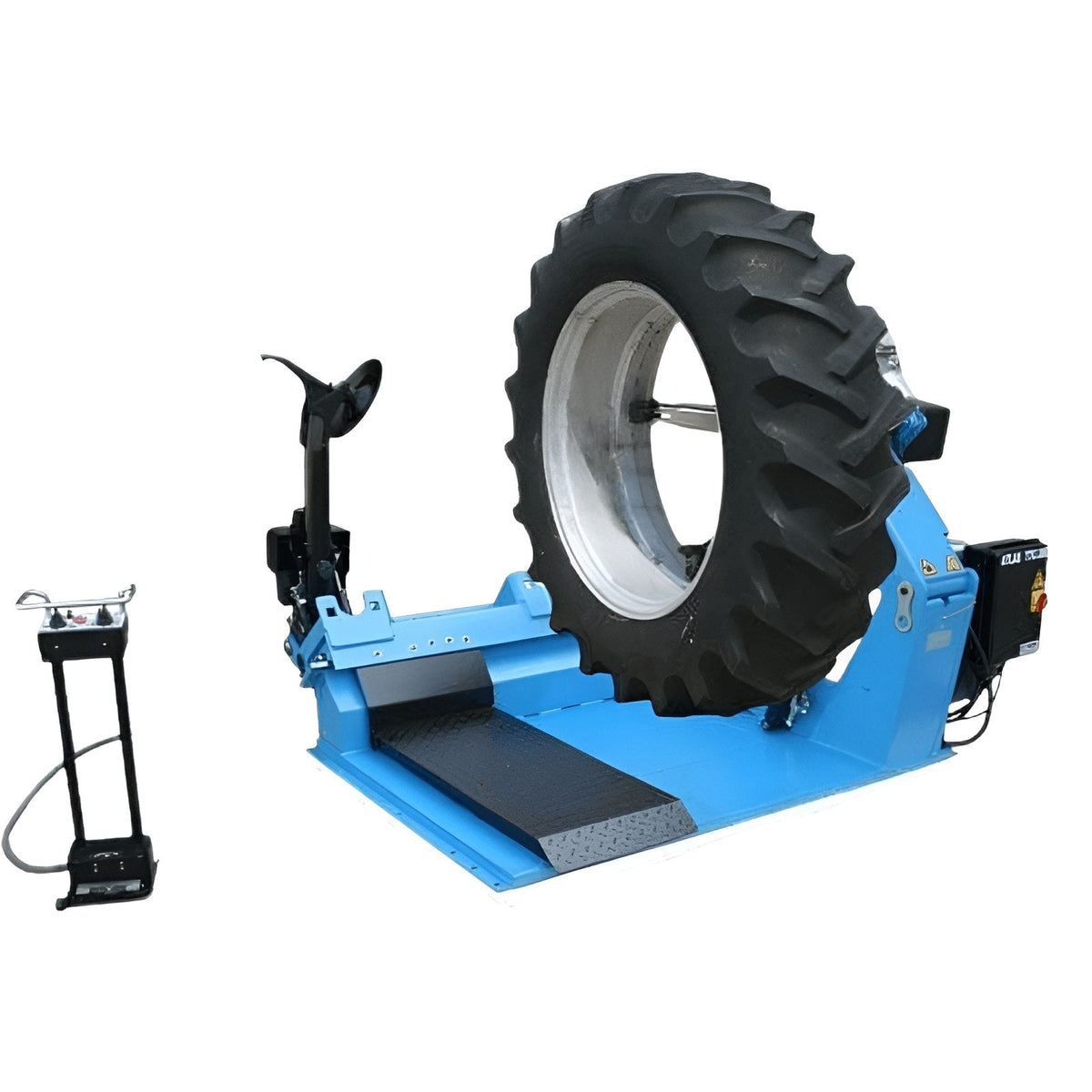

Atlas TTC306 Deluxe Automated Truck Tire Changer

Are those mammoth agricultural and earthmover tires giving your current equipment nightmares? The Atlas® TTC306 Super Duty truck tire changer is here to turn those tire-changing nightmares into sweet dreams. This powerhouse handles tires up to 97 inches in diameter and 53 inches wide, making those "impossible" jobs suddenly possible. It's the answer to the prayers of companies dealing with oversized tires that lesser machines can't even approach.

The TTC306 isn't just big and strong, it's smart and efficient too. With automatic positioning of the bead tool, carriage, and chuck arm, it takes the backache out of big tire changes. The 2-speed hydraulic chuck with 5 rim locking positions grips wheels up to 3,968 lbs with the tenacity of a pitbull’s jaw. Don't let those giant tires slow down your operation any longer.

Tire Changer TTC306 Specification:

Rim Clamping Range 14" - 46"

Max Clamping Size W/ Extensions 56""

Max Wheel Weight 3,968 lbs.

Max Tire Diameter 98" (8' 2")

Max Tire Width 42" (3' 6")

Clamping Power 13,173 lbs.

Operating Pressure 0-1885 PSI

Acoustic Pressure <70dBA

Bead Breaker Force 5930 lbs.

Tool Arm Positioning Automatic

Tool Head Positioning Automatic

Construction Single Piece Frame w/ Solid Floor Plate

Hydraulic Motor Power 3 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker requiredv

Chuck Motor Power 3.5-4 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker required

Shipping Weight 2,260 lbs.

Key Features

• Deluxe Automated Truck Tire Changer

• 220 VOLT 3 PHASE ELECTRIC

• 2-Speed Hydraulic Chuck w/ 5 Rim Locking Positions

• Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm

• Handles rims from 14″ to 56″ and tire diameters in excess of 97″

• Accommodates tires with a max width of up to 53″

• Bead Breaker

• Mount/Demount Head

• Electric/Hydraulic Self-Centering Four Jaw Chuck

• 5 different rim locking positions

• Wired Mobile Control Unit (Wireless Control Optional)

• Heavy Duty Tire Tool Included

• Rim Clamps for Steel and Alloy Wheels Included

• Alloy Rim Adapter Set w/ Plastic Inserts Included

• Clamping Extensions Included

• 1 Year Parts Only Warranty

Ideal For

• Truck tire service centers and commercial shops

• Fleet maintenance operations servicing heavy vehicles

• Agricultural and construction equipment service

• High-volume tire shops handling large wheels
