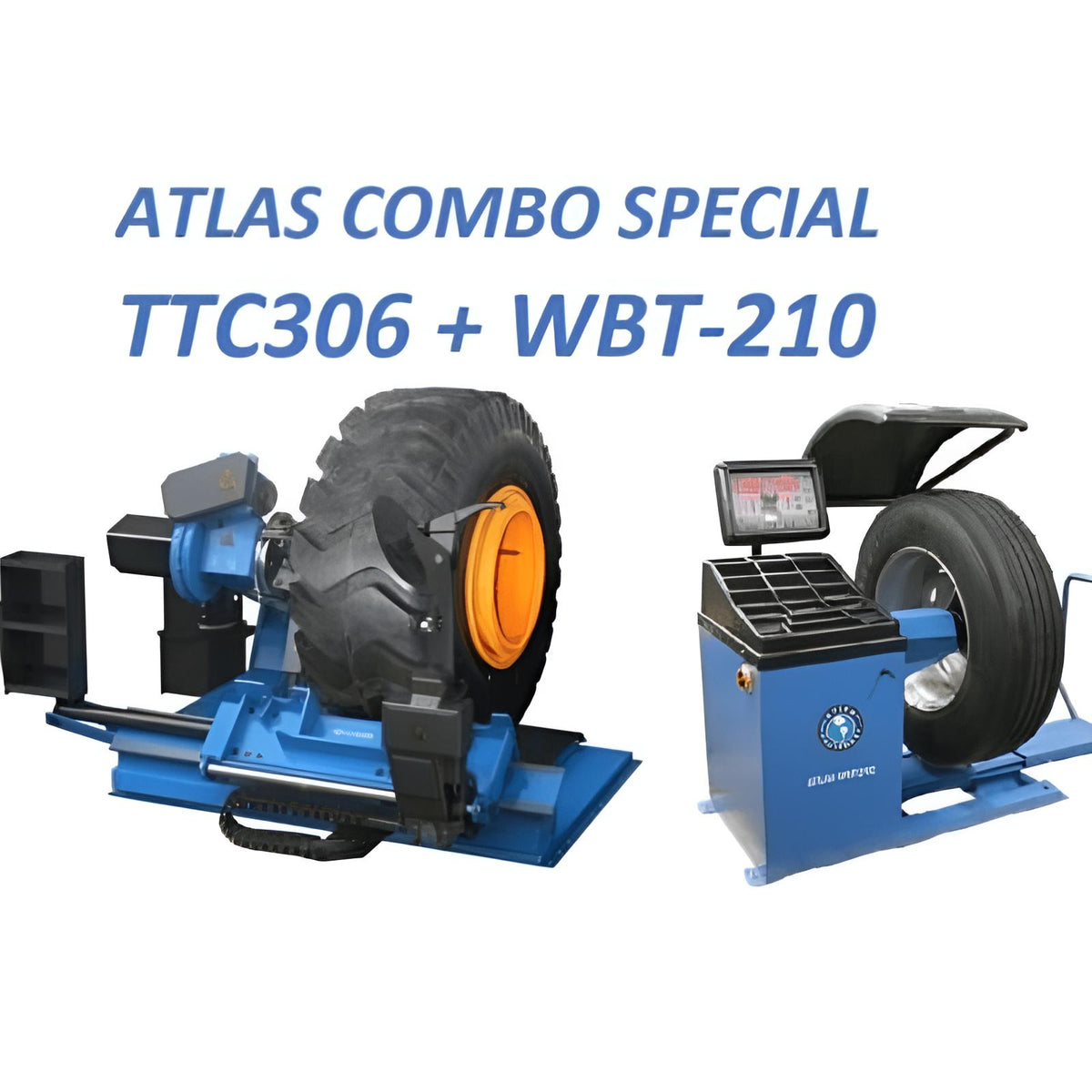

Atlas TTC306 Tire Changer + WBT-210 Wheel Balancer Combo 4

Is your shop struggling to handle the full spectrum of wheels rolling through your doors? The Atlas TC306 and WBT-210 combo package is here to save the day. This dynamic duo tackles everything from everyday passenger cars to those mammoth agricultural tires that make other equipment quiver in fear. The TC306 changes tires up to 98 inches in diameter and 42 inches wide, while the WBT-210 balances wheels up to 47 inches in diameter at speeds of 150 rpm for cars and 90 rpm for trucks.

The TC306's 3 HP hydraulic motor and 3.5-4 HP chuck motor power through the toughest jobs, while the WBT-210's 1/3 HP motor ensures smooth, quiet operation. With features like automatic tool arm and head positioning on the TC306, and a pneumatic wheel lift and automatic start/stop on the WBT-210, you'll breeze through jobs faster than ever. Grab this Atlas combo, with its operating pressure of up to 1885 PSI and air requirement of 115-140 PSI, and watch your tire service capabilities get to new heights.

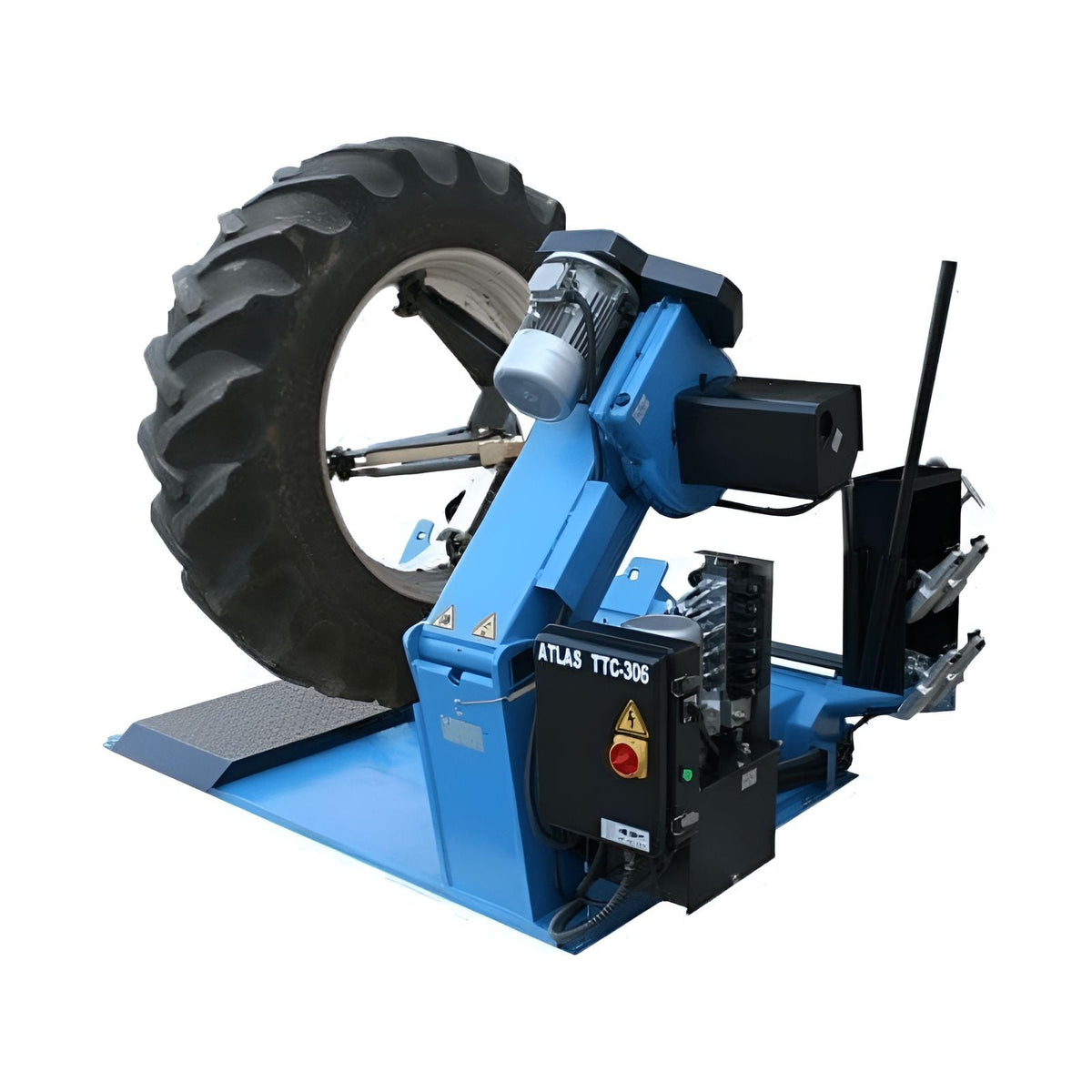

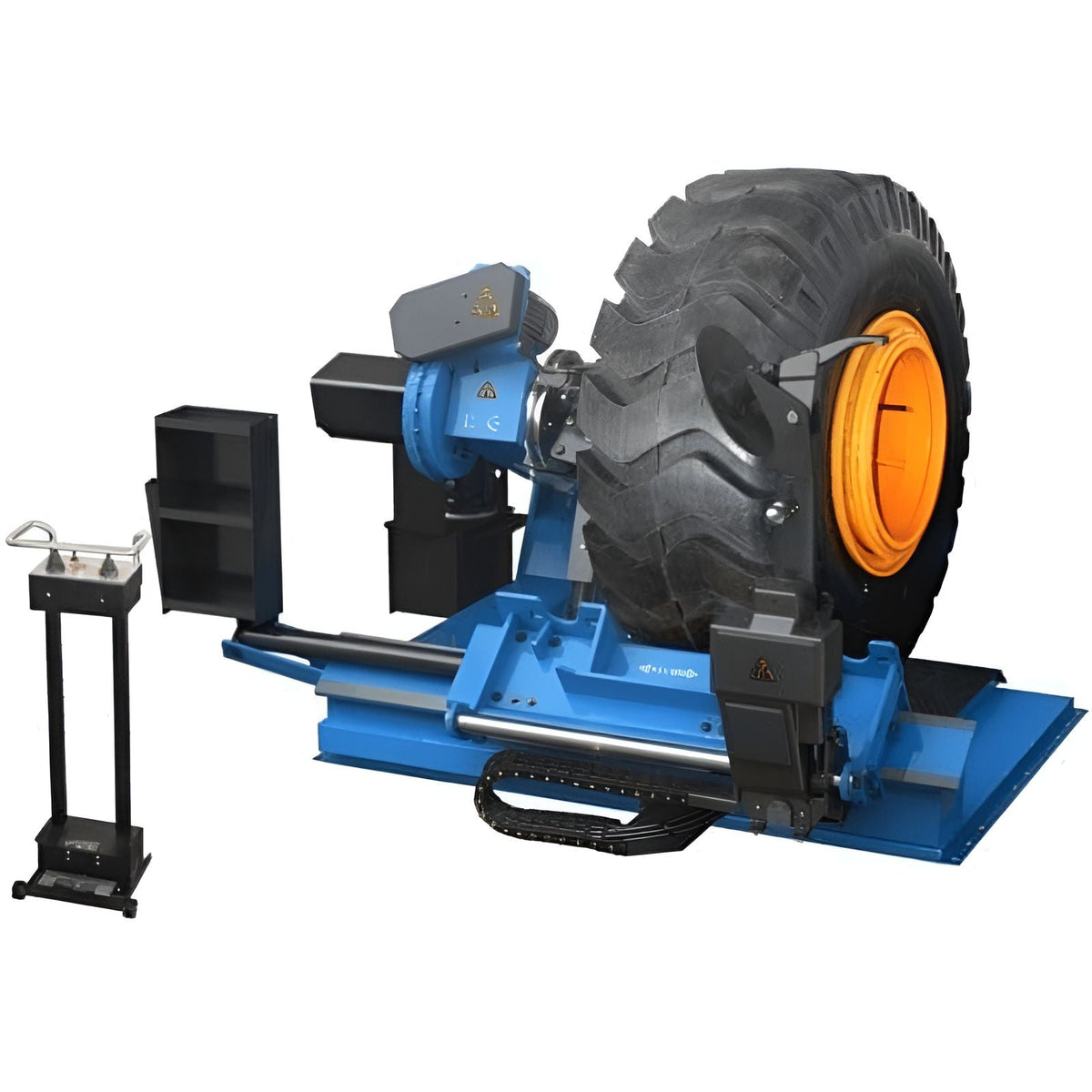

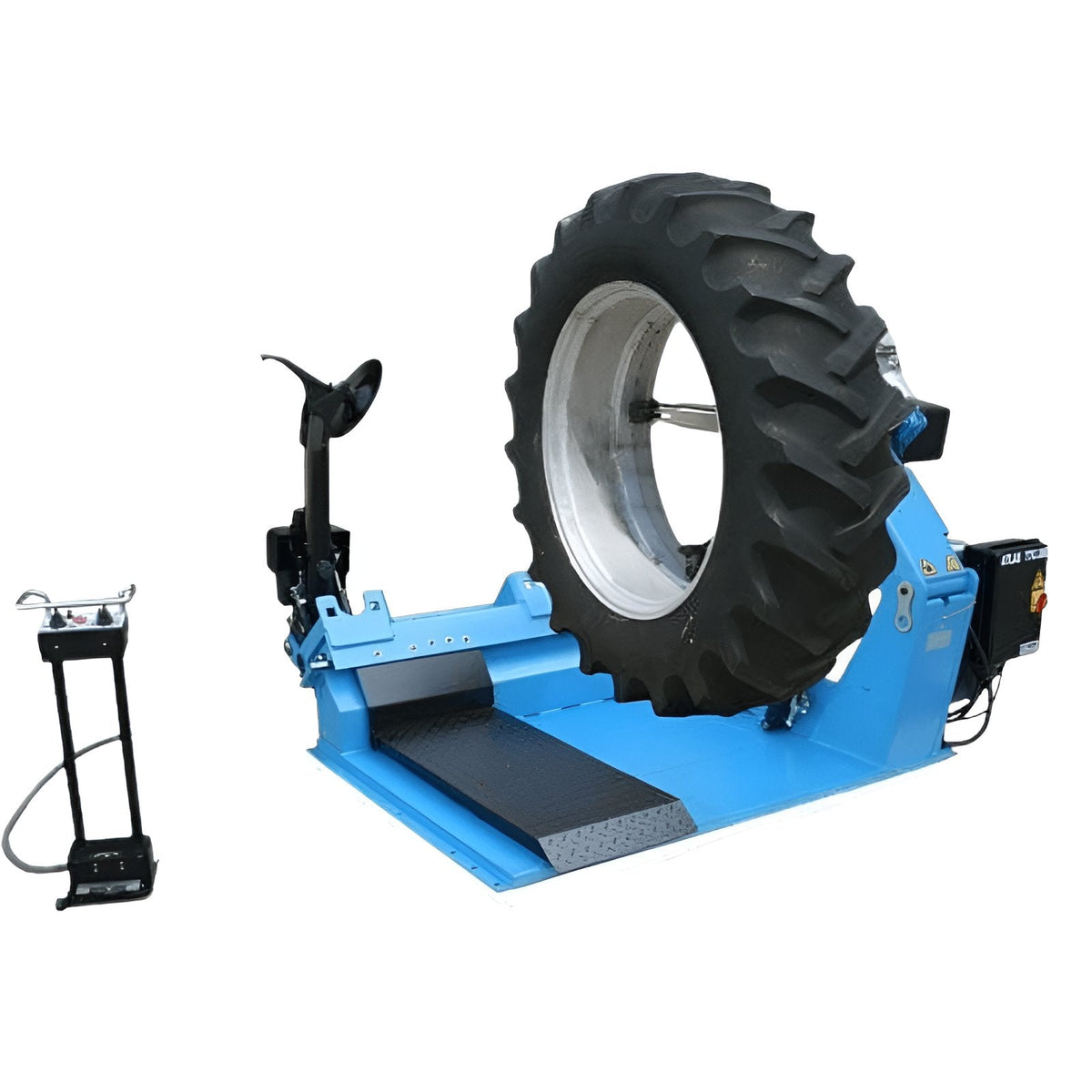

Tire Changer TTC306 Specification:

TTC306

Rim Clamping Range 14" - 46"

Max Clamping Size W/ Extensions 56""

Max Wheel Weight 3,968 lbs.

Max Tire Diameter 98" (8' 2")

Max Tire Width 42" (3' 6")

Clamping Power 13,173 lbs.

Operating Pressure 0-1885 PSI

Acoustic Pressure <70dBA

Bead Breaker Force 5930 lbs.

Tool Arm Positioning Automatic

Tool Head Positioning Automatic

Construction Single Piece Frame w/ Solid Floor Plate

Hydraulic Motor Power 3 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker requiredv

Chuck Motor Power 3.5-4 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker required

Shipping Weight 2,260 lbs.

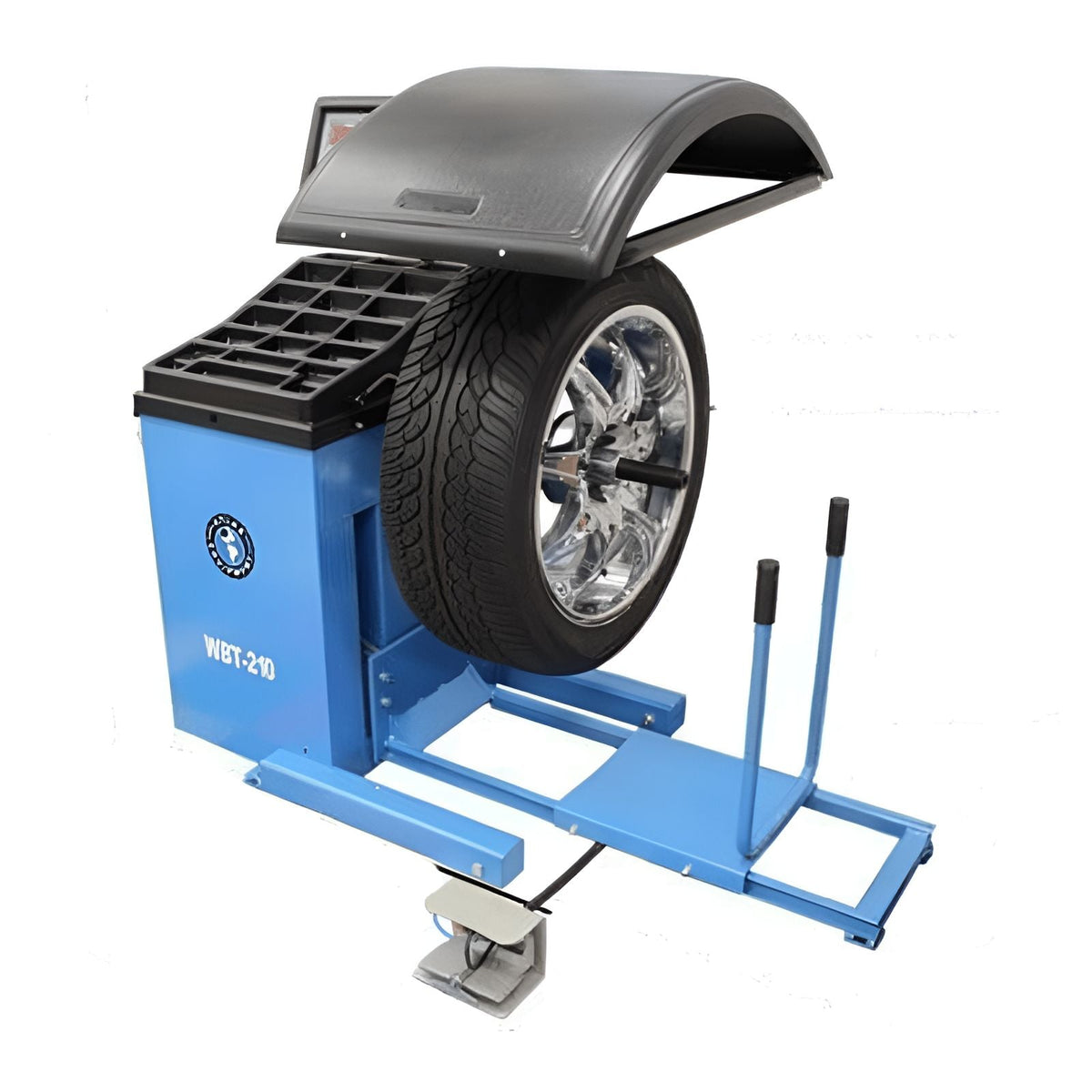

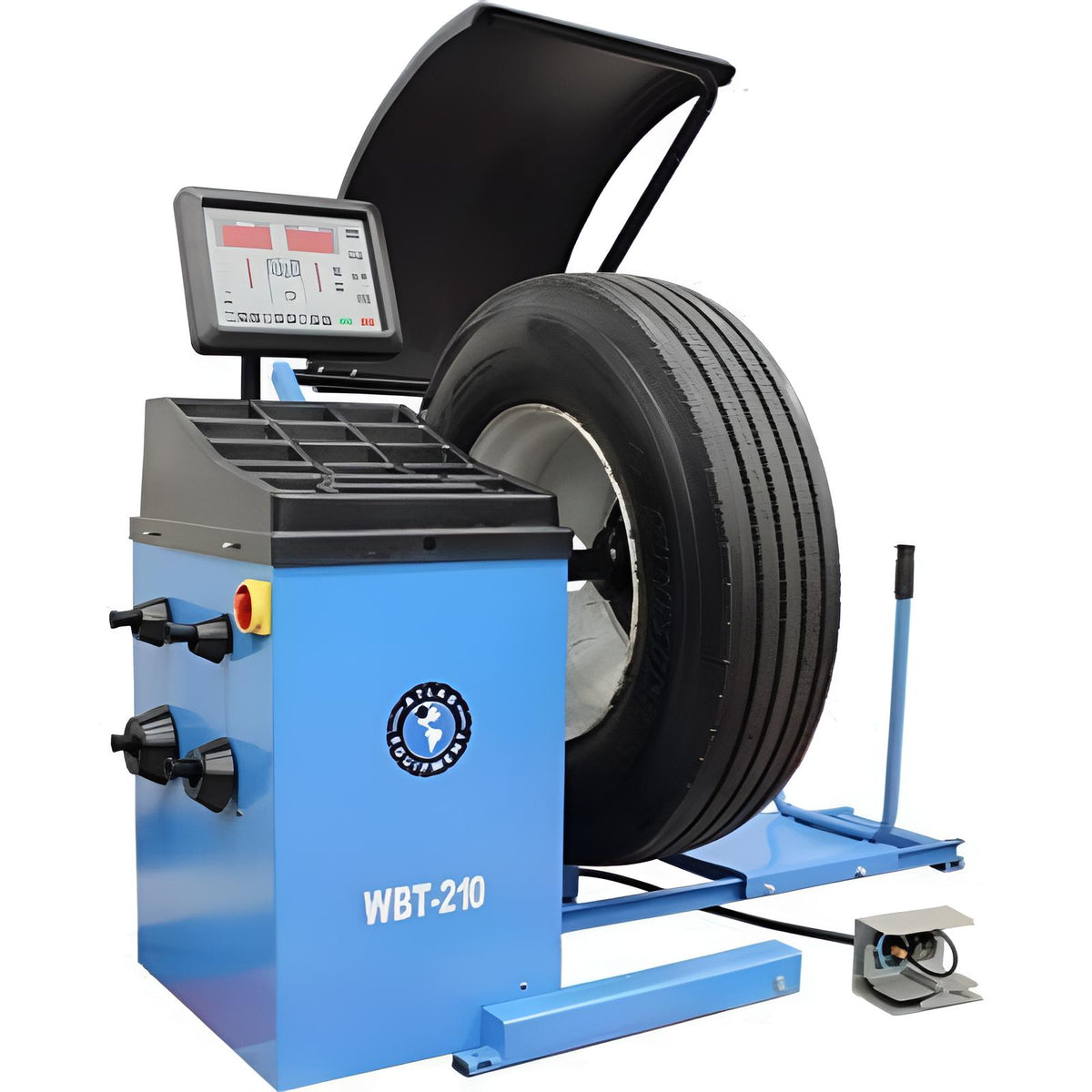

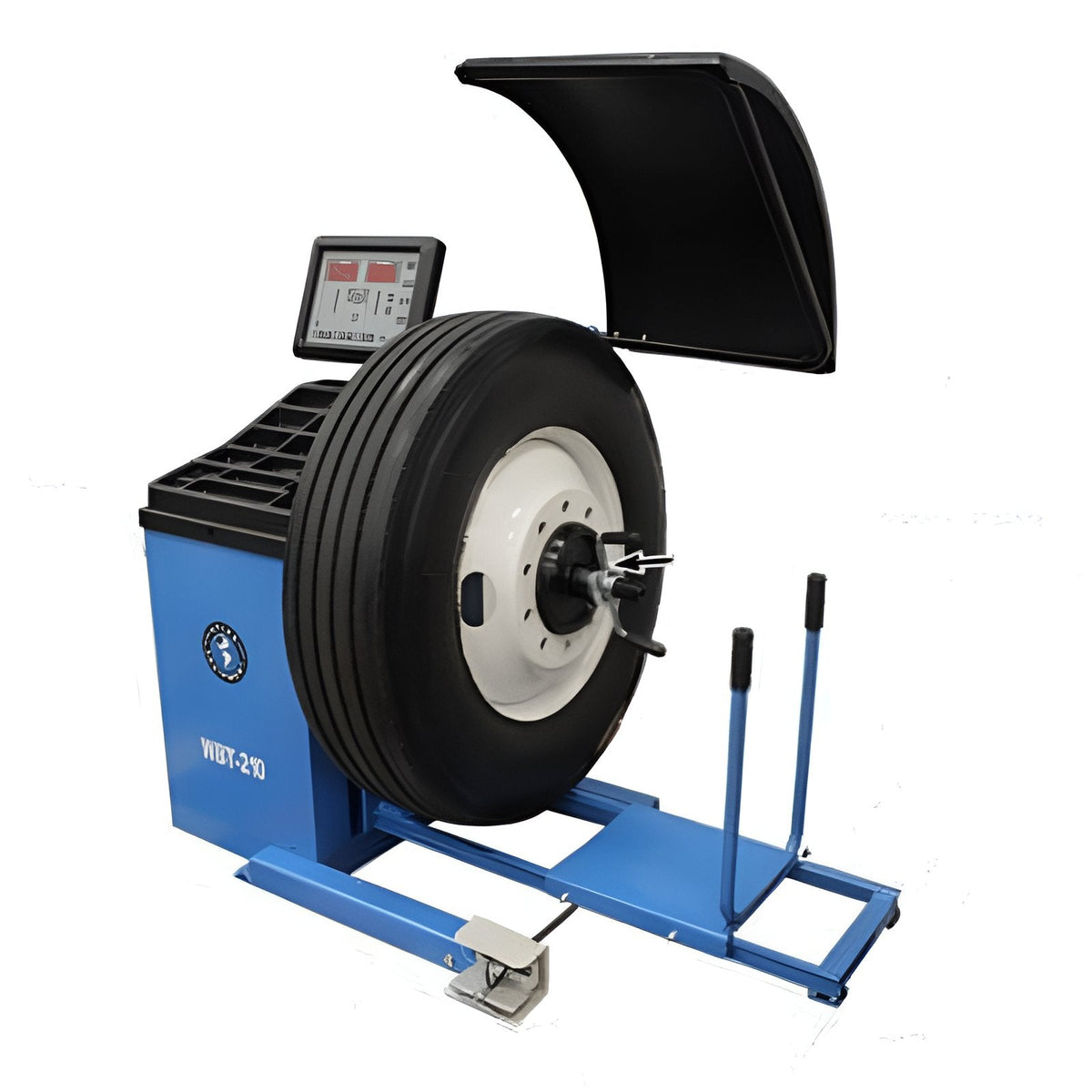

WBT-210

Max Tire Diameter: 47"

Rim Sizes (Cars And Light Trucks): 10"-32"

Rim Width: 1 1/2"-20"

Shaft Size: 40mm

Max. Wheel Weight: 440 lbs.

Balancing Speed: 150 rpm Car-Light Truck Mode/90 rpm Truck Mode

Data Entry: All Dimensions Manual Entry

Measurements: Standard Or Metric

Accuracy: 1 gram Car-Light Truck Mode/10 gram Truck Mode

Weight Position Resolution: 1.4 Degrees

Self Calibration: Yes

Motor: 1/3 HP

Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)

Power Supply: 220volt +/- 5% (209-231 volts) 1phase, 30 amp breaker required

Shipping Weight: 725 lbs.

Key Features

• Deluxe Automated Truck Tire Changer

• 220 VOLT 3 PHASE ELECTRIC

• 2-Speed Hydraulic Chuck w/ 5 Rim Locking Positions

• Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm

• Handles rims from 14″ to 56″ and tire diameters in excess of 97″

• Accommodates tires with a max width of up to 53″

• Bead Breaker

• Mount/Demount Head

• Electric/Hydraulic Self-Centering Four Jaw Chuck

• 5 different rim locking positions

• Wired Mobile Control Unit (Wireless Control Optional)

• Heavy Duty Tire Tool Included

• Rim Clamps for Steel and Alloy Wheels Included

• Alloy Rim Adapter Set w/ Plastic Inserts Included

• Clamping Extensions Included

• 1 Year Parts Only Warranty

• omputer Controlled Heavy Duty Spin Balancer

• Cone sets for car and light truck tires

• Cone and spacer set for truck, bus, or implement tires

• Plastic Quick Release Nut included

• Heavy duty steel wing nut included

• Pneumatic wheel lift (external air supply required)

• Automatic start/stop when hood is lowered/raised.

• Static and dynamic balancing modes.

• Rapid optimization (OPT)

• Self-diagnosis

• Self-calibration

• Exceptional stability in reading the unbalance between planes

• Display in grams or ounces, and in mm or inches

• Wheel Weight Pliers Included

• Wheel Width Calipers Included

• Replacement parts & wear items available

• 1 Year Parts Only Warranty

Ideal For

• Shops wanting a complete tire-service setup in one purchase

• Tire shops and dealerships handling daily tire service

• Auto repair centers adding wheel and tire work

• Home garages and serious DIY mechanics
