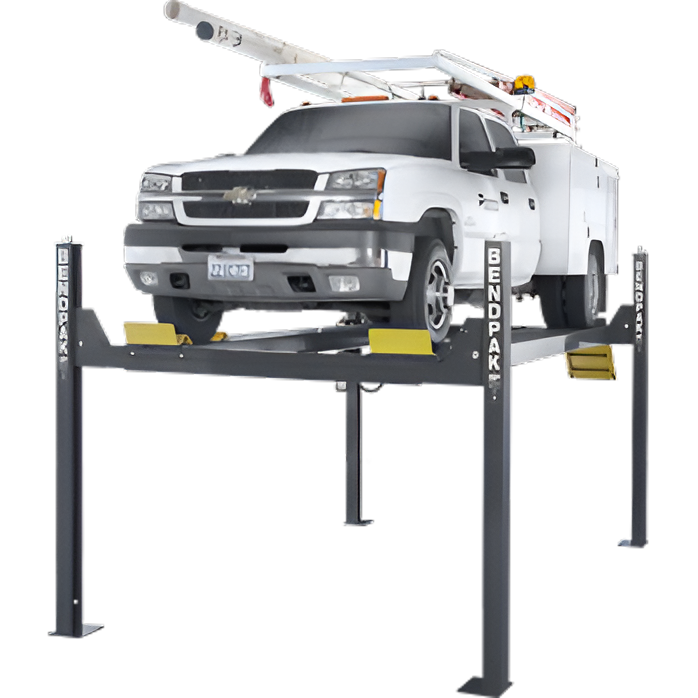

BendPak HD-14T Four-Post Lift – 14,000 lb, Extra-Tall 82" Rise

More Height in a 14,000-lb. Lift

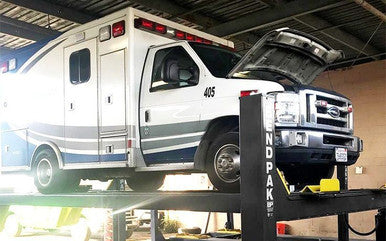

The BendPak HD-14T is a four-post car lift offering superior lifting power with an extended 82-inch (208.3 cm) rise, making it ideal for accommodating commercial fleets of trucks, vans, and large SUVs. This model allows service bays to impress customers by handling a wider variety of vehicles than the competition, regardless of their size.

Key Features

• 14,000 lbs. Capacity: Designed for heavy-duty lifting, suitable for large trucks, SUVs, and commercial vans.

• Extended 82″ (208.3 cm) Rise: Provides ample height for comfortable work underneath tall vehicles.

• Extended Runways: Long enough to handle large trucks and SUVs, with extended approach ramps to prevent damage to the vehicle’s undercarriage during loading.

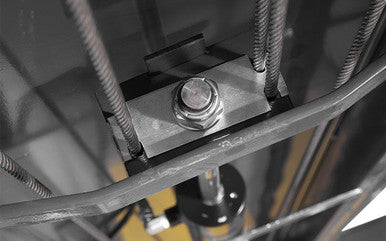

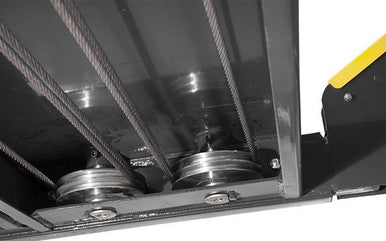

• Dual-Hub Cable Sheaves: Features large 6.5-inch (16.5 cm) diameter sheaves and 1.5-inch (3.8 cm) diameter sheave axles within the runway and cross tubes, reducing maintenance time and costs.

• Heavy-Duty Aircraft Cable: Includes four 1/2-inch (1.27 cm) diameter, 6 x 25 stainless-steel lifting cables, each with a breaking strength exceeding 14,000 lbs. (6,350 kg).

• Built-in Lubrication: Grease fittings on sheaves and sheave axles ensure proper and continuous lubrication of critical components.

• Flow Restrictor: An integrated flow restrictor ensures a slow, controlled descent in the rare event of hydraulic hose failure, maintaining runway levelness for maximum safety.

• Large Base Plates: 10-inch x 12-inch (25.4 x 30.5 cm) base plates provide a safe and stable foundation.

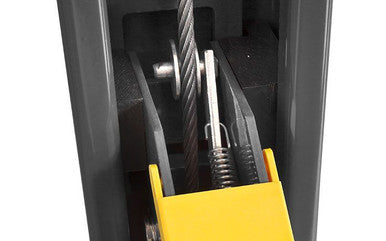

• Spring-Loaded Safety Locks: Automatic locks engage as the runways rise. Adjustable safety ladders ensure ramps are level, even on slightly sloped garage floors, adding to the lift’s versatility.

• Push-Button Pneumatic Lock Release: A simple push-button operation allows for easy lowering of the lift. Utilizes aircraft-quality stainless steel and aluminum pneumatic cylinders for durability.

• Secondary Lock System: Features an essential backup slack-cable detection system, providing peace of mind by preventing catastrophic failure in the unlikely event of cable issues.

• Integrated Design: All internal components (cables, airlines, etc.) are hidden and protected from environmental damage and human interference.

• Adjustable Height Locking Positions: Multiple fully adjustable lock positions allow operators to set the working height for maximum convenience.

• Electric-Hydraulic Power System: A dependable, zero-maintenance system with all controls conveniently located at the operator’s fingertips.

• Flexible Protective Conduit: ALI-certified, non-metallic tubing protects cables and hoses from electric shocks, wear, and tear over time.

• Optional Rolling Bridge Jacks: Recommended 7,000-lb. (3,175 kg) capacity rolling jacks can be used to raise the vehicle’s wheels off the runways for wheel service. Two jacks can lift all four wheels simultaneously.

Ideal For

• Professional auto shops and service centers

• Fleet maintenance and commercial vehicle operations

• Heavy-duty truck and commercial vehicle service

Technical Specifications

• Capacity: 14,000 lbs. (6,350 kg)

• Lift Rise: 82 inches (208.3 cm)

• Cable Sheave Diameter: 6.5 inches (16.5 cm)

• Sheave Axle Diameter: 1.5 inches (3.8 cm)

• Lifting Cable Diameter: 1/2 inch (1.27 cm)

• Lifting Cable Breaking Strength: Over 14,000 lbs. (6,350 kg) each

• Base Plate Dimensions: 10 inches x 12 inches (25.4 x 30.5 cm)
