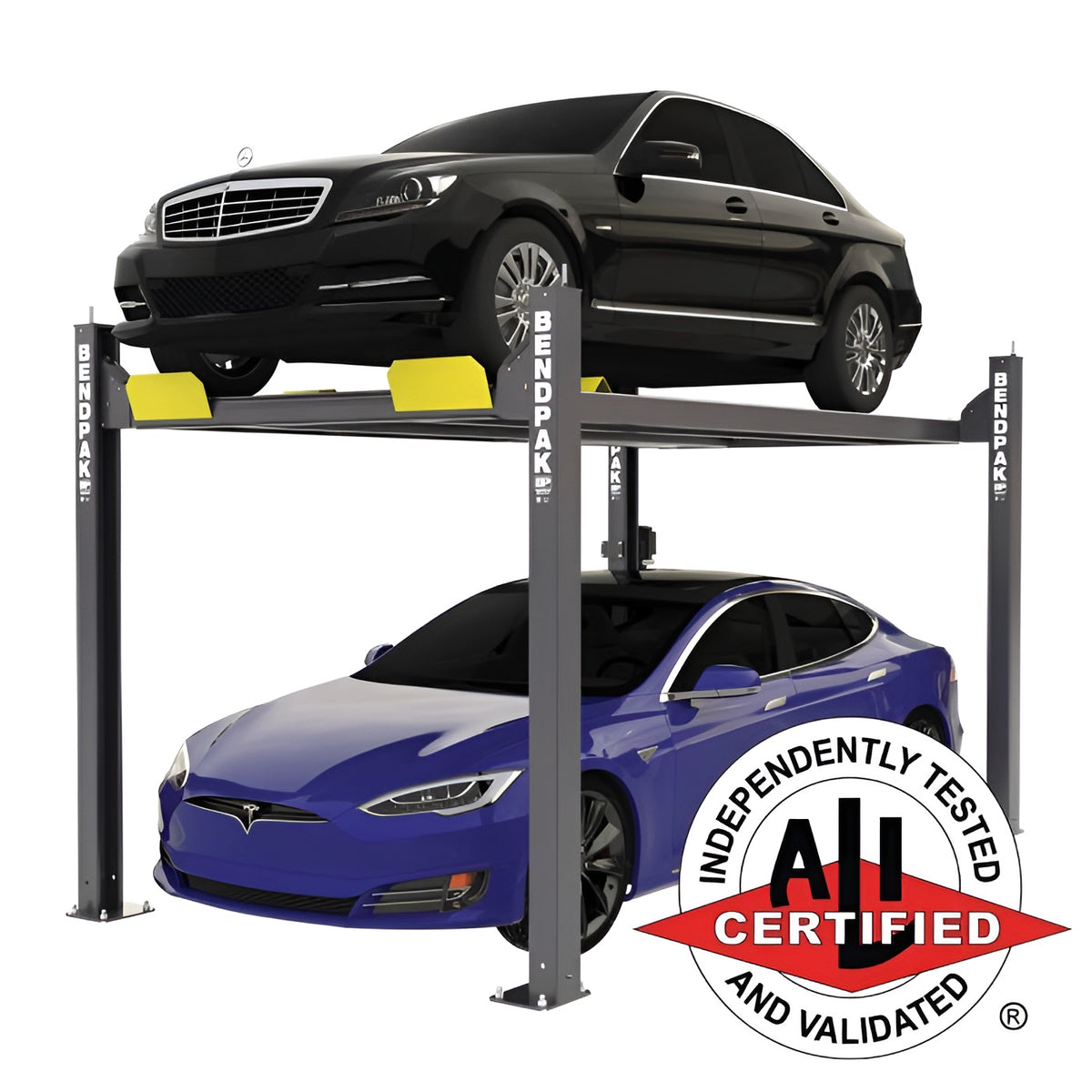

BendPak HD-7P Four-Post Parking Lift – 7,000 lb, Narrow Width, Extra-Tall

A Versatile and Compact 7,000-lb. Parking Lift

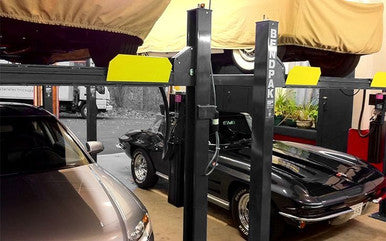

A parking lift is an excellent way to maximize space. Homeowners appreciate the extra room these lifts create, while commercial parking garages find that enough parking lifts can effectively double their garage space and improve their bottom lines. The only alternative to adding parking spaces, besides using a car lift, is to physically expand the property. BendPak lifts are built to outlast any vehicle stowed on them, requiring very little maintenance throughout their lifespan, and maintaining a sleek and attractive appearance in any setting. This aesthetic appeal is crucial for professionals, as customers often make value judgments based on appearance; organized, efficient parking is a clear advantage. Homeowners will also enjoy the sophisticated look. All components of the HD-7 parking lift are internally routed for both enhanced safety and improved aesthetics.

Key Features

• 7,000-lb. (3,175 kg) Lift Capacity: Versatile for various vehicles.

• Space-Saving Design: Ideal for homeowners and commercial parking garages to effectively double parking space.

• Low Maintenance: Designed for long-term durability with minimal upkeep.

• Sleek and Attractive: Internally routed components contribute to a clean look, important for both professional and home settings.

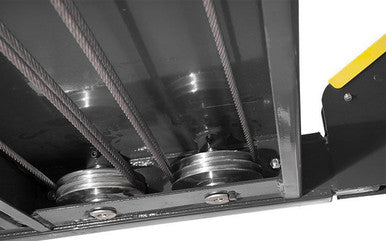

• Dual-Hub Cable Sheaves: Doubles the cable-run surface area for a safer, longer-lasting product by reducing stress and fatigue on components.

• Multi-Level Locking Positions: Four safety locks engage securely and automatically at multiple levels as the lift rises.

• Pneumatic Safety Release: Disengages all locks simultaneously for smooth and safe descent.

• Heavy-Duty Aircraft Cable: Cables collectively rated over 822% of the overall lift capacity, with each aircraft-quality stainless steel cable rated for 14,400 lbs. (6,532 kg) and fully enclosed in the lift columns.

• Electric-Hydraulic Power System: Integrated system with easy-to-reach controls, requiring zero user-end maintenance.

• Large Base Plates: 10″ x 12″ (25.4 cm x 30.5 cm) base plates provide a strong, stable foundation.

• Optional Caster Kit: A 4-piece caster kit is available for maximum versatility, allowing the lift to be moved with or without a vehicle on the structure.

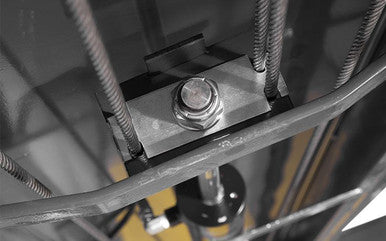

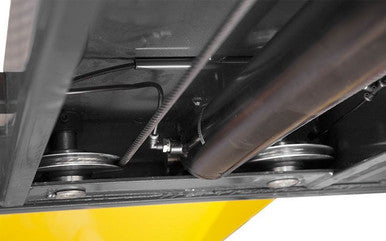

• Integrated Design: Lifting cables, airlines, safety latches, and sheaves are all contained within the columns, protecting them from damage and contributing to a cleaner look. Prevents rubbing between side-by-side lifts and tangled clothing.

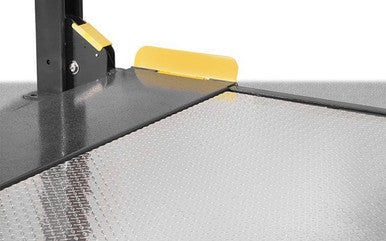

• Low-Deck Runways: Low, 4-1/2″ (11.4 cm) runways easily accommodate low-bodied sport and race cars, as well as any vehicle weighing less than 7,000 lbs. (3,175 kg).

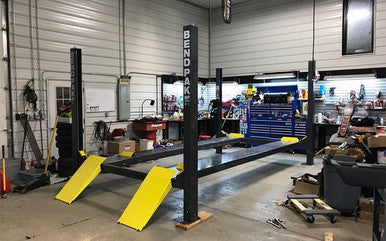

• Longer Approach Ramps: Eliminates undercarriage damage and increases the range of vehicles the lift can handle.

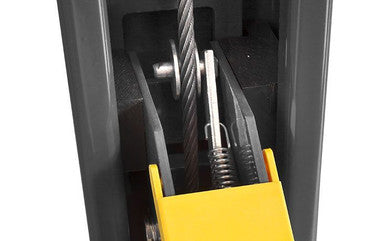

• Automatic Safety Locks: Aircraft-quality stainless steel and aluminum pneumatic cylinders release all four locks simultaneously with a simple push of a button. Spring-loaded safety locks automatically engage continuously as the lift is raised.

• Secondary Slack-Cable Locks: Engages if cable slack is detected during operation, providing emergency protection and ensuring a safe, even, and controlled descent.

• Choose Wide or Narrow Options: Ensures maximum versatility for various garage spaces.

• Indoor/Outdoor Serviceable: Can be used equally well indoors or outdoors.

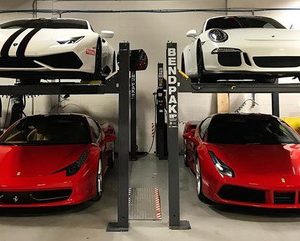

• Modular: Multiple units (mix and match types) can stack side-by-side to increase parking capacity without demanding much floor space.

• ALI Certified: This product is certified to meet rigorous safety and performance standards.

Ideal For

• Home garages and DIY automotive enthusiasts

• Professional auto shops and service centers

• Vehicle parking and storage space optimization

• Heavy-duty truck and commercial vehicle service

Technical Specifications

• Lift Capacity: 7,000 lbs. (3,175 kg)

• Individual Cable Rating: 14,400 lbs. (6,532 kg)

• Base Plate Dimensions: 10″ x 12″ (25.4 cm x 30.5 cm)

• Runway Height (Low): 4-1/2″ (11.4 cm)
