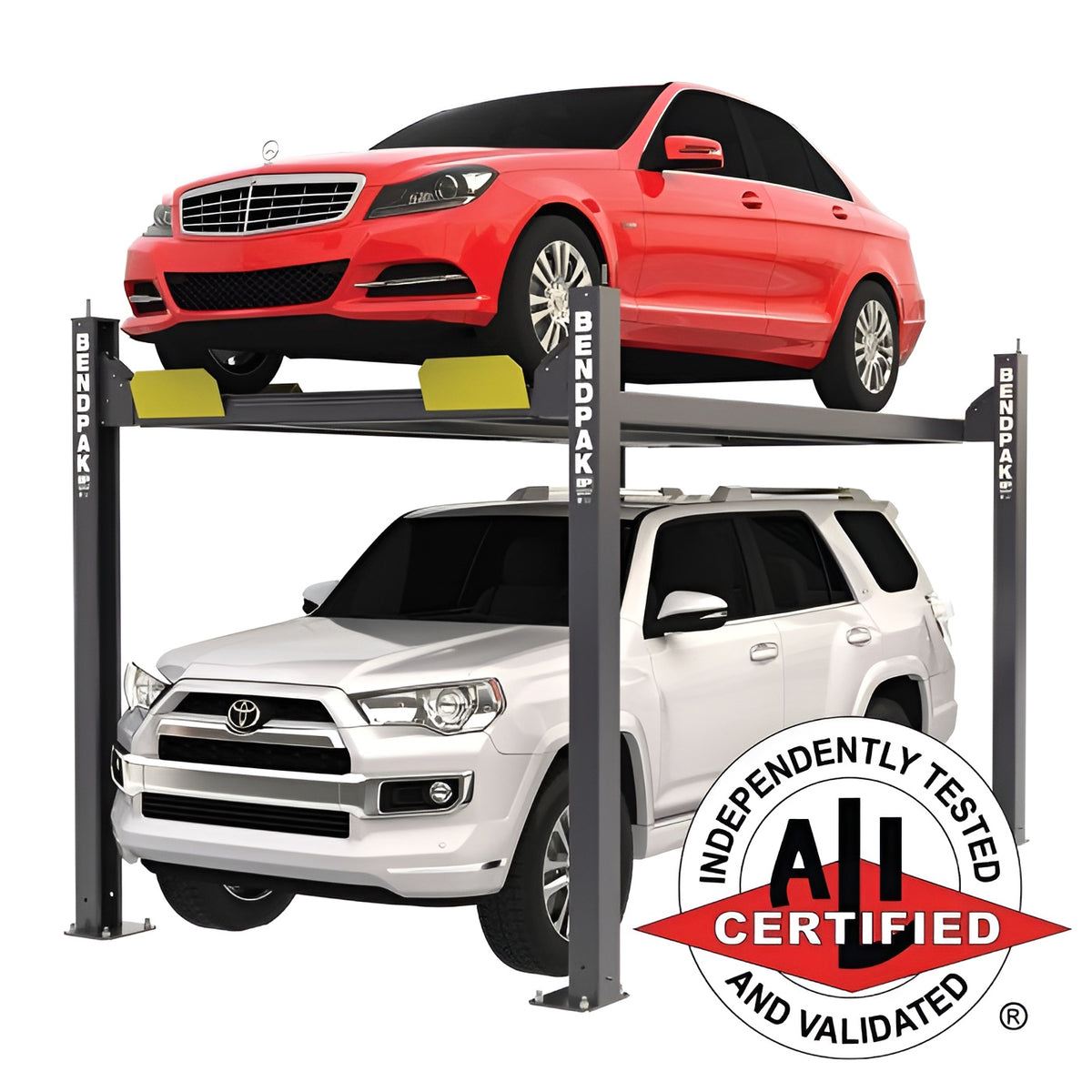

BendPak HD-7W Four-Post Lift – 7,000 lb, Standard Width

Dependable, Light-Duty 7,000-lb. Capacity Four-Post Lift

The BendPak HD-7W is a 7,000-lb. (3,175 kg) capacity four-post lift, perfect for shops and homeowners seeking versatility to park and service sports cars, sedans, light-duty trucks, and SUVs within the same structure. Its design offers ample side clearance to accommodate larger truck mirrors, yet the lift itself is only slightly larger than a typical parking space. With its reduced footprint and ability to house various vehicle types in low-ceiling garages, the HD-7W is an extremely attractive parking and maintenance solution for both professional technicians and DIY enthusiasts.

Key Features

• 7,000 lbs. Capacity: Ideal for a wide range of vehicles including sports cars, sedans, light-duty trucks, and SUVs.

• Dependable Design: Features four stainless steel wire ropes and a single hydraulic cylinder tucked underneath the runway, ensuring durability and minimal maintenance.

• Dual-Hub Wire Rope Sheaves: Larger, oversized sheaves prevent undue wear on axles, wire rope, and the sheaves themselves, leading to a safer, longer-lasting product with lower maintenance costs.

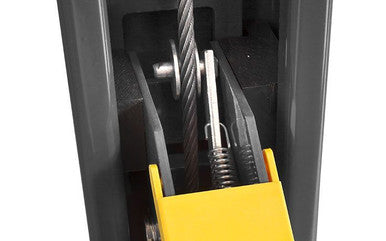

• Multi-Level Locking Positions: Allows for customizable parking and service heights, with automatic column locks every few inches and a push-button release for all four locks.

• Secondary Safety Locks: A backup slack-cable device catches the runways and keeps the vehicle level in case of dangerous cable slack, rendering the lift inoperable until the issue is resolved.

• Heavy-Duty Aircraft Wire Rope: Extremely powerful stainless steel wire ropes are rated at 14,400 lbs. (6,532 kg) each, with a combined rating of over 822% of the lift’s maximum capacity. All wire rope is fully enclosed within the lift structure for safety and aesthetics.

• Electric-Hydraulic Power System: A zero-service power unit integrated into the lift structure, offering dependable, long-lasting, and safe operation with conveniently located controls.

• Large Base Plates: 10-inch x 12-inch (25.4 x 30.5 cm) base plates provide a stable yet minimal footprint, ensuring structural soundness.

• Caster Kit (Optional): A rugged, 4-piece caster kit makes the lift mobile, allowing it to be moved for other service jobs or to re-park vehicles, even with a car raised on the runways.

• Integrated Design: Critical lifting components (airlines, safety latches, wire rope sheaves) are fully enclosed within the columns for safety, convenience, and improved aesthetics.

• Low-Deck Runways: Low-profile, 4.5-inch (11.4 cm) high runways facilitate easy and safe loading of vehicles, reducing the time spent driving up approach ramps.

• Longer Approach Ramps: Gentle, extended-length approach ramps prevent damage to low-riding vehicles, making loading easier for drivers of all experience levels.

• ALI Certified: This product is certified to meet rigorous safety and performance standards.

Ideal For

• Home garages and DIY automotive enthusiasts

• Professional auto shops and service centers

• Vehicle parking and storage space optimization

• Heavy-duty truck and commercial vehicle service

Technical Specifications

• Capacity: 7,000 lbs. (3,175 kg)

• Individual Wire Rope Rating: 14,400 lbs. (6,532 kg) each

• Combined Wire Rope Rating: Over 822% of maximum lifting capacity

• Base Plate Dimensions: 10 inches x 12 inches (25.4 x 30.5 cm)

• Runway Height: 4.5 inches (11.4 cm)
