BendPak HD-9 Four-Post Lift – 9,000 lb, Standard Width

The BendPak HD-9 is a highly popular and versatile four-post lift, engineered with a serious level of precision to ensure durability and ample lifting security. It utilizes the most robust galvanized steel lifting cables and a single hydraulic cylinder for incredibly powerful and smooth operation, designed to perform consistently for years with proper use.

The HD-9 series offers the widest variety within BendPak’s four-post lift weight class, as most vehicles serviced by shops weigh less than 9,000 lbs. (4,082 kg). While larger capacity models are available for heavier vehicles, the HD-9 Series strikes an optimal balance of powerful lifting, compact design, and exceptional product value.

Key Features

• 9,000 lbs. Capacity: One of BendPak’s most popular and versatile lifts, suitable for most vehicles serviced by shops.

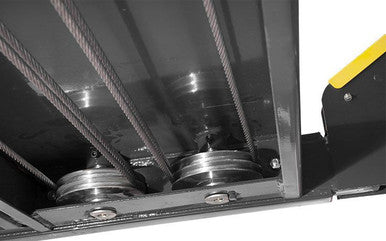

• Dual-Hub Cable Sheaves: More expensive to manufacture, these sheaves prevent premature wear on axles, sheaves, and cables, ensuring long-term durability.

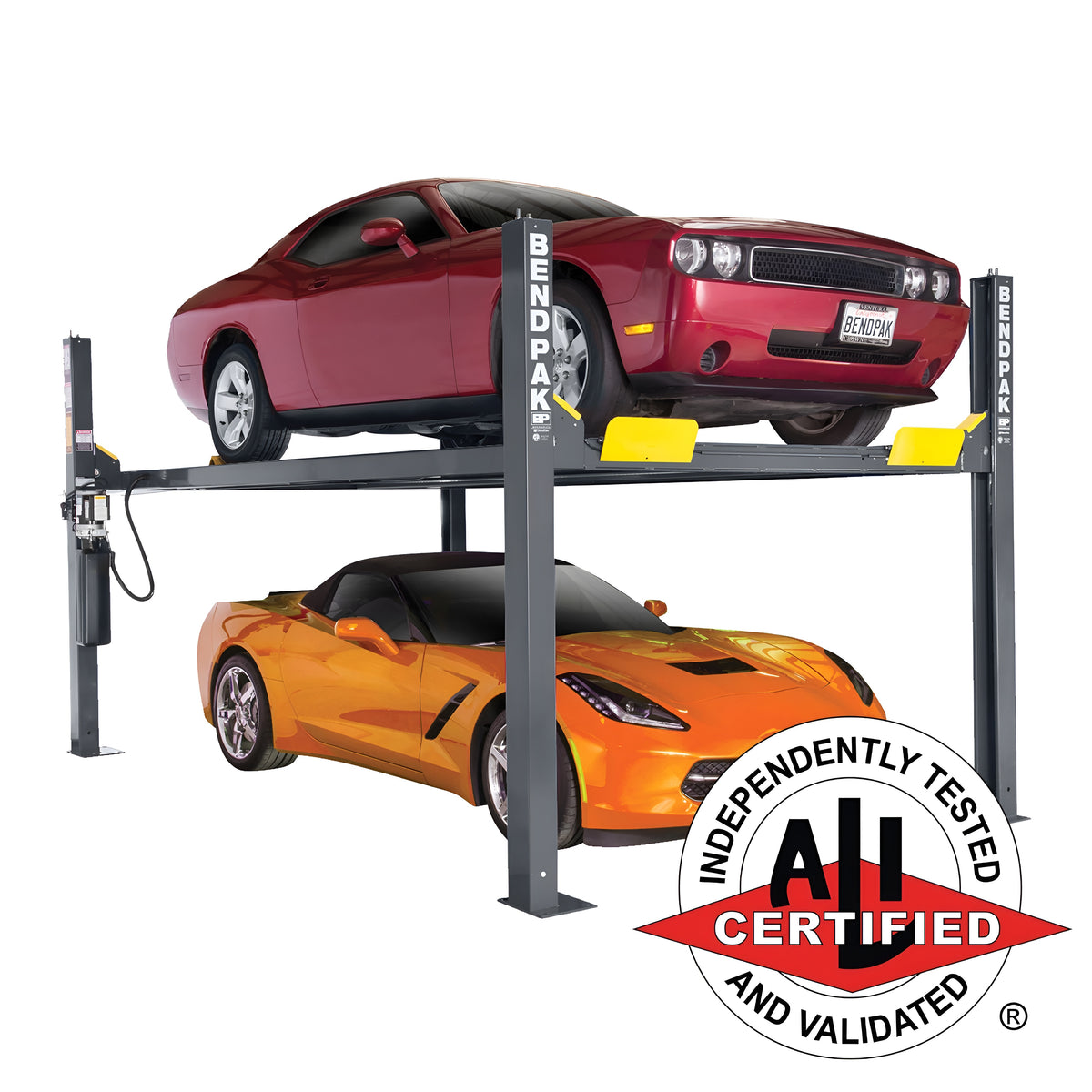

• Multi-Level Locking Positions: Allows for safe locking of the four-post lift at varied heights for comfortable auto maintenance or flexible vehicle stacking for parking.

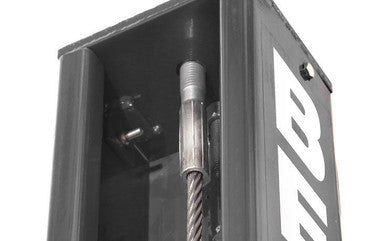

• Heavy-Duty Aircraft Cable: Includes four superior-grade stainless steel lifting cables, each rated to handle 14,400 lbs. (6,532 kg), providing a combined rating over 640% of the total capacity. Cables are hidden within post columns for safety and a streamlined appearance.

• Electric-Hydraulic Power System: Maintenance-free system with conveniently located controls for easy stopping, starting, and reversing of the lift.

• Large Base Plates: 10-inch x 12-inch (25.4 x 30.5 cm) base plates provide a solid and stable foundation.

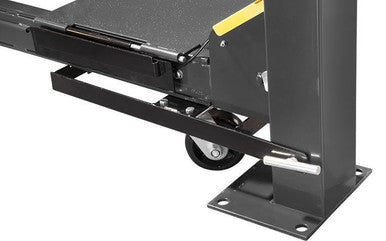

• Caster Kit (Optional): A 4-piece caster kit is available for all 9K four-post lifts, transforming the stationary lift into a mobile parking and service station, even with a car on top.

• Integrated Design: All lifting cables, airlines, safety latches, and sheaves are routed internally within the car lift structure for enhanced safety and improved aesthetics.

• Low-Deck Runways: Runways are kept to a low 4.5 inches (11.4 cm) to allow low-stance chassis to be comfortably driven onto the lift.

• Longer Approach Ramps: Extended ramps facilitate easier loading of sports cars and other low-standing vehicles.

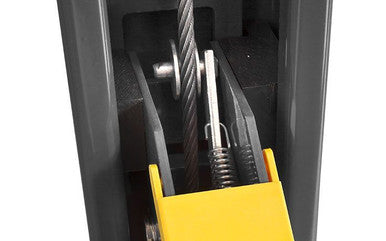

• Automatic Safety Locks: Four locks engage simultaneously as the lift is raised, and a backup locking system catches cable slack in the unlikely event of cable failure, designed with a safety-first mentality.

• ALI Certified: This product is certified to meet rigorous safety and performance standards.

Specifications

• Capacity: 9,000 lbs. (4,082 kg)

• Individual Cable Breaking Strength: 14,400 lbs. (6,532 kg) each

• Combined Cable Rating: Over 640% of total capacity

• Base Plate Dimensions: 10 inches x 12 inches (25.4 x 30.5 cm)

• Runway Height: 4.5 inches (11.4 cm)

Additional Resources

Ideal For

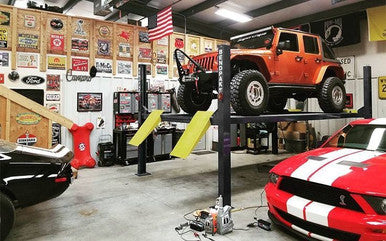

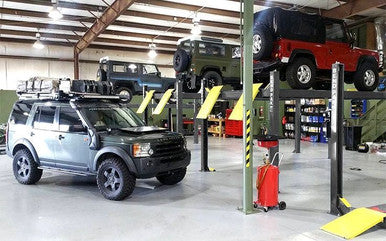

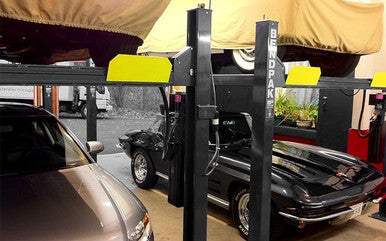

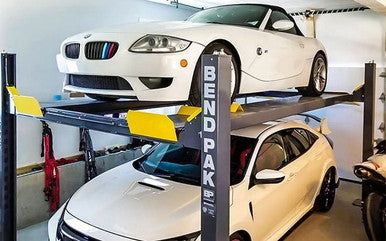

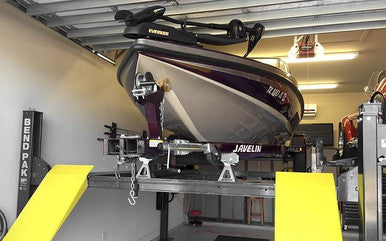

• Vehicle parking and storage space optimization

• Heavy-duty truck and commercial vehicle service
