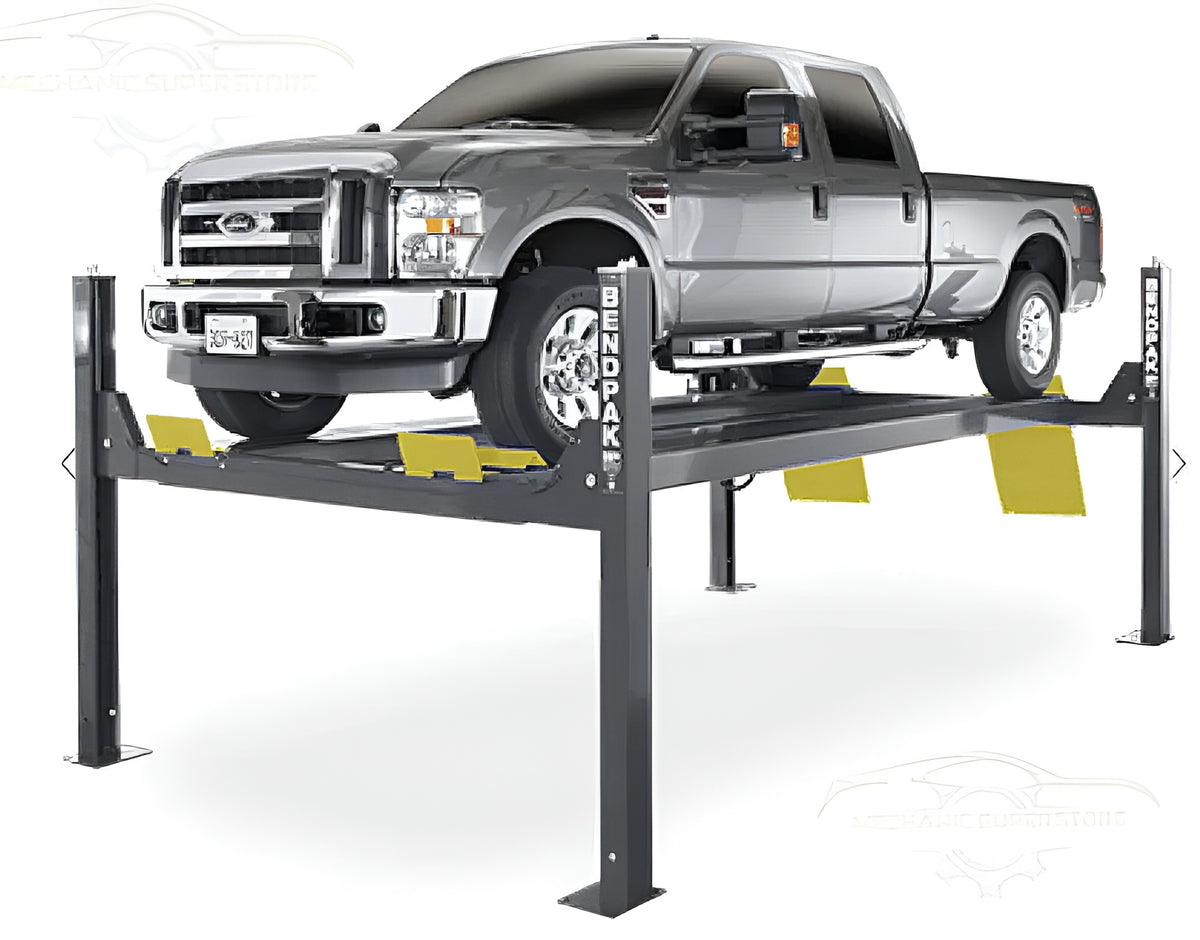

BendPak HDS-14X Heavy-Duty Four-Post Lift – 14,000 lb, Extended Limo-Style

The HDS-14X Offers Extreme Length, Extreme Ease-of-Use

The BendPak HDS-14X is an “limo style” four-post lift, characterized by its impressive front-to-back clearance. This design allows for easy accommodation of the longest vehicles, while also being suitable for low-profile and high-stance vehicles alike. This versatility, combined with BendPak’s renowned craftsmanship, makes the HDS-14X an ideal addition to any garage or commercial shop looking to expand its service capabilities.

With runways extended 30 inches (76.2 cm) beyond standard models, reaching a total of 229 inches (581.7 cm), the HDS-14X offers exceptional length. Its extended approach ramps provide a safe and gradual incline for vehicle loading, and a generous 70-inch (177.8 cm) rise allows mechanics to stand upright comfortably for various undercarriage services, including oil changes, exhaust work, and wheel service.

Key Features

• 14,000 lbs. Capacity: Designed to handle a wide range of vehicles, from small cars to long, heavy trucks.

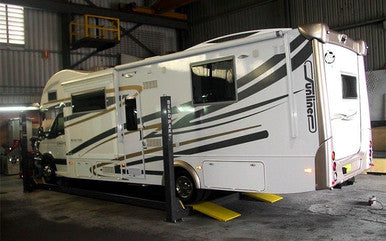

• Super-Long 229″ (581.7 cm) Runways: Provides extensive front-to-back clearance, accommodating extremely long vehicles in its weight class.

• Extended Approach Ramps: Decreases the drive-on angle, preventing damage to low-profile vehicles.

• 70″ (177.8 cm) Rise: Allows mechanics to stand upright comfortably for undercarriage service.

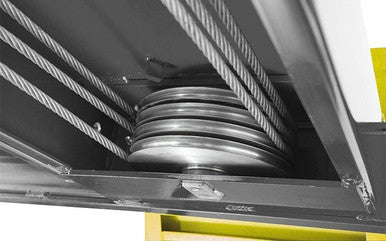

• Dual-Hub Cable Sheaves: Features large 10.5-inch (26.7 cm) diameter cable sheaves and massive 2.25-inch (5.7 cm) diameter sheave axles to reduce stress, fatigue, and wear, extending the lift’s durability.

• Large Base Plates: 10-inch x 12-inch (25.4 x 30.5 cm) base plates offer a solid and space-efficient foundation.

• Spring-Loaded Safety Locks: Continuously engage as the lift rises, with adjustable safety ladders for precise runway leveling, even on sloped floors.

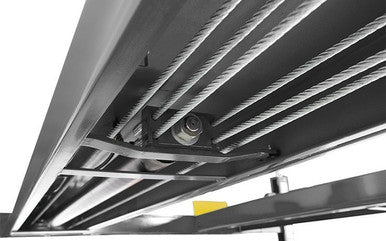

• Secondary Lock System: A cable slack detection system acts as a crucial backup, catching and stabilizing platforms in the unlikely event of cable slack.

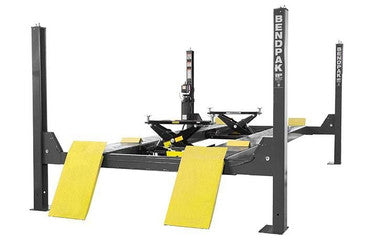

• RJ7W Rolling Bridge Jack (Optional): A 7,000-lb. (3,175 kg) capacity rolling bridge jack is available to lift half of a 14,000-lb. vehicle for efficient wheel and brake service, maximizing shop capabilities.

• ALI Certified: Ensures compliance with rigorous safety and performance standards.

Ideal For

• Professional auto shops and service centers

• Heavy-duty truck and commercial vehicle service

Technical Specifications

• Capacity: 14,000 lbs. (6,350 kg)

• Runway Length: 229 inches (581.7 cm)

• Lift Rise: 70 inches (177.8 cm)

• Cable Sheave Diameter: 10.5 inches (26.7 cm)

• Cable Sheave Axle Diameter: 2.25 inches (5.7 cm)

• Base Plate Dimensions: 10 inches x 12 inches (25.4 x 30.5 cm)
