BendPak HDS-27X Heavy-Duty Four-Post Truck Lift – 27,000 lb, Extended Runways

Longer Runways for Semi-Trucks and More

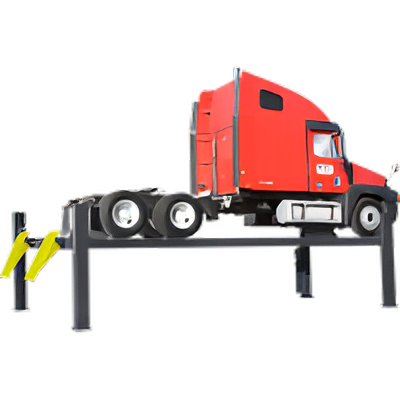

The BendPak HDS-27X is a heavy-duty four-post lift specifically designed for commercial lifting solutions involving semi-trucks, city buses, stretch limousines, and other massive municipal vehicles. With an impressive 27,000-lb. (12,247 kg) lift capacity and super-long 317.5-inch (806.5 cm) runways, this lift can easily accommodate vehicles that standard lifts cannot. Investing in specialized equipment like the HDS-27X allows workshops to service commercial fleets, a market segment with less competition, and establish dominance in the heavy-duty maintenance industry.

Key Features

• 27,000 lbs. Capacity: Designed for lifting large commercial vehicles, including semi-trucks, city buses, and more.

• Extended Runways: Massive 317.5-inch (806.5 cm) long runways provide ample space and a clean approach for oversized vehicles.

• High Lifting Height: Runways rise 58.25 inches (148 cm) in the air, allowing operators to work in a comfortable standing position.

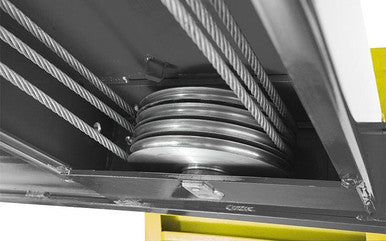

• Dual-Hub Cable Sheaves: Features large 12-inch (30.5 cm) diameter sheaves with 4-inch (10.2 cm) sheave axles to reduce wear and extend the lift’s lifespan.

• Large Base Plates: Substantial 12-inch x 12-inch (30.5 x 30.5 cm) base plates provide maximum structural integrity and stability for the columns.

• Spring-Loaded Safety Locks: Multiple lock positions engage automatically as the lift rises and release instantly upon descent, controlled by a built-in flow divider to maintain level runway movement.

• Secondary Lock System: An additional safety mechanism that catches runways in the unlikely event of excess cable slack, keeping the vehicle level and secure.

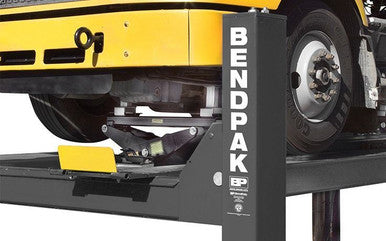

• Optional Rolling Bridge Jacks: Available to raise vehicle wheels above the runways, providing full access for wheel service without the need for additional space-consuming machinery.

• ALI Certified: Ensures compliance with rigorous safety and performance standards.

Ideal For

• Professional auto shops and service centers

• Fleet maintenance and commercial vehicle operations

Technical Specifications

• Capacity: 27,000 lbs. (12,247 kg)

• Runway Length: 317.5 inches (806.5 cm)

• Runway Rise (Lift Height): 58.25 inches (148 cm)

• Cable Sheave Diameter: 12 inches (30.5 cm)

• Cable Sheave Axle Diameter: 4 inches (10.2 cm)

• Base Plate Dimensions: 12 inches x 12 inches (30.5 x 30.5 cm)
