BendPak HDS-40 Heavy-Duty Four-Post Truck Lift – 40,000 lb Capacity

The Only Heavy-Duty Car Lift You’ll Ever Need

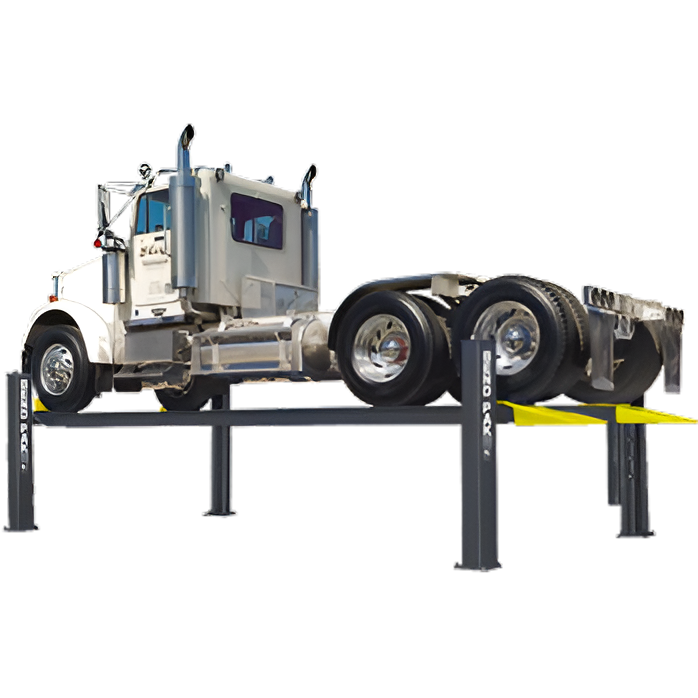

The BendPak HDS-40 four-post lift is engineered to tackle even the most massive vehicles with brute force and precision. This heavy-duty lift incorporates all the advanced features found in BendPak’s robust lineup, including ergonomic controls, oversized sheaves, over-engineered lift components, and aircraft-quality cables, ensuring an unparalleled lifting experience.

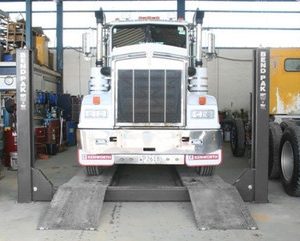

For vehicles requiring extended support, the HDS-40 provides longer runways, significantly reducing the risk of accidental vehicle damage. This ensures that even the largest 40,000-lb. trucks and commercial vehicles can be safely and securely positioned for service.

Key Features

• Heavy-Duty Capacity: Capable of lifting massive vehicles up to 40,000 lbs. (18,143.7 kg).

• Extended Runways: Designed to safely accommodate the longest and heaviest trucks and commercial vehicles.

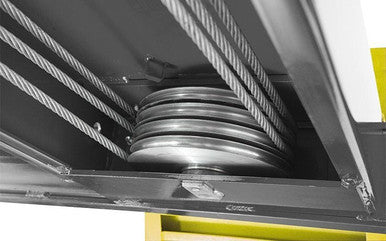

• Dual-Hub Cable Sheaves: Features 12-inch (30.5 cm) diameter sheaves with 4-inch (10.2 cm) axles, over-engineered for safer lifting, low maintenance, and synchronized smooth lifting.

• Heavy-Duty Aircraft Cable: Utilizes 3/4-inch (1.9 cm) diameter, 6 x 25 galvanized lifting cables, resistant to rust, chemicals, heat, and humidity, requiring minimal maintenance.

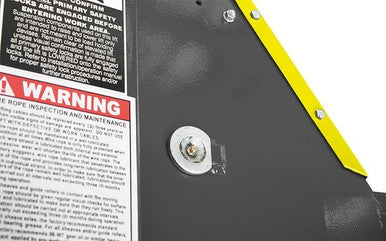

• Built-in Lubrication: Self-lubricating grease nipples on sheave and sheave axles ensure smooth cable operation and prevent floor mess.

• Flow Restrictor: Integrated into the hydraulic cylinder for a safe, gentle descent in the rare event of a hose rupture.

• Large Base Plates: 12 x 12 inch (30.5 x 30.5 cm) base plates offer extreme security and stability when bolted to concrete flooring.

• Spring-Loaded Safety Locks: Audible clicking locks engage at multiple levels, providing 13 versatile locking positions for operator comfort and safety.

• Push-Button Pneumatic Lock Release: A single button simultaneously disengages all four locks for rapid and balanced descent, featuring aircraft-quality stainless steel and aluminum pneumatic cylinders.

• Secondary Lock System: A cable-slack detection device acts as a backup, shutting down the lift completely if any cable slack occurs, ensuring maximum safety.

• Integrated Design: All components (cables, sheaves, axles, hydraulic cylinder) are internally routed for a cleaner aesthetic, side-by-side stacking capability, and protection from shop conditions.

• Adjustable Height Locking Positions: Offers 13 locking positions for greater versatility and operator comfort compared to standard 10-position lifts.

• Electric-Hydraulic Power System: Features ergonomic one-push button control, a stabilizing pressure relief valve, and a weatherproof casing for reliable performance during heavy use.

• Flexible Protective Conduit: Non-conductive and durable tubing wraps around all cables and airlines to prevent wear and accidental shocks.

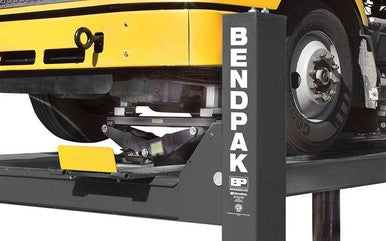

• Optional Rolling Bridge Jacks: Available to support various vehicle types for wheel service, including standard hydraulic pumps and SUV/truck adapters.

• ALI Certified: Ensures compliance with rigorous safety and performance standards.

Ideal For

• Professional auto shops and service centers

• Fleet maintenance and commercial vehicle operations

Technical Specifications

• Capacity: 40,000 lbs. (18,143.7 kg)

• Cable Diameter: 3/4 inches (1.9 cm)

• Cable Sheave Diameter: 12 inches (30.5 cm)

• Cable Sheave Axle Diameter: 4 inches (10.2 cm)

• Base Plate Dimensions: 12 x 12 inches (30.5 x 30.5 cm)

• Lock Positions: 13 positions
