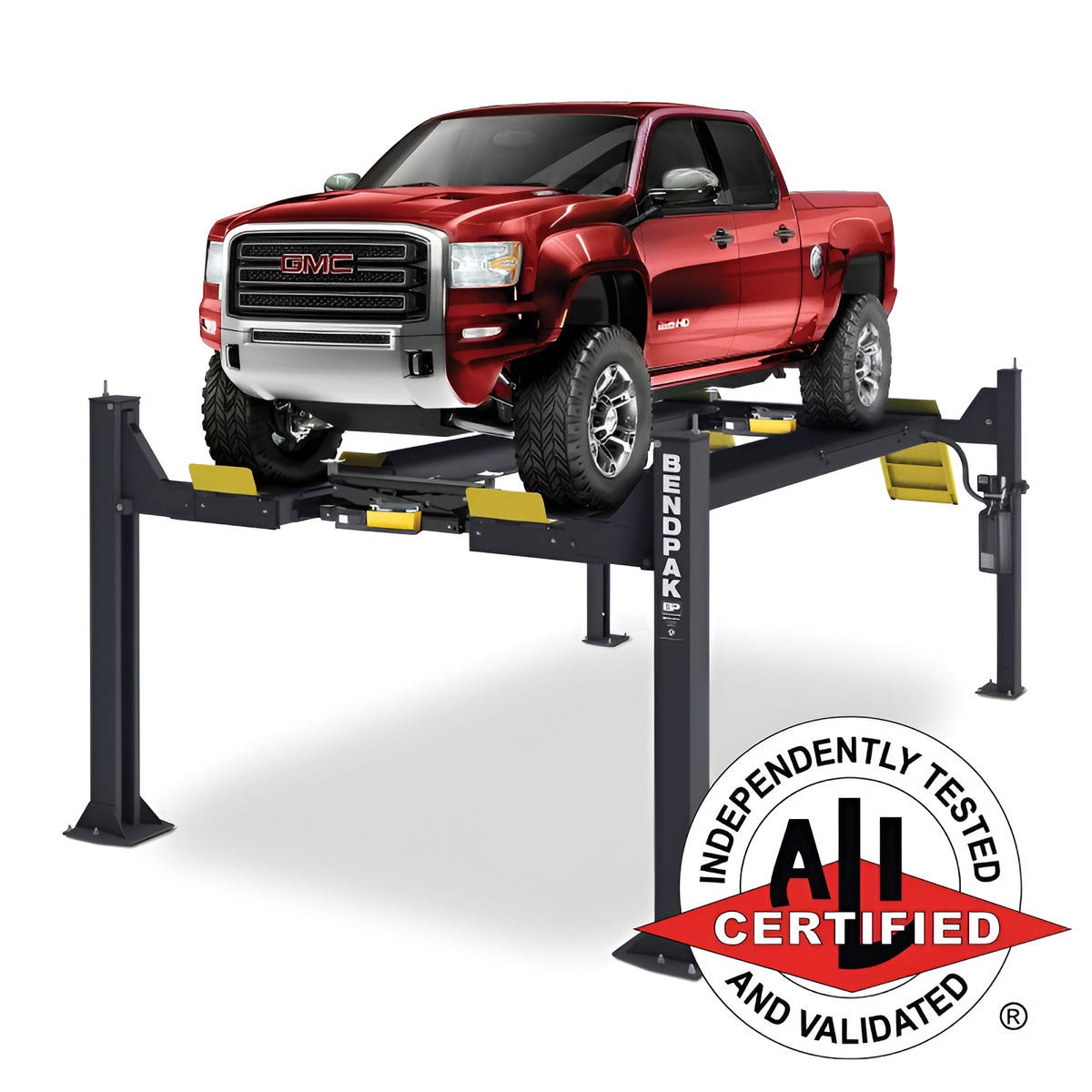

BendPak HDSO14P Open-Front Four-Post Alignment Lift – 14,000 lb

Open-Front Capability in a Powerful Four-Post Lift

The BendPak HDSO14P is an innovative open-front four-post lift designed for easy vehicle access and enhanced productivity. With its clear entry design, operators can effortlessly move beneath the vehicle, making front-end adjustments quick and trouble-free. This model is particularly ideal for busy alignment bays. Boasting a robust 14,000-lb. (6,350 kg) lifting capacity and extended runways, the HDSO14P is versatile enough to service a wide range of vehicles, from compact cars to full-size trucks.

Key Features

• 14,000 lbs. Capacity: Capable of lifting a broad spectrum of vehicles from small cars to full-size trucks.

• Open-Front Design: Eliminates the front crossbar for clear, easy vehicle access and improved operator movement underneath the lift, ideal for alignment work.

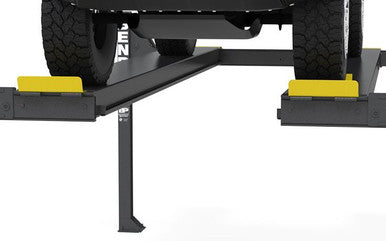

• Patented, Adjustable Front Outrigger Tubes: Provides infinitely adjustable pitch to compensate for uneven floors and excessive loads, ensuring precise front-lift leveling.

• Dependable Design: Features four heavy-duty, high-quality stainless steel lifting cables and a single hydraulic cylinder mounted discreetly underneath the runway for a durable, low-maintenance lifting system.

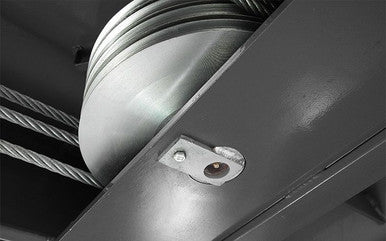

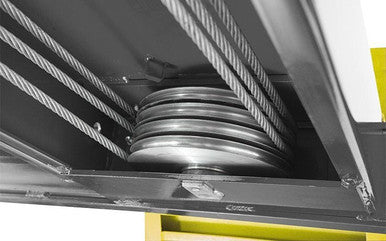

• Oversize Dual-Hub Cable Sheaves: Large 10.5-inch (26.7 cm) diameter cable sheaves and massive 2.25-inch (5.7 cm) diameter sheave axles minimize wear and extend the lifespan of critical components, reducing service costs.

• Multi-Level Locking Positions: Equipped with multiple adjustable height locking positions for flexible parking and a convenient push-button pneumatic safety lock control for simultaneous release of all four independent safety locks.

• Heavy-Duty Aircraft Cable: Includes four 1/2-inch (1.27 cm) diameter, 6 x 25 stainless steel lifting cables, each rated at 14,400 lbs. (6,532 kg), providing over 411% of the lift’s maximum capacity for superior safety and resistance to abrasion and fatigue. All cables are fully enclosed within the lift structure.

• Maintenance-Free Electric Hydraulic Power System: Ensures ultimate dependability with conveniently located controls.

• Large Base Plates: 12-inch x 10-inch (30.5 x 25.4 cm) base plates provide a solid and stable foundation.

• Longer Approach Ramps: Designed with extended length to facilitate easier loading of low ground-clearance vehicles.

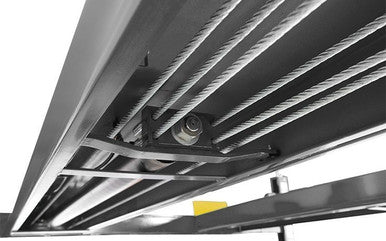

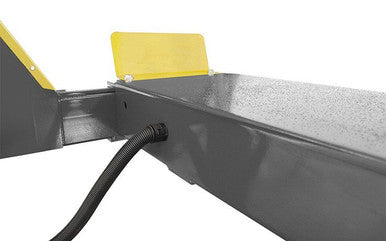

• Integrated Design: All lifting cables, airlines, safety latches, and sheaves are fully enclosed within the lift’s structure for a clean appearance and protection from shop conditions.

• Integrated Hydraulic Flow Restrictor: Provides a controlled and safe descent in the unlikely event of a hose rupture.

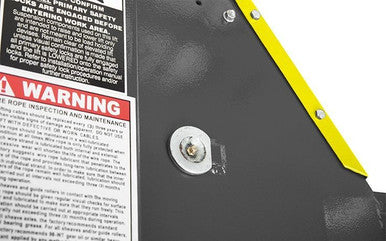

• Automatic Safety Locks: Spring-loaded safety locks automatically engage during raising. A secondary lock system acts as a slack-cable device for added safety in case of cable failure.

• Optional 7,000-lb. Capacity Rolling Jacks (RJ7W): Available for full wheel and brake service, these jacks sit on the inner edges of the runways, feature telescoping arms, frame contact pads, three safety-lock positions, and stackable truck/van adapters.

• ALI Certified: Ensures compliance with rigorous safety and performance standards.

Ideal For

• Vehicle parking and storage space optimization

• Wheel alignment and precision service work

• Heavy-duty truck and commercial vehicle service

Technical Specifications

• Capacity: 14,000 lbs. (6,350 kg)

• Cable Sheave Diameter: 10.5 inches (26.7 cm)

• Sheave Axle Diameter: 2.25 inches (5.7 cm)

• Lifting Cable Diameter: 1/2 inch (1.27 cm)

• Lifting Cable Breaking Strength: 14,400 lbs. (6,532 kg) each

• Base Plate Dimensions: 12 inches x 10 inches (30.5 x 25.4 cm)
