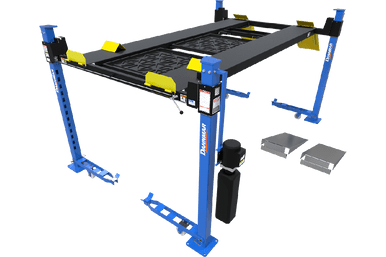

Dannmar D4-9 Four-Post Lift – 9,000 lb, Welded Steel Construction

Dannmar’s D4-9 four-post lift is a robust and high-quality solution featuring welded-steel construction, a long-lasting proven design, and a strong commitment to quality, safety, and value. The D4-9 is built with the strength to lift very heavy vehicles up to 9,000 lbs. (4,082 kg) and boasts quick lifting speeds.

One of the D4-9’s standout features is its ability to store a vehicle fully raised above the ground, while still providing open space below. This means you gain valuable open floor space for repairs or additional storage, effectively offering both vehicle parking and ground storage within the same footprint.

Each Dannmar D4-9 comes standard with four quick-mount casters for easy mobility across the floor. Also included are lightweight and tough polyethylene drip trays, a mobile jack tray, easily removable aluminum approach ramps, and forward and rear-mounted hardened steel tire stops.

A Fitting Idea

The D4-9 is efficiently sized to fit many home garages with limited space. Loading vehicles is easy thanks to the lightweight, removable aluminum ramps, which also aid in avoiding undercar clearance issues. The lift’s multi-position locks further enhance flexibility. These features make Dannmar’s D4-9 design an ideal solution for concerns related to low-vehicle suspensions or shorter overhead heights. Dannmar’s D4-9 four-post car and light-duty truck lift can significantly expand your shop’s versatility.

Continuous Improvements

Dannmar has reinforced the boxed-steel columns to 4.75″ x 4.75″ (12.1 cm x 12.1 cm) for maximum strength and incredible resistance to twisting and flexing. This includes 5/8″ (1.6 cm) thick, 12″ x 12″ (30.5 cm x 30.5 cm) baseplates designed to enhance support loads on varying floor surfaces. The columns are surrounded by full-perimeter exterior steel sleeves that securely hold the lift columns, and this stability-enhancing design further reinforces the columns by cradling the steel sleeves to provide an interlock that improves overall firmness.

Key Features

• 9,000 lbs. (4,082 kg) Lift Capacity: Built with robust strength for heavy vehicles.

• Fast Lifting Speed: Raises vehicles quickly to maximum height in just 45 seconds.

• Dual-Purpose Functionality: Allows for vehicle storage fully raised, creating open space below for repairs or ground storage.

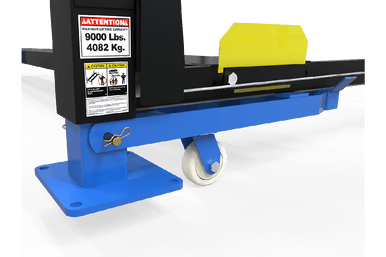

• Quick-Mount Casters: Includes four casters for easy mobility of the lift across the floor.

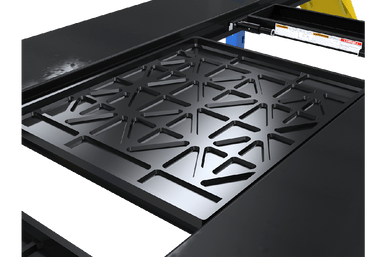

• Polyethylene Drip Trays: Lightweight and durable polyethylene drip trays are included.

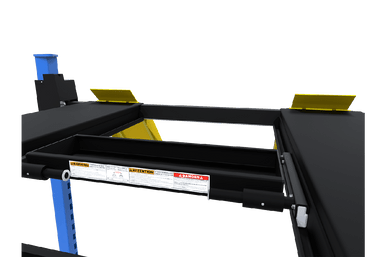

• Mobile Jack Tray: Comes with a convenient mobile jack tray.

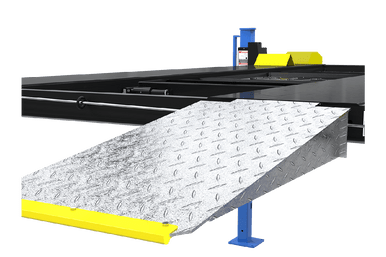

• Removable Aluminum Approach Ramps: Lightweight and easily removable for improved undercar clearance.

• Hardened Steel Tire Stops: Forward and rear-mounted for secure vehicle positioning.

• Compact and Efficient Size: Designed to fit in many home garages with limited space.

• Multi-Position Locks: Thirteen locking positions placed every four inches (10.2 cm) for variable heights, accommodating different vehicle sizes and ceiling concerns.

• Beefed-Up Boxed-Steel Columns: Columns are 4.75″ x 4.75″ (12.1 cm x 12.1 cm) wide for maximum strength and resistance to twisting/flexing.

• Enhanced Baseplates: 5/8″ (1.6 cm) thick, 12″ x 12″ (30.5 cm x 30.5 cm) baseplates provide enhanced support loads.

• Full-Perimeter Exterior Steel Sleeves: Provide solid capture of lift columns and improve firmness.

• Heavy-Duty Aircraft Wire Rope: Four lifting wire ropes made from superior-grade stainless steel, each rated to handle 14,000 lbs. (6,350 kg), totaling 700% of the lift’s rated capacity.

• Automatic Safety Locks: Four, 3/4″ (1.9 cm) thick safety locks engage simultaneously as the lift is raised, securely trapped by cross tube sleeves.

• Secondary Slack-Cable Lock System: Ensures instant back-up engagement in the unlikely event of a cable failure.

• Simple Operation: Easy-to-use controls for reliable and quick operation.

Ideal For

• Home garages and DIY automotive enthusiasts

• Vehicle parking and storage space optimization

• Heavy-duty truck and commercial vehicle service

Technical Specifications

• Lift Capacity: 9,000 lbs. (4,082 kg)

• Max Rise Time: 45 seconds

• Column Dimensions: 4.75″ x 4.75″ (12.1 cm x 12.1 cm) wide

• Baseplate Thickness: 5/8″ (1.6 cm)

• Baseplate Dimensions: 12″ x 12″ (30.5 cm x 30.5 cm)

• Number of Locking Positions: 13

• Locking Position Spacing: Every 4 inches (10.2 cm)

• Individual Wire Rope Rating: 14,000 lbs. (6,350 kg)

• Safety Lock Thickness: 3/4″ (1.9 cm)

Warranty & Support

Dannmar offers unsurpassed dealer and service provider support, ensuring superior customer service both during and after your purchase. Support programs include:

• Genuine Dannmar OEM parts

• Planned maintenance

• Convenient national locations

• Three-Year Warranty: Every D4-9 lift is covered by a complete 3-year warranty, guaranteeing replacement of any major component failure.
