Forward F12 12,000lb 2 Post Lift - ALI Certified
SKU: F12-143-red

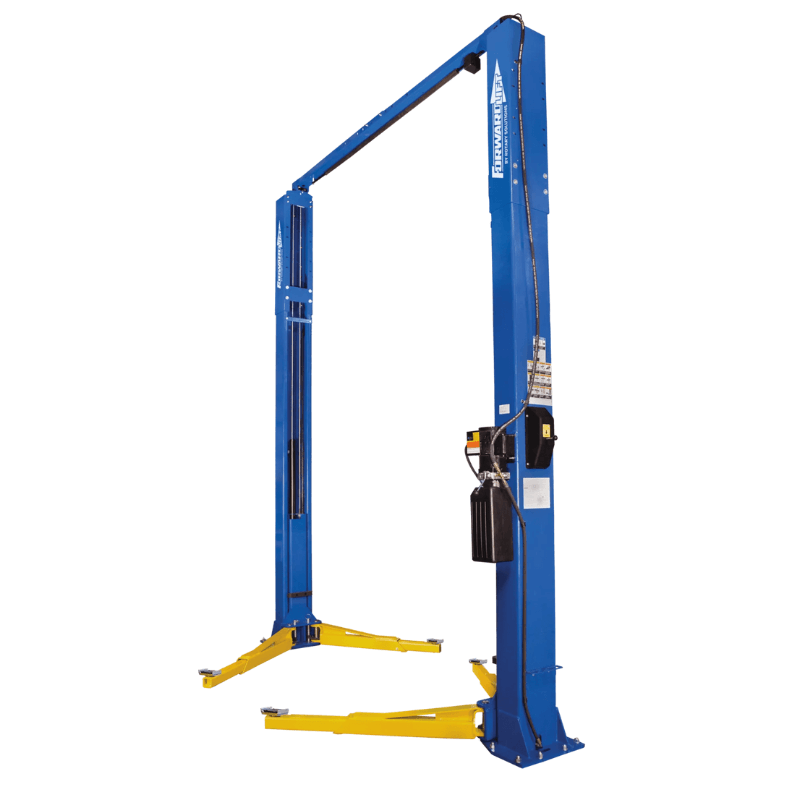

The Rotary F12 two-post lift is a high-capacity, versatile lift engineered to raise and service passenger cars, trucks, and vans up to 12,000 lbs. Its symmetric lift design and durable construction ensure smooth and reliable operation while accommodating a wide range of vehicles. The F12 is designed with multiple height configurations and adjustable width options, making it adaptable for shops of all sizes. Equipped with heavy-duty push hydraulic cylinders, spring-operated arm restraints, and low-profile padded drop-in adapters, the F12 provides superior lifting performance while protecting vehicles and minimizing downtime.
Rated for 12,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
Symmetric two-post design for stable and smooth lifting

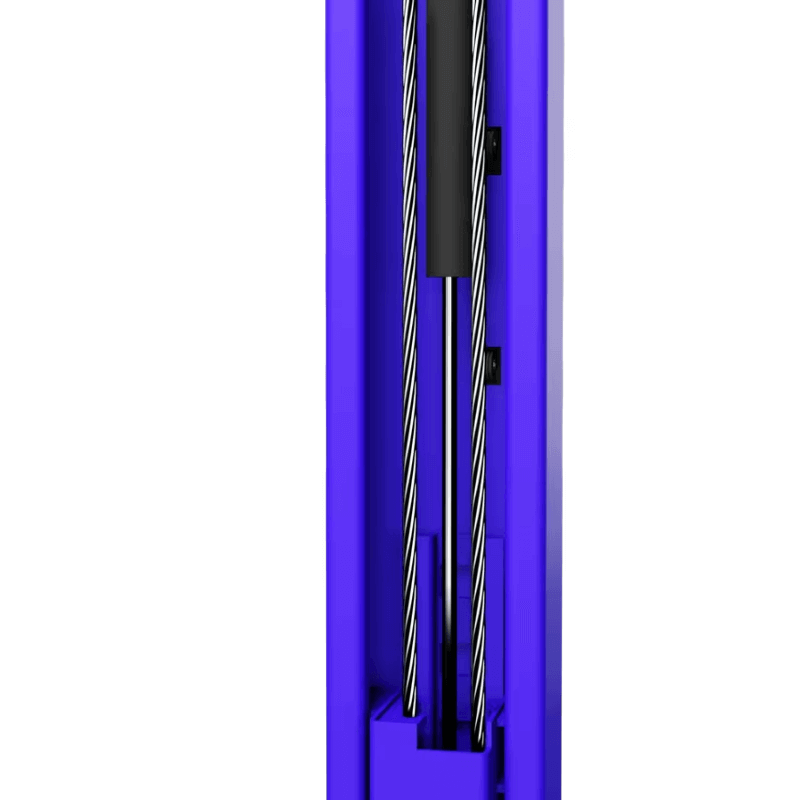

Heavy-duty push hydraulic cylinders for consistent performance
Spring-operated arm restraints disengage at floor level

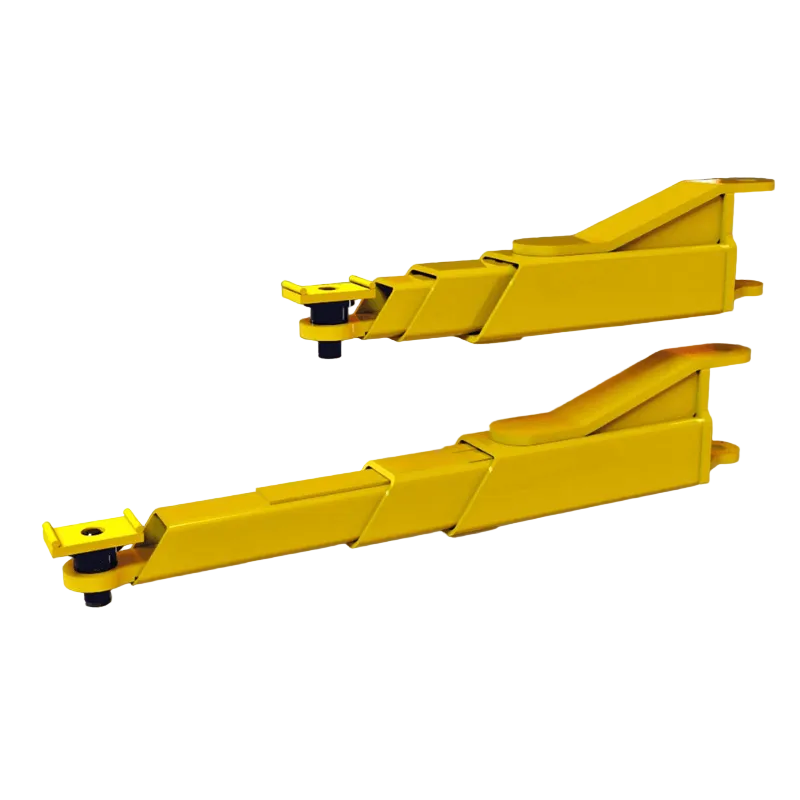

3 Stage Arm Design
Low-profile padded drop-in adapters with four adapter extensions
Multiple height and width configurations to accommodate diverse vehicles
ALI Gold Certified for verified safety and performance
Durable powder coat finish for long-term shop use
Ideal For
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Technical Specifications
Lifting Capacity |
12,000 lbs |
F12N300 |
160 1/8" |
F12N301 |
172 1/8" |
F12N302 |
148 1/8" |
F12N303 |
137 1/8" |
Width Inside Columns |
114 7/8" (Optional: 120 7/8") |
Overall Floor Width |
140" (Optional: 146") |
Drive-Thru Width |
102 3/4" (Optional: 108 3/4") |
Arm Reach (Min / Max) |
35" – 54" |
Minimum Adapter Height |
4 3/4" |
Voltage / Amps |
208–230V / 17A |
Motor / Phase |
2 HP / Single Phase |
