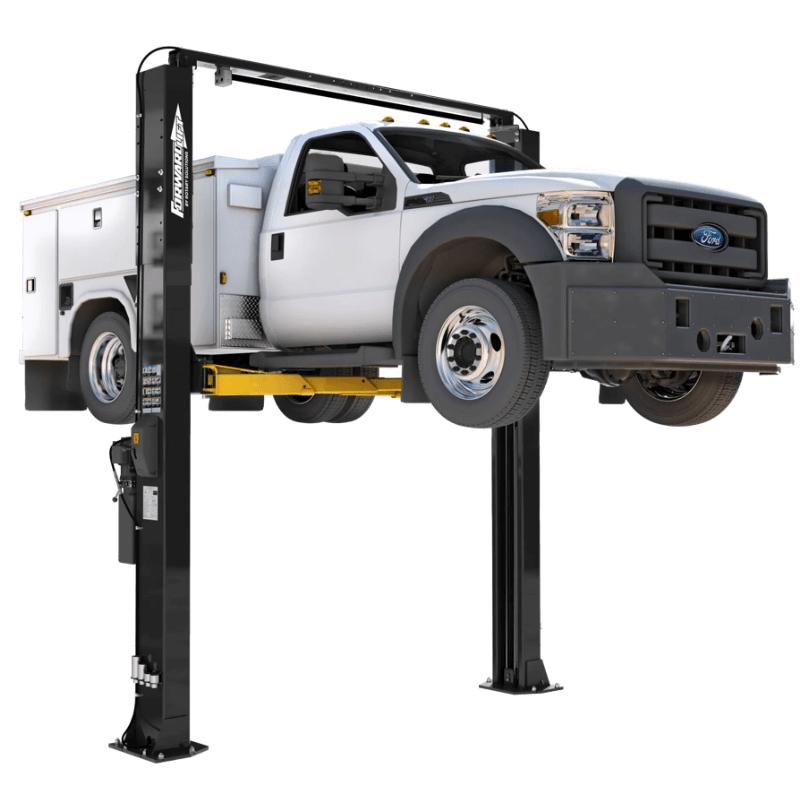

Forward I12PRO 12,000lb 2 Post Lift - ALI Certified
SKU: I12PRO-143
The I12PRO is a commercial-grade two-post vehicle lift engineered to safely raise passenger cars, trucks, and vans up to 12,000 lbs. Designed for demanding shop environments, this lift delivers consistent lifting performance while meeting the highest safety standards. Its versatile configuration options allow it to adapt to a wide range of bay heights and shop layouts. Built with dual heavy-duty push hydraulic cylinders, the I12PRO is designed to increase lifting efficiency while minimizing downtime. Its durable powder-coated finish provides long-term protection against wear, corrosion, and daily shop abuse.
Rated for 12,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
ALI/ETL Gold Certified for maximum safety and performance assurance

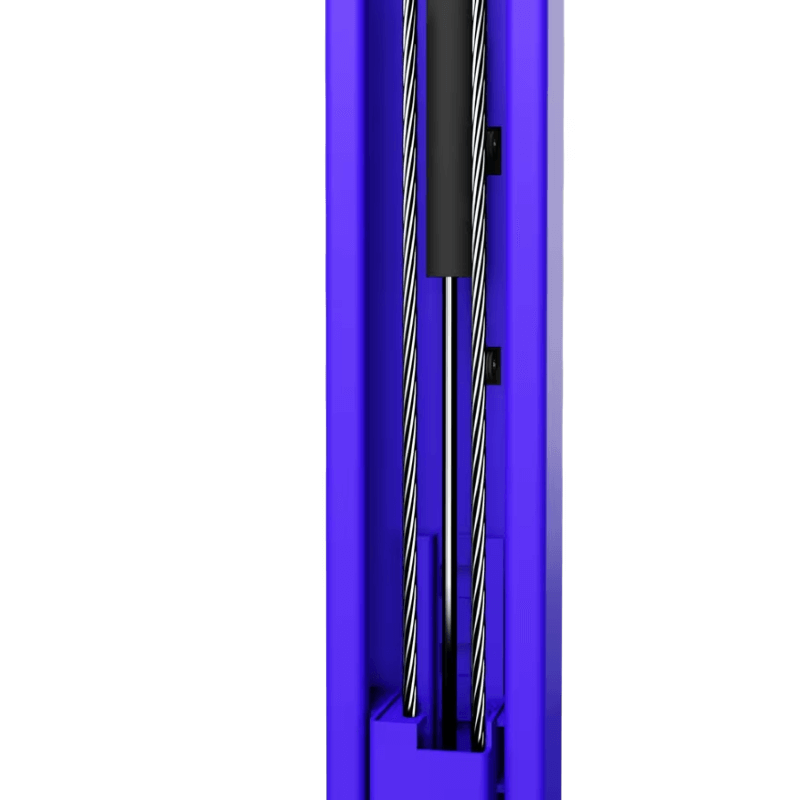

Dual heavy-duty push hydraulic cylinders for reliable lift operation
High-capacity 12,000 lb rating for cars, trucks, and vans
Powder-coated finish for long-term corrosion and wear resistance
Multiple height and width configurations for flexible installation
Symmetric lifting design for balanced load distribution
Designed for professional, high-volume service environments
Built to deliver long-term durability with reduced maintenance needs
Ideal For
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Technical Specifications
Lifting Capacity |
12,000 lbs |
Maximum Rise |
77 1/2" (with 5" extension) |
Overall Width |
140" (Standard) / 146" (Optional) |
Drive-Thru Clearance |
102 3/4" (Standard) / 108 3/4" (Optional) |

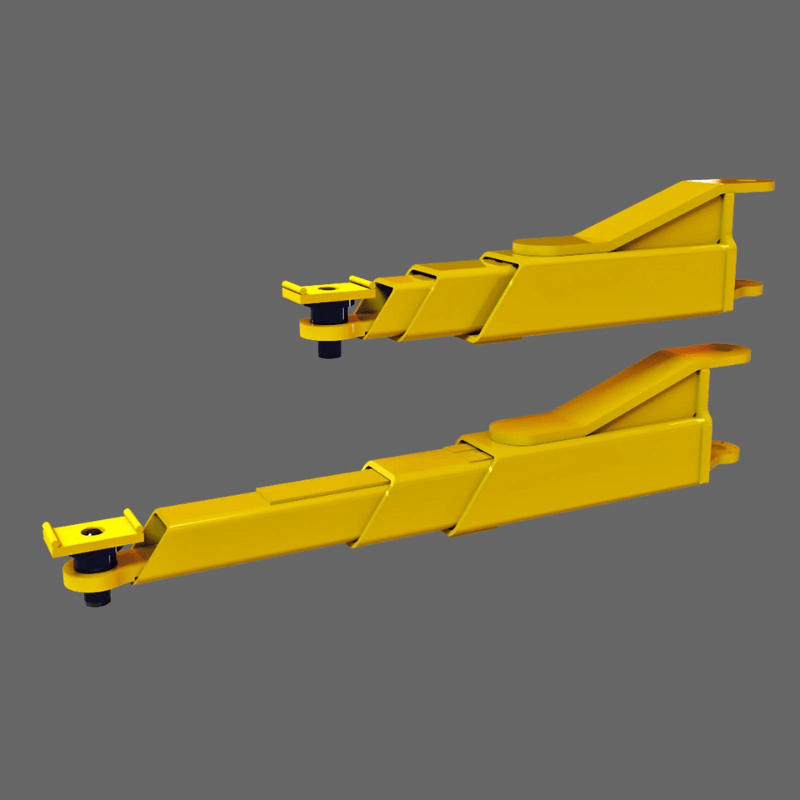

Front Arm Reach (Min / Max) |
27 5/8" – 59" |
Rear Arm Reach (Min / Max) |
27 5/8" – 59" |
Lifting Pad Height |
4 3/4" (no extension) / 9 3/4" (with 5" extension) |
Width Between Columns |
114 7/8" (Standard) / 120 7/8" (Optional) |
Motor |
2 HP, single-phase |
Electrical Requirements |
208–230V, 17 amps |
Speed of Rise |
60 seconds |
Warranty |
5 Years Structural |
