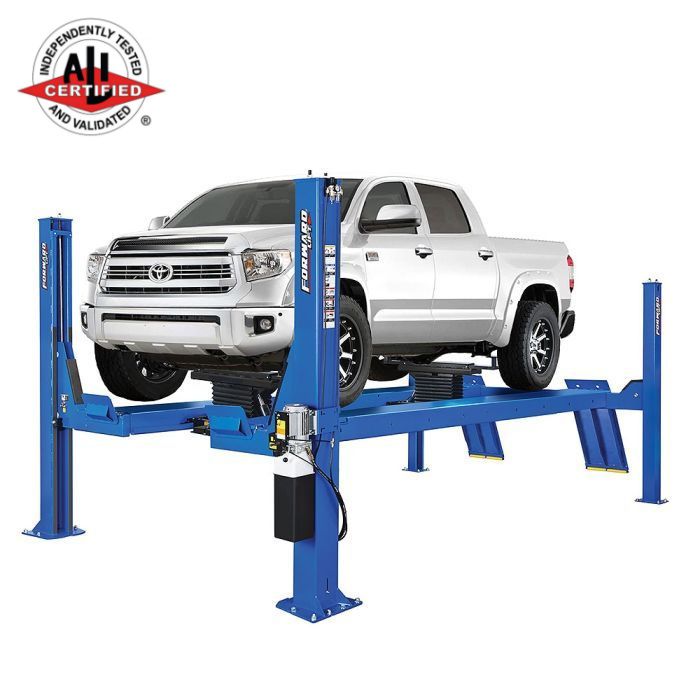

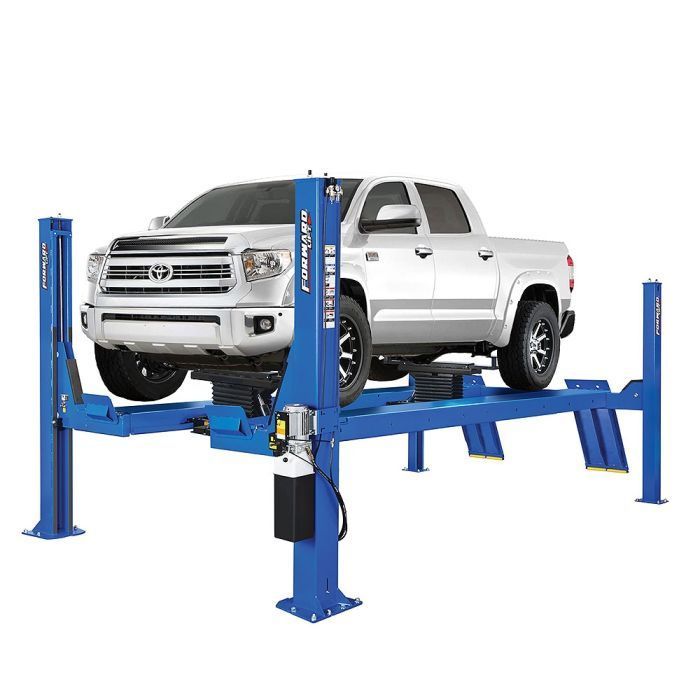

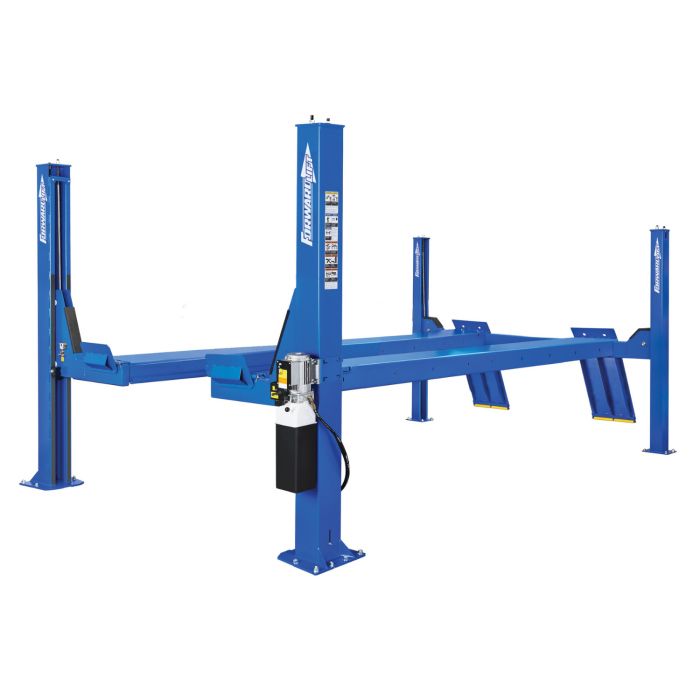

Forward Lift CRO14 Four-Post Lift – 14,000 lb, ALI Certified
SKU: FORWARDLIFT-CRO14
The Forward CRO14 four-post lift boasts a robust 14,000 lbs. (6,350 kg) capacity, underpinned by a sophisticated cable and pulley system concealed beneath its runways. All hydraulic and mechanical lifting components are discreetly tucked away for a clean finish while remaining easily accessible for inspection. This lift features a durable powder-coated hammer tone paint finish.
Forward Lift’s four-post lifts include a multi-position lock component, allowing the lift to be leveled at any lock position. Self-chocking approach ramps and wheel chocks are standard with the CRO14, ensuring secure vehicle loading. This lift offers the ability to store a vehicle fully raised, benefiting from the open space below for repairs or additional storage, effectively maximizing your footprint.
Key Features
14,000 lbs. (6,350 kg) Capacity: Robust lifting power for heavy vehicles.
Concealed Components: All hydraulics and mechanical lifting components are hidden beneath the runways for a clean look, yet remain easily accessible for inspection.
Durable Finish: Features a durable powder-coated hammer tone paint finish.
Multi-Position Lock Component: Allows the four-post lift to be leveled at any lock position for versatility.
Self-Chocking Approach Ramps: Comes standard with integrated approach ramps for secure vehicle loading.
Wheel Chocks: Standard inclusion for added safety during vehicle positioning.
Heavy-Duty Hydraulic Cylinder: Ensures reliable and powerful lifting.
Single Point Latch Release System: Simplifies operation by releasing all locks simultaneously.
One-Piece Formed Runway Design: Incorporates rolling jack channels for seamless integration (Rolling Jacks sold separately).
Multiple Position Latch Points: Located in each structural leg for enhanced safety and stability.
ALI Certified: This lift is certified, ensuring it meets industry safety and performance standards.
Ideal For
Heavy-duty truck and commercial vehicle service
Technical Specifications
Technical Specifications |
Value |
Capacity |
14,000 lbs. (6,350 kg) |
Rise |
78-3/4″ (2,000 mm) |
Maximum Wheelbase |
182-1/2″ (4,635 mm) |
Overall Length |
253″ (6,426 mm) |
Overall Width |
140-1/2″ (3,568 mm) |
Width Inside Columns |
116-1/4″ (2,953 mm) |
Length Between Columns |
194-3/4″ (4,946 mm) |
Overall Height |
109-1/16″ (2,768 mm) |
Runway Width |
20″ (508 mm) |
Runway Height |
7″ (178 mm) |
Width Between Runways |
43″ (1,092 mm) |
Rise Time |
79 seconds |
Voltage* |
208/230v |
Motor |
2HP |
Minimum Bay Size |
15′ x 26′ (4,572 x 7,925 mm) |
* single phase standard; 3-phase available at additional costSpecifications subject to change without notice or liability |
