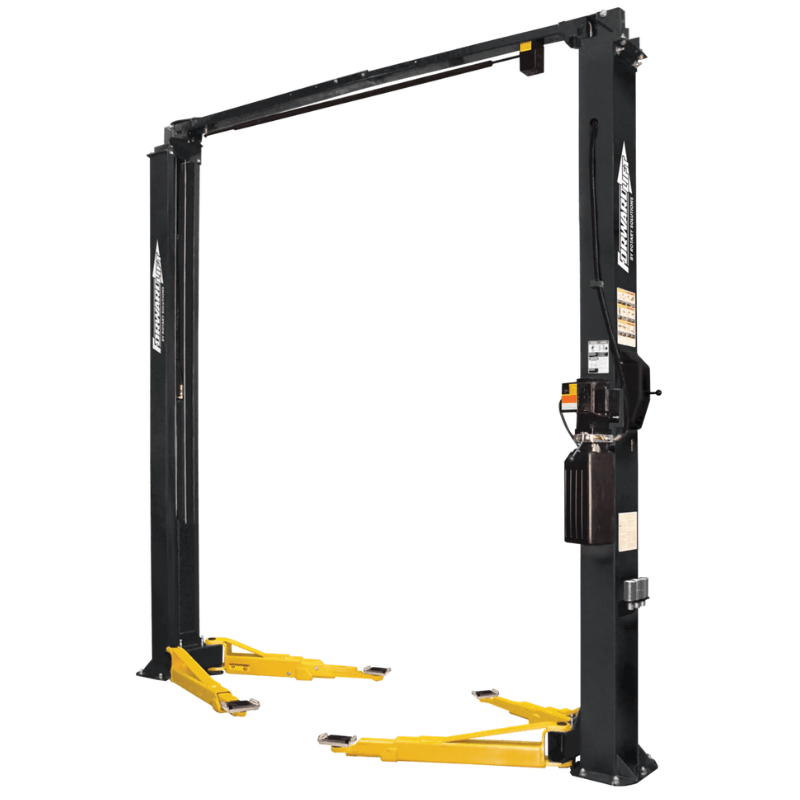

Forward Lift F10 10,000 Lb 2 Post Lift - ALI Certified
SKU: F10
The Rotary F10 is a versatile two-post lift designed to safely elevate a wide range of passenger cars, trucks, and vans with a 10,000 lb capacity. Its frame-engaging rubber-padded truck adapters and multiple extension options provide secure lifting while protecting vehicle underbodies during routine service and maintenance. This lift is ALI/ETL Gold Certified, ensuring it meets the highest industry safety and performance standards. An optional extended height kit adds two feet to the top of the standard lift, enabling service of taller vehicles while using existing lift hardware for a simple installation.
Rated for 10,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
Frame-engaging rubber-padded truck adapters for secure lifting

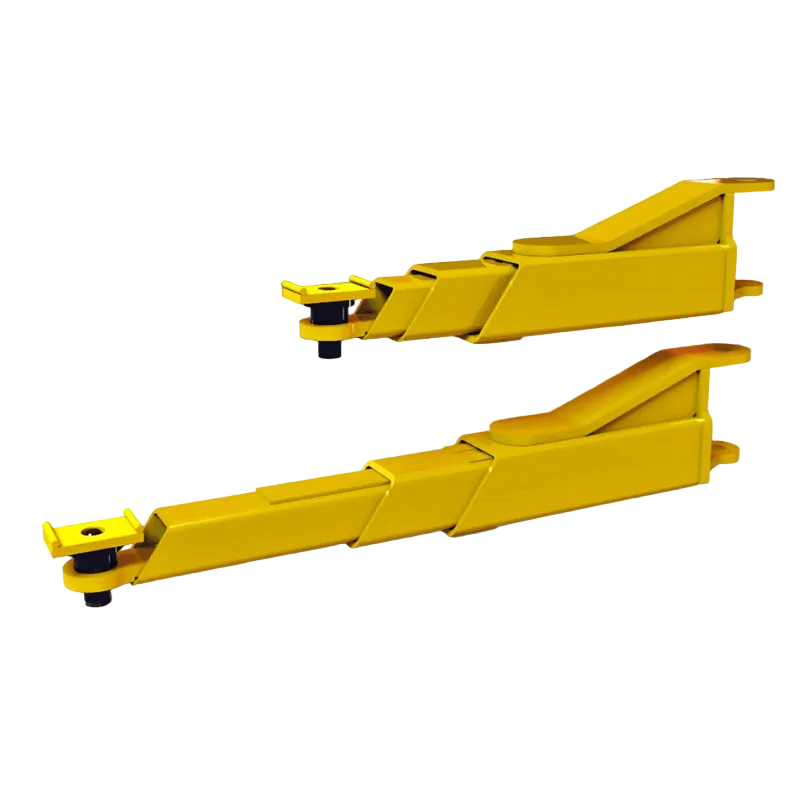

Multiple adapter extensions accommodate a variety of vehicles
Optional extended height kit for taller vehicles
Symmetric Arm Design
ALI/ETL Gold Certified for verified safety and performance
Smooth and reliable operation for daily professional use
Durable construction designed for long-term commercial use
Compact footprint ideal for service bays with limited space
Ideal For
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Technical Specifications
Lifting Capacity |
10,000 lbs |
Maximum Rise (with 5" extension) |
76 1/4" |
Overall Height |
141" |
Optional Extended Height |
165" with T100295 kit |
Overall Width |
129" (optional 137") |
Drive-Thru Clearance |
99" (optional 105") |
Overhead Switch Height |
137 1/8" |
Front Arm Reach (Min / Max) |
24 1/2" – 44 3/8" |
Rear Arm Reach (Min / Max) |
36" – 58" |
Adapter Height (Min / Max) |
3 3/4" – 8 3/4" |
Drive Thru Width |
109" (optional 115") |
Voltage/Amps |
208–230V, 17A |
Motor/Phase |
2 HP, single-phase, 60 Hz |
Ceiling Height Required |
144" |
