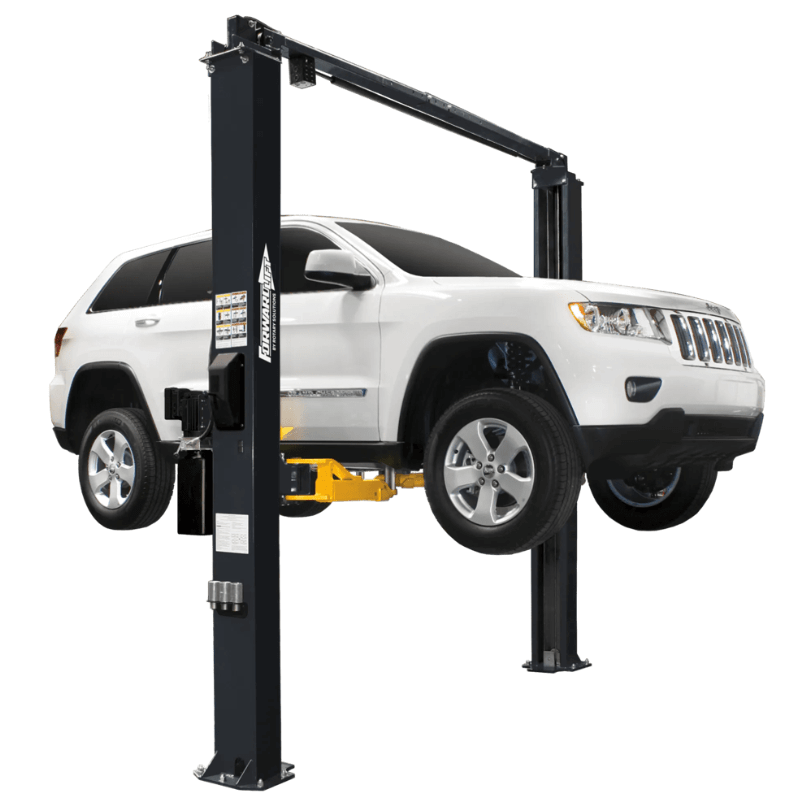

Forward Lift I10 10,000lb 2 Post Lift - ALI Certified

  • Forward Lift I10 10,000lb 2 Post Lift - ALI Certified
  • Forward Lift I10 10,000lb 2 Post Lift - ALI Certified
  • Forward Lift I10 10,000lb 2 Post Lift - ALI Certified
  • Forward Lift I10 10,000lb 2 Post Lift - ALI Certified

Forward Lift I10 10,000lb 2 Post Lift - ALI Certified

SKU: I10-RED

3.205₫ MSRP 5.828₫
Height Extension: No Extension
Color: Red

The Forward Lift I10 is a professional-grade two-post vehicle lift engineered to safely raise a wide range of passenger vehicles, trucks, and vans up to 10,000 lbs. Designed for modern service environments, this lift features advanced arm technology that allows technicians to lift vehicles symmetrically or asymmetrically, providing flexibility for varying wheelbases and lift points. Its robust design supports daily use in demanding automotive service operations. At the core of the I10 is the Spot-Rite™ three-stage front arm system, which delivers extended reach and precise vehicle positioning.

Rated for 10,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.

Key Features

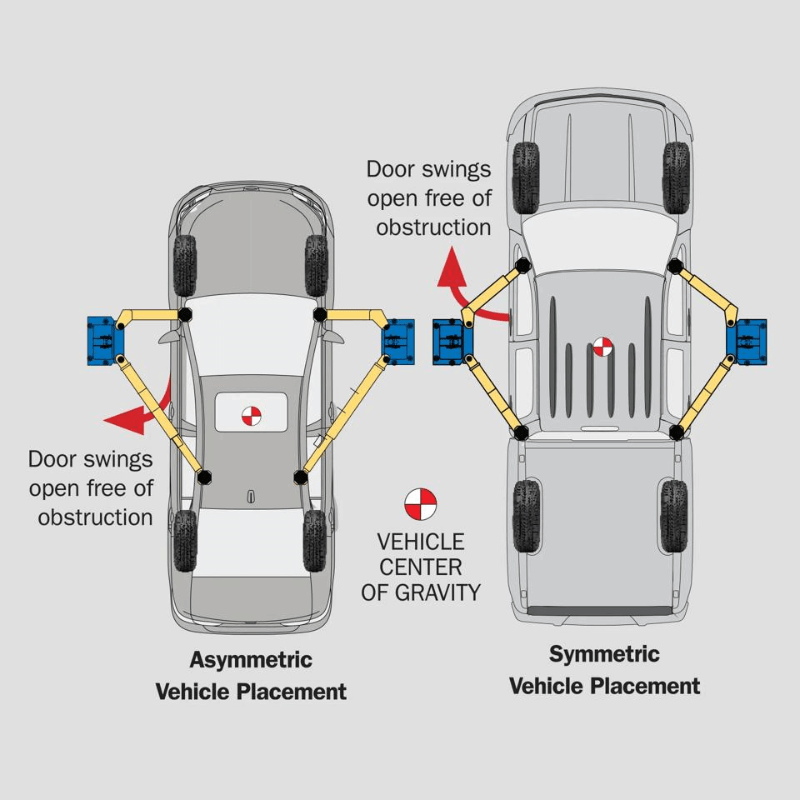

  • Spot-Rite™ three-stage front arms for symmetric and asymmetric lifting

  • ALI/ETL Gold Certified for verified safety and performance compliance

  • Frame-engaging rubber-padded truck adapters with multiple extensions

  • Extended height kit available for increased vertical clearance

  • Flexible lift configurations to accommodate a wide range of vehicles

  • Durable construction designed for high-volume commercial use

  • Smooth and controlled lifting operation for technician safety

  • Trusted Rotary engineering for long-term reliability

Ideal For

  • Professional repair shops doing frequent underbody service

  • Performance shops needing full access for suspension and exhaust work

  • Home garages with limited floor space, since the floor stays clear

  • Fleet maintenance bays running high daily vehicle volume

Technical Specifications

Lifting Capacity

10,000 lbs

Maximum Rise (with 5" extension)

76 1/4"

Overall Height

143"

Overall Width

131" (optional 137")

Drive-Thru Clearance

99" (optional 105")

Overhead Switch Height

137 5/8"

Front Arm Reach (Min / Max)

23" – 44 1/2"

Rear Arm Reach (Min / Max)

36" – 58"

Adapter Height

3 3/4" (no extension) / 8 3/4" (with 5" extension)

Drive Thru Clearance

109" (optional 105")

Required Ceiling Height

144"

Motor

2 HP, single-phase, 60 Hz

Electrical Requirements

208–230V, 17 amps

Warranty

5 Years Structural
