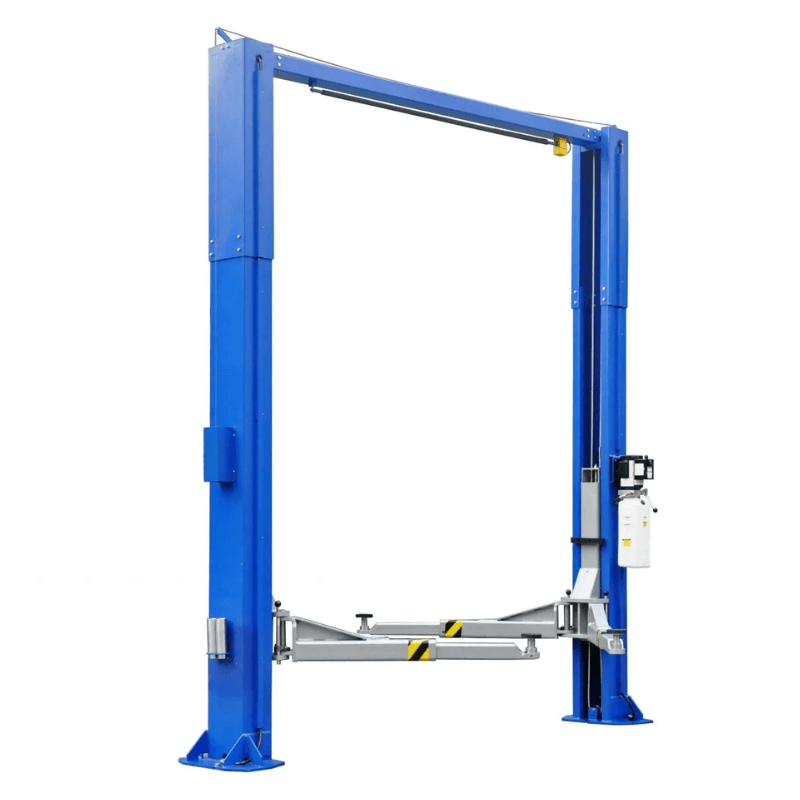

Ideal 12,000 lb TP12KSC-DX, 2 Post Car Lift - ALI Certified
SKU: TP12KSC-DX
Ideal TP12KSC-DX Is your current car lift leaving you feeling like you're using a stone age tool? The iDeal TP12KSC-DX 2-post car lift is here to propel your shop into the future. This champ boasts a 12,000 lb lifting capacity and ALI certification, making it the perfect solution for tackling even the most demanding heavy-duty lifting tasks. Your technicians will be racing to get to work when they found out about the symmetric arms that ensure balanced lifting, the rubber door guards and spin-up lift pads to protect your customers' prized possessions. And let's not forget the direct drive push cylinders and single point lock release - this lift practically operates itself.
Rated for 12,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features

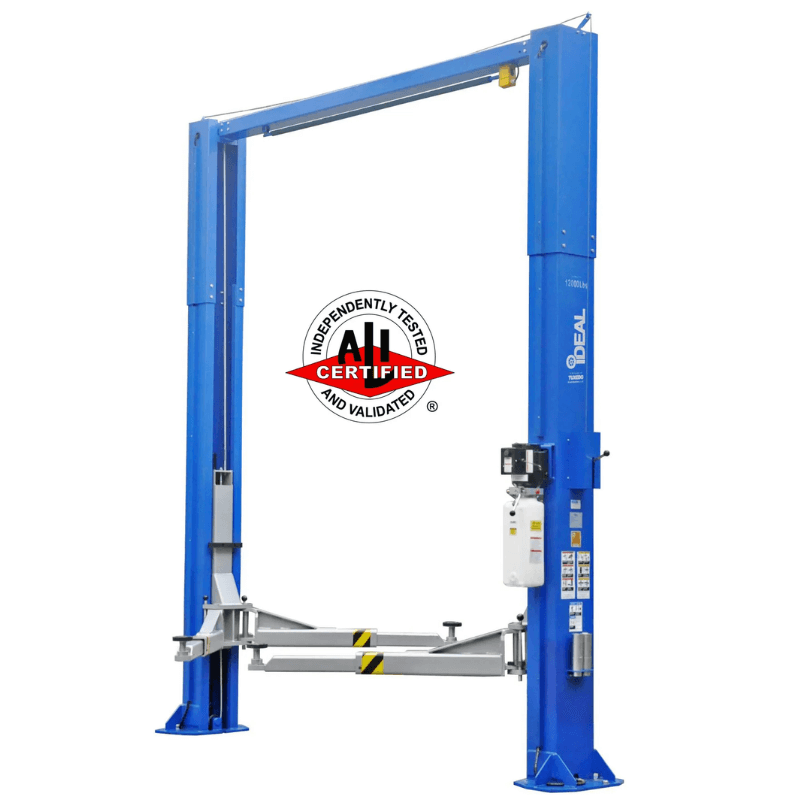

ALI certified

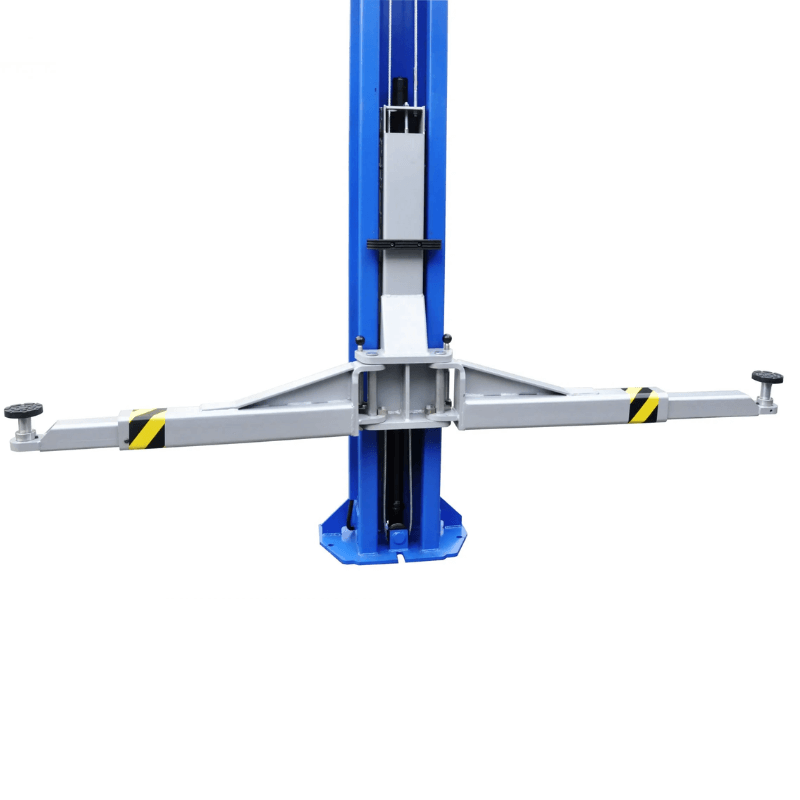

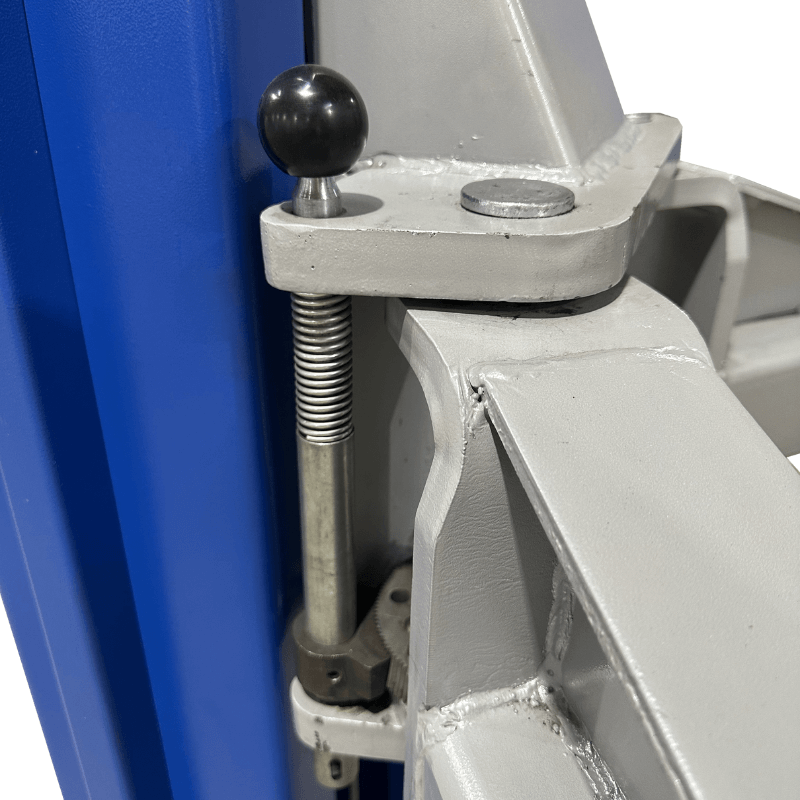

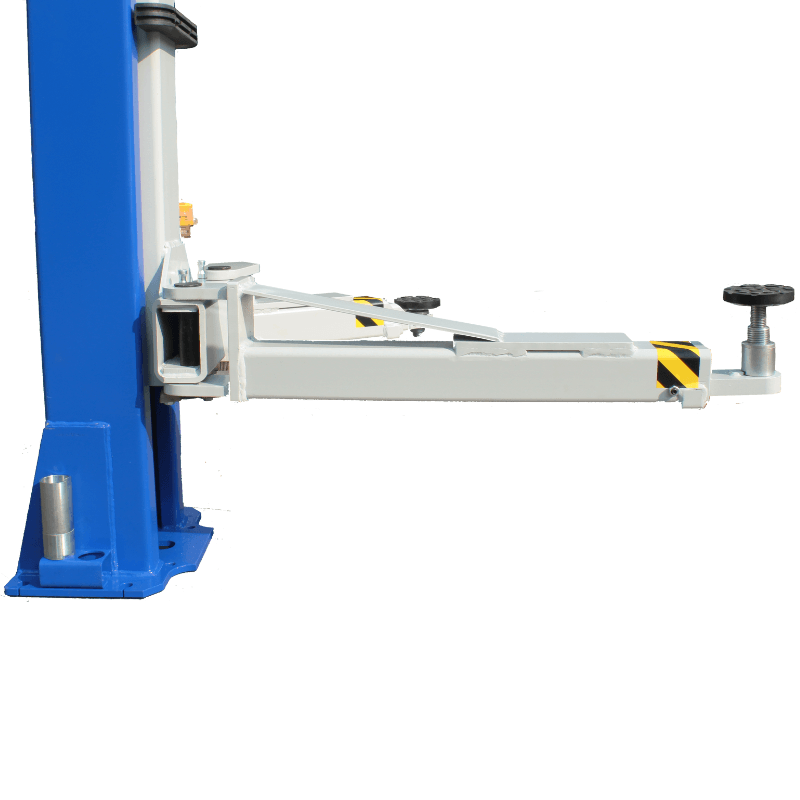

New low profile swing arm design

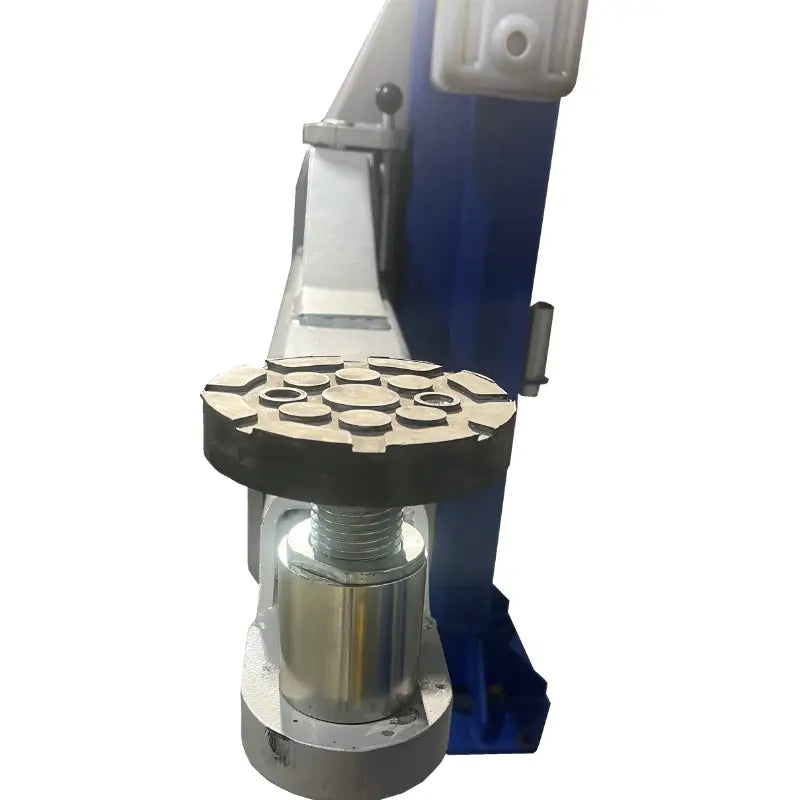

New adjustable height swivel pads

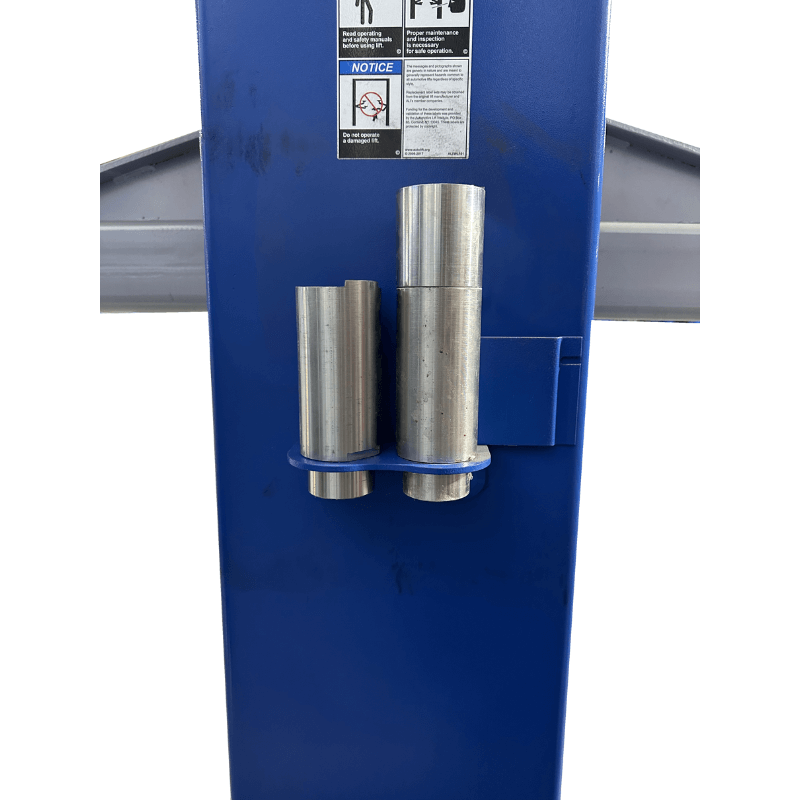

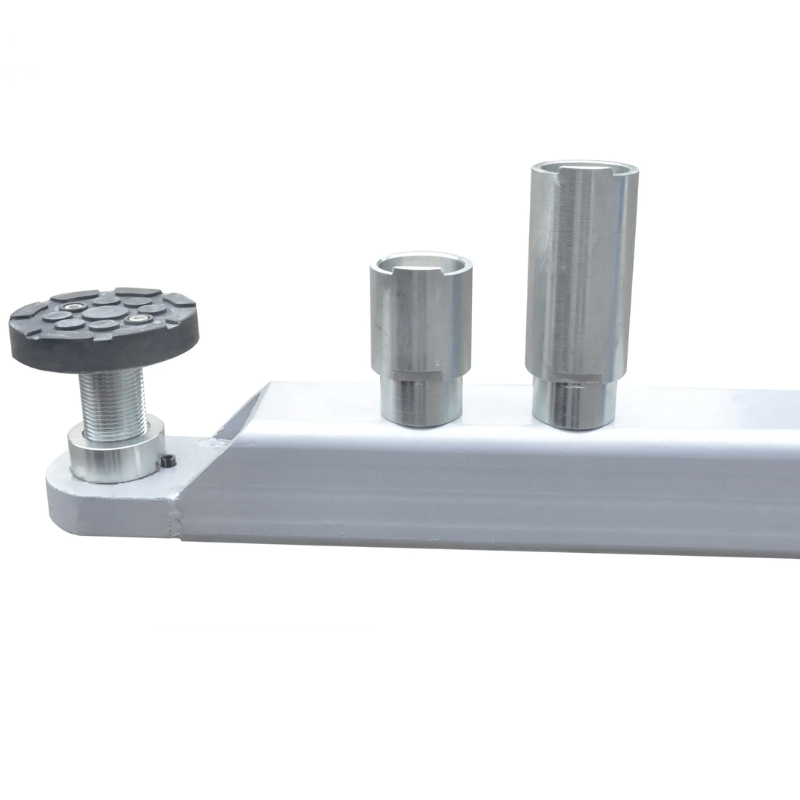

New 2.6″ & 5″ stackable height adaptors
New single point cable lock release

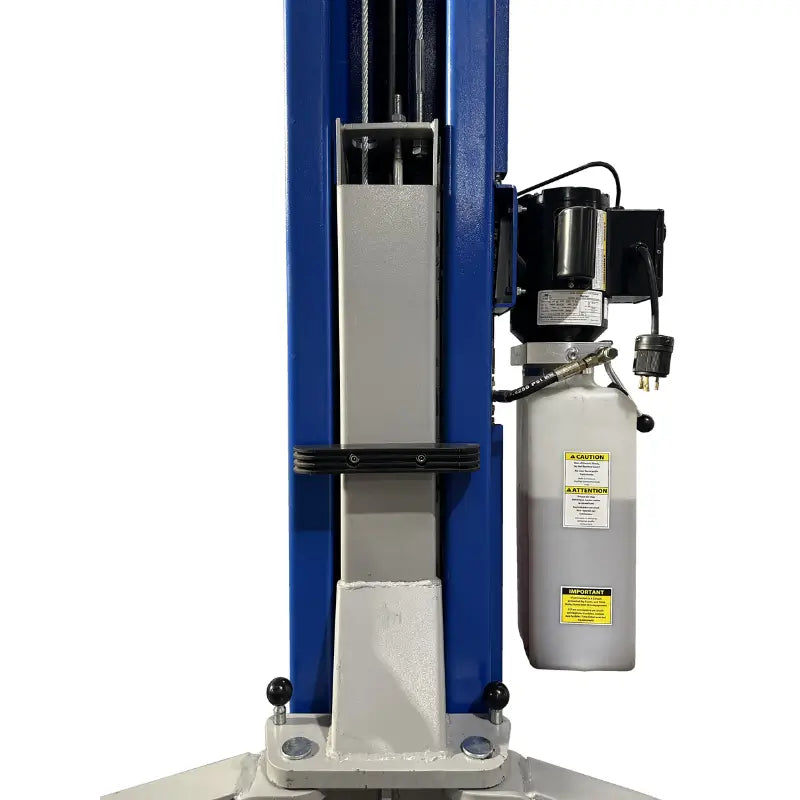

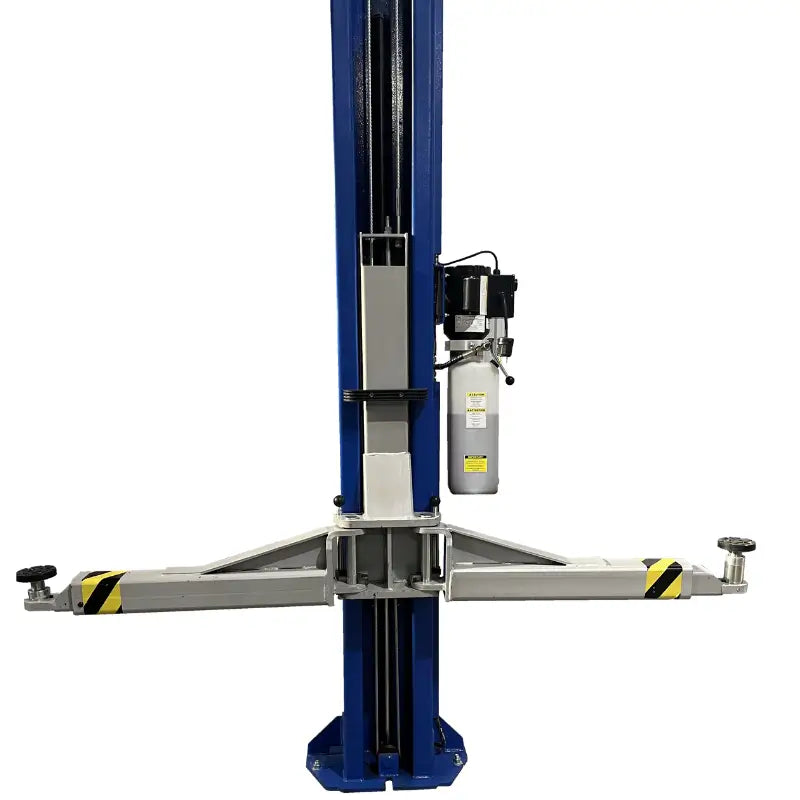

New MET UL / CSA certified Duro power unit
Rubber door guards
Direct drive push cylinders
Ideal For
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Technical Specifications
Lift model |
TP12KSC-DX |
Capacity |
12,000 lbs |
Height overall |
168-1/2″ |
Width overall with power unit |
151-5/16″ |
Max lift height |
75″ |
Width between columns |
122″ |
Min. pad height |
4-7/8″ |
Drive thru clearance |
109″ |
Lifting speed |
50 seconds |
Short arm reach (min / max) |
37-5/8″ – 57″ |
Max load per arm |
3,000 lbs |
Ship weight |
2,295 lbs |
Power |
220V – 20 AMP – 1 PH |
Concrete Requirements |
Minimum of 4.25"-3000psi |
