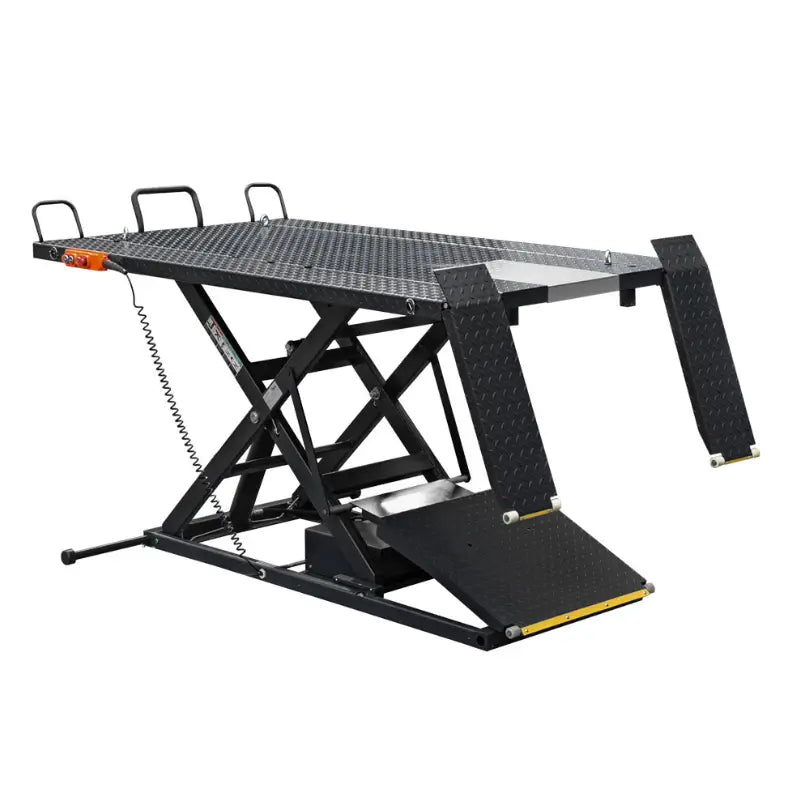

Ideal A-2200IEH-XR Electric Hydraulic ATV Lift
SKU: A-2200IEH-XR
A-2200IEH-XR Electric Hydraulic ATV Lift by Ideal Servicing your ATV or UTV shouldn’t feel like you're arm-wrestling a machine—enter the iDeal A-2200IEH-XR Electric Hydraulic ATV Lift, designed to bring some fun back to the job. With a beefy 2,200 lb capacity and a lift height of 47 inches, this bad boy lifts your ride faster than you can finish your coffee. The wide 50" x 88.6" platform gives you enough room to handle any maintenance challenge, while the full-width retractable ramp system makes loading and unloading smoother than a freshly waxed floor. Need a lift? Just press the button on the hand-held remote and watch it go!
It’s suited to powersport dealerships and service centers, home garages maintaining motorcycles, atvs, or utvs, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
Exclusive full-width retractable ramp system

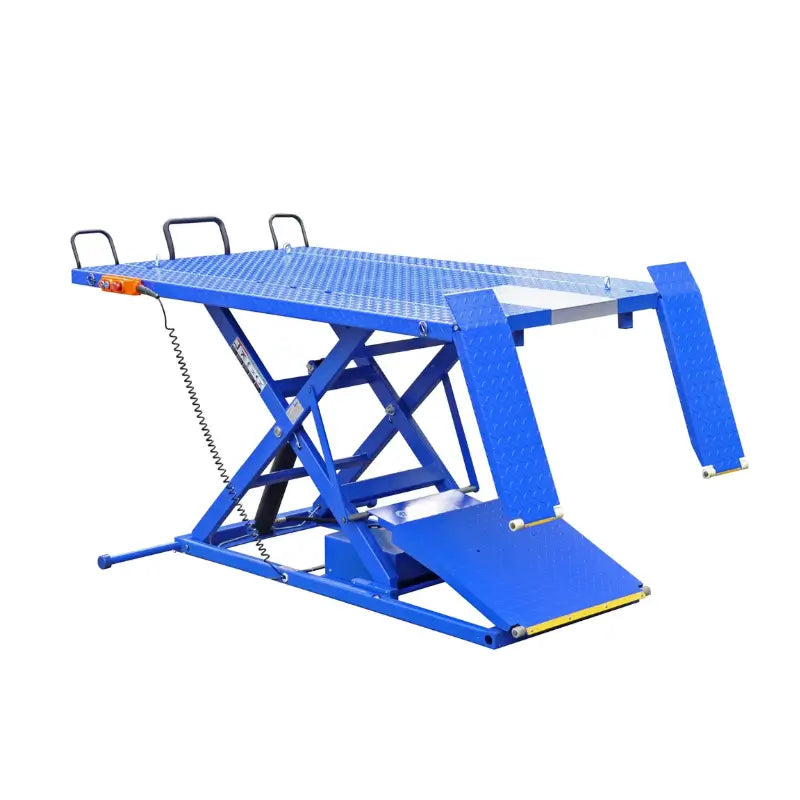

Available in blue and black
Hand-held remote-control pendant for easy operation
Magnetic lock release with six locking positions
Rear drop-down service panel for convenient access
Stabilizer bar for added stability during operation
Wheel stops and tie-down anchor eye bolts for safety
Compatible with optional M-Vise or M-Chock
Ideal For
Powersport dealerships and service centers
Home garages maintaining motorcycles, ATVs, or UTVs
Rental and fleet operations servicing recreational vehicles
Technical Specifications
Capacity |
2,200 lbs. (1,000 kg) |
Platform Size |
50” x 88.6” (1270 mm x 2250 mm) |
Power Supply |
110V, 60Hz, 1 Phase, 18A |
Lifting and Lowering Time |
30 seconds each |
Gross Weight |
980 lbs. |
Concrete Requirements |
Minimum of 4" |
