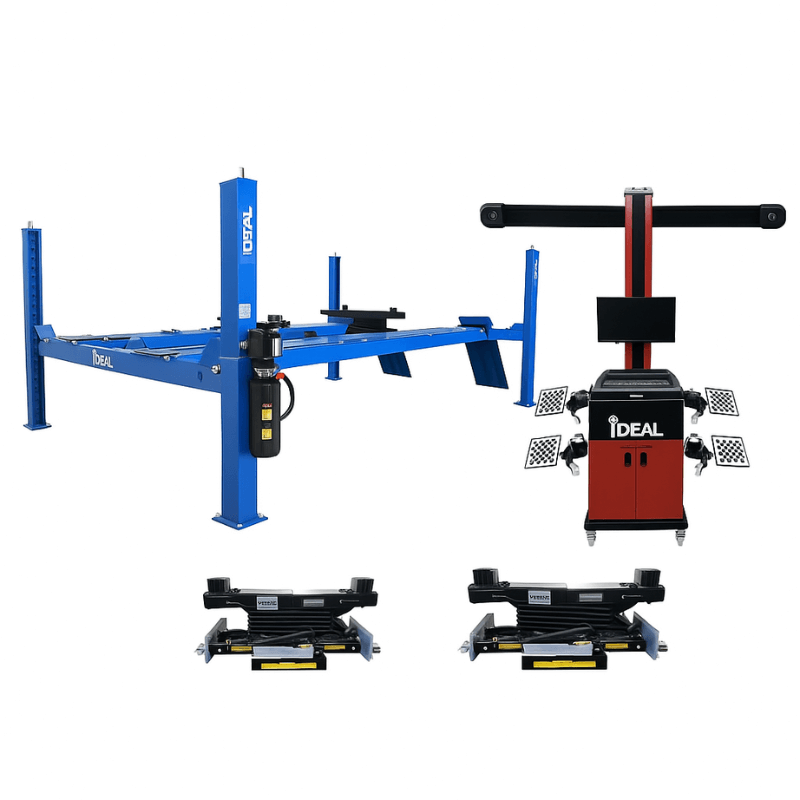

iDeal CK-FP14KA with CX-IWA-60-2000T-K and RAJ-7K-H Combo

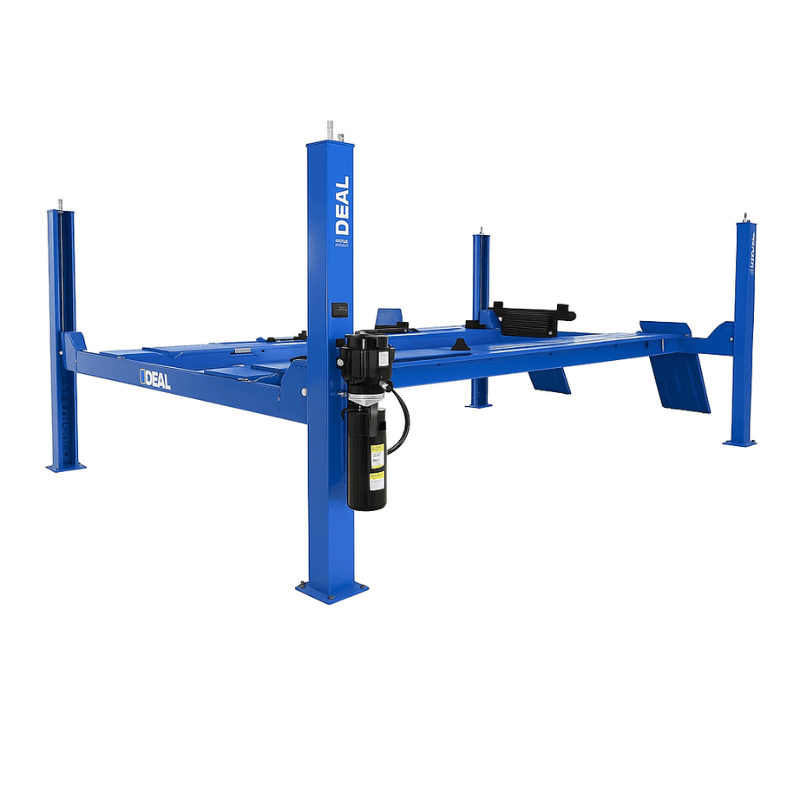

Looking for a powerful, all-in-one alignment setup? Look no further! The iDEAL FP14KAC-X 14K-4 Post Alignment Lift is here to take your shop’s game to the next level. With a 14,000 lb capacity and a maximum wheelbase of 182.5 inches, this beast is perfect for everything from compact cars to hefty trucks. And with 18 locking height positions, a cable lift system, and 20-inch-wide runways, it delivers stability and flexibility every step. The best part? The “bolt-on” runway alignment kit makes setup a breeze.

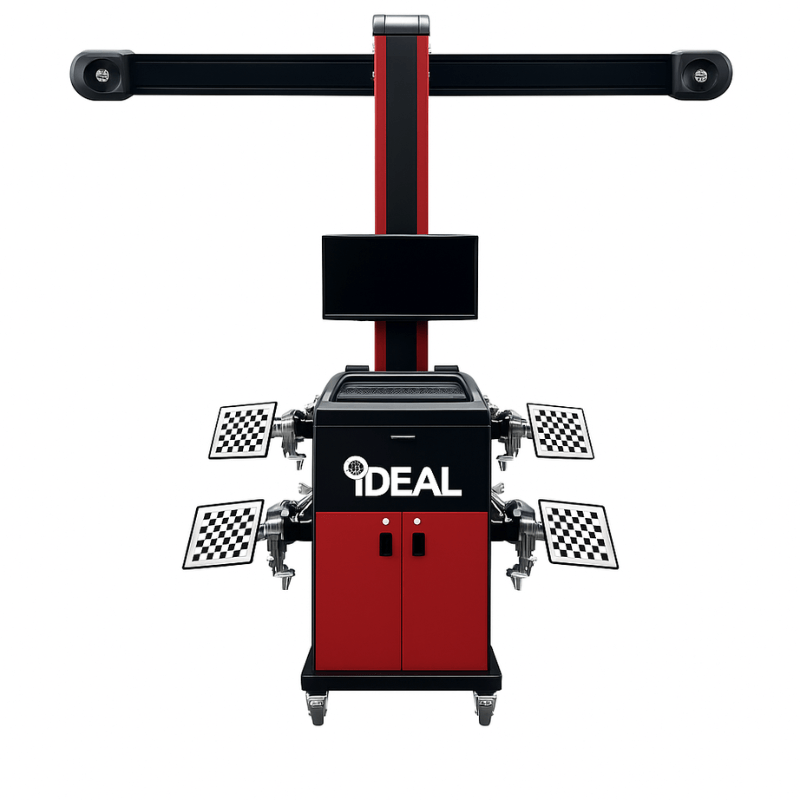

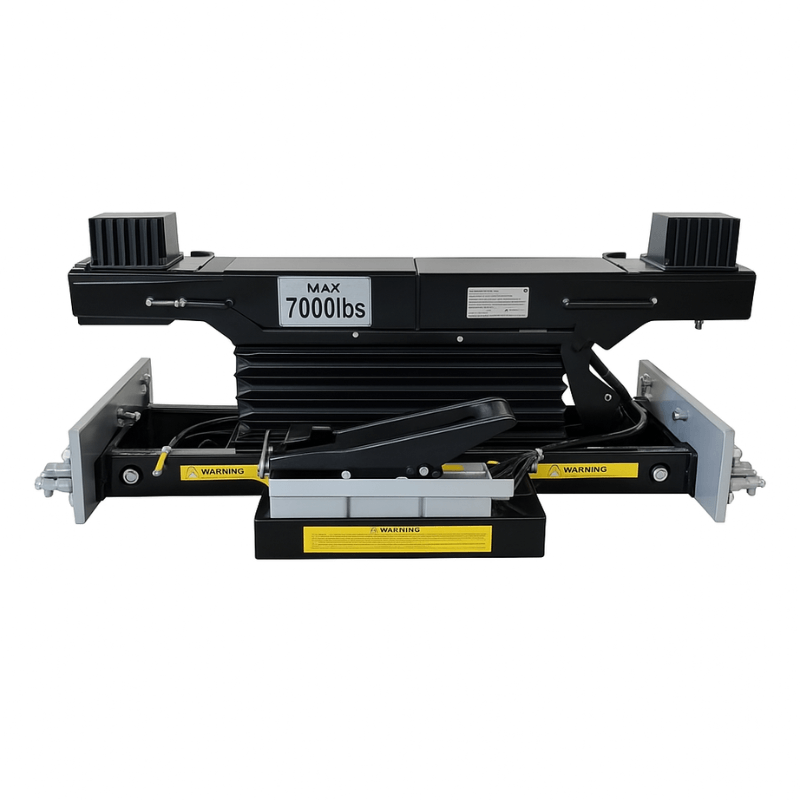

Teamed up with the iDEAL 3D iPRO Wheel Aligner, you get alignment accuracy down to 0.01 degrees, thanks to high-resolution cameras that work like magic. The aligner’s portable design makes it easy to switch between bays, and its loaded database of vehicle specs means you’re ready for any job. Add the Tuxedo RAJ-7K-H 7K Rolling Air Jack into the mix, and you’ve got a dream team for lifting and adjusting with ease. This high-mount jack slides effortlessly along the rails, giving you smooth, on-rail adjustments with up to 7,000 lbs of lifting power. Drooling already? We understand.

4 Post Alignment Lift FP14KAC-X Specification

Lift model: FP14KAC-X

Capacity: 14,000 lbs

Overall length with ramp: 252-1/2"

Overall width (without power unit): 131-7/8"

Overall width (with power unit): 142"

Overall height: 92-1/2"

Max rise height: 79-1/2"

Min height: 9-7/8"

Width between posts: 116-1/4"

Length between posts: 196"

Width between runways: 43" or 46"

Width of runways: 20"

Max wheelbase: 182-1/2"

Max alignment wheelbase (2-wheel): 166-3/4"

Min / Max alignment wheelbase (4-wheel): 103" / 157"

Ramp length: 44"

Max clearance under runway: 69-5/8"

Drive-thru clearance: 100"

Base plate: 10-1/2" x 9"

Power requirement: 220V - 20 Amp 1 PH

Concrete Requirements: Minimum of 4.25"-3000psi

Ship weight: 3,810 lbs

Minimum bay size: 16' x 25'

Wheel Aligner System IWA-60-2000T-K Specification

Aligner Model: IWA-60-2000T-K

Aligner Type: 3D 'Wide Scope' Imaging

Operating System: Windows 10

Software: Techno Vector 7

Accuracy: 0.01 Degrees

Certification: CE

Target Size (4): Standard

Cameras: 2 (High Resolution / Wide Scope)

Lift Compatibility: 4 Post or Scissor Alignment Lift required

Standard Wheel Clamps (4): 12" - 24"

Toe Adjustment: Yes

Raised Mode: Yes

Live Caster: Yes

Runout Compensation: Yes

Wheel Alignment Mode: Yes

Database Update: Yes

Customer Manager: Yes

Lift Range Height: 35" to 67"

Max Wheelbase: Up to 13' (157.5")

Power Requirement: 120V - 15 Amp / 1 PH / 60 Hz

Ship Weight: 500 lbs (2 pcs)

Key Features

• 14000 LBS Capacity

• High performance commercial alignment lift

• Durable, high quality cable lift system

• Extended rise height

• 'BOLT-ON' Runway alignment kit

• 166.7" Max alignment wheelbase (2 wheel)

• 157" Max alignment wheelbase (4 wheel)

• 182.5" Max service wheelbase

• 18 locking height positions

• Full width rear wheel slip plates

• Two turntable positions w/spacer covers

• 20" Wide runways

• Narrow & wide runway mounting positions

• Single point pneumatic lock release

• Fully adjustable lock stops for easy leveling

• Slack cable safety devices

• Self-chocking approach ramps w/ nylon rollers

• Wheel chocks (1PR)

• Durable powder coat finish

• Wide scope, high-resolution 3D industrial-grade cameras

• Mobile design for multi-bay capability

• 0.01-degree alignment accuracy

• Durable powder-coated metal cabinet

• Wireless internet support

• Multiple 2D & 3D views with live readings screen

• Pre-installed 25+ years of specification database

• Integrated adjustment diagrams & help system

• Multi-functional LED guide on camera boom

• Compatible with multiple alignment lift styles

• Remote control capability via Android devices

• Includes storage cabinet, printer drawer, and brackets for storing wheel adapters and targets

• Equipped with 12"-24" wheel clamps and durable magnesium alloy targets with protective oil-resistant layer

• Accessories include steering wheel holder, brake depressor, and wheel chocks

• VIN code scanner capable (not included)

• Optional yearly specification and software updates

• Includes: Set of plastic clamp protectors as well as 2 sets of duck head inserts

• High mount design for low jack rails

• Adjustable height roller body assemblies

• Dual spring-loaded roller body operation for stability

• Smooth on-rail rolling with roller bearing wheels

• Telescoping and locking support arms

• Air/hydraulic operation for reliable lifting

• Protective skirts for added durability

• Two locking height positions

• Rubber height adapters for customization and safety

• Free freight shipping to the contiguous 48 states and 30-day returns with no restocking fee. Questions about this product? Contact Triumph Auto Lift Center at support@TriumphAutoLiftCenter.com or (320) 279-4890.

Ideal For

• Shops wanting a complete tire-service setup in one purchase

• Tire shops and dealerships handling daily tire service

• Auto repair centers adding wheel and tire work

• Home garages and serious DIY mechanics
