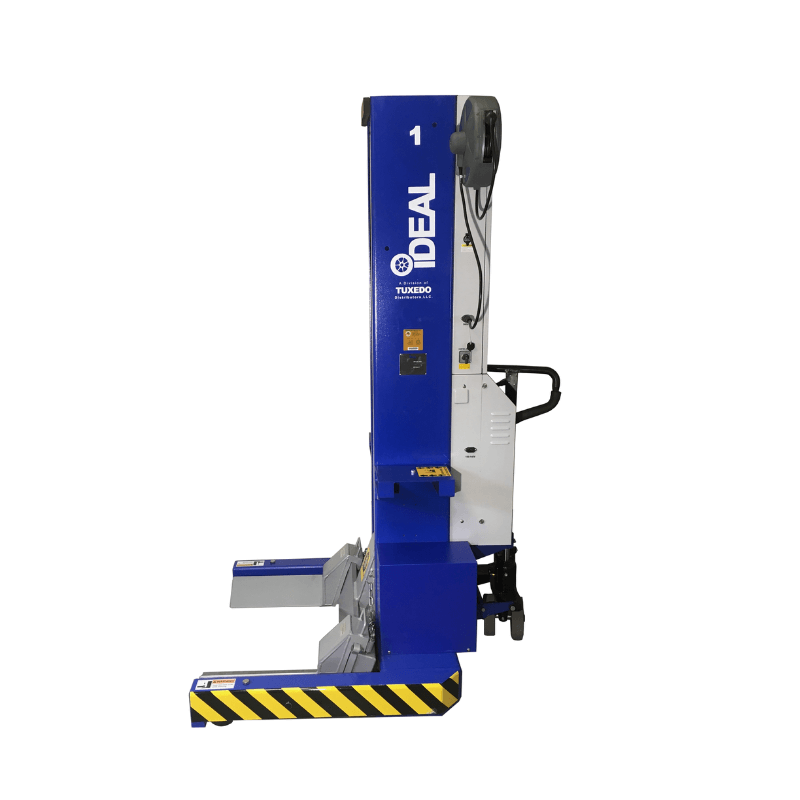

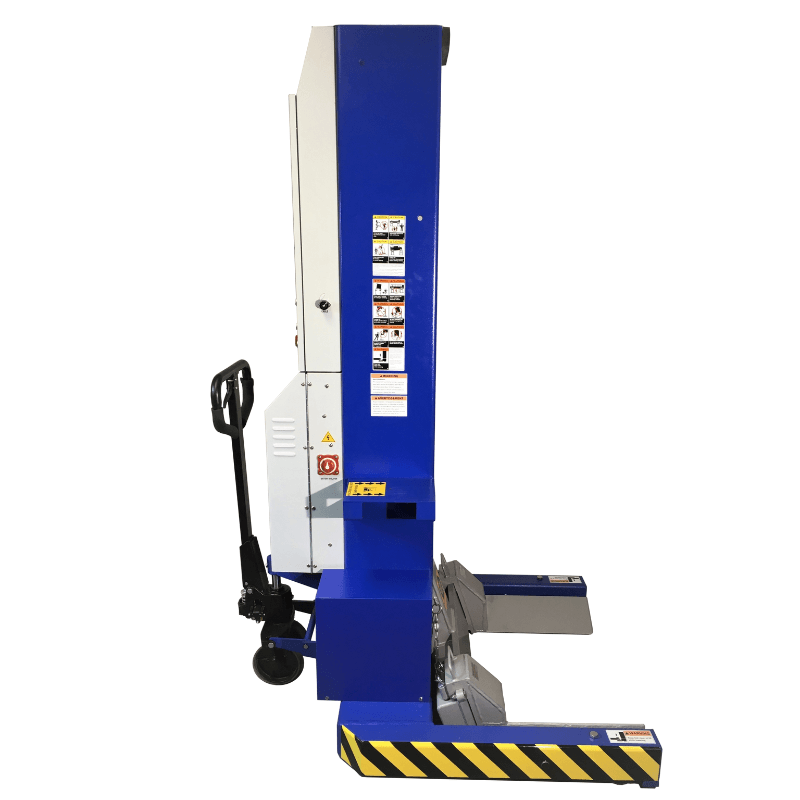

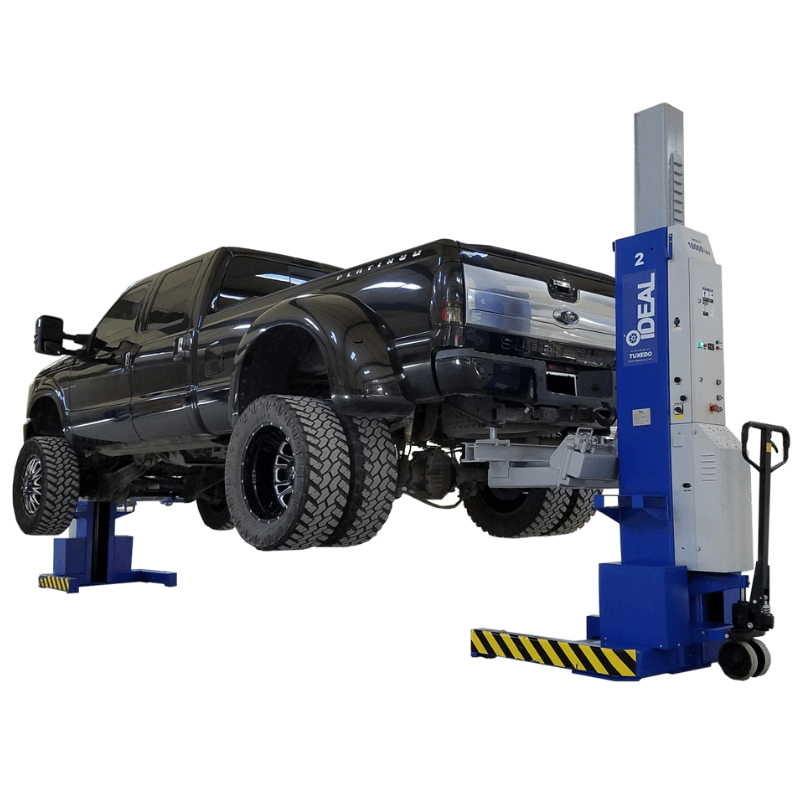

Ideal MSC-18K-X-6108 18,000lb Mobile Column Lift (6-Pack) ALI Certified
SKU: MSC-18K-X-6108

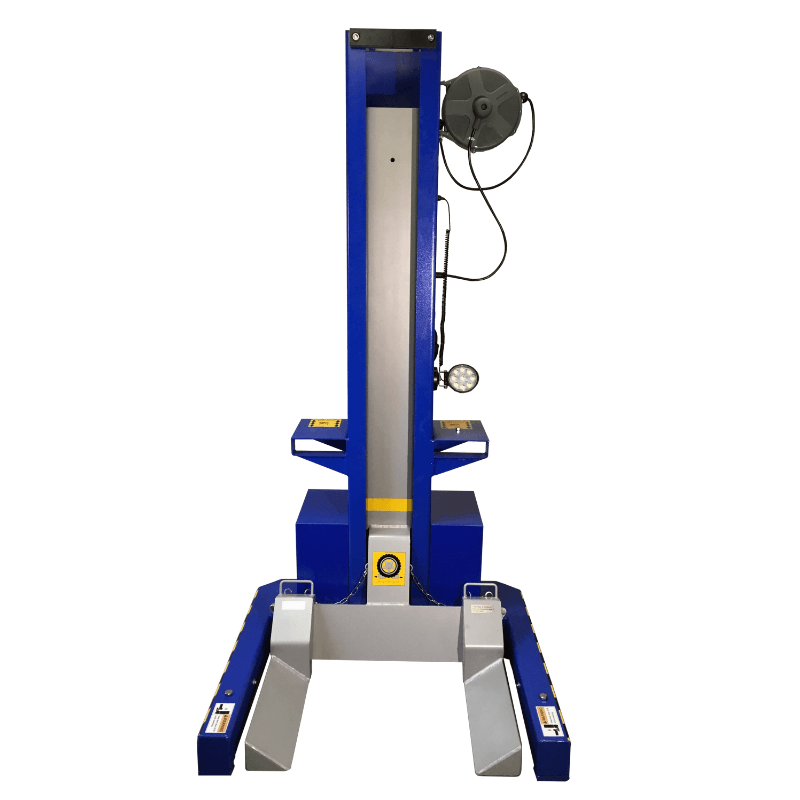

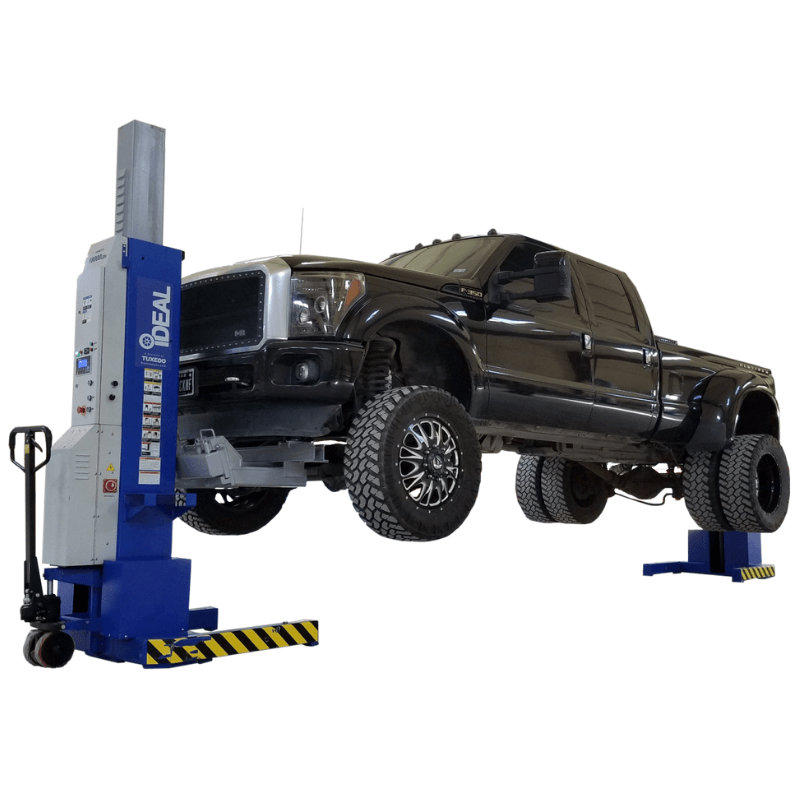

MSC-18K-X-6108 Mobile Column Lift Are your current lifts struggling to meet the demands of modern heavy-duty vehicles? The iDeal MSC-18K-X series offers a solution to these challenges. This mobile column lift system addresses the need for versatile, high-capacity lifting equipment. With configurations lifting up to 108,000 lbs, it's designed to handle even the largest commercial vehicles. The adjustable lifting forks, ranging from 12.6" to 22", ensure compatibility with a wide range of wheel diameters. The PLC & Optical Encoder provides continuous synchronization between columns, while the independent mechanical locking system and emergency switches on each column prioritize safety.
Rated for 18,000 lb, it's suited to heavy-duty fleet and commercial vehicle service, bus and truck maintenance facilities, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
ALI Certified
24VDC Battery Operation with Onboard Charging System
Communication Cable with Retractable Cable Reels
U-Shape Wiring Configuration for quick vehicle entry & exiting
Convenient Operation from any Column
Independent Mechanical Locking System
PLC & Optical Encoder provides continuous synchronization for Columns
Easily positioned with Pallet Jack type device with Poly Caster Wheels
Ideal For
Heavy-duty fleet and commercial vehicle service

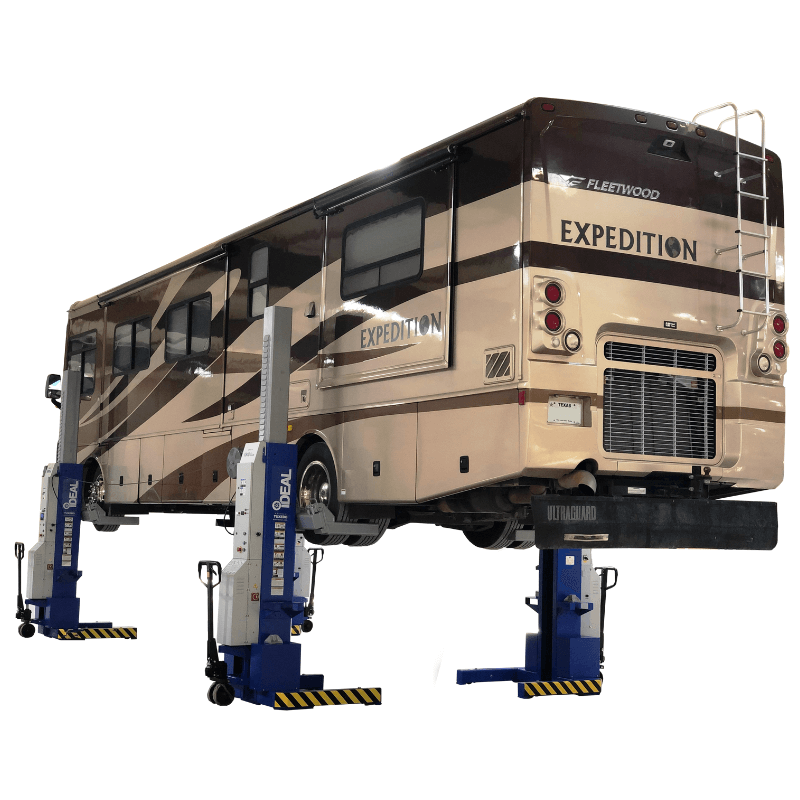

Bus and truck maintenance facilities

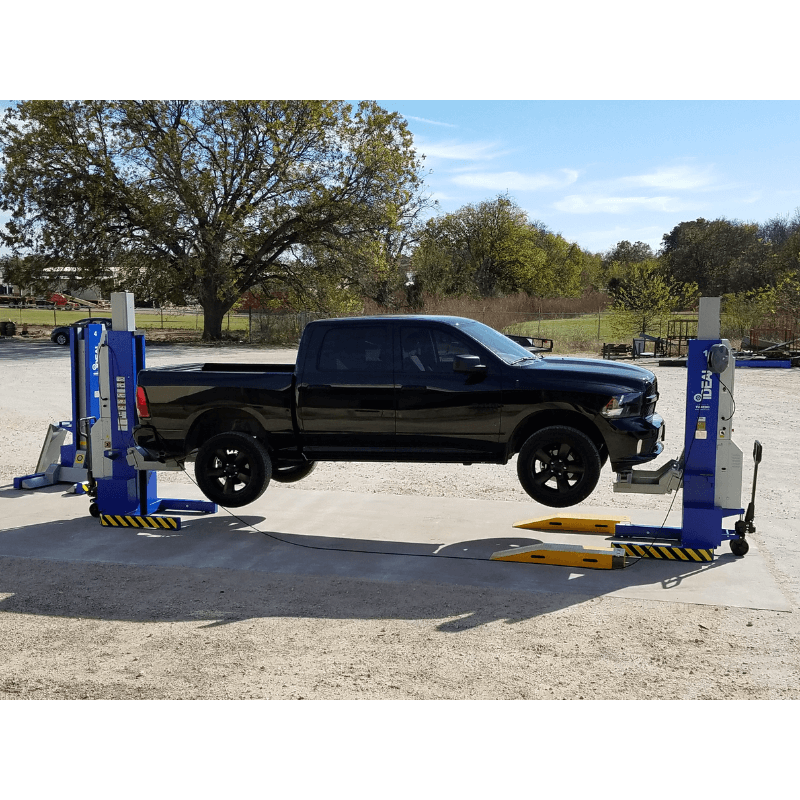

Shops needing flexible, relocatable heavy-vehicle lifting without in-ground installation
Technical Specifications
Column Configurations |

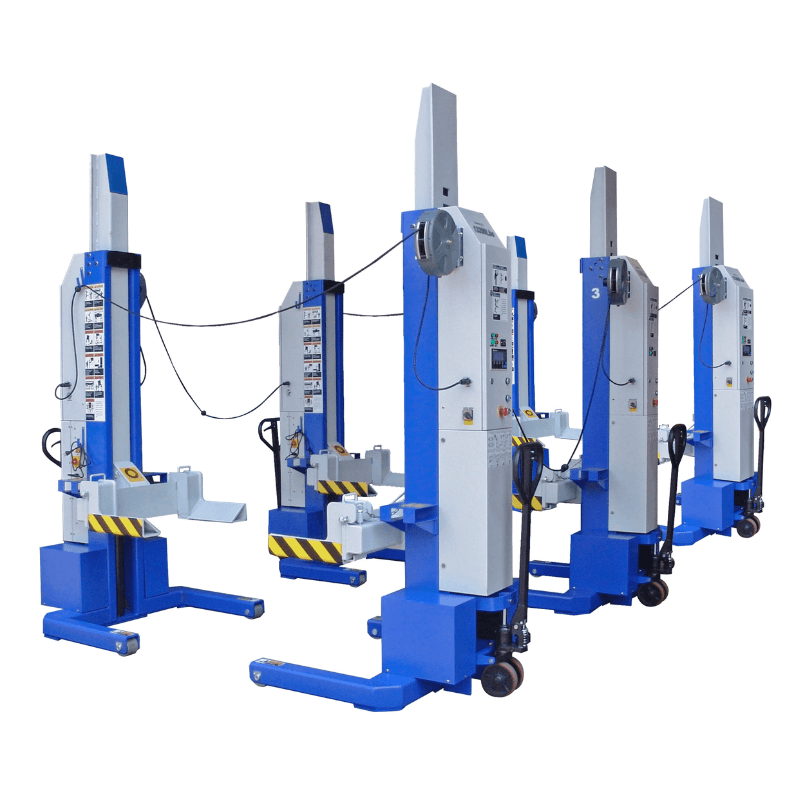

6 Column |
Capacity |
18,000 lbs |
Charging Voltage |
100-140VAC, 60HX, Single Phase |
Lifting Height |
67.1″ |
Column Width |
44.1″ |

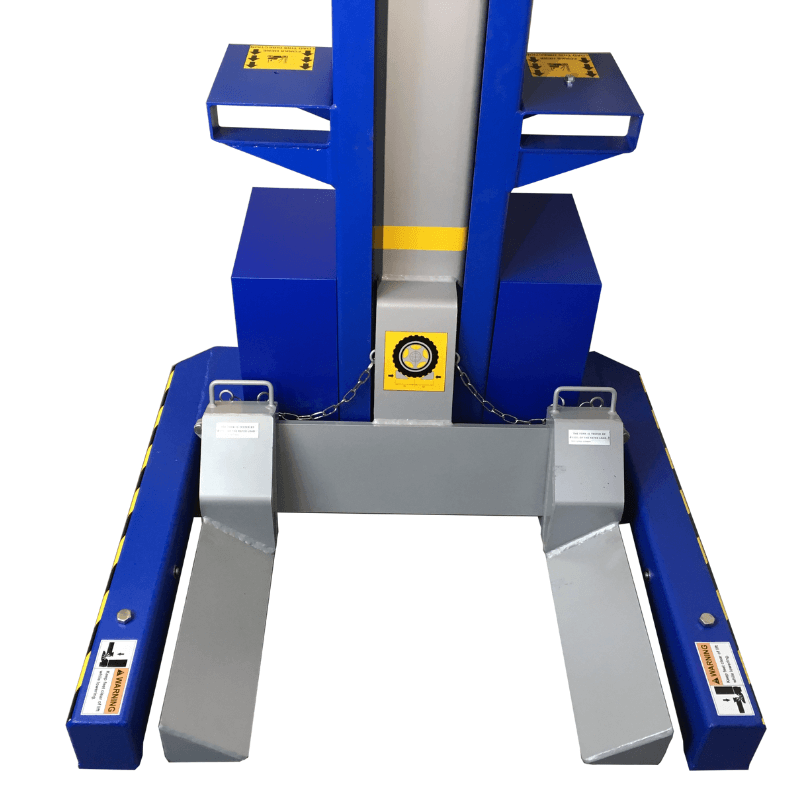

Fork Adjustable Range |
12.6″ – 22″ |
Fork Length |
17.9″ |
Fork to Column Clearance |
10″ |
Rise Time |
100 Seconds |
Max Distance between Columns |
32.8′ |
Min. Concrete Surface Strength |
3,000PSI |
Battery Type (Recommended) |
12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 – not included |
Optional Adapters (Sold Separately) |

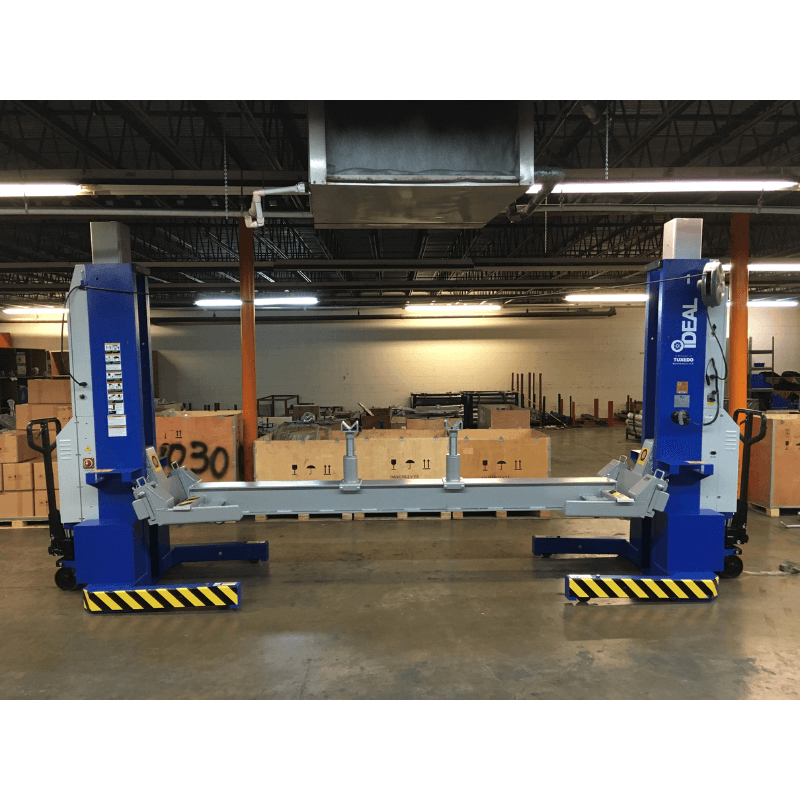

Cross Beam (MSC18KX-CRSBM) |
ALI Certified |
24VDC Battery Operation with Onboard Charging System |
