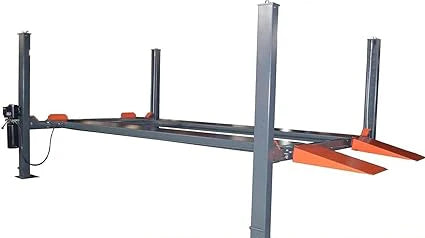

Katool KT-4H110 Four-Post Service & Storage Lift – 11,000 lb Capacity

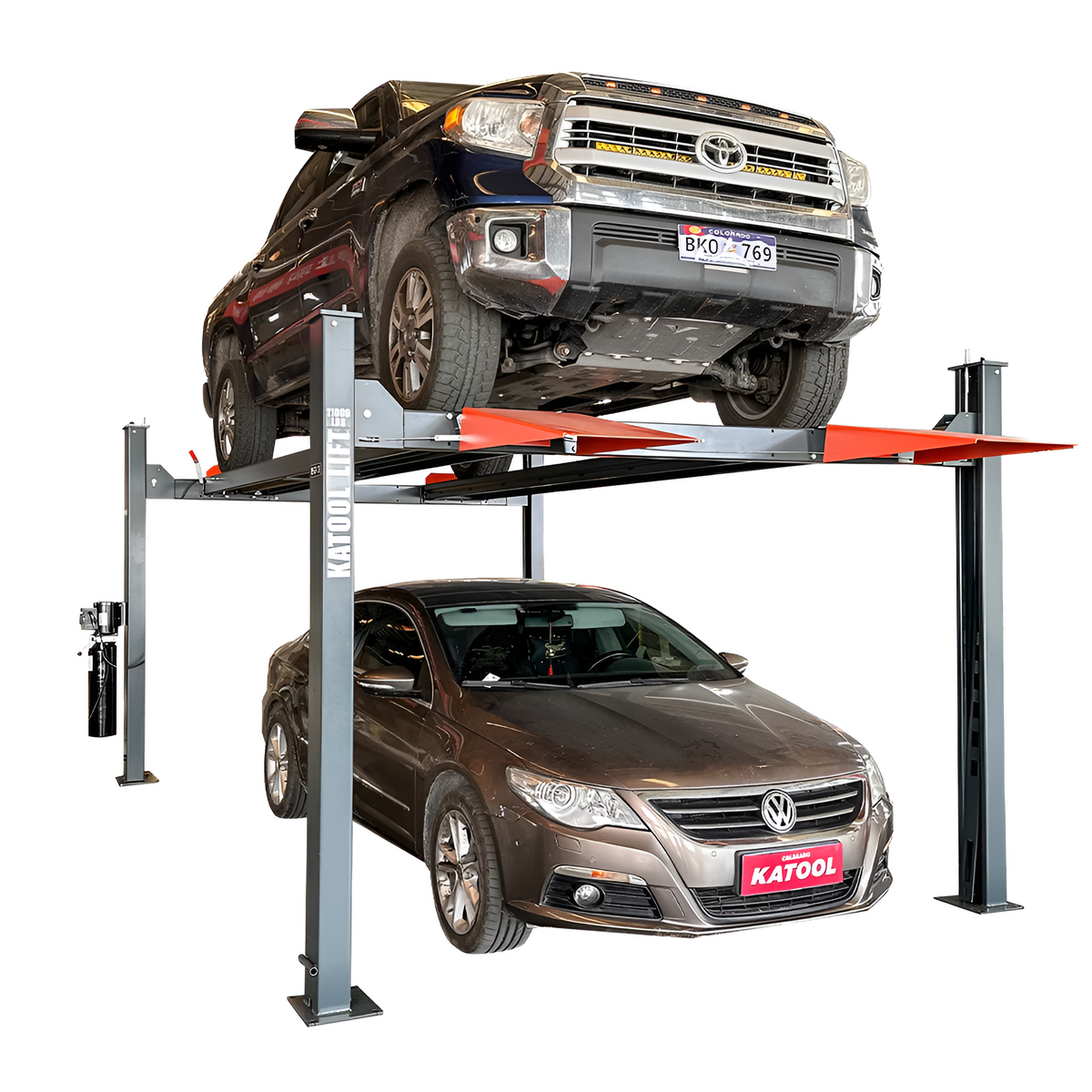

The KT-4H110 Four Post Vehicle Lift is a heavy-duty solution engineered for professionals who prioritize durability, power, and safety in their automotive workshop. With an impressive 11,000 lbs (approximately 4,990 kg) lifting capacity, this lift is capable of handling a wide range of vehicles, from passenger cars to light and medium-duty trucks, making it a versatile addition to any garage.

This lift is CE Approved, signifying that it has been rigorously tested and certified to meet stringent European safety standards. It is proven to support 115% dynamic and 150% static load standards, ensuring exceptionally secure and reliable performance during every operation. For enhanced safety and ease of use, the KT-4H110 features a single-point manual safety lock release system, simplifying the process of raising and lowering vehicles.

Security is further reinforced by the inclusion of four mechanical locks, with both primary and secondary safety features at each post, providing redundant safety measures. The design incorporates non-skid diamond plate platforms for superior vehicle grip and adjustable safety lock ladders for precise and stable positioning at various heights. The lift’s flexibility is highlighted by its power-side column placement options, allowing it to be installed at either the front or rear to optimize your shop layout. Additional conveniences include two drip trays for maintaining cleanliness and a jack tray for supporting an optional rolling jack (like the KT-RJ50). The hydraulic system is powered by a high-quality motor, standard at 110V/60HZ/1PH, with a 220V/60HZ/1PH option available to suit different electrical setups. This lift is a robust and reliable choice, backed by a 12-month all-parts warranty.

Key Features

• 11,000 lbs (4,990 kg) Lifting Capacity: Ideal for heavy-duty vehicles, including passenger cars, light, and medium trucks.

• CE Approved: Tested at 115% dynamic and 150% static load standards for certified safety and reliability.

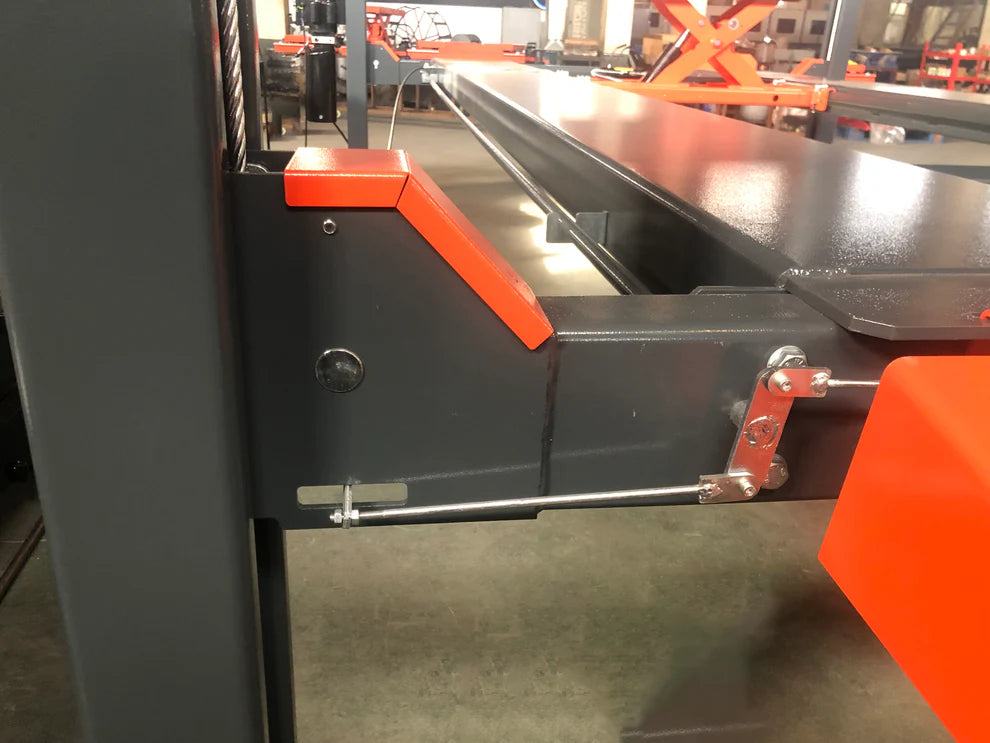

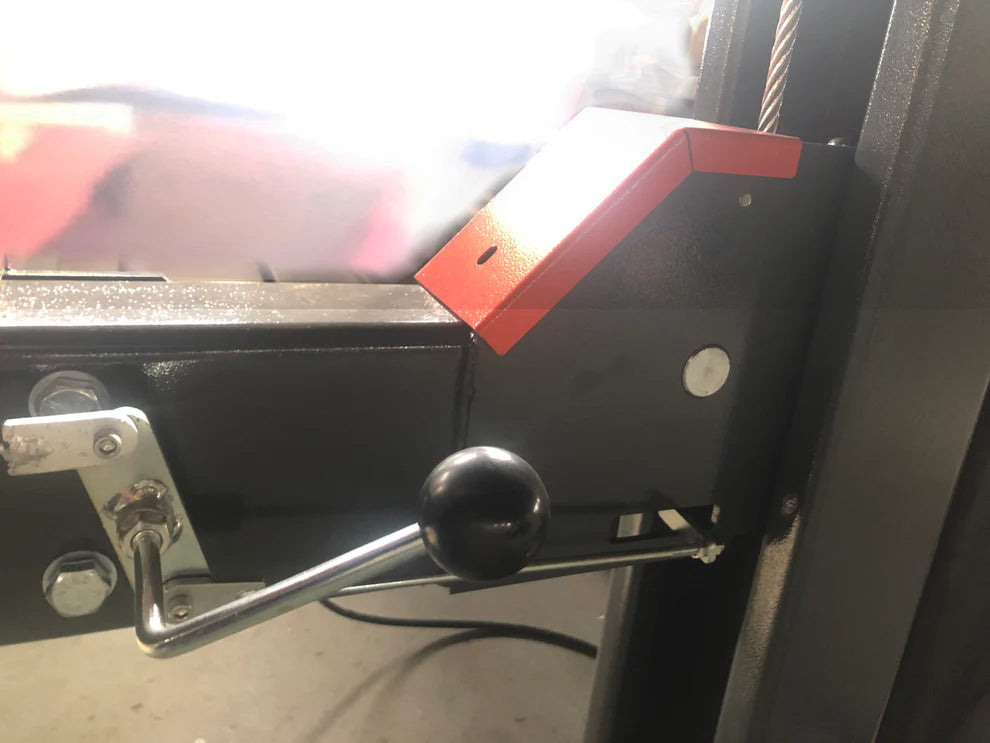

• Single-Point Manual Safety Lock Release: Simplifies operation and ensures secure positioning.

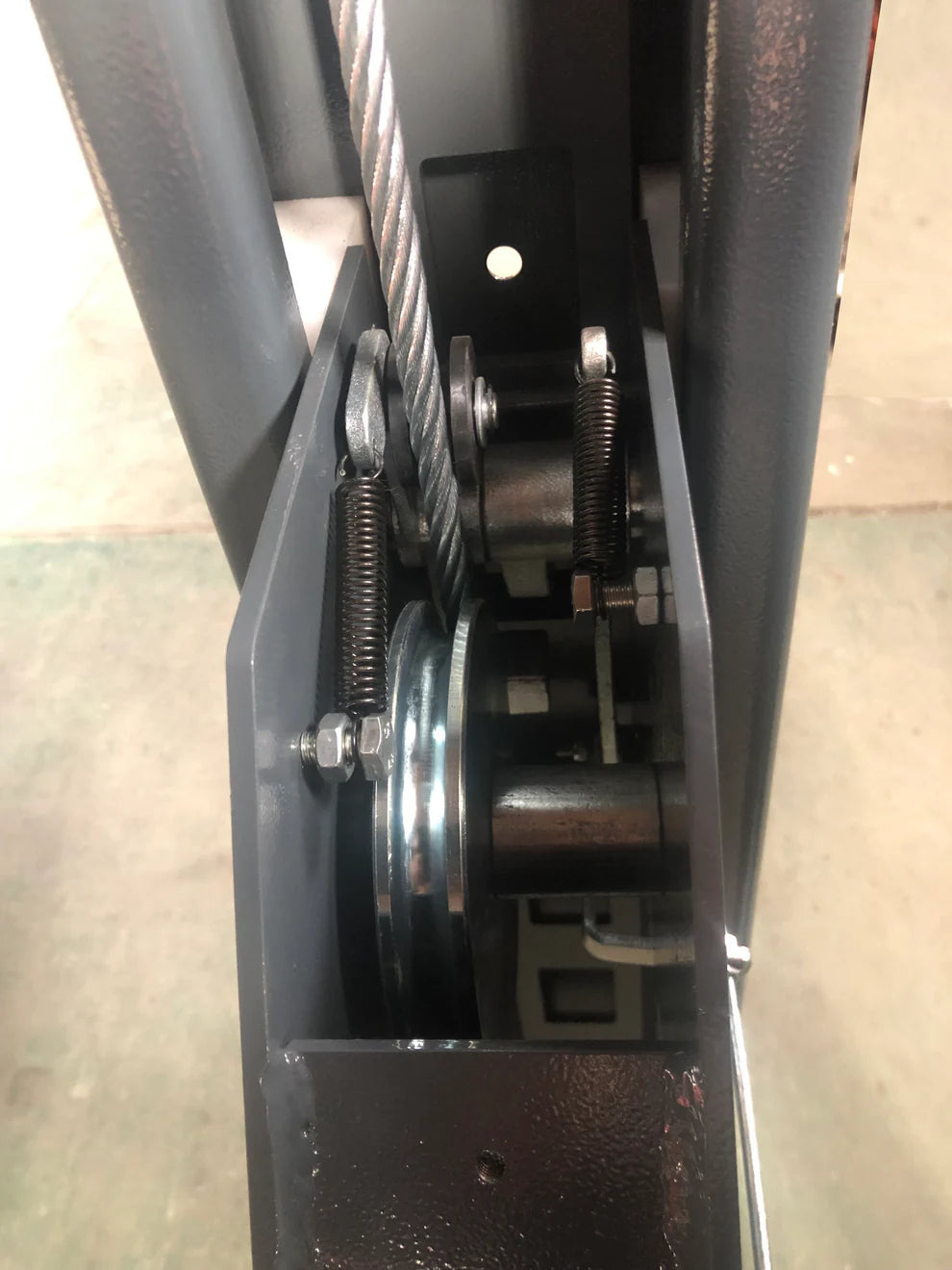

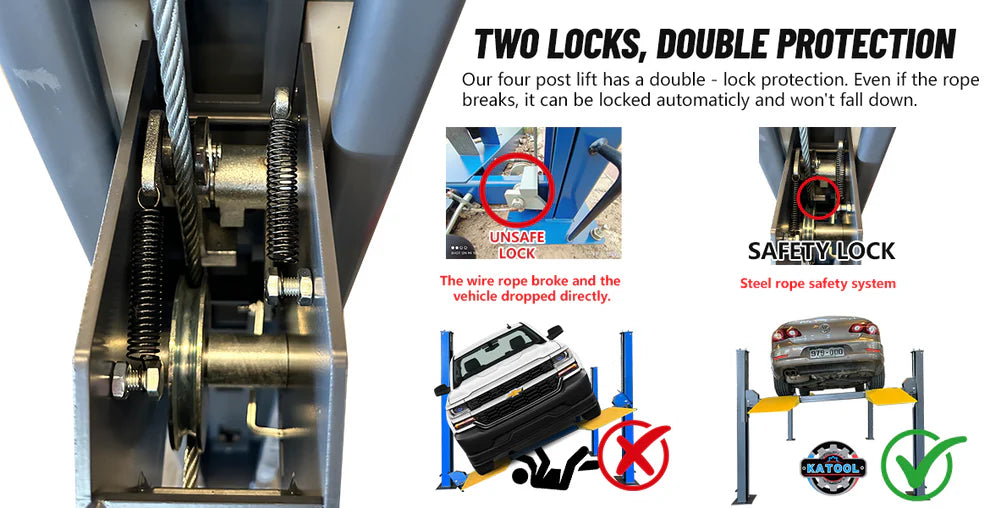

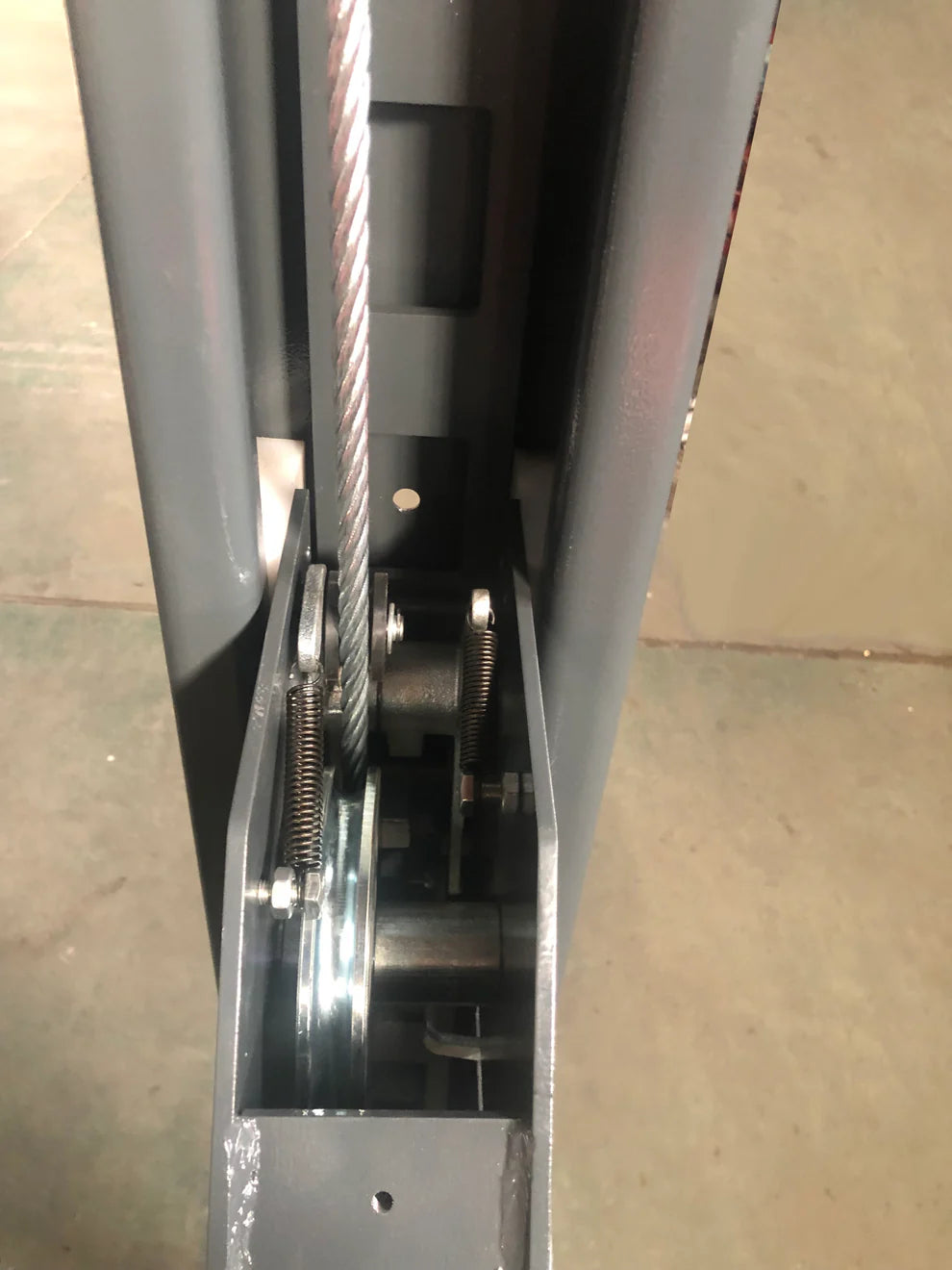

• Four Mechanical Locks: Includes primary and secondary safety features at each post for maximum security.

• Flexible Power-Side Column Placement: Can be installed at the front or rear to optimize shop layout.

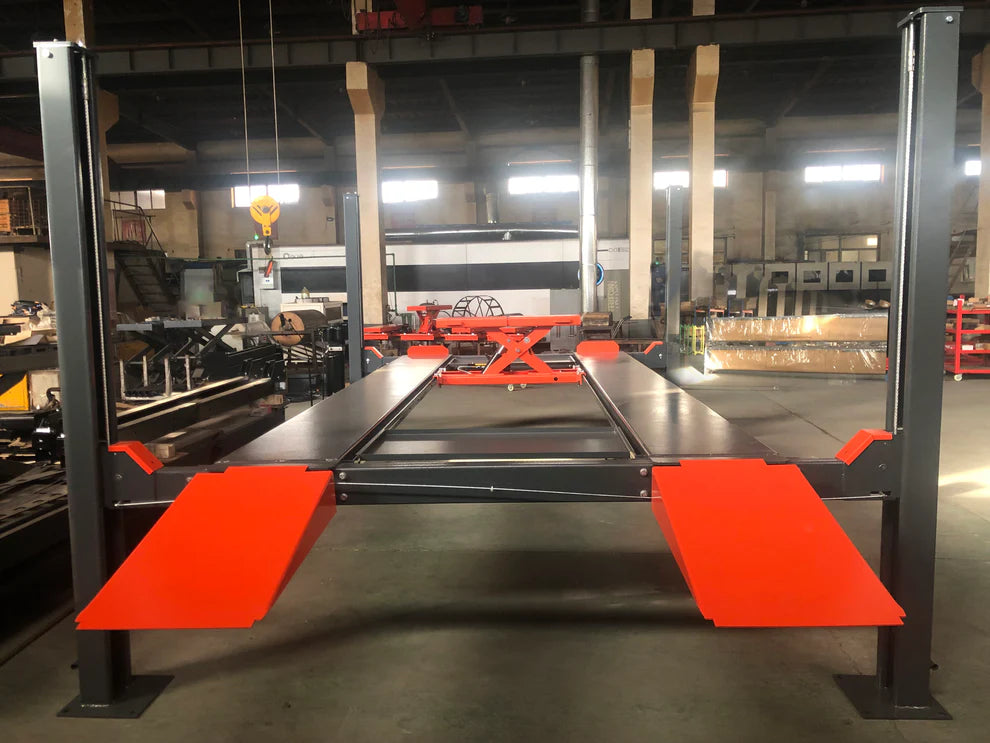

• Non-Skid Diamond Plate Platforms: Provides superior vehicle grip and features adjustable safety lock ladders.

• Included Accessories: Comes with two drip trays and one jack tray.

• High-Quality Hydraulic System: Available in 110V/60HZ/1PH (standard) or optional 220V/60HZ/1PH.

• Durable Construction: Built for long-term reliability and performance in professional environments.

• Optional Add-ons: Compatible with an optional caster kit for mobility and optional rolling jacks.

Ideal For

• Professional auto shops and service centers

• Heavy-duty truck and commercial vehicle service

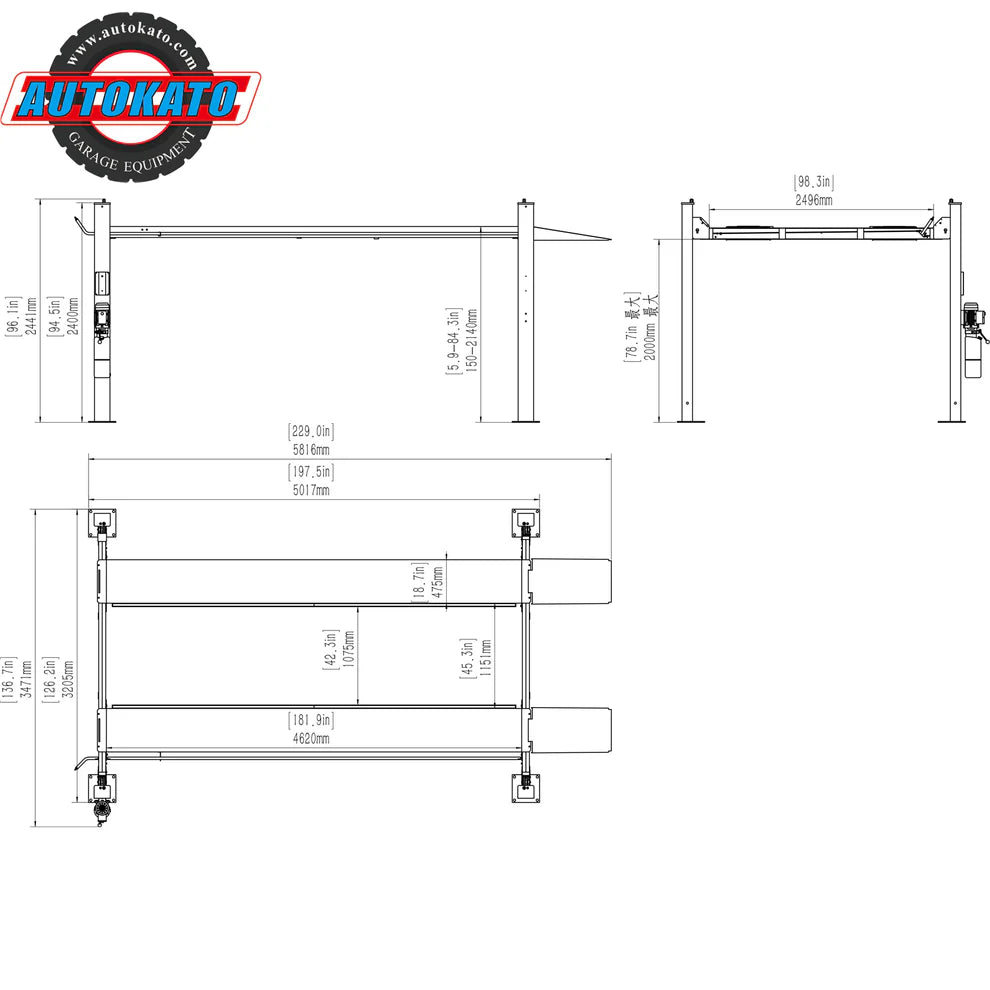

Technical Specifications

Important Installation Notes

Proper concrete installation is critical for safety and optimal lift performance. Customers are solely responsible for verifying their concrete specifications meet the minimum requirements before purchase and installation. Failure to comply with these requirements can result in serious injury or death.

• Standard Setup: Minimum 5.9″ (150 mm) thick concrete with 3000 PSI strength.

• Alternate Option: Minimum 3.93″ (100 mm) thick concrete with 3000 PSI strength is also accepted.

Shipping & Returns

Free freight shipping to the contiguous 48 states and 30-day returns with no restocking fee. Questions about this product? Contact Triumph Auto Lift Center at support@TriumphAutoLiftCenter.com or (320) 279-4890.

Warranty Coverage

This product is backed by a 12-month all-parts warranty, ensuring peace of mind and long-term value. Please retain your invoice as proof of purchase for any service inquiries or warranty claims. For assistance, contact Triumph Auto Lift Center at support@TriumphAutoLiftCenter.com or (320) 279-4890.
