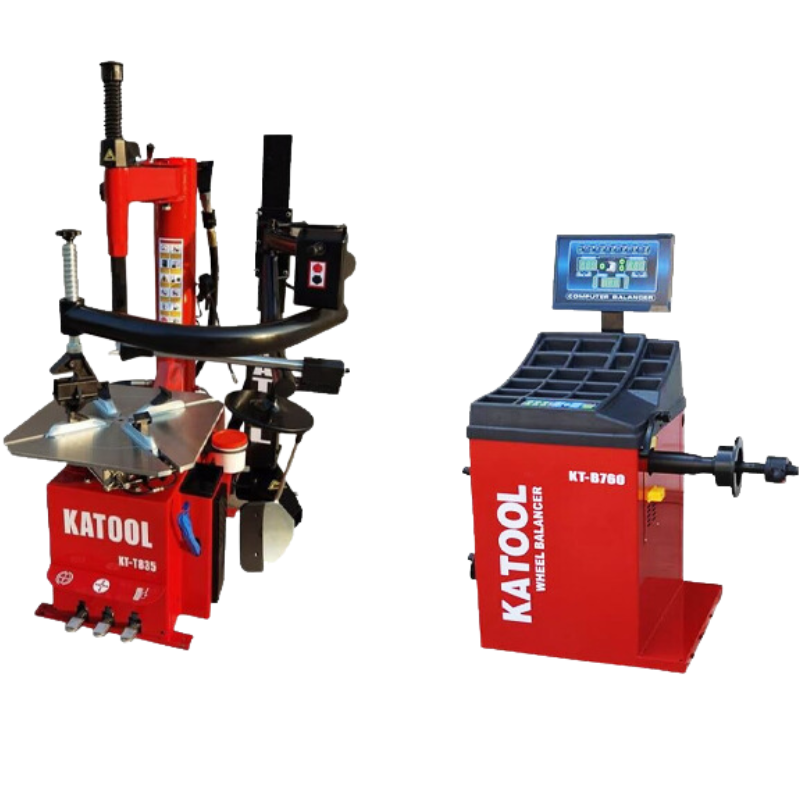

Katool KT-T835 Tire Changer with Wheel Balancer KT-B760 Combo
SKU: KT-T835+KT-B760
Say goodbye to clunky machines, wasted time, and unhappy customers. Traditional tire changes can be a real drag, leaving you with imbalanced tires that cause vibrations and uneven wear. Ugh, not exactly a recipe for a five-star review, right? Upgrade your pit crew with the Katool KT-T835 Tire Changer & KT-B760 Wheel Balancer!

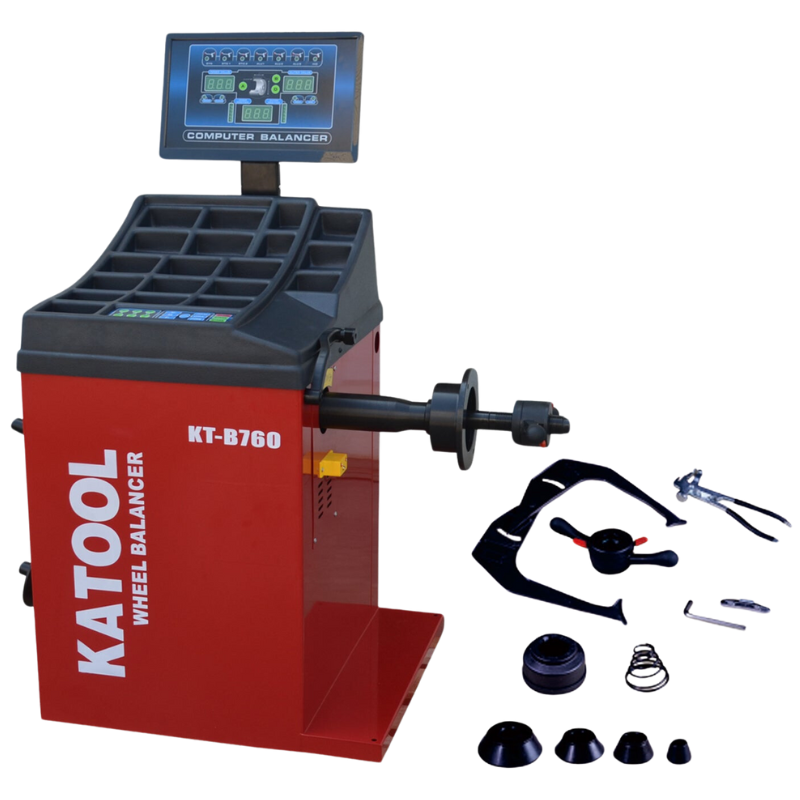

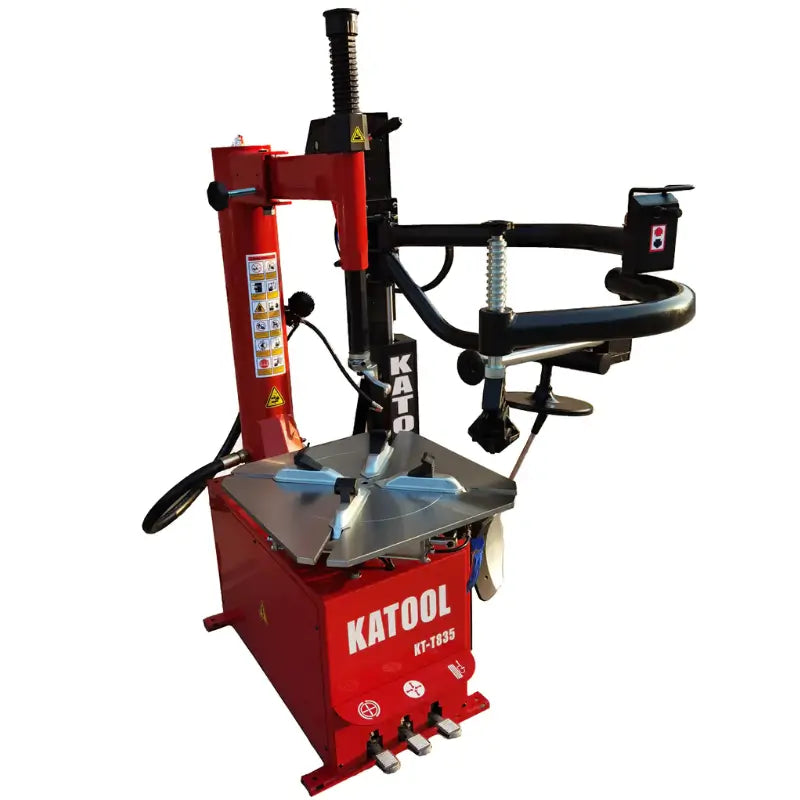

This dynamic duo tackles even the most challenging tires with ease. The KT-T835 Tire Changer boasts a jaw so strong it could wrestle a monster truck (seriously, it handles up to 41" diameter!), while the wide clamping range (13"-26" outside, 14"-28" inside) ensures compatibility with various vehicles. The powerful 2.0HP motor and user-friendly controls make quick work of any tire change. Plus, the KT-B760 Wheel Balancer is your secret weapon for perfect balance. This machine delivers pinpoint precision in a flash (7-second measuring time!), ensuring smooth rides and happy customers. No pre-set parameters or confusing controls – the KT-B760 is built for ease of use. Stop letting tire woes slow you down! Invest in efficiency and customer satisfaction today!
Key Features

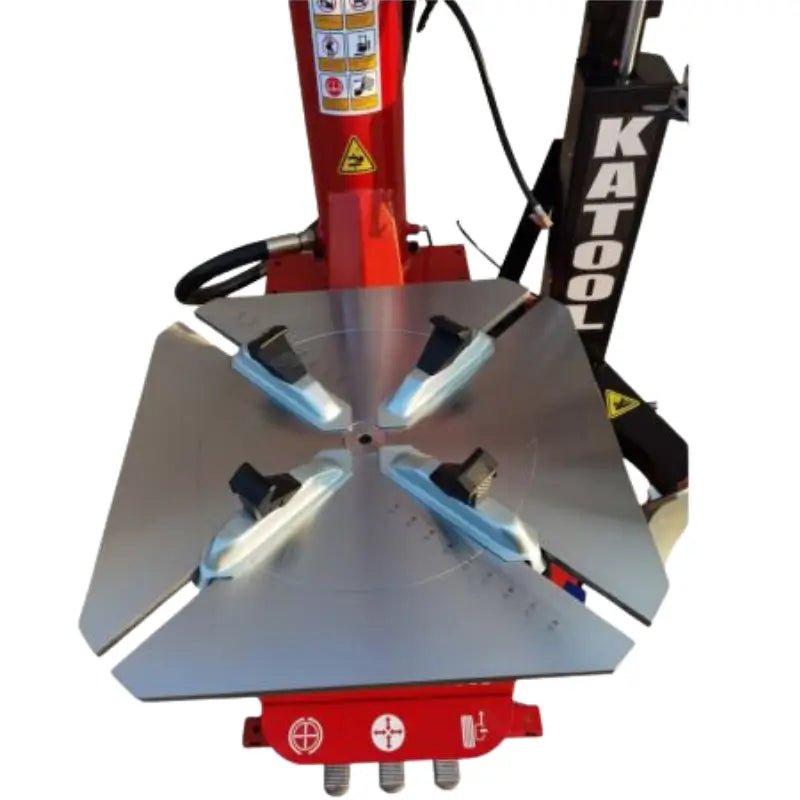

Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.
The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim.
Inflation gauge with pedal control
With high quality spade cover, effective prevent damage rim.
Pull type pedal control system, convenience for changing and maintenance.
Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.
For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working

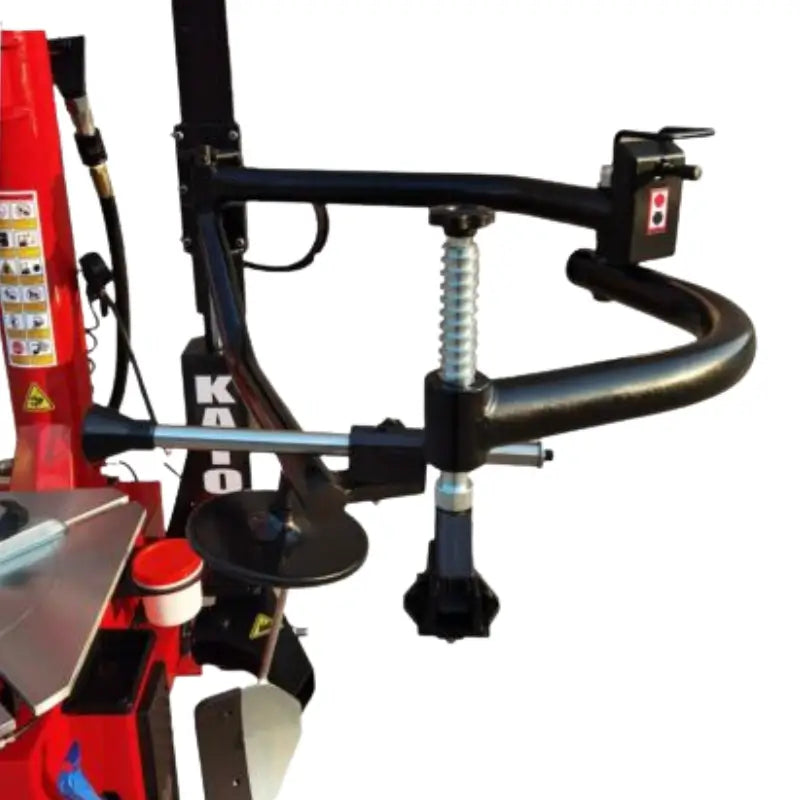

Double side assist arm
Bead blast seater head with post tank
φ186mm stainless bead breaker cylinder
Closed body for protect inside parts
Automatic measurement ruler for auto input A and D values
The body uses 3mm-thick steel with high strength, solid welding and low vibration
All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
The 36mm shaft thread is made by quenching treatment to offer high strength
The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
Various balance mode for different types of rims to provide more precision
Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease
Unit selection (Ounce/Gram, MM/Inch)
High quality integration power board, working stable and reliable
Optional wheel guard
Longer shaft, also compatible with wider wheels
One-year (12 months) manufacturer warranty on all parts and against product defects.
Free freight shipping to the contiguous 48 states and 30-day returns with no restocking fee. Questions about this product? Contact Triumph Auto Lift Center at support@TriumphAutoLiftCenter.com or (320) 279-4890.
Ideal For
Shops wanting a complete tire-service setup in one purchase
Tire shops and dealerships handling daily tire service
Auto repair centers adding wheel and tire work
Home garages and serious DIY mechanics
Technical Specifications
Max Wheel Diameter |
41" |
Max Wheel Width |
15" |
Outside Clamp |
13"-26" |
Inside Clamp |
14"-28" |
Power Supply |
110V 1PH/60HZ |
Motor Power |
2.0HP/1.5KW |
Rotation Speed |
6.1/min |
Air Pressure |
0.8-1.0Mpa(116-145psi) |
Net weight |
582lbs |
Rim Diameter |
<30" |
Wheel Width |
3"-12" |
Wheel Diameter |
<880mm/34.64" |
Balancing Speed |
180rpm |
Power Supply |
110V 1PH |
Motor Power |
0.25KW |
Rim Center Hole Dia. |
<135mm/5.31" |
Wheel Weight |
143lbs |
Balancing Accuracy |
±1g |
Measuring Time |
7S |
