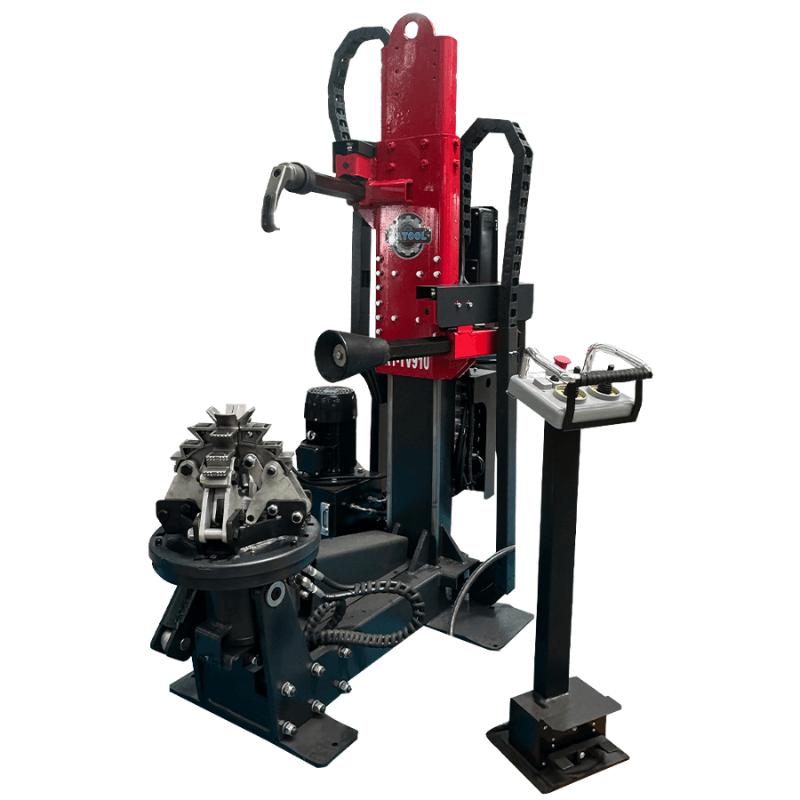

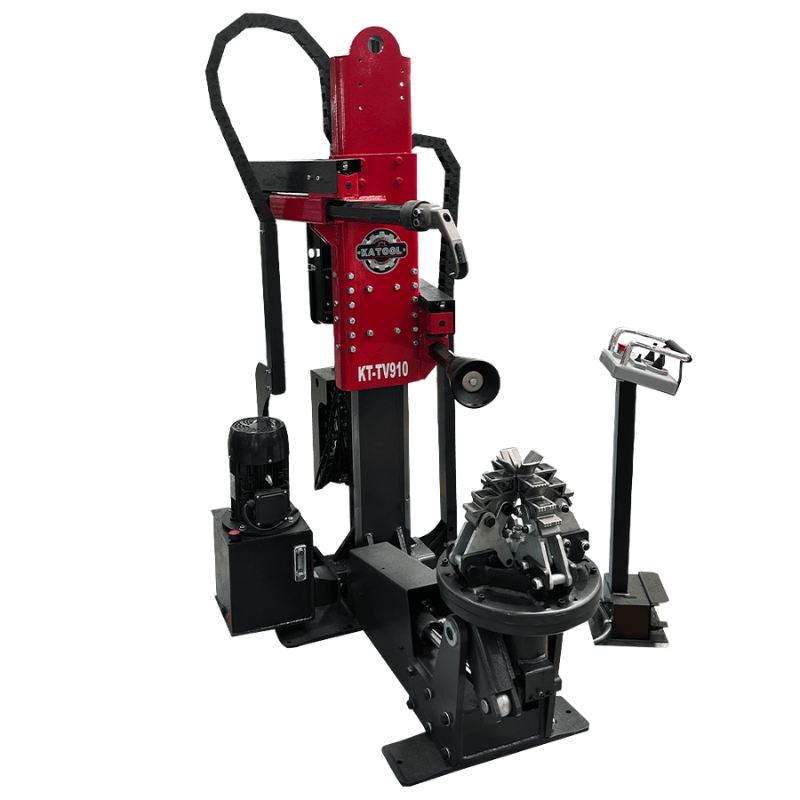

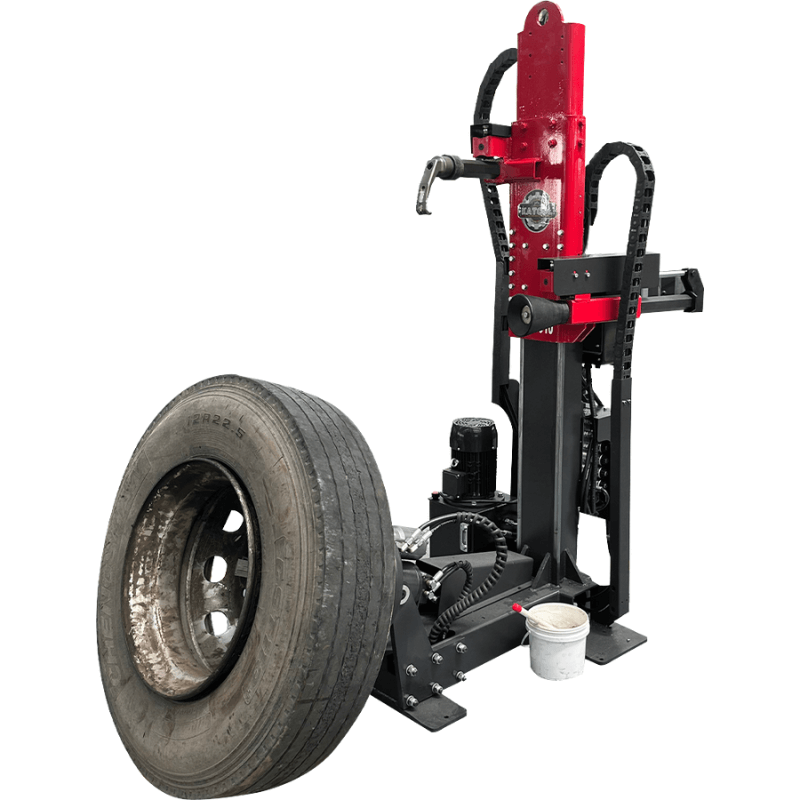

Katool KT-TV910 Hydraulic Truck Tire Changer

The Katool TV910 Hydraulic Truck Tire Changer is a heavy-duty, electro-hydraulic solution designed for professional tire service operations handling truck, bus, tractor, and industrial vehicle tires. Built to manage demanding workloads, the TV910 delivers consistent power, controlled operation, and reliable performance for large-diameter and high-weight wheels.

With an outer rim clamping capacity from 14" to 42" and support for wheels up to 55" in diameter, this machine offers exceptional versatility across a wide range of commercial tire applications. Its 4.0 HP hydraulic motor, combined with high working pressure and oil flow, ensures smooth bead breaking and efficient mounting and demounting, even on reinforced or heavy tires.

Designed with operator safety and efficiency in mind, the TV910 features multifunctional controls, ergonomically positioned pedals, and a low-voltage electrical system. Despite its industrial strength, the machine operates at a low noise level, making it well-suited for busy workshops and service centers that require both power and comfort.

Tire Changer TV910 Specification:

Outer Rim Capacity: 14" – 42"

Inside Rim Clamp Range: 18" - 48"

Maximum Wheel Diameter: 55"

Maximum Wheel Width: 31"

Maximum Working Pressure: ≤ 18,855 PSI

Power Supply: 220V, Single Phase, 60 Hz

Hydraulic Motor Output: 4.0 HP

Maximum Hydraulic Oil Flow: 83.2 GPM

Maximum Tire Weight Capacity: 3,306 lbs

Net Weight: 1,256 lbs

Shipping Weight: 1,388 lbs

Shipping Dimensions: 51" L × 43" W × 72" H

Noise Level: < 70 dB(A)

Key Features

• Electro-hydraulic design for truck, bus, tractor, and earth-moving vehicle tires

• Wide external clamping range from 14" to 42"

• Multifunctional controls allow safe operation from multiple positions

• Bead breaker disk and beak system designed for strong bead engagement

• Ergonomically positioned foot pedals and helper controls

• Low-voltage electrical system for enhanced operator safety

• Well-lit display for clear visibility in bright work environments

• Includes cone sets for passenger, light truck, truck, and bus wheels

• Heavy-duty steel wing nut for secure wheel mounting

• 220V single-phase motor

• Protective safety hood

• One-year (12 months) manufacturer warranty on all parts and against product defects.

• Free freight shipping to the contiguous 48 states and 30-day returns with no restocking fee. Questions about this product? Contact Triumph Auto Lift Center at support@TriumphAutoLiftCenter.com or (320) 279-4890.

Ideal For

• Truck tire service centers and commercial shops

• Fleet maintenance operations servicing heavy vehicles

• Agricultural and construction equipment service

• High-volume tire shops handling large wheels
