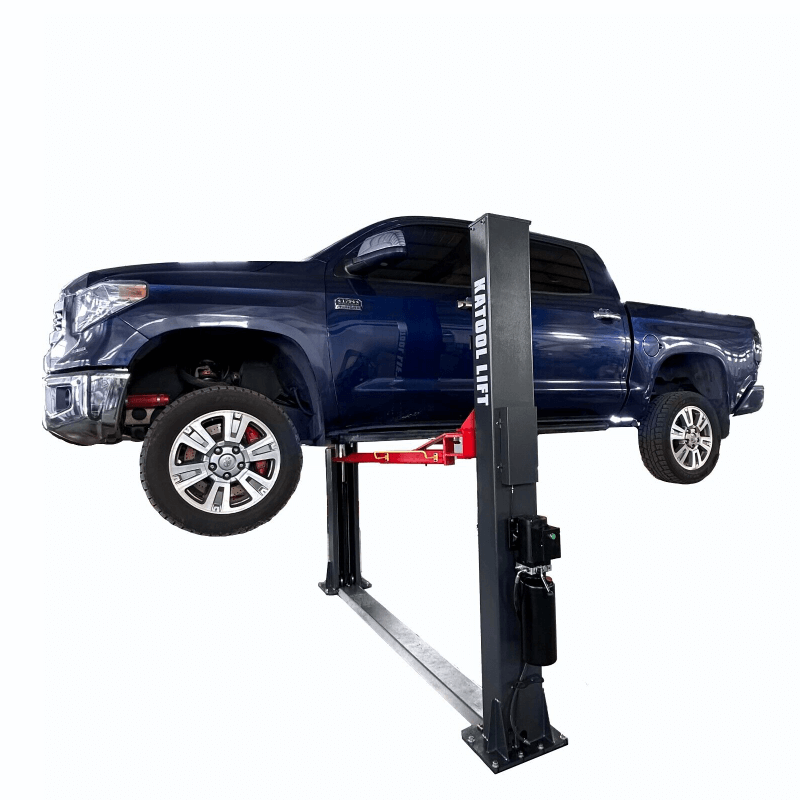

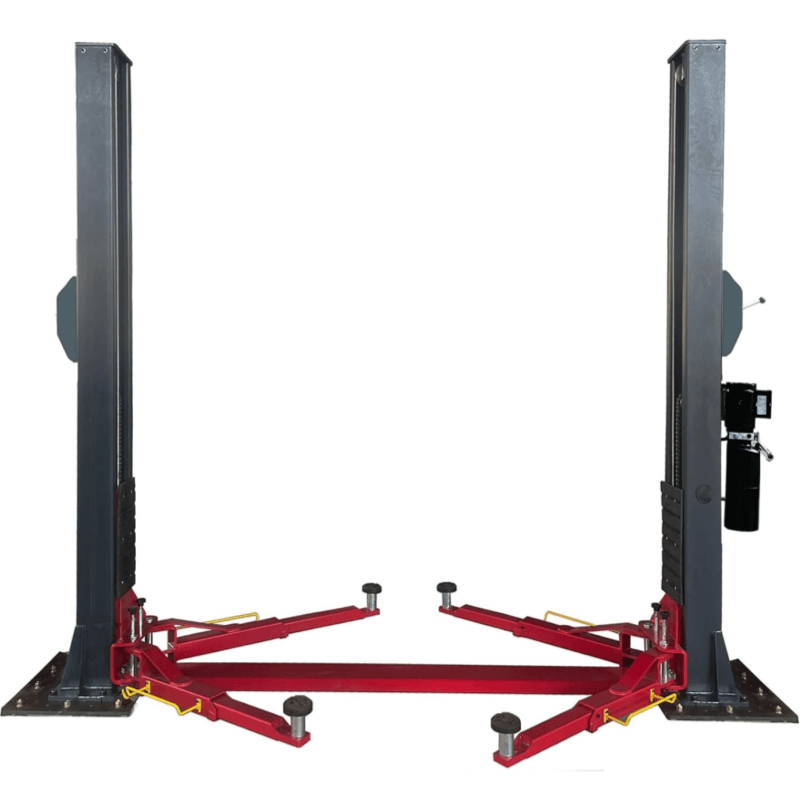

KT-H120D 12,000 lb 2 Post Lift
SKU: KT-H120D-220v
Katool KT-H120D 2 Post Lift Ready to tackle even the heaviest vehicles with confidence? Introducing the Katool KT-H120D, a powerhouse lift designed to revolutionize your workspace. This heavy-duty beast has a massive 12,000 lb lifting capacity, handling everything from cars to trucks with ease. Safety is built-in with CE approval and rigorous testing exceeding the most extreme industry standards. The single-point lock release and symmetric arm design streamline your workflow, while the extended support adapter accommodates a wider range of vehicles.
Rated for 12,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
CE Approved and Certified
115% dynamic loading capacity standard
150% static loading capacity tested
Base plate design
Dual hydraulic chain-drive cylinders
Single-point lock release system
Rubber door protection pads
Katool Warranty:
Ideal For
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Technical Specifications
Lifting Capacity |
12,000 lbs |
Maximum Lifting Height |
74.8" |
Column Height |
110.9" |
Drive-Thru Clearance |
110.2" |
Column Width |
124.8" |
Cable Thickness |
3/8" |
Support Adapter |
Extended, adds 4" |
Motor |
4.0 HP, 220V / 60Hz / Single Phase |
Oil Type |
AW-46 or AW-32 (cold climates) |
Concrete Requirements |
Minimum of 6"-3000psi |
CE Approved and Certified |
115% dynamic loading capacity standard |
Base plate design |
Dual hydraulic chain-drive cylinders |
