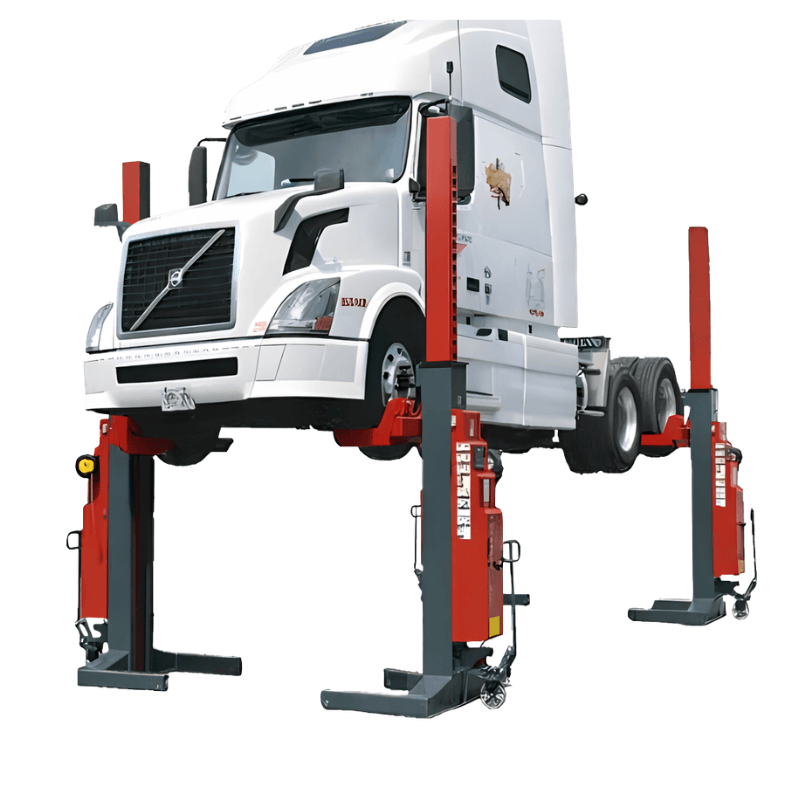

Omer MCO19 19,000lb Mobile Column Lift - ALI Certified
SKU: MCO19 -Wired - 2
MCO19 19,000lb Mobile Column Lift When it comes to lifting heavy SUVs, trucks, or a sedated Megatron, the Omer MCO19 19,000 lb Mobile Column Lift doesn’t mess around. Whether you’re handling buses, bulletproof Rolls-Royces, or off-road beasts, this lift is designed to take on the toughest jobs. With a 19,000 lb capacity per column and the ability to work in sets of up to 10 columns, the MCO19 can lift a jaw-dropping 190,000 lbs. Need to lift something massive? This system’s got you covered. Plus, with low-profile adjustable forks that accommodate tire sizes ranging from 23.6" to 53.1", it’s ready for any job that comes its way. The best part?
Rated for 19,000 lb, it's suited to heavy-duty fleet and commercial vehicle service, bus and truck maintenance facilities, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
Made in Italy
Superior Durability: Heavy-duty construction with double-bake powder coating for corrosion resistance.
Flexibility: Operates as single, paired, or sets of up to 10 columns for customized lifting solutions.
Precision Control: Tablet-style LCD display with live updates on load status, height, and diagnostic codes.
Advanced Safety: Dual hydraulic and mechanical locking system ensures secure operations at all times.

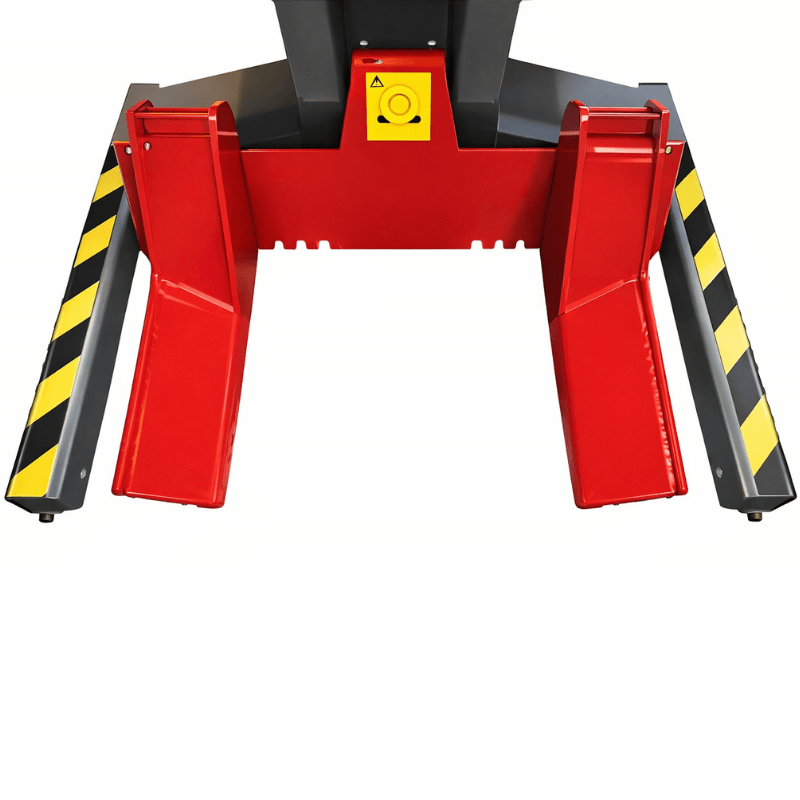

Wide Compatibility: Adjustable forks support tire diameters from 23.6” to 53.1”, accommodating diverse vehicle types.
Efficient Operation: Achieves maximum lift height in just 85 seconds, with two-speed lowering for added safety.

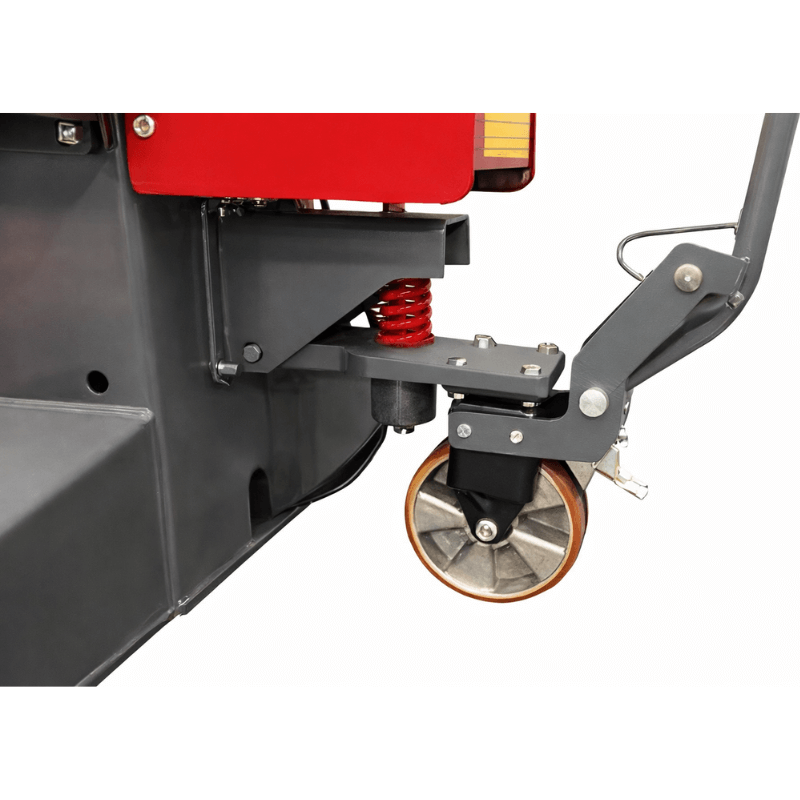

Enhanced Mobility: Spring-loaded steering handle with a tight turning radius for easy maneuverability on uneven floors.
Ideal For
Heavy-duty fleet and commercial vehicle service
Bus and truck maintenance facilities
Shops needing flexible, relocatable heavy-vehicle lifting without in-ground installation
Technical Specifications
Capacity per Column |
19,000 lbs |
Maximum System Capacity |
76,000 lbs with 4 columns (190,000 lbs with 10 columns) |
Lift Stroke |
69" / 1753mm |
Lifting/Lowering Time |
85 seconds |
Power Voltage |
24V battery-powered |
Battery Capacity |
100 Ah premium lead-calcium batteries |
Charging System |
110V/220V, single-phase |
Height |
89.8" / 2281mm |
Width |
45.3" / 1151mm |
Length |
45.5" / 1156mm |
Adjustable Fork Range |
23.6" - 53.1" / 599mm - 1348mm |
Safety Locks |
Hydraulic and mechanical locks every 3.5" / 89mm |
Control System |
5" color LCD display with live diagnostics |
Average Lift Cycles Before Recharge |
25 cycles at 85% load capacity |
