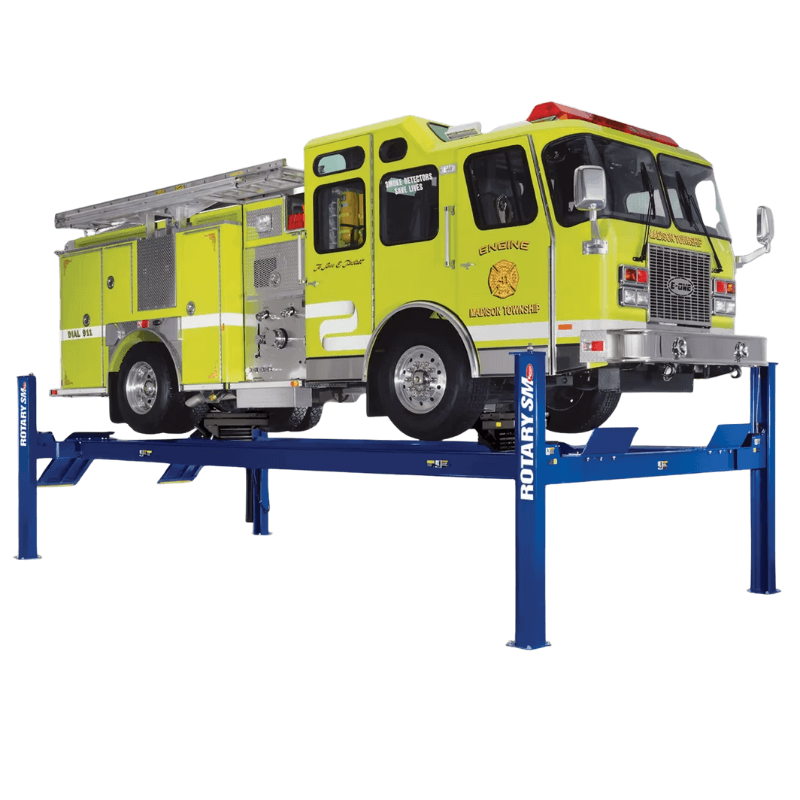

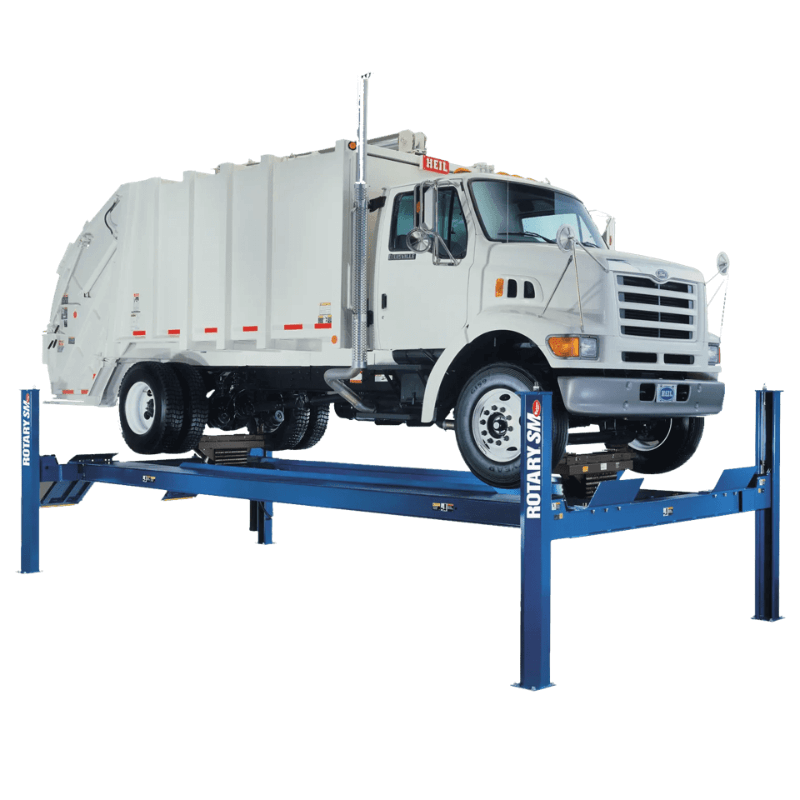

Rotary SM30 30,000lb 4 Post Lift - ALI Certified
SKU: SM30-S-RED
The Rotary SM30 is a heavy-duty four-post lift engineered to handle light- and medium-duty service demands with exceptional strength and stability. With a massive 30,000 lb lifting capacity, this lift is designed for shops servicing a wide range of vehicles, including cars, vans, trucks, and commercial fleets that require higher load capability without sacrificing control or precision. Built for professional environments, the SM30 features polymer rollers that deliver smooth, quiet operation, helping reduce shop noise while maintaining consistent lifting performance.
Rated for 30,000 lb, it's suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
Unit does NOT include Rolling Jacks
Compatible rolling jack (sold separately): Rotary RJ152 15,000 lb bridge jack
30,000 lb lifting capacity for light and medium-duty commercial vehicles
Heavy-duty four-post design for maximum stability and load distribution
Polymer rollers for smooth, quiet lift operation
Dual-Function Sentinel Lock™ system for enhanced safety and control
Wide runways support larger vehicles with confidence
Multiple wheelbase configurations for versatile shop layouts
Ideal For
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Technical Specifications
Lifting Capacity |
30,000 lbs |
Maximum Wheelbase |
235" / 271" / 307" |
Rise Height |
68" |
Overall Length |
308 1/8" / 344 1/8" / 380 1/8" |
Overall Width |
148 13/16" |
Inside of Columns |
132" |
Distance Between Columns |
249" / 285" / 321" |
Column Height |
84 3/4" |
Runway Width |
24" |
Runway Height |
8 3/8" |
Width Between Runways (Min.) |
41" |
Width Between Runways (Max.) |
48" |
Motor |
4 HP |
Voltage (Single Phase) |
208V–230V |
